IHDT56EF1Portable Cellular/PCS Transceiver (CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: START HERE > A840 CDMA DR AFT 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola A840 wireless phone. CLR Key Volume Keys Adjust earpiece & ringer volume. Smart Key Select menu items, make & end calls, set ring styles. Voice Recognition Key Press once to activate speaker- independent voice recognition. Press & hold to record voice records, contacts, & shortcut names. Accessory Port Send Key Make & answer calls, view recently dialed calls list. Left Soft Key Perform functions identified by left display prompt. Right Soft Key Perform functions identified by right display prompt. 5-Way Navigation Key Scroll through menus & lists, set feature values. In menus, press k to select highlighted item. Power/End Key Turn phone on/off, end phone calls, exit menus. Camera Key DR AFT 2 Check It Out! FeatureDescription Take Photo Press the camera key to activate the camera, point lens at subject, press CAPTURE(+) to take a photo. Send Photo Send the photo to a phone number Press STORE(+) >Send In Message. Headset Jack Camera Lens Take photos to send to others & use on your phone. External Display Integrated Short- Range Flash Projected when taking flash photos. Camera Key DR AFT 3 Set Photo as Picture Caller ID After you capture a photo, assign it to a phonebook entry to enable picture caller ID: M >Multimedia >Pictures >photo M >Apply As>Phonebook Entry Send Multimedia Message Send a multimedia messag with pictures, animations, and sounds: M>Messages>Create Message >New Multimedia Msg Send LetterSend a multimedia letter: M>Messages>Create Message > New Short Msg Read Multimedia Message Read a new multimedia message or letter you have received: Press READ(+) Select Account (CDMA/GSM) Select from CDMA and GSM accounts: M >Settings>Phone Mode > desired account FeatureDescription 032380o 032380o 032380o DR AFT 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners. © Motorola, Inc. 2004 Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number:6809482A51-O DR AFT 5 Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Turning On Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 12 Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Changing the Call Alert. . . . . . . . . . . . . . . . . . . . . . . . . . 15 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 15 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Taking and Sending a Photo. . . . . . . . . . . . . . . . . . . . . . 16 TTY Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Learning to Use Your Phone. . . . . . . . . . . . . . . . . . . . . . 21 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 24 Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Using the External Display . . . . . . . . . . . . . . . . . . . . . . . 39 Using the Handsfree Speaker. . . . . . . . . . . . . . . . . . . . . 40 Changing a Code, PIN, or Password . . . . . . . . . . . . . . . 40 Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 41 If You Forget a Code, PIN, or Password . . . . . . . . . . . . . 42 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 DR AFT 6 Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . 51 Setting an Alert …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 SPECIFICATION COMPLIANCE STATEMENT Engineer-i n-Charge Equipment Authorization Bran ch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT56EF1 for penta-Mode mobile station cellular use is capable of compliance with the TIA/EIA-95-B Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, December 1998. Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station-Land Station Compatibility Specification. Michael Cruz Engineering Manager Motorola PCS 600 N US Highway 45 Libertyville, IL 60048 Phone – 8475232455 Email – [email protected] Exhibit 2A APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under my supervision is hereby duly certified. Michael Cruz Engineering Manager Motorola PCS 600 N US Highway 45 Libertyville, IL 60048 Phone – 8475232455 Email – [email protected] Exhibit 2B APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. Exhibit 2C

Date: June 9, 2004 Subject: Request for additional information regarding FCC ID: IHDT56EF1 (Portable Cellular/PCS CDMA transceiver) Reference: Application Received: 05/24/2004 Correspondence Reference Number: 240609A.IHD Confirmation Number: TC4180 Date of Original Email: 06/09/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. Several items in the EMC report are listed as being past their cal due date. Please address. Response: Please refer to the following revised equipment calibration list: Manufacturer Equipment Type Model No. Serial Number Cal. Due Date Rohde & Schwarz Receiver ESI26 838786/010 5/17/2005 Hewlett-Packard EMC Analyzer 8593EM 3536A00118 10/2/2004 Hewlett-Packard EMC Analyzer 7405 US39440191 11/13/2004 Miteq Preamplifier 0.1-26.5GHz NSP2650-NF-S 966350 1/8/2005 ETS DRG Horn Antenna 3115 6222 9/29/2004 A.H. Systems Inc. DRG Horn Antenna SAS-2--/571 365 12/17/2004 ETS Log-Periodic Antenna 3148 1188 3/5/2005 ETS Biconical Antenna 3110B 3370 11/14/2004 Attenuator Weinschel AS-6 6675 10/14/2004 Attenuator Weinschel AS-6 6677 11/4/2004 Rohde & Schwarz Mobile Test Set CMD 80 DE29008 N/A Hewlett-Packard Signal Generator 83623B 3844A01195 6/20/2004 Thermotron Environmental Chamber S-4 31580 1/5/2005 Hewlett-Packard Pre-Amplifier 8347A 3307A02001 11/4/2004 Agilent Power Meter EE4418B GB40206388 12/5/2004 Agilent Power Sensor E4412B US38486321 11/23/2004 Hewlett-Packard Pre-Amplifier 8447F 2805A03419 5/19/2005 2. Please provide occupied bandwidth plots for both cellular CDMA and PCS CDMA operation. 1 Response: Please refer to the following procedure and plots: OCCUPIED BANDWIDTH CFR Part 2.1049, 22.917, 24.238 Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of the EMC analyzer through a specialized RF connector and a 10dB passive attenuator. The amplitude of the spectrum analyzer is corrected for the attenuator and any other applicable losses. The analyzer is set for Peak Detector and each trace is set for Max Hold. A fully charged battery was used for the supply voltage. The middle channel within the designated frequency block was measured. For digital modulation, the lower and upper band edge plots are displayed. Measurement Results Attached 2 Measurement Results – CDMA 800 & CDMA PCS CDMA 800 – Channel 384 (836.52 MHz) OCBW RESULTS CDMA 1900 – Channel 600 (1880 MHz) OCBW RESULTS 3 3. There is a discrepancy between the conductivity value for 1880 MHz body tissue measured on 5/10/04 on p.4 of the SAR report (1.59) and the SAR plots (1.58). Please clarify. Response: Please refer to the supplemental SAR report submitted on 6/9/04 4. Please clarify the model numbers of the body-worn accessories- there are discrepancies between the SAR report and the SAR plots. Response: Please refer to the supplemental SAR report submitted on 6/9/04 5. Please confirm that the following is a typo: page 8 of the EMC report lists the BAP function as being used to measure EIRP, instead of the MAP function normally used for CDMA. Response:, Confirmed. The Modulation Average mode was used during the EIRP measurements. 4

APPLICANT: MOTOROLA FCC ID: IHDT56EF1 May 21, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EF1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Exhibit 13 APPLICANT: MOTOROLA FCC ID: IHDT56EF1 Libertyville, IL 60048-5343 Exhibit 13

Date: July, 26, 2004 Subject: Request for additional information regarding FCC ID: IHDT56EF1 (Portable Cellular/PCS CDMA transceiver) Reference: Correspondence Reference Number: 13035 731 Confirmation Number: TC219714 Date of Original Email: 07/20/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1) Please upload new SAR reports with older version of PDF format. Currently FCC software is not compatible with the files provided. Response: The SAR report (files: EF-EX11 1of2.pdf & EF-EX11 2of2.pdf) compatible with Adobe Acrobat version 5 has been resubmitted. 2) User manual body worn statement suggests a SAR body worn measurement was made at a 2.5 cm gap. Such data could not be located. Please provide. Response: Please refer to the supplemental SAR report dated July 23, 2004. 1

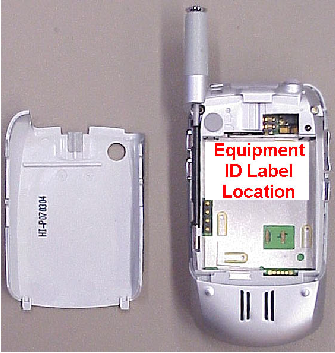

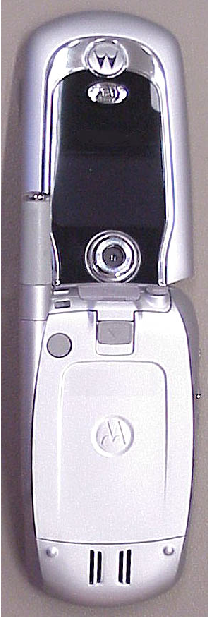

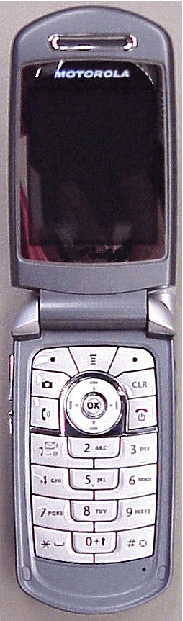

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EF1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EF1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 EXHIBIT 9 Main Board (shields on) Main Board (shields off) 1 of 3 Main Board Rear View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 EXHIBIT 9 Keypad Front View Keypad Rear View 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 EXHIBIT 9 Housing Internal Views 3 of 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EF1 Date of test: Date of Report: 04/24/2004 to 05/10/2004 05/26/2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests: Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EF1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION........................................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST..................................................................................................................3 2.1 Antenna description.................................................................................................................................................................3 2.2 Device description.....................................................................................................................................................................3 3. TEST EQUIPMENT USED.........................................................................................................................................................3 3.1 Dosimetric System...................................................................................................................................................................3 3.2 Additional Equipment...............................................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID........................................................................4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................................................5 6. TEST RESULTS..........................................................................................................................................................................6 6.1 Head Adjacent Test Results....................................................................................................................................................6 6.2 Body Worn Test Results.........................................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.......................12 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE............................................13 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...............................................18 APPENDIX 4: PROBE CALIBRATION CERTIFICATE......................................................................................................21 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE.......................................................................................22 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................................................23 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST...............................................................................................26 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56EF1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type External Location Upper Right Length 114 mm Dimensions Width 8 mm Configuration Extendable Whip 2.2 Device description FCC ID Number IHDT56EF1 Serial number 338CA46B Mode(s) of Operation 800 CDMA GSM 900 GPRS 900 GSM 1800 GPRS 1800 1900 CDMA Modulati…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EF1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 8 8 Appendix 3 SAR distribution plots for Body Worn Configuration 338CA46BCh# 1013 / Pwr Step: ALWAYS UP An tenna Position: Extended Type of Modulation: 800 CDMA Battery Model #: SNN5695A Accessory Model # =Leather Pouch CHYN4459R1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 1 Section; Pos ition: (0°,0°); Frequency: 825 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(5.90,5.90,5.90); Crest factor: 1.0; 835 MHz Head & Body: σ = 0.98 mho/m ε r = 55.4 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.864 mW/g, SAR (10g): 0.562 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0Penetration depth: 12.7 (11.8, 13.8) [mm]Powerdrift: 0.19 dB04/26/04 16:47Motorola, Inc. 338CA46BCh# 777 / Pwr Step: ALWAYS UP Antenna Position: Extended Type of Modulation: 800 CDMA Battery Model #: SNN5695A Accessory Model # =Leather Pouch CHYN4459R1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 1 Section; Pos ition: (0°,0°); Frequency: 848 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(5.90,5.90,5.90); Crest factor: 1.0; 835 MHz Head & Body: σ = 0.98 mho/m ε r = 55.4 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.961 mW/g, SAR (10g): 0.604 mW/g, (Worst-case extrapolation)Coarse: Dx = 10.0, Dy = 10.0, Dz = 10.0Penetration depth: 11.9 (10.4, 13.9) [mm]Powerdrift: -0.02 dB04/26/04 20:37Motorola, Inc. 338CA46BCh# 600 / Pwr Step:always up An tenna Position: ret Type of Modulation:1900 cdma Battery Model #: SNN5695A Accessory Model # = SYN8763B UNIVERSAL CLIPR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(4.70,4.70,4.70); Crest factor: 1.0; 1880 MHz Head & Body: σ = 1.58 mho/m ε r = 50.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.40 mW/g, SAR (10g): 0.691 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 9.2 (8.8, 9.8) [mm]Powerdrift: -0.21 dB04/28/04 09:33Motorola, Inc. 338CA46BCh# 600 / Pwr Step: ALWAYS UP Antenna Position: RET Type of Modulation:1900 CDMA Battery Model #: EXT BATTERY Accessory Model # = SYN9766 CASE SYN8763A UNIVERSAL BELT CLIPR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(4.70,4.70,4.70); Crest factor: 1.0; 1880 MHz Head & Body: σ = 1.58 mho/m ε r = 50.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.16 mW/g, SAR (10g): 0.584 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 9.2 (9.0, 9.6) [mm]Powerdrift: -0.07 dB04/28/04 23:58Motorola, Inc. 338CA46BCh# 600 / Pwr Step:always up An tenna Position:EXT Type of Modulation:1900 cdma Battery Model #: SNN5695A Accessory Model # = SYN8763B UNIVERSAL CLIPR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(4.70,4.70,4.70); Crest factor: 1.0; 1880 MHz Head & Body: σ = 1.58 mho/m ε r = 50.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.393 mW/g, SAR (10g): 0.244 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 11.0 (10.5, 11.6) [mm]Powerdrift: -0.07 dB04/28/04 11:21Motorola, Inc. 338CA46BCh# 600 / Pwr Step: ALWAYS UP Antenna Position: EXT Type of Modulation:1900 CDMA Battery Model #: EXT BATTERY Accessory Model # = SYN9766 CASE SYN8763A UNIVERSAL BELT CLIPR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(4.70,4.70,4.70); Crest factor: 1.0; 1880 MHz Head & Body: σ = 1.58 mho/m ε r = 50.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.290 mW/g, SAR (10g): 0.182 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 11.0 (10.8, 11.2) [mm]Powerdrift: -0.02 dB04/29/04 01:44Motorola, Inc. 338CA46BCh# 600 / Pwr Step: ALWAYS UP Antenna Position: Ret Type of Modulation: CDMA 1900 Battery Model #: SNN5695A Accessory Model # = SYN9766 CASE AND SYN8631A WISHBONE CLIPR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(4.70,4.70,4.70); Crest factor: 1.0; 1880 MHz Head & Body: σ = 1.58 mho/m ε r = 51.3 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.694 mW/g, SAR (10g): 0.425 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 10.5 (10.3, 11.0) [mm]Powerdrift: -0.07 dB05/10/04 19:59Motorola, Inc. 338CA46BCh# 600 / Pwr Step: ALWAYS UP Antenna Position: Ext Type of Modulation: CDMA 1900 Battery Model #: SNN5695A Accessory Model # = SYN9766 CASE AND SYN8631A WISHBONE CLIPR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(4.70,4.70,4.70); Crest factor: 1.0; 1880 MHz Head & Body: σ = 1.58 mho/m ε r = 51.3 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.689 mW/g, SAR (10g): 0.411 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 10.7 (10.4, 11.2) [mm]Powerdrift: -0.04 dB05/10/04 21:09Motorola, Inc. 338CA46BCh# 600 / Pwr Step: ALWAYS UP Antenna Position: RET Type of Modulation:1900 CDMA Battery Model #: SNN5695A Accessory Model # = SYN0912A Plastic HolderR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ES3DV3 - SN3037 - FCC Body; ConvF(4.70,4.70,4.70); Crest factor: 1.0; 1880 MHz Head & Body: σ = 1.58 mho/m ε r = 50.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.16 mW/g, SAR (10g): 0.692 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 10.0 (9.6, 10.6) [mm]Powerdrift: -0.10 dB04/28/04 18:33Motorola, Inc. 338CA46BCh# 600 / Pwr Step: ALWAYS UP Antenna Position: EXT Type of Modulation:1900 CDMA Battery Model #: SNN5695A Accessory Model # = SYN0912A Plastic HolderR1 Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition…

Text truncated - open the document above for the full version.

June 9, 2004 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56EF1) Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56DF1) . The requested information is addressed below in the same numbering sequence received. 3. There is a discrepancy between the conductivity value for 1880 MHz body tissue measured on 5/10/04 on p.4 of the SAR report (1.59) and the SAR plots (1.58). Please clarify. Response: The table on p.4 had a typo. The SAR plot had the correct value. Pleas see a corrected table below. Dielectric Parameters f (MHz) Tissue type Limits / Measured ε r σ (S/m) Temp (°C) Measured, 04/24/04 41.50 0.91 18.1 Measured, 04/25/04 41.50 0.91 18.8 Measured, 04/26/04 40.50 0.89 18.8 Head Recommended Limits 41.5 ±5% 0.90 ±5% 18-25 Measured, 04/26/04 55.40 0.98 19.3 Measured, 04/27/04 54.50 0.98 18.7 Measured, 05/10/04 53.80 0.98 19.0 835 Body Recommended Limits 55.2 ±5% 0.97 ±5% 18-25 Measured, 04/27/04 38.60 1.47 18.1 Head Recommended Limits 40.0 ±5% 1.40 ±5% 18-25 Measured, 04/28/04 50.90 1.58 19.1 Measured, 05/10/04 51.30 1.58 18.9 1880 Body Recommended Limits 53.3 ±5% 1.52 ±5% 18-25 4. Please clarify the model numbers of the body-worn accessories- there are discrepancies between the SAR report and the SAR plots. RESPONSE: The accessories used for the SAR measurements were: A Plastic Holster with a Metal Belt Clip: SYN0912A A Leather Pouch with Metal Belt Clip: CHYN4459A A Leather Case (with no belt clip): SYN9766A Belt Clips for Leather Case above : With No Metal: SYN8631A With Metal: SYN8763B Some shorthand was used on the SAR plots. Plots that specify “Accessory Model: SYN8763B”, used the Leather Case SYN9766A with the metal belt clip SYN8763B. Plots that specify “Accessory Model: SYN8631A”, used the Leather Case SYN9766A with the no metal belt clip SYN8631A.

July 23, 2004 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56EF1) Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT6DT1) . The requested information is addressed below in the same numbering sequence received. 2) User manual body worn statement suggests a SAR body worn measurement was made at a 2.5 cm gap. Such data could not be located. Please provide. RESPONSE: The Body-Worn Operation statement in the user manual is; “If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch from your body when transmitting.” The DUT was tested with a leather case (SYN9766A) & belt clip (SYN8631A), neither of which contain any metal. This leather case and belt clip combination provides some separation between the phone’s antenna and the SAR measurement phantom. This combination provides 22mm of separation with the DUT’s antenna retracted and 26mm of separation with the DUT’s antenna extended. Additionally, OET Bulletin 65 Supplement C 01-01 states: Body-worn accessories may not always be supplied or available as options for some devices that are intended to be authorized for body-worn use. A separation distance of 1.5 cm between the back of the device and a flat …

Text truncated - open the document above for the full version.
