IHDT56EH2Dual-Band GSM/EDGE Portable Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EH2 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 HELLOMOTO Introducing your new Motorola V186 GSM wireless phone. Here’s a quick anatomy lesson. 040262a Left Soft Key Navigate menus.Open menus. Volume Keys Charge up. Right Soft Key Turn on & off, hang up, exit menus. Go handsfree. Make & answer calls. 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2004. The information contained in Motorola's user's guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user's guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. Manual Number: 680XXXXAXX-O 3 feature locator main menu nPhonebook sRecent Calls • Received Calls • Dialed Calls • Notepad • Call Times •Data Times • Data Volumes eMessages • Create Message • Message Inbox •Voicemail •Browser Msgs • Info Services •Quick Notes •Outbox •Drafts •MMS Templates ÉOffice Tools • SIM Tool Kit Apps * •Calculator • Datebook • Shortcuts •Alarm Clock •Chat • Dialing Services •Voice Dial •Fixed Dial •Quick Dial • Service Dial * QGames & Apps áWeb Access •Browser • Web Shortcuts •Stored Pages •History •Go To URL •Browser Setup • Web Sessions hMultimedia •Themes •Pictures • Sounds • MotoMixer ãIM • Log In • Offline Convs. •IM Account • Offline Settings •Help w Settings • (see next page) * optional features This is the standard main menu layout. Your phone’s menu may be a little different. 4 settings menu lPersonalize • Home Screen • Main Menu •Color Style • Greeting • Wallpaper • Screen Saver •Quick Dial tRing Styles •Style •style Detail H Call Forward • Voice Calls •Fax Calls • Data Calls • Cancel All • Forward Status UIn-Call Setup • In-Call Timer •Call Cost* • My Caller ID • Talk and Fax • Answer Options • Call Waiting ZInitial Setup • Time and Date • 1-Touch Dial • Display Timeout • Backlight •TTYSetup* •Scroll • Language • Contrast •DTMF • Master Reset • Master Clear mPhone Status • My Tel. Numbers • Credit Info/Available * • Active Line * • Battery Meter • Other Information SHeadset • Auto Answer •Voice Dial JCar Settings • Auto Answer • Auto Handsfree • Power-Off Delay • Charger Time jNetwork •New Network •Network Setup • Available Networks • My Network List • Service Tone •Call Drop Tone uSecurity • Phone Lock • Lock Application • Fixed Dial •Call Barring • SIM PIN •New Passwords • Certificate Mgmt cJava Settings • Java System • Delete All Apps • App Vibration • App Volume • App Backlight * optional features 5 contents contents feature locator. . . . . . . . . 3 essentials . . . . . . . . . . . . 7 about this guide . . . . . . 7 SIM card . . . . . . . . . . . . 8 battery. . . . . . . . . . . . . . 8 removable lens . . . . . . 10 turn it on & off. . . . . . . 11 make a call . . . . . . . . . 11 answer a call . . . . . . . . 11 your phone number . . 12 main attractions . . . . . . 13 multimedia messages. 13 USB connectivity . . . . 15 basics. . . . . . . . . . . . . . . 16 display . . . . . . . . . . . . . 16 menus. . . . . . . . . . . . . 20 text entry . . . . . . . . . . 22 volume . . . . . . . . . . . . 26 navigation key . . . . . . . 27 external display . . . . . . 27 handsfree speaker . . . 27 codes & passwords . . 28 lock & unlock phone . . 28 customize . . . . . . . . . . . 29 ring style . . . . . . . . . . . 29 time & date. . . . . . . . . 30 wallpaper . . . . . . . . . . 30 screen saver . . . . . . . . 30 themes . . . . . . . . . . . . 31 display appearance . . . 31 answer options . . . . . . 32 calls . . . . . . . . . . . . . . . . 33 turn off a call alert . . . . 33 recent calls . . . . . . . . . 33 redial . . . . . . . . . . . . . . 34 return a call . . . . . . . . . 35 notepad. . . . . . . . . . . . 35 hold or mute a call . . . 35 call waiting . . . . . . . . . 36 caller ID. . . . . . . . . . . . 36 emergency calls . . . . . 37 international calls . . . . 37 1-touch dial . . . . . . . . . 37 voicemail. . . . . . . . . . . 38 6 contents other features . . . . . . . 39 advanced calling . . . . 39 phonebook . . . . . . . . 41 messages . . . . . . . . . 45 instant messaging . . . 46 chat . . . . . . . . . . . . . . 47 personalizing . . . . . . . 47 call times & costs . . . 50 handsfree . . . . . . . . . 50 data & fax calls . . . . . 52 network . . . . . . . . . . . 52 personal organizer . . . 52 security . . . . . . . . . . . 54 fun & games . . . . . . . 54 troubleshooting . . . . . 56 specific absorption rate data . . . . . . . . . . . . . . . 57 index . . . . . . . . . . . . . . 59 7 essentials essentials about this guide This guide shows how to locate a menu feature as follows: Find it: Press M >Recent Calls >Dialed Calls This example shows that, from the home screen, you press M to open the menu, highlight and select sRecent Calls, then highlight and select Dialed Calls. Press S to scroll to and highlight a menu feature. Press the SELECT key to select the highlighted menu feature. symbols This means a feature is network/subscription dependent and may not be available in all areas. Contact your service provider for more information. This means a feature requires an optional accessory. CAUTION: Before usin…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56EH2 ATTESTATION STATEMENTS Transceiver type IHDT56EH2 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 12 Ang Mo Kio St. 64, Ang Mo Kio Industrial Park 3, Singapore 569088 and 600 N. US Highway 45, Libertyville, Illinois. NAME: LIEW, SWEE MIN TITLE: SR. ENGINEERING MANAGER, PERSONAL COMMUNICATIONS SECTOR APPLICANT MOTOROLA INC. FCC ID: IHDT56EH2 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56EH2) is in compliance with all applicable parts of the FCC Rules. NAME: Lim, Kim Mao TITLE: RF ENGINEER, PCS Development Date: February 4, 2005

APPLICANT: MOTOROLA FCC ID: IHDT56EH2 January 18, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EH2. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a dual band GSM portable transceiver, which operates in the 850 MHz and 1900 MHz PCS bands. This device contains 900/1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz GSM operations. Note: This equipment is essentially identical to FCC ID: IHDT56EH1, except for the addition of Enhanced Data rates for GSM Evolution (EDGE) capability. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

EXHIBIT 3 1of 3 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56EH2 Front View Rear View EXHIBIT 3 2of 3 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56EH2 Front View Flip Opened Rear View Flip Opened EXHIBIT 3 3of 3 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56EH2 Rear View with Battery Cover Removed

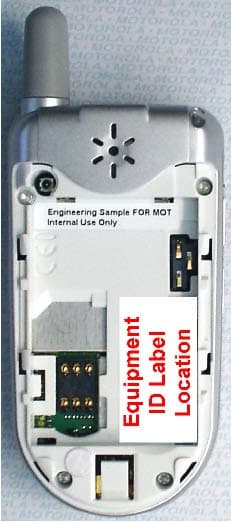

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EH2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EH2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

EXHIBIT 9 1of 3 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56EH2 Rear View Shields Removed Rear View EXHIBIT 9 2of 3 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56EH2 Front View with Keypad PoppleFront View EXHIBIT 9 3of 3 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56EH2 Internal View of Housings

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EH2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EH2 Date of test: Date of Report: 01/06/2005 to 01/12/2005 01/25/2005 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EH2 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EH2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 5 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 5 6. TEST RESULTS........................................................................................................................................ 6 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .......................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.... 11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE.......................................................................... 14 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 15 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................... 16 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EH2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56EH2). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type External Location Upper Right Corner Length 20mm Dimensions Width 10mm Configuration Helix 2.2 Device description FCC ID Number IHDT56EH2 Serial number G00E0300X4 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM GSM GSM EDGE EDGE EDGE EDGE Maximum Output Power Setting 32.50 dBm 32.50 dBm 30.00 dBm 30.00 dBm 32.50 dBm 32.50 dBm 30.00 dBm 30.00 dBm 29.00 dBm 29.00 dBm 28.00 dBm 28.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 2:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 824.2- 848.8 MHz 880.2- 91…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56EH2 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 15610-1 Report Date – January 27, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Mark Sidlow Title: Senior Electrical Engineer Date : January 27, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56EH2 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 850 Reference Plot 10 GSM 850 Occupied Bandwidth Plot 10 GSM 850 Ch128 Lower Band Edge 11 GSM 850 Ch251 Upper Band Edge 11 GSM 850 EDGE Reference Plot 12 GSM 850 EDGE Occupied Bandwidth Plot 12 GSM 850 EDGE Ch128 Lower Band Edge 13 GSM 850 EDGE Ch251 Upper Band Edge 13 GSM 1900 Reference Plot 14 GSM 1900 Occupied Bandwidth Plot 14 GSM 1900 Ch512 Lower Band Edge 15 GSM 1900 Ch810 Upper Band Edge 15 GSM 1900 EDGE Reference Plot 16 GSM 1900 EDGE Occupied Bandwidth Plot 16 GSM 1900 EDGE Ch512 Lower Band Edge 17 GSM 1900 EDGE Ch810 Upper Band Edge 17 Spurious Emissions at Antenna Terminals 18 GSM 850 Tabular and Graphical Data 19 GSM 1900 Tabular and Graphical Data 20 Field Strength of Spurious Emissions 21 GSM 850 Tabular and Graphical Data 22 GSM 1900 Tabular and Graphical Data 23 Frequency Stability 24 GSM 850 Tabular and Graphical Data 25 Test Report Number: 15610-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56EH2 GSM 1900 Tabular and Graphical Data 26 Field Strength of Spurious Emissions from Unintentional Radiators 27 GSM 850 Tabular and Graphical Data 28 GSM 1900 Tabular and Graphical Data 29 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 30 Figure A.2 – Substitution Measurement 30 Test Report Number: 15610-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56EH2 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 1900 Model Number: V186 Version: AAUG1792AA Serial Numbers: G00E0300NF, G00E0300QR Testing Complete Date: January 26, 2005 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 15610-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56EH2 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 1.26 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 21 dB 6 Field Strength of Spurious Emissions 9.9 dB 7 Frequency Stability 72 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 15610-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56EH2 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial NumberCal. Due Date Rohde & SchwarzReceiverESI26838786/0105/17/2005 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2005 Hewlett-PackardEMC Analyzer7405US3944019111/13/2005 MiteqPreamplifier 0.1-26.5GHzNSP2650-NF-S9663501/8/2006 ETSDRG Horn Antenna3115622210/4/2005 A.H. Systems Inc.DRG Horn AntennaSAS-2--/5712655/5/2005 ETSLog-Periodic Antenna314811883/5/2005 ETSBiconical Antenna3110B337011/14/2005 AttenuatorWeinschelAS-6667510/14/2005 AttenuatorWeinschelAS-6667711/4/2005 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011956/20/2005 ThermotronEnvironmental ChamberS-4315801/18/2006 Giga-TronicsPower Meter8651A86505614/8/200…

Text truncated - open the document above for the full version.
