IHDT56ER1Portable Cellular / PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V220 GSM wireless phone. 032471a Headset Jack Left Soft Key Perform function in lower left display. Power & End Key Turn phone on/off, end calls, exit menu system. Menu Key Right Soft Key Perform function in lower right display. Send Key Make & answer calls. 5-Way Navigation Key Scroll through menus & lists. Power Connector Volume Keys Voice Key Smart Key Select menu items. 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc., 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse- engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non- exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual Number: UGXXXX Cover Number: UGCGXXXX 3 Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . 13 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 18 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 19 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Taking and Sending a Photo . . . . . . . . . . . . . . . . . . . . . 21 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . 23 Receiving a Multimedia Message . . . . . . . . . . . . . . . . . 25 Playing Video Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using Ring Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using Event Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 29 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using the 5-Way Navigation Key . . . . . . . . . . . . . . . . . . 34 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Using the External Display . . . . . . . . . . . . . . . . . . . . . . 48 Using the Handsfree Speaker . . . . . . . . . . . . . . . . . . . . 49 Changing a Code, PIN, or Password. . . . . . . . . . . . . . . 49 4 Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 50 If You Forget a Code, PIN, or Password . . . . . . . . . . . . . 51 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Storing Your Name and Phone Number . . . . . . . . . . . . . 55 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . 55 Setting a Ring Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 56 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 57 Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . . 58 Setting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . 59 Setting Display Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Setting Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . 60 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . . 61 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . . 61 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . . 63 Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Calling an Emergency Number . . . .…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56ER1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT56ER1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Electronics Pte. Ltd., Ang Mo Kio Street 64, Ang Mo Kio Industrial Park 3, Singapore 569088. Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Then Yeow Seng TITLE: Senior Engineer Manager Personal Communications Sector Date: March 30, 2004 Exhibit 2A APPLICANT MOTOROLA INC. FCC ID: IHDT56ER1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56ER1) is in compliance with all applicable parts of the FCC Rules. NAME: Chan Chin Sen TITLE: Electrical Lead, V220 Date: 3/23/03 Exhibit 2B

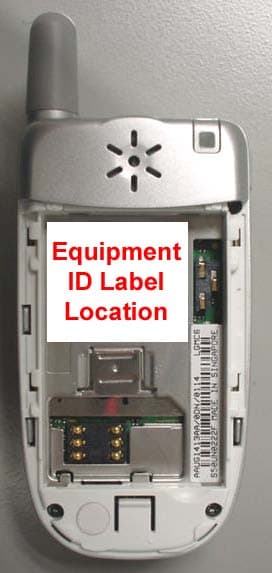

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56ER1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56ER1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER1 EXHIBIT 9 Rear View without shields Front View Rear View

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56ER1 Date of test: Date of Report: 03/04/04 – 03/07/04 03/19/04 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56ER1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION......................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST....................................................................................3 2.1 Antenna description................................................................................................................................................ 3 2.2 Device description ................................................................................................................................................. 3 3. TEST EQUIPMENT USED........................................................................................................................4 3.1 Dosimetric System................................................................................................................................................. 4 3.2 Additional Equipment .......................................................................................................................................... 4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID.............................................4 5. SYSTEM ACCURACY VERIFICATION..................................................................................................5 6. TEST RESULTS........................................................................................................................................6 6.1 Head Adjacent Test Results ................................................................................................................................. 6 6.2 Body Worn Test Results ....................................................................................................................................... 8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION....10 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE........................11 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...........................14 APPENDIX 4: PROBE CALIBRATION CERTIFICATE...........................................................................16 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................17 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET...................................................................18 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ....................................................................21 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56ER1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type External Location Upper Right Corner Length 20mm Dimensions Width 10mm Configuration Helix b. Device description FCC ID Number IHDT56ER1 Serial number(s) S50UN022BH & S50UN0229G Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 32.50 dBm 32.00 dBm 30.00 dBm 30.00 dBm 32.50 dBm 32.00 dBm 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 Mhz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identica…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56ER1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 13558-1 Report Date – April 1, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2004-04-01____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Reference Level Plot 9 GSM 850 Occupied Bandwidth Plot 9 GSM 850 Ch128 Lower Band Edge 10 GSM 850 Ch251 Upper Band Edge 10 GSM 1900 Occupied Band Plot 11 GSM 1900 Reference Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 15 Field Strength of Spurious Emissions 16 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions from Unintentional Radiators 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 13558-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 Model Number: V220 Version: AAUG1413AA, AAUG1484AA Serial Numbers: S50UN022BT, S50UN0229BT, S50UN022BM , Testing Complete Date: March 26, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 13558-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 22.3 dB 6 Field Strength of Spurious Emissions 12.7dB 7 Frequency Stability 85.72 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 13558-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Horn Antenna31156222 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712654/29/2004 ETSLog-Periodic Antenna314811894/29/2004 ETSBiconical Antenna3110B33694/29/2004 ETSBiconical Antenna3110B337011/14/2004 AttenuatorWeinschel AS-6667510/14/2004 AttenuatorWeinschel AS-6667711/4/2004 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett Packard Signal Generator 83623B 3844A01195 5/20/2004 ThermotronEnvironmental ChamberS-4315801/5/2005 Hewlett PackardPre-Amplifier8347A11/4/2004 Hewlett PackardPre-Amplifier8447F2805A034195/19/2004 AgilentPower MeterEE4418B12/5/2004 AgilentSensorE4412B11/23/2004 All equipment is on a one-year calibration cycle. Test Report Number: 13558-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR Part…

Text truncated - open the document above for the full version.
