IHDT56ER2Portable PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V220 GSM wireless phone. 032471a Headset Jack Left Soft Key Perform function in lower left display. Power & End Key Turn phone on/off, end calls, exit menu system. Menu Key Right Soft Key Perform function in lower right display. Send Key Make & answer calls. 5-Way Navigation Key Scroll through menus & lists. Power Connector Volume Keys Voice Key Smart Key Select menu items. 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc., 2003. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse- engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non- exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual Number: UGXXXX Cover Number: UGCGXXXX 3 Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . 13 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Turning Your Phone On . . . . . . . . . . . . . . . . . . . . . . . . . 18 Adjusting Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . 19 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Taking and Sending a Photo . . . . . . . . . . . . . . . . . . . . . 21 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . 23 Receiving a Multimedia Message . . . . . . . . . . . . . . . . . 25 Playing Video Clips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using Ring Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Using Event Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 29 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Using the 5-Way Navigation Key . . . . . . . . . . . . . . . . . . 34 Using Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Using the External Display . . . . . . . . . . . . . . . . . . . . . . 48 Using the Handsfree Speaker . . . . . . . . . . . . . . . . . . . . 49 Changing a Code, PIN, or Password. . . . . . . . . . . . . . . 49 4 Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 50 If You Forget a Code, PIN, or Password . . . . . . . . . . . . . 51 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Storing Your Name and Phone Number . . . . . . . . . . . . . 55 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . 55 Setting a Ring Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Setting Answer Options . . . . . . . . . . . . . . . . . . . . . . . . . 56 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . . 57 Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . . 58 Setting Display Contrast . . . . . . . . . . . . . . . . . . . . . . . . . 59 Setting Display Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Setting Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . 60 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . . 61 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . . 61 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . . 63 Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Calling an Emergency Number . . . .…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56ER2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT56ER2 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Mobile Devices Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Then Yeow Seng TITLE: Senior Engineer Manager Personal Communications Sector Date: September 6, 2005 Exhibit 2A APPLICANT MOTOROLA INC. FCC ID: IHDT56ER2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56ER2) is in compliance with all applicable parts of the FCC Rules. NAME: Chan Chin Sen TITLE: Electrical Lead, V220 Date: 8/23/05 Exhibit 2B APPLICANT: MOTOROLA INC. FCC ID: IHDT56ER2 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. This class II permissive change application addresses the HAC “M” rating only. No additional software or hardware changes apply. NAME: Andrew Bachler TITLE: FCC Liaison Mobile Devices Motorola, Inc. August 29, 2005 Exhibit 2C

APPLICANT: MOTOROLA FCC ID: IHDT56ER2 September 8, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56ER2. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description • Exhibit 10 Parts List Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band. This equipment is identical to FCC ID: IHDT56ER1, except the 850 MHz band is disabled in software. Hearing Aid Compatibility exhibits are included in the application. Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

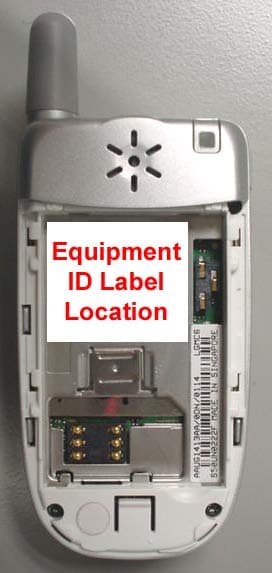

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56ER2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56ER2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 EXHIBIT 9 Rear View without shields Front View Rear View

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56ER2 Date of test: Date of Report: 03/05/2004 through 03/07/2004, 04/21/2004 through 04/23/2004 and 07/12/2004 through 07/16/2004 09/09/2005 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56ER2 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CF R §2.1093). It also declares that the product was tested in accordance with the appropriate measuremen t standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION...................................................................................................................................... 3 2. DESCRIPTION OF THE DEVICE UNDER TEST.................................................................................... 3 2.1 Antenna description.................................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED........................................................................................................................ 4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID............................................. 5 5. SYSTEM ACCURACY VERIFICATION.................................................................................................. 6 6. TEST RESULTS........................................................................................................................................ 7 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .......................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.... 12 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE....................... 13 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION........................... 15 APPENDIX 4: PROBE CALIBRATION CERTIFICATE.......................................................................... 17 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................ 18 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................... 19 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ................................................................... 22 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56ER2). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type External Location Upper Right Corner Length 20mm Dimensions Width 10mm Configuration Helix b. Device description FCC ID Number IHDT56ER2 Serial number(s) S50UN022BH, S50UN02293 & S50UN02294 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 32.00 dBm 30.00 dBm 30.00 dBm 32.00 dBm 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 880.2 – 914.8MHz 1710.2 - 1784.8MHz 1850.2 – 1909.8Mhz 880.2 – 914.8MHz 1710.2 - 1784.8MHz 1850.2 – 1909.8MHz Production Unit or Identical Prototype (47 CFR §2..908) …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA FCC ID: IHDT56ER2 September 8, 2005 EMC Test Report This equipment is identical to FCC ID: IHDT56ER1 (granted 4-15-2004) except the 850 MHz band is disabled in software. To simplify the technical review process, the original test report is submitted with the following updates: • The equipment identification is changed to FCC ID: IHDT56ER1. • All applicable responses to questions from the original “dual band” submission are incorporated into the following updated report. Please disregard all reference to the 850 MHz band test results. This filing is applicable to GSM 1900 MHz only. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this report. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER2 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 13558-1 Report Date – April 1, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2004-04-01____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Reference Level Plot 9 GSM 850 Occupied Bandwidth Plot 9 GSM 850 Ch128 Lower Band Edge 10 GSM 850 Ch251 Upper Band Edge 10 GSM 1900 Occupied Band Plot 11 GSM 1900 Reference Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 15 Field Strength of Spurious Emissions 16 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions from Unintentional Radiators 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 13558-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER2 Test Report Details Tests Performed By: Motorola Mobile Devices Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. MobileDevices 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 Model Number: V220 Version: AAUG1413AA, AAUG1484AA Serial Numbers: S50UN022BT, S50UN0229BT, S50UN022BM , Testing Complete Date: March 26, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 13558-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER2 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 22.3 dB 6 Field Strength of Spurious Emissions 12.7dB 7 Frequency Stability 85.72 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 13558-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56ER2 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETSDRG Horn Antenna31156222 A.H. Systems Inc.DRG Horn AntennaSAS-200/5712654/29/2004 ETSLog-Periodic Antenna314811894/29/2004 ETSBiconical Antenna3110B33694/29/2004 ETSBiconical Anten…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B HAC Test Report IHDT56ER2 Date of test: Date of Report: 8/25/2005 9/6/2005 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Scott Kelley Disability Access Manager Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56ER2 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI PC63.19- 2001 rd 3.6 standard. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: Max E Field emission = 36.57 dB V/m @ 1910 MHz Max H Field emission = -14.80 dB A/m @ 1910 MHz M Category = M3 ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 P P a a g g e e 2 2 E E x x h h i i b b i i t t 6 6 B B Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................3 4. SYSTEM ACCURACY VERIFICATION............................................................................................................4 5. PROBE MODULATION FACTOR ......................................................................................................................5 6. TEST RESULTS......................................................................................................................................................6 APPENDIX 1: HAC DISTRIBUTION PLOTS FOR SYSTEM ACCURACY VERIFICATION .....................9 APPENDIX 2: HAC DISTRIBUTION PLOTS FOR E-FIELD AND H-FIELD ...............................................12 APPENDIX 3: MEASUREMENT UNCERTAINTY BUDGET..........................................................................15 A3.1 Motorola Uncertainty Budget for RF HAC Testing .......................................................................16 A3.2 Probe Rotation Contributions to Isotropy Error ............................................................................16 APPENDIX 4: PICTURES OF TEST SETUP ......................................................................................................17 APPENDIX 5: PROBE CALIBRATION CERTIFICATE ..................................................................................19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 P P a a g g e e 3 3 E E x x h h i i b b i i t t 6 6 B B 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed Hearing Aid Compatibility (HAC) measurements for the portable cellular phone (FCC ID IHDT56ER2). The portable cellular phone was tested in accordance with ANSI PC63.19-2001 rd 3.6 standard. The test results presented herein clearly demonstrate compliance FCC 47 CFR § 20.19. This report demonstrates compliance for near field emissions only and not for the T-coil performance compliance. 2. Description of the Device Under Test Table 1: Information for the Device Under Test FCC ID Number IHDT56ER2 Serial number(s) S50UN02293 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 32.00 dBm 30.00 dBm 30.00 dBm 32.00 dBm 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 Mhz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable 3. Test Equipment Used The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.5) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the HAC measurements are taken within a shielded enclosure. The measurement uncertainty budget is given in Appendix 6. The list of calibrated equipment used for the measurements is shown below. Table 2: Dosimetric System Equipment Description Serial Number Cal Due Date DAE3 SN378 7/8/2006 E-Field Probe ER3DV6R SN2247 7/20/2006 H-Field Probe H3DV6 SN6074 7/8/2006 Planar Dipole 1880 MHz P1880-003 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ER2 P P a a g g e e 4 4 E E x x h h i i b b i i t t 6 6 B B Table 3: Additional Test Equipment Description Serial Number Cal Due Date Signal Generator E4432B GB38450359 2/22/2006 3db Attenuator 50579 12/27/2005 Power Supply 6632B 01N992 12/17/2005 Directional Coupler 778D 18610 03/24//2006 Power Meter E4416A GB41293246 2/25/2006 Power Meter E4419B GB39511086 03/22//2006 Power Sensor #1 – E9301A US39211013 12/28/2005 Power Sensor #2 - E9323A US40412053 2/18/2006 4. System Accuracy Verification A system accuracy verification of the DASY4 v4.5 test system was performed using the measurement equipment listed in Section 3.1. The weekly system accuracy verification occurs in free space. Note that the 1cm probe to dipole separation is measured from the top edge of the dipole to …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56ER2 Appendix A – Radiated Emissions Test Setup Photos A.1 Radiated Emissions Measurement A.2 Substitution Measurement End of Test Report Test Report Number: 13558-1 EXHIBIT 6 25
