IHDT56ES1Portable Dual Band GSM Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: E790 GSM 1 HELLOMOTO Introducing your new Motorola E790 GSM wireless phone. Here’s a quick anatomy lesson. Left Soft Key Perform function in lower left display. Headset Jack Stereo Speakers (both sides) Camera Key Activate camera & take photos. Volume Key Smart Key 5-Way Navigation Joystick with Center Select Scroll through menus, press in to select items. Menu Key Accessory Connector Port Insert charger & phone accessories. Right Soft Key Perform function in lower right display. Power & End Key Turn phone on/off, end calls, exit menu system. Send Key Make & answer calls. 2 check it out! check it out! feature download music files Use the memory card as the default USB connection: M>Settings >Connection > USB Settings > Memory Card On your computer, open iTunes, connect your phone to your computer, and drag and drop music files to your phone. play musicPlay a song on your phone: iTunes >Songs > song name > Play Tip: Your phone must be disconnected from your computer to play songs. 032385o.eps Camera Key Activate camera & take photos. Mirror Aim camera lens for self portraits. Camera Lens Integrated Short- Range Light Stereo Speakers (both sides) 3 check it out! create playlistCreate a playlist of songs on your phone: On your computer, open iTunes, click the Add (+) button, and type a name for the playlist. Then drag songs from your music library to your playlist. Connect your phone to your computer and drag and drop the playlist onto your phone. rhythm lightsActivate lights to flash in sync with the sounds around you: M>Settings >Personalize > Rhythm Lights ring lightsChoose ring lights for incoming calls: M>Settings > Ring Styles>Ring Lights > > light pattern take photo & send Press j to activate the camera. Point lens and press CAPTURE to take a photo. To send, press the STOREkey and select Send In Message. phone skinApply different skins to the display: M>Settings > Personalize>Skin > skin send multimedia message Send a message with pictures, animations, sounds, and videos: M>Messages >Create Message >New Multimedia Message feature 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Microsoft, Windows, ActiveSync and Windows Media are registered trademarks of Microsoft Corporation; and Windows XP and Windows Mobile are trademarks of Microsoft Corporation. © Motorola, Inc., 2005. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. The information contained in Motorola's user's guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user's guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. Manual Number: 68XXXXXX92-O 5 HELLOMOTO contents check it out! . . . . . . . . . . 2 contents . . . . . . . . . . . . . 5 Safety Information . . . . . 7 EU Conformance. . . . . . 14 Recycling Information . 15 essentials . . . . . . . . . . . 16 about this guide . . . . . 16 SIM card . . . . . . . . . . . 17 battery. . . . . . . . . . . . . 17 turn it on & off. . . . . . . 20 make a call . . . . . . . . . 20 answer a call . . . . . . . . 20 your phone number . . 21 main attractions . . . . . . 22 use iTunes. . . . . . . . . . 22 take & send a photo . . 26 record & play video clip. . 28 multimedia messages. 31 lights . . . . . . . . . . . . . . 33 memory card . . . . . . . 35 Bluetooth® connections . 38 basics. . . . . . . . . . . . . . . 42 display. . . . . . . . . . . . . 42 menus. . . . . . . . . . . . . 46 text entry . . . . . . . . . . 48 volume . . . . . . . . . . . . 52 navigation key . . . . . . . 52 smart key . . . . . . . . . . 53 handsfree speaker . . . 53 codes & passwords . . 53 lock & unlock phone . . 54 customize . . . . . . . . . . . 55 ring style . . . . . . . . . . . 55 time & date. . . . . . . . . 56 wallpaper . . . . . . . . . . 56 screen saver . . . . . . . . 57 themes . . . . . . . . . . . . 57 display appearance . . . 58 answer options . . . . . . 58 vibrations . . . . . . . . . . 59 6 HELLOMOTO calls . . . . . . . . . . . . . . . 60 turn off a call alert . . . 60 recent calls . . . . . . . . 60 redial . . . . . . . . . . . . . 61 return a call . . . . . . . . 62 notepad . . . . . . . . . . . 62 hold or mute a call. . . 62 call waiting . . . . . . . . 63 caller ID . . . . . . . . . . . 63 emergency calls . . . . 64 international calls. . . . 64 1-touch dial . . . . . . . . 64 voicemail . . . . . . . . . . 65 other features . . . . . . . 66 advanced calling . . . . 66 phonebook . . . . . . . . 68 messages . . . . . . . . . . 74 email . . . . . . . . . . . . . . 76 instant messaging . . . 78 chat . . . . . . . . . . . . . . 79 personalizing . . . . . . . 79 call times & costs . . . 82 handsfree . . . . . . . . . 83 data & fax calls . . . . . 84 network . . . . . . . . . . . 85 personal organizer . . . 85 security . . . . . . . . . . . 87 fun & games . . . . . . . 87 troubleshooting . . . . . 89 SAR Data . . . . . . . . . . . 90 SAR Data . . . . . . . . . . . 92 Index . . . . . . . . . . . . . . 94 7 Safety Information Safety and General Information Safety Info…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA FCC ID: IHDT56ES1 August 5, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56ES1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in 850 and 1900 MHz bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT MOTOROLA INC. FCC ID: IHDT56ES1 ATTESTATION STATEMENTS Transceiver type FCC ID: IHDT56ES1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 N. US Highway 45, Libertyville, Illinois. NAME: ROSS RIPLEY TITLE: ENGINEERING MANAGER PERSONAL COMMUNICATIONS SECTOR Page 1 of 2 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56ES1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56ES1) is in compliance with all applicable parts of the FCC Rules. NAME: EDWARD RIOS TITLE: SR. RF ENGINEER PERSONAL COMMUNICATIONS SECTOR Page 2 of 2 EXHIBIT 2

APPLICANT MOTOROLA INC. FCC ID: IHDT56ES1 ATTESTATION STATEMENT Motorola confirms that FCC ID: IHDT56ES1 complies with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: ROSS RIPLEY TITLE: ENGINEERING MANAGER Mobile Devices Motorola, Inc. 6/17/05 EXHIBIT 2A

Date: May 6, 2005 SHORT TERM CONFIDENTIALITY REQUEST To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Reference: FCC ID: IHDT56ES1 (Portable Dual Band GSM Transceiver) Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. . Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for a short term limited time: • Exhibit 3 External Photographs • Exhibit 9 Internal Photographs • Exhibit 8 Users Manual • Exhibit 7 Test Set-up Photos (supporting the SAR report) Contact Information & Signature: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

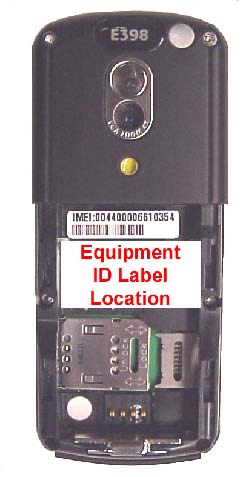

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56ES1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56ES1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed) 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1 EXHIBIT 9 2 of 3 Rear View with Shields Front View with Shields EXHIBIT 9 3 of 3 Front Housing Internal View Rear Housing Internal View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1

APPLICANT: MOTOROLA INC FCC ID: IHDT6ES1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number –13878 -1BT Report Date – May 5, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature: Name: Michael E. Hill Title: Senior Electrical Engineer Date :2004-05-05 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6A APPLICANT: MOTOROLA INC FCC ID: IHDT6ES1 Table of Contents Test Report Details.............................................................................................................4 Applicable Standards..........................................................................................................5 Summary of Testing............................................................................................................6 General and Special Conditions..........................................................................................6 Equipment and Cable Configurations.................................................................................7 Measuring Equipment and Calibration Information...........................................................7 Description of Bluetooth Transmitter.................................................................................8 Measurement Procedures and Data.....................................................................................9 CARRIER FREQUENCY SEPARATION....................................................................9 Measurement Procedure..............................................................................................9 Measurement Results..................................................................................................9 Carrier Frequency Separation...............................................................................10 NUMBER OF HOPPING FREQUENCIES.................................................................11 Measurement Procedure............................................................................................11 Measurement Results................................................................................................11 Number of Hopping Frequencies (Channels 2 – 42)............................................12 Number of Hopping Frequencies (Channels 42 – 80)..........................................12 TIME OF OCCUPANCY (DWELL TIME).................................................................13 Measurement Procedure............................................................................................13 Measurement Results................................................................................................13 Dwell Time...........................................................................................................14 20dB Bandwidth...........................................................................................................15 Measurement Procedure............................................................................................15 Measurement Results................................................................................................15 20 dB BandwidthFIELD STRENGTH OF SPURIOUS EMISSIONS.............................16 FIELD STRENGTH OF SPURIOUS EMISSIONS.........................................................17 Measurement Procedure............................................................................................17 Measurement Results................................................................................................17 30 -1000MHz Low Channel Dual Polarization (Radiated Plot 1)........................18 30-1000MHz Mid Channel Dual Polarization (Radiated Plot 2)..........................19 30-1000MHz High Channel Dual Polarization (Radiated Plot 3)........................20 1-3GHz Low Channel X-Orientation....................................................................21 1-3GHz Low Channel Y-Orientation....................................................................22 1-3GHz Low Channel Z-Orientation....................................................................23 1-3GHz Mid-Channel Z-Orientation....................................................................28 1-3GHz High-Channel X-Orientation...................................................................29 1-3GHz High-Channel Y-Orientation...................................................................30 1-3GHz High-Channel Z-Orientation...................................................................31 3-12GHz Low-Channel X-Orientation.................................................................32 3-12GHz Low-Channel Y-Orientation.................................................................33 3-12GHz Low-Channel Z-Orientation..................................................................34 3-12GHz Mid-Channel Y-Orientation..................................................................36 3-12GHz Mid-Channel Y-Orientation..................................................................37 3-12GHz Mid-Channel Z-Orientation..................................................................38 12-18GHz Low-Channel X-Orientation...............................................................39 Test Report Number: 13878-1 EXHIBIT 6A 2 APPLICANT: MOTOROLA INC FCC ID: IHDT6ES1 12-18GHz Low-Channel Y-Orientation.........................................................…

Text truncated - open the document above for the full version.

Date: July 1, 2005 Subject: Request for additional information regarding FCC ID: IHDT56ES1 (Portable Cellular/PCS GSM transceiver with embedded Bluetooth transceiver) Reference: Application Received: 5/6/2005 Correspondence Reference Number: 150506A.IHD Confirmation Number: 1505060227/0248 Date of Original Email: 6/09/2005 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. Please submit radiated emission data for spurious emissions located in restricted bands. Response: Please refer to the following: Additional Test Data Showing Compliance to Restricted band Limits per CFR47 Part 15.205 Tabular data for restricted bands below 1 GHz follow. This data identifies spurs using a peak detector. The original report contained restricted band data above 1GHz. MOTOROLA CELL PHONE E398 CH 00 AXIS X RED:HORIZONTAL GREEN:VERTICAL Test Meter Gain/LossTransducerLevelLimit:1Limit:2 No. Frequency Reading Facto rFactordB[uV/m [MHz] [dB(uV)] [dB][dB] Range: 4 300 - 1000MHz 1 851.6 36.3 pk -31.922.827.235.637 Azimuth:347 Height:199 Vert Margin[dB] -8.4-9.8 LIMIT 1: CFR 47 Part 15 Class B 10m LIMIT 2: CISPR Class B 10 m 1 MOTOROLA CELL PHONE E398 CH 00 AXIS Y RED:HORIZONTAL GREEN:VERTICAL Test Meter Gain/LossTransduce rLevelLimit: 1Limit: 2 No. Frequency Reading Facto rFactordB[uV/m) [MHz] [dB(uV)] [dB][dB] Range: 4 300 - 1000MHz 1 851.6 35 pk -31.922.825.935.637 Azimuth:116 Height:100 VertMargin(dB)-9.7-11.1 LIMIT 1: CFR 47 Part 15 Class B 10m LIMIT 2: CISPR Class B 10 m MOTOROLA CELL PHONE E398 CH 00 AXIS Z RED:HORIZONTAL GREEN:VERTICAL Test Meter Gain/LossTransduce rLevelLimit: 1Limit: 2 No. Frequency Reading Facto rFactordB[uV/m) [MHz] [dB(uV)] [dB][dB] Range: 4 300 - 1000MHz 1 851.6 34.9 pk -31.922.825.835.637 Azimuth:357 Height:199 VertMargin(dB)-9.8-11.2 LIMIT 1: CFR 47 Part 15 Class B 10m LIMIT 2: CISPR Class B 10 m MOTOROLA CELL PHONE E398 CH 78 AXIS X RED:HORIZONTAL GREEN:VERTICAL Test Meter Gain/LossTransducerLevelLimit: 1Limit: 2 No. Frequency Reading FactorFactordB[uV/m) [MHz] [dB(uV)] [dB][dB] Range: 4 300 - 1000MHz 1 851.6 38.1 pk -31.922.82935.637 Azimuth:288 Height:199 Vert Margin(dB) -6.6-8 LIMIT 1: CFR 47 Part 15 Class B 10m LIMIT 2: CISPR Class B 10 m 2. Please provide a statement specifically confirming compliance with the following Rule Parts (previously on occasion, a general statement of compliance with the industry standard has been accepted, however, the FCC requires attestations of compliance with the specific rule parts): (a) the hopping sequence must be pseudorandom (15.247(a)(1)); (b) all Channels are used equally on average (15.247(a)(1)); (c) the receiver input bandwidth is approximately equal to the transmit bandwidth (15.247(a)(1)); (d) the receiver hops in sequence with the transmitted signal (15.247(a)(1)); (e) the system 2 is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) stream (15.247(g)); (f) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters (15.247(h)). Response: Please refer to exhibit 2A 3. What is the gain of the Bluetooth antenna? Please provide a description. Response: The Bluetooth antenna is a printed PCB, inverted F-type antenna. The antenna gain is -2.25 dBi. 4. The equipment listed in the 15.247 test report is past its cal due date. Please address. Response: The corrected equipment list (at the time of the original test) follows. Manufacturer Name Item Name Description Model # Serial Number Calibration Due Date Hewlett Packard QP Adapter 85650A 2811A01069 1/08/05 Hewlett Packard S/A Display 8566B 2542A12974 1/08/05 Hewlett Packard S/A 8566B 2637A03376 1/08/05 Hewlett Packard RF Preselector 85685A 2810A00692 1/08/05 Rohde & Schwarz S/A FSEK20 DE2525315 1/09/05 EMCO Horn Antenna 1-18GHz 3115 2638 7/10/04 EMCO Horn Antenna 18-26.5GHz 3160-09 9904-1165 N/A* Chase Bi-Con Antenna 30-300MHz VBA6106A 1246 6/23/04 Chase Log-Periodic Antenna UPA6108 1120 6/23/04 Hewlett Packard EMC Analyzer E7405 US40240219 04/04/2005 Weinschel 10dB Attenuator AS-6 6675 10/14/2004 Agilent Bluetooth Call Box N4010A GB44140209 N/A * Per ANSI C63.5-1998 (Revision of ANSI C63.5-1988) pg. 6, under 5.1 General “ It is unnecessary to calibrate standard gain horn antennas for use above 1GHz; rather, they are used as gain standards to calibrate other antennas (see 12.3.1 of IEEE Std 149-1979).” 5. The statement required by Section 15.19(a)(3) must be placed in the user’s manual, since it is not on the ID label. Response: In addition to the user’s manual, a separate safety booklet is included with the product. Please refer to page 20 in exhibit 8A, IMPORTANT SAFETY AND LEGAL INFORMATION booklet, 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1 E Supports E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Appendix 6 Photographs of the device under test APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1 E Supports E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 Figure 1. Front of Phone Figure 2. Back of Phone APPLICANT: MOTOROLA, INC. FCC ID: IHDT56ES1 Supports E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 Figure 3. Phone Against the Head Ph…

Text truncated - open the document above for the full version.
