IHDT56EU1Licensed Portable with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: DR AFT 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V3 GSM wireless phone. 040128o Left Soft Key Perform function in lower left display. Voice Key Create voice records & voice dial names. Smart Key Volume Key Operator Key 5-Way Navigation Key with Center Select Menu Key Message Key Right Soft Key Perform function in lower right display. Power & End Key Turn phone on/off, end calls, exit menu system. Accessory Connector Port Insert charger & phone accessories. Send Key Make & answer calls. DR AFT 2 Check It Out! FeatureDescription Take Photo Press CAMERA(+) to activate the camera, point lens at subject, press CAPTURE(+) to take a photo. Take Self-Portrait (flip closed) Activate the camera, close the flip, use viewfinder to aim lens, press smart key to take a photo. Send Photo Send a photo to a phone number or email address: Take photo, then press STORE(+) > Send In Message. Camera Lens Smart Key Take self-portrait photo with camera when flip is closed. External Display View incoming call information, use as camera viewfinder when flip is closed. DR AFT 3 Set Photo as Picture ID Assign a photo to a phonebook entry to allow picture caller ID: Take photo, then press STORE(+) > Apply as Phonebook Entry. Send Multimedia Message Send a multimedia message with pictures, animations, sounds, and videos: E >Create Message > New Multimedia Msg Wireless Connection Set up a Bluetooth ® wireless connection to a headset accessory, car kit, or external device: M >Settings >Connection >Bluetooth Link > Handsfree >[Look For Devices] FeatureDescription 032380o DR AFT 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc. 2004. The information contained in Motorola’s user’s guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user’s guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Manual number: 68XXXXXX50-O DR AFT 5 Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 14 Turning Your Phone Off. . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 16 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Taking and Sending a Photo. . . . . . . . . . . . . . . . . . . . . . 17 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 20 Using a Bluetooth ® Wireless Connection . . . . . . . . . . . . 23 Learning to Use Your Phone. . . . . . . . . . . . . . . . . . . . . . 26 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 31 Using the Operator Key . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using the Message Key . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Using the External Display . . . . . . . . . . . . . . . . . . . . . . . 46 Using the Handsfree Speaker. . . . . . . . . . . . . . . . . . . . . 47 Changing a Code, PIN, or Password . . . . . . . . . . . . . . . 48 Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 49 DR AFT 6 If You Forget a Code, PIN, or Password . . . . . . . . . . . . 50 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 54 Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . 54 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . 55 Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . 56 Changing Phone Skin . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Setting a Phone Theme . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56EU1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT56EU1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Robert Giometti TITLE: Engineering Manager, Personal Communications Sector Date: May 11, 2004 Exhibit 2A APPLICANT MOTOROLA INC. FCC ID: IHDT56EU1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56EU1) is in compliance with all applicable parts of the FCC Rules. NAME: Tadd Scarpelli TITLE: SR. Electrical Engineer Personal Communications Sector Date: May 11, 2004 Exhibit 2B

FCC ID: IHDT56EU1 Exhibit 13A Date: June 21, 2004 Reference: FCC ID IHDT56EU1 Applicant: Motorola Inc Correspondence Reference Number: 27003 731 Confirmation Number: EA938292 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1) Please describe how the BT signal was controlled during testing. Response: The BT transmitter was placed in a call and controlled with the following: Agilent Wireless Connectivity Test Set Model No.: N4010A Serial Number: GB4410118 2) A body worn statement could not be located in the user manual. Please located or update the manual as appropriate. Response: In addition to the user’s manual, a separate safety booklet is now included with the product. Please refer to exhibit 8A, IMPORTANT SAFETY AND LEGAL INFORMATION booklet, submitted on 6-21-04. 3) Please summarize any collocation operations between the dominate transmitter and the BT. Describe how SAR was address for these conditions. Response: The phone is capable of simultaneous transmission of a GSM/GPRS mode and Bluetooth mode. The intent of the simultaneous transmission is to maintain: (1) a GSM call while connected to a Bluetooth accessory – such as a Bluetooth headset, or (2) a GPRS connection while connected to a Bluetooth accessory – such as a handheld PDA. In both of these conditions the phone is intended to be positioned in a body-worn configuration. For SAR evaluation the body-worn tests were performed only in GSM or GPRS mode, and then the tests were performed again using the GSM or GPRS as the primary transmitter and the Bluetooth collocated transmitting. This was to determine if the Bluetooth circuit and RF energy had an impact to the measured GSM SAR. FCC ID: IHDT56EU1 The phone is also capable of using Bluetooth as a primary transmitting mode, without any GSM/GPRS transmitting. For this mode, SAR measurements were performed with the phone in the head and body-worn positions with only the Bluetooth transmitting. 4) Please provide SAR values for all SAR peaks in accordance with Supplement C recommendations for multiple peaks conditions. Response: Motorola believes that if the mass average SAR of the primary peak is 6 dB or more below the regulatory limit secondary peaks need not be considered. The rationale for this value can be found from IEEE 1528. In IEEE 1528, 0.4 W/kg (1-gram average) is the lower limit for system validation. It is also the lower limit for assessment of ambient noise and for the uncertainty budget. Since SAR values below 0.4 W/kg are considered by IEEE 1528 to be so low that they are not considered for uncertainty assessment or system validation, Motorola EME laboratories consider these values to be low enough that secondary peaks do not need to be considered. 5) Many plots and figures did not appear to be included in the provided SAR report. Please review the exhibit and update as necessary. In particular please see the overlay figures and the contour plots for the dipoles. Response: The initial submission of the SAR report was compressed for compatibility with Adobe Acrobat version 6. On June the same report. was recompressed with Adobe Acrobat version 5 compatibility and resubmitted. Tim Harrington confirmed that all graphics were now viewable. Exhibit 13A 2

APPLICANT: MOTOROLA FCC ID: IHDT56EU1 May 3, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EU1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description • Exhibit 10 Parts List Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. The unit also contains a power class 1, 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: July 8, 2004 SPECIAL 45 DAY CONFIDENTIALITY REQUEST To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Reference: FCC ID: IHDT56EU1 (Application for Portable Cellular/PCS Transceiver Certification) Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. . Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Special 45 Day Confidentiality Request: This equipment is significantly “thinner” than other marketed Cellular/PCS transceivers. Due to the technology involved in the unique form factor of this product, Motorola additionally requests 45 day confidentiality on exhibits containing equipment photographs or illustrations. Special confidentiality is requested for the following exhibits: • Exhibit 3 External Photographs • Exhibit 8 Users Manual • Exhibit 9 Internal Photographs • Exhibit 7 Test Setup Photos (Appendix 7 Photographs of the device Under test supports the SAR Report) Contact Information & Signature: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13B

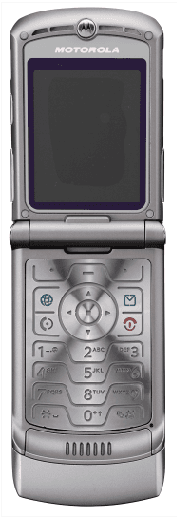

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Front View Front View Flip Open Rear View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EU1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EU1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed) 1 of 2 Front View Rear View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 EXHIBIT 9 Housing Internal View 2 of 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EU1 Date of test: Date of Report: 04/15/04 to 04/26/04 05/06/04 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EU1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION......................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST....................................................................................3 2.1 Antenna description.............................................................................................................................................. 3 2.2 Device description ................................................................................................................................................. 3 3. TEST EQUIPMENT USED........................................................................................................................3 3.1 Dosimetric System................................................................................................................................................. 3 3.2 Additional Equipment .......................................................................................................................................... 4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID.............................................4 5. SYSTEM ACCURACY VERIFICATION..................................................................................................5 6. TEST RESULTS........................................................................................................................................6 6.1 Head Adjacent Test Results ................................................................................................................................. 6 6.2 Body Worn Test Results ....................................................................................................................................... 8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION....11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE........................12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...........................16 APPENDIX 4: PROBE CALIBRATION CERTIFICATE...........................................................................20 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................21 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET...................................................................22 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ....................................................................25 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56EU1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Back of Phone Length 15 mm Dimensions Width 40 mm Configuration FICA Antenna 2.2 Device description FCC ID Number IHDT56EU1 Serial number LRZ0420029, LRZ0430019 & LRZ0430041 Mode(s) of Operation GSM850 GSM 900 GSM1800 GSM1900 BlueTooth Modulation Mode(s) GSM GSM GSM GSM BlueTooth Maximum Output Power Setting 33.00dBm 33.00 dBm 30.00dBm 30.00dBm 19.00dBm Duty Cycle 1:8 1:8 1:8 1:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8MHz 880.2- 914.8MHz 1710.2- 1784.8MHz 1850.2- 1909.8MHz 2400.0- 2483.5MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3 Test Equipment Used 3.1 Dosimet…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 6 6 Appendix 3 SAR distribution plots for Body Worn Configuration LRZ0430019Ch# 189 Pwr Step: 5 ota Antenna Position: INTERNAL Type of Modulation: 850 GSM Battery Model #: SNN5696AAccessory Model # = pouch (SYN1066A) wishbone (SYN8631A)R4 - Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 1 Section; Pos ition: (0°,0°); Frequency: 836 MHz Probe: ET3DV6 - SN1514 - FCC Body.2; ConvF(6.10,6.10,6.10); Crest factor: 8.0; 835 MHz Head & Body: σ = 0.97 mho/m ε r = 53.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.557 mW/g, SAR (10g): 0.379 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 14.4 (13.4, 15.5) [mm]Powerdrift: -0.15 dB04/21/04 13:29Motorola, Inc. LRZ0430041Ch# 661 / Pwr Step: 0 Antenna Position: Internal Type of Modulation: GSM 1900 Battery Model #: SNN5696A Accessory Model # = SYN1066A with SYN8763ASimulate Temp when Measured: 19.5C Simulate Temp after Test: 18.6C R4 - Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ET3DV6 - SN1514 - FCC Body.2; ConvF(4.70,4.70,4.70); Crest factor: 8.0; 1880 MHz Head & Body: σ = 1.59 mho/m ε r = 52.4 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.0483 mW/g, SAR (10g): 0.0293 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 9.8 (8.7, 11.5) [mm]Powerdrift: -0.69 dB04/20/04 19:39Motorola, Inc. LRZ0430019Ch# 128 Pwr Step: burst 1 and 2=5 ota Antenna Position: INTERNAL Type of Modulation: 850 GSM gprs Battery Model #: SNN5696AAccessory Model # = pouch (SYN1066A) wishbone (SYN8631A)R4 - Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 1 Section; Pos ition: (0°,0°); Frequency: 824 MHz Probe: ET3DV6 - SN1514 - FCC Body.2; ConvF(6.10,6.10,6.10); Crest factor: 4.0; 835 MHz Head & Body: σ = 0.97 mho/m ε r = 53.9 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 1.18 mW/g, SAR (10g): 0.807 mW/g, (Worst-case extrapolation)Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0Penetration depth: 14.6 (12.6, 16.8) [mm]Powerdrift: -0.21 dB04/21/04 14:58Motorola, Inc. LRZ0430041Ch# 661 / Pwr Step: 0 Antenna Position: Internal Type of Modulation: GSM 1900 Battery Model #: SNN5696A Accessory Model # = SYN1066A with SYN8763AGPRS PC10 ModeSimulate Temp when Measured: 19.5C Simulate Temp after Test: 18.4C R4 - Amy Twin Phantom Rev.4 (22Aug02) Phantom; section 2 Section; Pos ition: (0°,0°); Frequency: 1880 MHz Probe: ET3DV6 - SN1514 - FCC Body.2; ConvF(4.70,4.70,4.70); Crest factor: 4.0; 1880 MHz Head & Body: σ = 1.59 mho/m ε r = 52.4 ρ = 1.00 g/cm 3 Cube 7x7x7: SAR (1g): 0.107 mW/g, SAR (10g): 0.0615 mW/g, (Worst-case extrapolation)…

Text truncated - open the document above for the full version.
