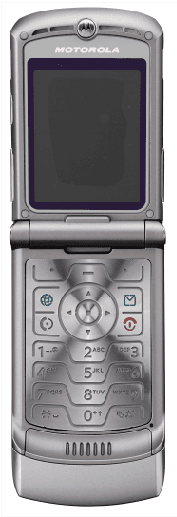

IHDT56EU2Portable Cellular / PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU2 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: DR AFT 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V3 GSM wireless phone. 040128o Left Soft Key Perform function in lower left display. Voice Key Create voice records & voice dial names. Smart Key Volume Key Operator Key 5-Way Navigation Key with Center Select Menu Key Message Key Right Soft Key Perform function in lower right display. Power & End Key Turn phone on/off, end calls, exit menu system. Accessory Connector Port Insert charger & phone accessories. Send Key Make & answer calls. DR AFT 2 Check It Out! FeatureDescription Take Photo Press CAMERA(+) to activate the camera, point lens at subject, press CAPTURE(+) to take a photo. Take Self-Portrait (flip closed) Activate the camera, close the flip, use viewfinder to aim lens, press smart key to take a photo. Send Photo Send a photo to a phone number or email address: Take photo, then press STORE(+) > Send In Message. Camera Lens Smart Key Take self-portrait photo with camera when flip is closed. External Display View incoming call information, use as camera viewfinder when flip is closed. DR AFT 3 Set Photo as Picture ID Assign a photo to a phonebook entry to allow picture caller ID: Take photo, then press STORE(+) > Apply as Phonebook Entry. Send Multimedia Message Send a multimedia message with pictures, animations, sounds, and videos: E >Create Message > New Multimedia Msg Wireless Connection Set up a Bluetooth ® wireless connection to a headset accessory, car kit, or external device: M >Settings >Connection >Bluetooth Link > Handsfree >[Look For Devices] FeatureDescription 032380o DR AFT 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc. 2004. The information contained in Motorola’s user’s guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user’s guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Manual number: 68XXXXXX50-O DR AFT 5 Contents Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Battery Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 14 Turning Your Phone Off. . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 16 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Taking and Sending a Photo. . . . . . . . . . . . . . . . . . . . . . 17 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 20 Using a Bluetooth ® Wireless Connection . . . . . . . . . . . . 23 Learning to Use Your Phone. . . . . . . . . . . . . . . . . . . . . . 26 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 31 Using the Operator Key . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using the Message Key . . . . . . . . . . . . . . . . . . . . . . . . . 31 Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Using the External Display . . . . . . . . . . . . . . . . . . . . . . . 46 Using the Handsfree Speaker. . . . . . . . . . . . . . . . . . . . . 47 Changing a Code, PIN, or Password . . . . . . . . . . . . . . . 48 Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 49 DR AFT 6 If You Forget a Code, PIN, or Password . . . . . . . . . . . . 50 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . 54 Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . 54 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . 55 Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . 56 Changing Phone Skin . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Setting a Phone Theme . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56EU2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT56EU2 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Robert Giometti TITLE: Engineering Manager, Personal Communications Sector Date: May 11, 2004 Exhibit 2A APPLICANT MOTOROLA INC. FCC ID: IHDT56EU2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56EU2) is in compliance with all applicable parts of the FCC Rules. NAME: Tadd Scarpelli TITLE: SR. Electrical Engineer Personal Communications Sector Date: May 11, 2004 Exhibit 2B

Date: June 8, 2004 Subject: Request for additional information regarding FCC ID: IHDT56EU2 Portable Cellular/PCS GSM transceiver with Embedded Bluetooth Transceiver) Reference: Application Received: 05/05/2004 Correspondence Reference Number: 240607B.IHD Confirmation Number: TC4157 Date of Original Email: 06/07/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: Part 22/24 application: 1. Is the EUT capable of operating in GPRS and Bluetooth mode simultaneously? If so, please provide body-worn SAR data in this mode. Response: Please refer to the supplemental SAR report submitted on 6/8/04 2. There appears to be a typo on p.5 of the SAR report- the recommended validation test limits listed there do not match those listed in the Dipole Characterization Certificate. Please address. Response: Please refer to the supplemental SAR report submitted on 6/8/04 Bluetooth application: 3. Section 15.247(a) requires that the channel separation be equal to or greater than the 20 dB bandwidth of the emission. The test data submitted indicates, however, that the channel separation is 1 MHz, but the 20 dB bandwidth is 1.018 MHz. Please address. Response: The base station simulator was not set correctly when this measurement was made. The data was retaken and the correct plot is shown below. 1 4. The user's manual must contain the 2-part statement from Section 15.19(a)(3), as it is not on the label. Please correct the manual. Response: Please refer to page 20 in the Safety and Legal Information booklet (Exhibit 8A) submitted June 8, 2004. 2

APPLICANT: MOTOROLA FCC ID: IHDT56EU2 May 3, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EU2. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description • Exhibit 10 Parts List Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU2 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Front View Front View Flip Open Rear View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EU2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EU2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU2 EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed) 1 of 2 Front View Rear View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU2 EXHIBIT 9 Housing Internal View 2 of 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EU2 Date of test: Date of Report: 04/14/04 to 04/24/04 05/05/04 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EU2 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION......................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST....................................................................................3 2.1 Antenna description.............................................................................................................................................. 3 2.2 Device description ................................................................................................................................................. 3 3. TEST EQUIPMENT USED........................................................................................................................3 3.1 Dosimetric System................................................................................................................................................. 3 3.2 Additional Equipment .......................................................................................................................................... 4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID.............................................4 5. SYSTEM ACCURACY VERIFICATION..................................................................................................5 6. TEST RESULTS........................................................................................................................................5 6.1 Head Adjacent Test Results ................................................................................................................................. 6 6.2 Body Worn Test Results ....................................................................................................................................... 8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION....10 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE........................11 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...........................14 APPENDIX 4: PROBE CALIBRATION CERTIFICATE...........................................................................16 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................17 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET...................................................................18 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ....................................................................21 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56EU2). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2. Description of the Device Under Test a. Antenna description Type Internal Antenna Location Back of Phone Length 15 mm Dimensions Width 40 mm Configuration FICA Antenna b. Device description FCC ID Number IHDT56EU2 Serial number LRZ0420029, LRZ0430019 & LRZ0430041 Mode(s) of Operation GSM850 GSM 900 GSM1800 GSM1900 BlueTooth Modulation Mode(s) GSM GSM GSM GSM BlueTooth Maximum Output Power Setting 33.00dBm 33.00 dBm 30.00dBm 30.00dBm 0 dBm Duty Cycle 1:8 1:8 1:8 1:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8MHz 880.2- 914.8MHz 1710.2- 1784.8MHz 1850.2- 1909.8MHz 2400.0- 2483.5MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3. Test Equipment Used 3.1 Dosimetri…

Text truncated - open the document above for the full version.

June 7, 2004 Supplement to SAR Test Report – for Motorola portable cellular phone (FCC ID IHDT56EU2) Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56EU2) . The requested information is addressed below in the same numbering sequence received. 1. Is the EUT capable of operating in GPRS and Bluetooth mode simultaneously? If so, please provide body-worn SAR data in this mode. RESPONSE: The EUT does not have a “GPRS Networking Gateway” Bluetooth profile. The EUT will not make a GPRS network connection while connected to a Bluetooth device. 2. There appears to be a typo on p.5 of the SAR report- the recommended validation test limits listed there do not match those listed in the Dipole Characterization Certificate. Please address. RESPONSE: The recommended validation test limits that were in the table were from a previous Dipole Characterization Certificate. These old values were used erroneously. The table below has been corrected to use the current, valid recommended validation test limits. f Dielectric Parameters (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Ambient Temp (°C) Tissue Temp (°C) Measured, 04/15/04 11.4 40.50 0.97 20.0 19.9 Measured, 04/16/04 11.4 42.10 0.99 20.0 19.7 Measured, 04/21/04 11.2 41.00 0.97 21.0 20.2 Measured, 04/22/04 11.3 41.00 0.97 20.0 20.2 Measured, 04/24/04 11.1 39.70 0.94 20.0 20.1 900 Recommended Limits 11.4 41.5 ±5% 0.97 ±5% 18-25 18-25 Measured, 04/14/04 42.2 39.20 1.37 20.0 18.9 Measured, 04/20/04 39.2 39.50 1.36 21.0 19.0 Measured, 04/22/04 41.8 39.30 1.38 20.0 19.0 Measured, 04/24/04 39.2 39.40 1.34 20.0 19.0 1800 Recommended Limits 40.7 40.0 ±5% 1.4 ±5% 18-25 18-25

APPLICANT: MOTOROLA INC FCC ID: IHDT56EU2 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 13913-2 Report Date – 30 April 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2004-04-30____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56EU2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 Instrument Settings 9 Measurement Summary 9 GSM 850 Reference Level Plot 10 GSM 850 Occupied Bandwidth Plot 10 GSM 850 Ch128 Lower Band Edge 11 GSM 850 Ch251 Upper Band Edge 11 GSM 1900 Reference Plot 12 GSM 1900 Occupied Bandwidth Plot 12 GSM 1900 Ch512 Lower Band Edge 13 GSM 1900 Ch810 Upper Band Edge 13 Spurious Emissions at Antenna Terminals 14 GSM 850 Tabular and Graphical Data 15 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions 17 GSM 850 Tabular and Graphical Data 18 GSM 1900 Tabular and Graphical Data 19 Frequency Stability 20 GSM 850 Tabular and Graphical Data 21 GSM 1900 Tabular and Graphical Data 22 Test Report Number: 13913-2 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56EU2 Field Strength of Spurious Emissions from Unintentional Radiators 23 GSM 850 Tabular and Graphical Data 24 GSM 1900 Tabular and Graphical Data 25 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 26 Figure A.2 – Substitution Measurement 26 Test Report Number: 13913-2 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56EU2 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, Bluetooth Class 2, GPRS Model Number: V3 Version: SUG3784EA Serial Numbers: LRZ0430053, LRZ0430005, LRZ0430059, LRZ0430029 Testing Complete Date: 30 April 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 13913-2 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56EU2 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 21.0 dB 6 Field Strength of Spurious Emissions 12.2dB 7 Frequency Stability 55.65 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the mi…
