IHDT56EU3Portable PCS GSM Transceiver

Hearing Aid Compatibility with Mobile Phones Some Motorola phones are measured for compatibility with hearing aids. If the box for your particular model has “Rated for Hearing Aids” printed on it, the following explanation applies. When some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box. The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone Exhibit 8B 1 successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.) Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones. Exhibit 8B 2

APPLICANT: MOTOROLA FCC ID: IHDT56EU3 September 1, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EU3. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description • Exhibit 10 Parts List Description: This equipment is a GSM portable transceiver, which operates in the 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). This equipment is identical to FCC ID: IHDT56EU2, except the 850 MHz band is disabled in software. Hearing Aid Compatibility exhibits are included in the application. Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT MOTOROLA INC. FCC ID: IHDT56EU3 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT56EU3 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Robert Giometti TITLE: Engineering Manager, Mobile Devices Date: September 1, 2005 Exhibit 2A APPLICANT MOTOROLA INC. FCC ID: IHDT56EU3 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56EU3) is in compliance with all applicable parts of the FCC Rules. NAME: Tadd Scarpelli TITLE: SR. Electrical Engineer Mobile Devices Date: September 1, 2005 Exhibit 2B APPLICANT MOTOROLA INC. FCC ID: IHDT56EU3 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Robert Giometti TITLE: ENGINEERING MANAGER Mobile Device Business Motorola, Inc. Date: September 1, 2005 EXHIBIT 2C APPLICANT: MOTOROLA INC. FCC ID: IHDT56EU3 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56EU3. NAME: Andrew Bachler TITLE: FCC Liaison Mobile Devices Motorola, Inc. August 31, 2005 Exhibit 2D

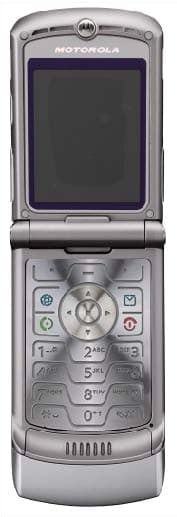

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Front View Front View Flip Open Rear View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EU3 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EU3 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Front View Front View Flip Open Rear View

APPLICANT: MOTOROLA FCC ID: IHDT56EU3 September 1, 2005 SAR Test Report This equipment is identical to FCC ID: IHDT56EU2 (granted 6-8-2004) except the 850 MHz band is disabled in software. To simplify the technical review process, the original test report is submitted with the following updates: • The equipment identification is changed to FCC ID: IHDT56EU3. • All applicable responses to questions from the original “dual band” submission are incorporated into the following updated report. Please disregard all reference to the 850 MHz band test results. This filing is applicable to GSM 1900 MHz only. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this report. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 11 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EU3 Date of test: Date of Report: 04/14/04 to 04/24/04 05/05/04 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EU 3 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION......................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST....................................................................................3 2.1 Antenna description.............................................................................................................................................. 3 2.2 Device description ................................................................................................................................................. 3 3. TEST EQUIPMENT USED........................................................................................................................3 3.1 Dosimetric System................................................................................................................................................. 3 3.2 Additional Equipment .......................................................................................................................................... 4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID.............................................4 5. SYSTEM ACCURACY VERIFICATION..................................................................................................5 6. TEST RESULTS........................................................................................................................................5 6.1 Head Adjacent Test Results ................................................................................................................................. 6 6.2 Body Worn Test Results ....................................................................................................................................... 8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION....10 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE........................11 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...........................14 APPENDIX 4: PROBE CALIBRATION CERTIFICATE...........................................................................16 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE............................................................17 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET...................................................................18 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST ....................................................................21 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1. Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56EU3). The Specific Absorption Rate (SA…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA FCC ID: IHDT56EU3 September 1, 2005 EMC Test Report This equipment is identical to FCC ID: IHDT56EU2 (granted 6-8-2004) except the 850 MHz band is disabled in software. To simplify the technical review process, the original test report is submitted with the following updates: • The equipment identification is changed to FCC ID: IHDT56EU3. • All responses to questions from the original “dual band” submission are incorporated into the following updated report. Please disregard all reference to the 850 MHz band test results. This filing is applicable to GSM 1900 MHz only. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this report. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 6A APPLICANT: MOTOROLA INC FCC ID: IHDT56EU3 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number – 13913-2BT Report Date – May 28, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature: Name: Michael E. Hill Title: Senior Electrical Engineer Date : 2004-05-28 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6A APPLICANT: MOTOROLA INC FCC ID: IHDT56EU2 Table of Contents Test Report Details............................................................................................................. 3 Applicable Standards.......................................................................................................... 4 Summary of Testing............................................................................................................ 5 General and Special Conditions.......................................................................................... 5 Equipment and Cable Configurations................................................................................. 6 Measuring Equipment and Calibration Information........................................................... 6 Description of Bluetooth Transmitter................................................................................. 7 Measurement Procedures and Data..................................................................................... 8 CARRIER FREQUENCY SEPARATION.................................................................... 8 Measurement Procedure.............................................................................................. 8 Measurement Results.................................................................................................. 8 NUMBER OF HOPPING FREQUENCIES................................................................. 10 Measurement Procedure............................................................................................ 10 Measurement Results................................................................................................ 10 TIME OF OCCUPANCY (DWELL TIME)................................................................. 12 Measurement Procedure............................................................................................ 12 Measurement Results................................................................................................ 12 20dB BANDWIDTH.................................................................................................... 14 Measurement Procedure............................................................................................ 14 Measurement Results................................................................................................ 14 FIELD STRENGTH OF SPURIOUS EMISSIONS..................................................... 16 Measurement Procedure............................................................................................ 16 Measurement Results................................................................................................ 16 PEAK OUTPUT POWER............................................................................................ 77 Measurement Procedure............................................................................................ 77 Measurement Results................................................................................................ 77 BAND-EDGE COMPLIANCE OF RF CONDUCTED EMISSIONS........................ 78 Measurement Procedure............................................................................................ 78 Measurement Results................................................................................................ 78 SPURIOUS RF CONDUCTED EMISSIONS............................................................. 81 Measurement Procedure............................................................................................ 81 Measurement Results................................................................................................ 81 Test Report Number: 14033-1 EXHIBIT 6A 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56EU2 Test Report Details Tests Performed By: Motorola Mobile Devices Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Radiated Emissions Performed By: Underwriters Laboratories International EMC Services 333 Pfingste…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B HAC Test Report IHDT56EU3 Date of test: Date of Report: 8/19/2005 9/2/2005 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Scott Kelley Disability Access Manager Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC IHDT56EU3 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI PC63.19-2001 rd 3.6 standard. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: Max E Field emission = 60.5 V/m @ 1850 MHz Max H Field emission = 0.157 A/m @ 1910 MHz M Category = M3 ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 P P a a g g e e 2 2 E E x x h h i i b b i i t t 6 6 B B Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................3 4. SYSTEM ACCURACY VERIFICATION............................................................................................................4 5. PROBE MODULATION FACTOR ......................................................................................................................5 6. TEST RESULTS......................................................................................................................................................6 APPENDIX 1: HAC DISTRIBUTION PLOTS FOR SYSTEM ACCURACY VERIFICATION .....................9 APPENDIX 2: HAC DISTRIBUTION PLOTS FOR E-FIELD AND H-FIELD ...............................................12 APPENDIX 3: MEASUREMENT UNCERTAINTY BUDGET..........................................................................15 A3.1 Motorola Uncertainty Budget for RF HAC Testing .......................................................................16 A3.2 Probe Rotation Contributions to Isotropy Error ............................................................................16 APPENDIX 4: PICTURES OF TEST SETUP ......................................................................................................17 APPENDIX 5: PROBE CALIBRATION CERTIFICATES ................................................................................19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 P P a a g g e e 3 3 E E x x h h i i b b i i t t 6 6 B B 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed Hearing Aid Compatibility (HAC) measurements for the portable cellular phone (FCC ID IHDT56EU3). The portable cellular phone was tested in accordance with ANSI PC63.19-2001 rd 3.6 standard. The test results presented herein clearly demonstrate compliance FCC 47 CFR § 20.19. This report demonstrates compliance for near field emissions only and not for the T-coil performance compliance. 2. Description of the Device Under Test Table 1: Information for the Device Under Test FCC ID Number IHDT56EU3 Serial number LRZ0420029 Mode(s) of Operation* GSM 900 GSM 1800 GSM 1900 GPRS 900 GPRS 1800 GPRS 1900 Blue Tooth Modulation Mode(s) GSM GSM GSM GSM GSM GSM Blue Tooth Maximum Output Power Setting 33.00 dBm 30.00 dBm 30.00 dBm 33.00 dBm 30.00 dBm 30.00 dBm 0 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 2400 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable * The composite DSS is a Part 15c low power (class 2) Bluetooth device. This secondary transmitter was not enabled during testing, since the intended use of the PCS transmitter does not include simultaneous operation when held to ear. 3. Test Equipment Used The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.5) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the HAC measurements are taken within a shielded enclosure. The measurement uncertainty budget is given in Appendix 6. The list of calibrated equipment used for the measurements is shown below. Table 2: Dosimetric System Equipment Description Serial Number Cal Due Date DAE3 SN378 7/8/2006 E-Field Probe ER3DV6R SN2247 7/20/2006 H-Field Probe H3DV6 SN6074 7/8/2006 Planar Dipole 1880 MHz P1880-003 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EU3 P P a a g g e e 4 4 E E x x h h i i b b i i t t 6 6 B B Table 3: Additional Test Equipment Description Serial Number Cal Due Date Signal Generator E4432B GB38450359 2/22/2006 3db Attenuator 50579 12/27/2005 Power Supply 6632B 01N992 12/17/2005 Directional Coupler 778D 18610 03/24//2006 Power Meter E4416A GB41293246 2/25/2006 Power Meter E4419B GB39511086 03/22//2006 Power Sensor #1 – E9301A US39211013 12/28/2005 Power Sensor #2 - E9323A US40412053 2/18/2006 4. System Accuracy Verification A system a…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56EU3 Radiated Emissions Test Setup Photos Radiated Emissions Measurement Substitution Measurement EXHIBIT 7
