IHDT56EW1Portable Cellular / PCS GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola C381p GSM wireless phone. Accessory Connector Left Soft Key Perform function in lower left display. Power & End Key Turn phone on/off, end calls, exit menu system. Menu Key Right Soft Key Perform function in lower right display. Send Key Make & answer calls. 5-Way Navigation Key Scroll through menus & lists. Power Connector Headset Jack 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.motorola.com (United States) 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc., 2004. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. The information contained in Motorola's user's guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user's guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. Manual Number: 68XXXXXX76-O 3 Contents Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Battery Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 10 Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 11 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 12 Receiving a Multimedia Message . . . . . . . . . . . . . . . . . . 14 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . . 16 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 20 Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Using the Push to Talk (PTT) Key . . . . . . . . . . . . . . . . . . 33 Using the Handsfree Speaker. . . . . . . . . . . . . . . . . . . . . 34 Changing a Code, PIN, or Password . . . . . . . . . . . . . . . 34 Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 35 If You Forget a Code, PIN, or Password . . . . . . . . . . . . . 36 Locking and Unlocking the Keypad. . . . . . . . . . . . . . . . . 37 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Setting Up Your Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Storing Your Name and Phone Number . . . . . . . . . . . . . 41 4 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . 41 Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Setting a Wallpaper Image . . . . . . . . . . . . . . . . . . . . . . 42 Setting a Screen Saver Image . . . . . . . . . . . . . . . . . . . 44 Setting Display Color. . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Adjusting the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . 45 Setting Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . 45 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . 46 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Using Automatic Redial . . . . . . . . . . . . . . . . . . . . . . . . . 47 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . 48 Calling an Emergency Number . . . . . . . . . . . . . . . . . . . 48 Dialing International Numbers. . . . . . . . . . . . . . . . . . . . 49 Viewing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . 51 Using the Notepad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Attaching a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Calling With Speed Dial . . . . . . . . . . . . . . . . . . . . . . . . 52 Calling With 1-Touch Dial . . . . . . . . . . . . . . . . . . . . . . . 53 Using Voicemail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Using Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Putting a Call On Hold. . . . . . . . . . . . . . . . . . . . . . . . . . 55 Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Push to Talk (PTT) Calls . . . . . . . . . . . . . . . . . . . . . . . . . 57 Storing PTT Contacts and Groups . . . . . . . . . . . . . . . . 57 Making PTT Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Answeri…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA FCC ID: IHDT56EW1 September 29, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EW1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850Hz and 1900 MHz PCS band. Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Cellular Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: October 13, 2004 Subject: Request for additional information regarding FCC ID: IHDT56EW1 (Portable Cellular/PCS GSM transceiver) Reference: Application Received: 09/30/2004 Correspondence Reference Number: 241012A.IHD Confirmation Number: TC4331 Date of Original Email: 10/12/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. Please verify that the following is a typo: pg. 3 of the EMC report lists Bluetooth. Response: Yes, the reference to Bluetooth is an error. The transceiver does not contain Bluetooth. 2. Please verify that the following is a typo: pg. 7 of the EMC report lists the max EIRP in GSM 850 as 31.72 dBm instead of 31.78 dBm. Response: Yes, incorrect values are listed; please refer to the following correction: Max EIRP in GSM 850 is 31.78 dBm (max ERP is 29.68 dBm) . 3. Please insert the head and body SAR values on pgs. 86 - 87 of the user's manual. Response: Please refer to the following two pages. 4. The User’s Manual does not contain a statement regarding the requirements for RFx compliance with respect to body-worn configurations. Please verify that this statement will be included prior to marketing. Response: Yes, the required statements are now contained in a supplement which contains important legal and safety information. Please refer to exhibit 8A. 1 86 Specific Absorption Rate Data This model wireless phone meets the government’s requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/ kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1.17W/kg , and when worn on the body, as 87 described in this user guide, is 0.42W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements). 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site: http://www.phonefacts.net or the Canadian Wireless Telecommunications Association (CWTA) Web site: http://www.cwta.ca 1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product.

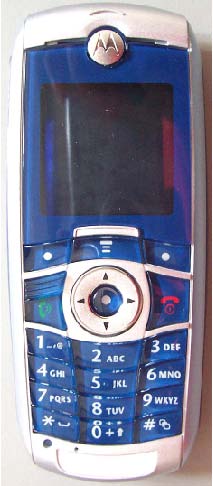

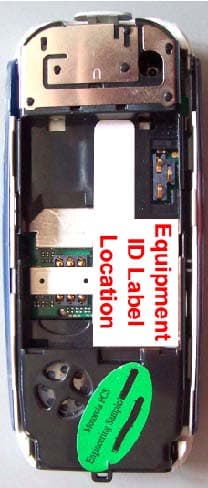

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EW1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EW1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 EXHIBIT 9A Rear View Front View APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 EXHIBIT 9B Rear View Without Shields Front View Without Keypad APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 EXHIBIT 9C Rear Housing Internal View Front Housing Internal View

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EW1 Date of test: Date of Report: 09/22/2004 to 10/01/2004 10/07/2004 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests: Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EW1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2004 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION........................................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST..................................................................................................................3 2.1 Antenna description.................................................................................................................................................................3 2.2 Device description.....................................................................................................................................................................3 3. TEST EQUIPMENT USED.........................................................................................................................................................3 3.1 Dosimetric System...................................................................................................................................................................3 3.2 Additional Equipment...............................................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID........................................................................4 5. SYSTEM ACCURACY VERIFICATION.................................................................................................................................5 6. TEST RESULTS..........................................................................................................................................................................5 6.1 Head Adjacent Test Results....................................................................................................................................................6 6.2 Body Worn Test Results.........................................................................................................................................................8 6.3 Push to Talk Mode Test Results............................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.......................10 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE............................................11 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...............................................14 APPENDIX 4: SAR DISTRIBUTION PLOTS FOR PUCH-TO-TALK CONFIGURATION..........................................16 APPENDIX 4: PROBE CALIBRATION CERTIFICATE......................................................................................................18 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE.......................................................................................19 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET................................................................................................20 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST...............................................................................................23 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EW1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56EW1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Unde…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56EW1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 15054-2 Report Date – October 12, 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date: October 12, 2004_ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56EW1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Reference Level Plot 9 GSM 850 Occupied Bandwidth Plot 9 GSM 850 Ch128 Lower Band Edge 10 GSM 850 Ch251 Upper Band Edge 10 GSM 1900 Occupied Band Plot 11 GSM 1900 Reference Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 15 Field Strength of Spurious Emissions 16 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions from Unintentional Radiators 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 15054-2 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56EW1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (561) 739-2179 Fax (561) 739-2131 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, Bluetooth Model Number: C381p Version: CHUG1381AA Serial Numbers: 004400-00-756881-7, 004400-00-756877-5, 004400-00-756888-2 Testing Complete Date: October 11, 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 15054-2 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56EW1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 20.1 dB 6 Field Strength of Spurious Emissions 3.9dB 7 Frequency Stability 67.00 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 15054-2 EXHIBIT 6 4 APPLICANT: MO…

Text truncated - open the document above for the full version.
