APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: 1 Welcome . Power/End Key Press & hold to turn on/off the phone. Press & release to end phone calls, exit menu system. Left Soft Key Perform functions identified by left display prompt. Antenna Enclosed on the top- back of the phone. Navigation Key Scroll through lists, set volume. Send/Answer Key Make and answer calls. Press in idle screen to see the recent dialed calls. Menu Key Open a menu when you see in the display. Power Connector Port Insert charger. Microphone Right Soft Key Perform functions identified by right display prompt. Headset Connector Port Ear Piece Listen to your voice calls and messages. Welcome.Copyright.fm Page 1 Wednesday, May 19, 2004 5:42 PM 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 886-2-2705-1811(TW) 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States) 1-800-461-4575 (Canada) www.motorola.com.tw (TW) www.motorola.com (United States) www.motorola.ca (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners. © Motorola, Inc. 2004 Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: C115.CG.book Page 2 Monday, May 10, 2004 11:56 AM 3 Contents Safety and General Information. . . . . . . . . . . . . . . . . . . . 8 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Package Content. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Changing Your SIM Card and Battery. . . . . . . . . . . . . . 15 Charging Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Turning On/Off Your Phone. . . . . . . . . . . . . . . . . . . . . . 15 Learning to Use Your Phone . . . . . . . . . . . . . . . . . . . . . 16 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Making and Answering Calls . . . . . . . . . . . . . . . . . . . . . 16 Symbols on the Screen . . . . . . . . . . . . . . . . . . . . . . . . . 17 Using the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . 20 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Displaying Your Phone Number . . . . . . . . . . . . . . . . . . 26 Redialing a Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using My Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Terminating an Incoming Call . . . . . . . . . . . . . . . . . . . . 27 Dialing an Emergency Number . . . . . . . . . . . . . . . . . . . 28 Dialing International Numbers . . . . . . . . . . . . . . . . . . . . 28 Inserting Special Characters into Dialing Sequences . . 29 Viewing the Received Calls or Dialed Calls List . . . . . . 29 Returning an Unanswered Call . . . . . . . . . . . . . . . . . . . 31 Entering Numbers in the Notepad . . . . . . . . . . . . . . . . . 32 Attaching a Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Using Voicemail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 C115.CG.book Page 3 Monday, May 10, 2004 11:56 AM 4 One-Touch Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Quick Dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Using Call Waiting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Forwarding a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Conference Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Barring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Putting a Call on Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Lock/ Unlock the Keypad . . . . . . . . . . . . . . . . . . . . . . . . 41 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Sending Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Viewing Message Status. . . . . . . . . . . . . . . . . . . . . . . . . 44 Receiving and Reading Messages . . . . . . . . . . . . . . . . . 44 Replying to Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Locking or Deleting a Text Message. . . . . . . . . . . . . . . . 45 Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Storing a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . 47 Dialing a Phonebook Entry . . . . . . …

Text truncated - open the document above for the full version.

79 Specific Absorption Rate Data The model wireless phone meets the government’s requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/ kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1.27 W/kg, and when worn on the body, as described in this user guide, is 0.67 W/kg. (Body-worn measurements differ 80 among phone models, depending upon available accessories and regulatory requirements). 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site: http://www.phonefacts.net or the Canadian Wireless Telecommunications Association (CWTA) Web site: http://www.cwta.ca 1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product.

APPLICANT MOTOROLA INC FCC ID: IHDT56EX1 SPECIFICATION COMPLIANCE STATEMENT The transceiver of type has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 North U.S. Highway 45, Libertyville, Illinois. I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct NAME: Tony Trandai TITLE: ODM Engineering Director PERSONAL COMMUNICATIONS SECTOR DATE: 5/14/04 Exhibit 2 1 APPLICANT MOTOROLA INC FCC ID: IHDT56EX1 STATEMENT OF CERTIFICATION The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56EX1) is in compliance with all applicable parts of the FCC Rules. The following is a statement of my qualifications: NAME: Chris Wronski TITLE: Senior Product Engineer Asia Pacific Group DATE: 5/14/04 Exhibit 2 2

Date: June 9, 2004 Subject: Request for additional information regarding FCC ID: IHDT56EX1 (Portable Cellular/PCS GSM transceiver) Reference: Application Received: 05/20/2004 Correspondence Reference Number: 240608B.IHD Confirmation Number: TC4176 Date of Original Email: 06/08/2004 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Personal Communications Sector Libertyville, Illinois Questions and responses follow: 1. Several items in the EMC report are listed as being past their cal due date. Please address. Response: The equipment calibration chart (page 5) is updated in the revised EMC report (exhibit 6) dated 6/8/04. 2. The conducted output power levels for GSM 850 and GSM 1900 listed on p.6 of the EMC report appear to be reversed from those listed on p.3 of the SAR report. Please address. Response: Agreed. The conducted power levels (page 6) are corrected in the revised EMC report dated 6/8/04. 3. Page 8 of the EMC report lists the RBW = 1 kHz for bandedge measurements (apparently a typo). Please address. Response: The effective resolution bandwidth is 3 kHz (composed of three adjacent 1 kHz bandwidth measurements). This FCC approved measurement technique improves measurement accuracy by reducing the effect on the instrument from in-band emissions.) 4. Page 9 of the EMC report lists the cellular occupied bandwidth = 0.0 kHz. Please correct. Response: The occupied bandwidth values (page 9) are updated in the revised EMC report dated 6/8/04. 5. The dielectric constant for the validation test at 1800 MHz performed on 5/9/04 (p.5 of the SAR report) appears to be a typo (39.5)- it is listed as 39.4 on the corresponding SAR plot. Please correct. Response: Please refer to the supplemental SAR report submitted on 6/9/04 1 6. The SAR contour overlay plots, Figures 3 and 4, appear inconsistent, as though the phone was not positioned properly under the grid. Please address. Response: Please refer to the supplemental SAR report submitted on 6/9/04 7. The user's manual does not contain the required RF exposure info (including the body-worn requirement statement). Please amend. Response: Please refer to the additional user’s manual pages in exhibit EX-08A. 2

APPLICANT: MOTOROLA FCC ID: IHDT56EX1 May 19, 2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56EX1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a dual band GSM portable transceiver, which operates in the 850 MHz and 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Subscriber Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

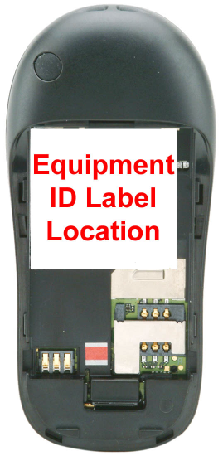

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 EXHIBIT 3 Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56EX1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56EX1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 EXHIBIT 9 Front View Rear View 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 EXHIBIT 9 Rear View (Shleids Removed) Front View (Display Removed) 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 EXHIBIT 9 Rear Housing Inter nal View Front Housing Inter nal View 3 of 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56EX1 Date of test: Date of Report: 05/09/04 – 05/10/04 05/20/04 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests: Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE P1528 (DRAFT) FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56EX1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2003 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION..............................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.....................................................................................3 2.1 Antenna description.................................................................................................................................................................3 2.2 Device description....................................................................................................................................................................3 3. TEST EQUIPMENT USED...................................................................................................................3 3.1 Dosimetric System...................................................................................................................................................................3 3.2 Additional Equipment...............................................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID......................................................4 5. SYSTEM ACCURACY VERIFICATION................................................................................................5 6. TEST RESULTS................................................................................................................................6 6.1 Head Adjacent Test Results....................................................................................................................................................6 6.2 Body Worn Test Results.........................................................................................................................................................8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION...................9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE................................10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION...................................13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE............................................................................15 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE.................................................................16 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET.......................................................................17 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST.................................................................20 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56EX1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56EX1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Back of Phone Length 20mm Dimensions Width 40mm Configuration FICA Antenna 2.2 Device description FCC ID Number IHDT56EX1 Serial number #1 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GSM GSM Target Value for Maximum Output Power Setting 32.30dBm 30.00dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.20 - 848.80 MHz 1850.20 – 1909.80 MHz Device Category Portable RF Exposure Limits General Population / Uncontrolled 3 Test Equipment Used 3.1 Dosimetric System The Motorola Personal Communications Sector Product Safety & Compliance Laboratory u…

Text truncated - open the document above for the full version.

June 8, 2004 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56EX1) Prepared by: Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56EX1) . The requested information is addressed below in the same numbering sequence received. 5. The dielectric constant for the validation test at 1800 MHz performed on 5/9/04 (p.5 of the SAR report) appears to be a typo (39.5)- it is listed as 39.4 on the corresponding SAR plot. Please correct. Response: Motorola confirms that there was a typo in the original table. Please see below for a corrected table. Dielectric Parameters f (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Ambient Temp (°C) Tissue Temp (°C) Measured, 05/09/04 11.20 41.30 0.98 20.0 19.9 Measured, 05/10/04 11.11 41.00 0.97 20.0 19.2 900 Recommended Limits 11.4 41.5 ±5% 0.97 ±5% 18-25 18-25 Measured, 05/09/04 41.45 39.40 1.39 20.0 19.5 Measured, 05/10/04 42.20 38.80 1.37 20.0 19.1 1800 Recommended Limits 40.7 40.0 ±5% 1.4 ±5% 18-25 18-25 6. The SAR contour overlay plots, Figures 3 and 4, appear inconsistent, as though the phone was not positioned properly under the grid. Please address. Response: The SAR contour overlay plots, Figures 3 and 4, are correct. The location of peak SAR, for the GSM1900 band, is located slightly above the “ear reference point” and to the right side of the phone. This corresponds near the top ridge of the phone.

APPLICANT: MOTOROLA INC FCC ID: IHDT56EX1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 14066-1 Report Date – 27 May 2004 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Electrical Engineer Date : 2004-05-27____ This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56EX1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Reference Plot 10 GSM 850 Occupied Bandwidth Plot 10 GSM 850 Ch128 Lower Band Edge 11 GSM 850 Ch251 Upper Band Edge 11 GSM 1900 Reference Plot 12 GSM 1900 Occupied Bandwidth Plot 12 GSM 1900 Ch512 Lower Band Edge 13 GSM 1900 Ch810 Upper Band Edge 13 Spurious Emissions at Antenna Terminals 14 GSM 850 Tabular and Graphical Data 15 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions 17 GSM 850 Tabular and Graphical Data 18 GSM 1900 Tabular and Graphical Data 19 Frequency Stability 20 GSM 850 Tabular and Graphical Data 21 GSM 1900 Tabular and Graphical Data 22 Field Strength of Spurious Emissions from Unintentional Radiators 23 GSM 850 Tabular and Graphical Data 24 GSM 1900 Tabular and Graphical Data 25 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 26 Figure A.2 – Substitution Measurement 26 Test Report Number: 14066-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56EX1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 1900 Model Number: C115 Version: SJUG0095AA Serial Numbers: 418105695655, 418105695593, 500134280122371 Testing Complete Date: 26 May 2004 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 14066-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56EX1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 20.7 dB 6 Field Strength of Spurious Emissions 3.8 dB 7 Frequency Stability 77.00 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 14066-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56EX1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ETS 31156222 DRG Horn Antenna A.H. Systems Inc. 365 DRG Horn AntennaSAS-200/57112/7/2004 ETS 31481188 Log-Periodic Antenna3/5/2004 ETS 3370 Biconical Antenna3110B11/14/2004 Attenuator 6675 Weinschel AS-610/14/2004 Attenuator 6677 Weinschel AS-611/4/2004 Rohde & Schwarz Mobile Test Set CMD 80DE29008N/A 3844A01195 Hewlett Packard Signal Generator 5/20/2004 83623B Thermotron 31580 Environmental ChamberS-41/5/2005 Hewlett Packard Pre-Amplifier 8347A11/4/2004 Hewlett Packard Pre-Amplifier 8447F2805A034195/19/2004 Agilent Power Meter EE4418B12/5/2004 Agilent Sensor E4412B11/23/2004 All equipment is on a one-year calibration cycle. Test Report Number: 14066-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56EX1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results …
