IHDT56FC1Portable Dual-Band GSM Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FC1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: motorola.com ROKR E2 GSM Cover .Print.Front .UG.landscape- ROKRE2. UG.fm Page 1 W ednesday, Oct ober 26, 2005 4:33 PM Cover .Print.Front .UG.landscape- ROKRE2. UG.fm Page 2 W ednesday, Oct ober 26, 2005 4:33 PM 1 HELLOMOTOIntroducing your new Motorola ROKR E2 GSM wireless phone. Here’s a quick anatomy lesson. Scroll up, down, left, or right. Press in to select. R ig ht Soft Key Vo ic e Key Cle a r/B ac k Key M ic ro p hone Turn on & off, hang up, exit m enus. Left Soft Key Volume Keys Charge up or connect m ini USB. Play m usic. Lock keypad. Go handsfree. Make & answer calls. 2 Main Menu Options Back Options Main Menu Service Provider 10:15 Contacts Settings Web Access Office Tools Multimedia Messages Recent Calls Browser Help Home Screen Main Menu Press and hold the Power Key u for a few seconds or until the display lights up to turn on your phone. 1 Press the Navigation Key up, down, left, or right ( S ) to highlight a menu feature. 3 Press the Navigation Key in ( s ) to select it. 4 Press the Main Menu soft key to open theMain Menu . 2 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2006. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment.Manual Number: 4 contents contentsmenu map . . . . . . . . . . . . 6Use and Care . . . . . . . . . . 8essentials . . . . . . . . . . . . . 9 about this guide. . . . . . . 9SIM card . . . . . . . . . . . 10battery . . . . . . . . . . . . . 11turn it on & off . . . . . . . 13make a call. . . . . . . . . . 13answer a call . . . . . . . . 13store a phone number in the contact list. . . . . . . 13call a stored phone number . . . . . . . . . . . . 14your phone number . . . 14 main attractions . . . . . . 16 audio player . . . . . . . . . 16FM radio . . . . . . . . . . . 21 airplane mode . . . . . . . 23memory card . . . . . . . . 23voice commands . . . . . 27photos . . . . . . . . . . . . . 29video clips . . . . . . . . . . 31Bluetooth™ wireless . . 33synchronize phone information . . . . . . . . . 37phone updates. . . . . . . 38 basics . . . . . . . . . . . . . . . 40 display . . . . . . . . . . . . . 40text entry . . . . . . . . . . . 43volume. . . . . . . . . . . . . 47handsfree speaker . . . . 47lock & unlock keypad . . 47lock & unlock phone . . 48codes & passwords . . . 48 customize. . . . . . . . . . . . 50 profiles. . . . . . . . . . . . . 50time & date . . . . . . . . . 51themes . . . . . . . . . . . . 51display appearance . . . 53answer options . . . . . . 53 calls. . . . . . . . . . . . . . . . . 55 turn off a call alert . . . . 55recent calls . . . . . . . . . 55redial . . . . . . . . . . . . . . 56return a call . . . . . . . . . 56notes . . . . . . . . . . . . . . 57hold or mute a call . . . . 57call waiting. . . . . . . . . . 57caller ID . . . . . . . . . . . . 58emergency calls . . . . . 58international calls . . . . . 59 contents 5 speed dial . . . . . . . . . . 59voicemail . . . . . . . . . . 59 other features . . . . . . . . 60 advanced calling . . . . . 60contacts . . . . . . . . . . . 63messages . . . . . . . . . . 68personalize . . . . . . . . . 70call times & costs . . . . 73handsfree . . . . . . . . . . . 74data & fax calls . . . . . . 75network . . . . . . . . . . . 76personal organizer . . . 76security. . . . . . . . . . . . 80fun & games. . . . . . . . 80 service and repairs . . . . 83SAR Data. . . . . . . . . . . . 84SAR Data. . . . . . . . . . . . 86EU Conformance . . . . . 87GNU License . . . . . . . . . 88Safety Information . . . . 90 Warranty (except Mexico) . . . . . . . . . . . . . . . . . . . . 95 Warranty (Mexico) . . . . 99index . . . . . . . . . . . . . . 101 6 menu map menu map <=0> main menun Contacts e Messages • Create Message• Inbox• My Folders• Templates•Drafts• Outbox•Email• Call Voicemail É Office Tools • Calendar•Email•MOTOSYNC• Download Manager• File Manager•AlarmClock• World Clock• SIM Applications *•Calculator• Dialing Services • Fixed Dial• Service Dial * •TaskList• Notes h Multimedia • Media Finder•Games•Camera• Video Camera• Voice Recorder•FM Radio V Browser s Recent Calls Tip: Press # to change the main menu to a list view and back. For feature help, select 1 Help in the main menu. á Web Access •Browser•My Bookmarks• My Web Pages•History• Go To Page•Browser Setup w Settings • (see next page) 1 Help This is the standard main menu layout. Your phone’s menu may be different.* optional features menu map 7 settings menu •Profiles •Normal• Vibrate• Silent• Meeting• Airplane Mode• Sleeping •Active•Car •Themes• Connections • Bluetooth™™• Modem• USB Settings• Data Connections • Call Settings • Speed Dial•CallForward• In-Call Setup • My Caller ID• Call Waiti…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FC1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56FC1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Wei Qi TITLE: Engineering Manager Motorola Mobile Devices Business Date: 09-25-2006 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56FC1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56FC1) is in compliance with all applicable parts of the FCC Rules. NAME: Wei Qi TITLE: Engineering Manager Motorola Mobile Devices Business Date: 09-25-2006 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56FC1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Wei Qi TITLE: Engineering Manager Motorola Mobile Devices Business Date: 09-25-2006 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56FC1 September 4, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Device Business, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56FC1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in 850 and 1900 MHz bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: September 27, 2006 Subject: Request for additional information regarding FCC ID: IHDT56FC1 (Portable PCS GSM transceiver) Reference: Correspondence Reference Number: IHD0540 Confirmation Number: 1609060539/41 Date of Original Email: September 27, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. The description of the label location in Exhibit 1 appears to need revision. Response: Please see Exhibit 1A for proper description of the label. 2. Please confirm that statements regarding 15.105 and 15.19 will be included in the production version of the manual. Response: The following text will be added to the user’s manual: 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help. 3. The actual test photos for FCC Part 22/24 and FCC Part 15B/15C need to be uploaded. These may be extracted from the report and held short term confidential. Response: Please see Supplemental EMC Report attached. 1 4. The occupied bandwidth plots for Parts 22 and 24 are blurred. Please submit new plots Response: Please see Supplemental EMC Report attached. 2

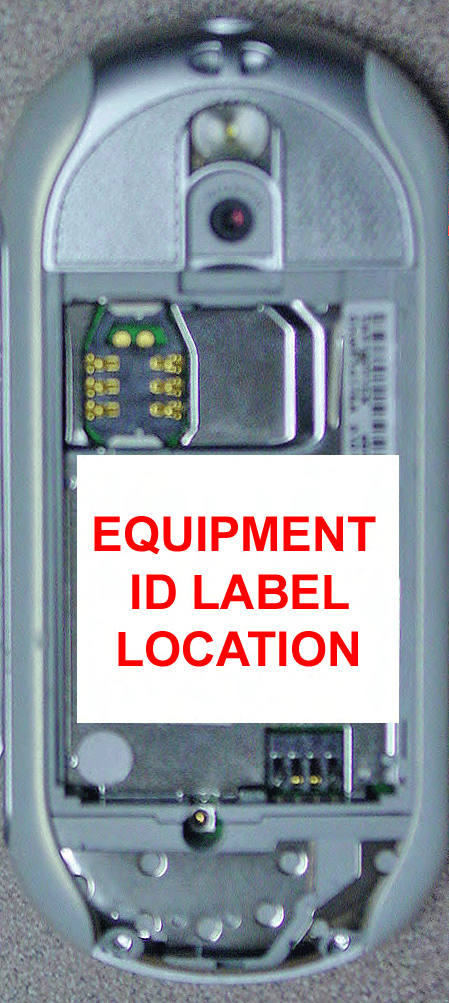

Rear View with Battery Cover Removed Showing ID Label Rear View Front View APPLICANT: MOTOROLA INC. FCC ID: IHDT56FC1 EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FC1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FC1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1A

Main Board Top without Shields Main Board Top APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FC1 EXHIBIT 9 1 0F 3 Main Board Bottom without Shields Main Board Bottom APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FC1 EXHIBIT 9 2 0F 3 Internal View of the Housing APPLICANT: MOTOROLA INC. FCC ID: IHDT56FC1 EXHIBIT 9 3 of 3

0 0 Portable Cellular Phone SAR Test Report Test Report #: 18986-1F Date of Report: 18-Sep-2006 Date of Test: 22-Aug-2006 t hrough 28-Aug-2006 FCC ID #: IHDT56FC1 Generic Name: E2 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yangae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Jon Park Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation WI-0247 RF Power Measurement WI-1847 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-02 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18986-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 9 References 12 Appendix 1: SAR distribution comparison for system accuracy verification 13 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 14 Appendix 3: SAR distribution plots for Body Worn Configuration 15 Appendix 4: Probe Calibration Certificate 16 Appendix 5: Measurement Uncertainty Budget 17 Appendix 6: Photographs of the device under test 19 Appendix 7: Dipole Characterization Certificate 26 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18986-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the transceiver Length 45 mm Dimensions Width 16 mm Configuration HDA 2.2 Device description Serial number TA811000U0 Mode(s) of Operation GSM 850 GSM 1800GSM 1900GPRS 850GPRS 1800 GPRS 1900 Blue Tooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK GFSK Maximum Output Power Setting 32.30 dBm 30.00 dBm 30.00 dBm 32.30 dBm 30.00 dBm 30.00 dBm 4.00 dBm Duty Cycle 1:8 1:8 1:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 824.2 - 848.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 824.2 - 848.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 2400 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18986-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE V1 386 25-Apr-2007 E-Field Probe ETDV6 1390 02-May-2007 Dipole Validation Kit, DV900V2 097 22-May-2007 S.A.M. Phantom used for 800/900MHz TP-1129 Dipole Validation Kit, DV1800V2 277tr S.A.M. Phantom used for 1800/1900 MHz TP-1134 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04630, 3847A04840 02-Mar-2007, 02-Dec-2007 Power Meter E4419B US39250623, GB39511085 24-May-2007, 01-Dec-2006 Power Sensor …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56FC1 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 18987-1 Report Date – September 25, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: September 25, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56FC1 Test Report Number: 18987-1 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 13 Measurement results 14 Field Strength of Spurious Emissions 16 Measurement results 17 Frequency Stability 19 Measurement results 20 Field Strength of Spurious Emissions -Unintentional Radiators 22 Measurement results 23 AC Line Conducted Emissions 25 Measurement results 26 Appendix A - Radiated Emissions Test Setup Photos 32 Figure A.1 – Radiated Emissions Measurement 32 Figure A.2 – Substitution Measurement 32 APPLICANT: MOTOROLA INC FCC ID: IHDT56FC1 Test Report Number: 18987-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, Bluetooth FCC ID : IHDT56FC1 Serial Numbers: TA811000U3, TA811000U4 TA811000UR, TA811000V6 Testing Complete Date: September 25, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT56FC1 Test Report Number: 18987-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions See results from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56FC1 Test Report Number: 18987-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel 2 AS-6 6675 6/6/07 Attenuator Weinschel 2 AS-6 6677 11/10/06 Attenuator Weinschel 2 AS-6 7075 1/31/07 Attenuator Weinschel 2 AS-6 6675 6/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E9323A US40412063 11/22/06 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56FC1 Test Report Number: 18987-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.2 32.30 836.6 32.30 848.8 32.30 GSM 1900 Frequency (MHz) Power (dBm) 1850.2 30.00 1880.0 30.00 1909.8 30.00 APPLICANT: MOTOR…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FC1 Exhibit 6 Page 5 of 5 4. The occupied bandwidth plots for Parts 22 and 24 are blurred. Please submit new plots. Response: The corrected plots are attached here. Occupied Bandwidth - GSM 850 836.4767, 7.99 836.7176, 6.97 -5 0 5 10 15 20 25 30 836.45836.5836.55836.6836.65836.7836.75 Frequency (MHz) Amplitude (dBm) Occupied Bandwidth Bandwidth Markers Occupied Bandwidth = 240.9 kHz Occupied Bandwidth - GSM 1900 1879.8740, 6.69 1880.1164, 5.10 -10 -5 0 5 10 15 20 25 1879.851879.91879.9518801880.051880.11880.15 Frequency (MHz) Amplitude (dBm) Occupied Bandwidth Bandwidth Markers Occupied Bandwidth = 242.4 kHz

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FC1 Exhibit 6 Page 1 of 5 September 27, 2006 Supplement to EMC Test Report for Motorola portable cellular phone (FCC ID IHDT56FC1) Prepared by: Albert Patapack Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FC1 Exhibit 6 Page 2 of 5 Summary of FCC request for additional information There was a request for additional information regarding Motorola’s EMC Test Report for Motorola portable cellular phone (FCC ID IHDT56FC1). The requested information is addressed below in the same numbering sequence received. 3. The actual test photos for FCC Part 22/24 and FCC Part 15B/15C need to be uploaded. These may be extracted from the report and held short term confidential. Response: The photos are attached here. Exhibit 6 Appendix A – Radiated Emissions Test Setup Photos A.1 Radiated Emissions Measurement APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FC1 Exhibit 6 Page 4 of 5 Exhibit 6A3 Appendix A – Radiated Emissions Test Setup Photos Radiated Emissions Measurement Setup Appendix B - AC Line Conducted Emissions Test Setup Photos AC Line Conducted Emissions Measurement Setup.
