IHDT56FE1Portable Dual Band GSM Transceiver

V177 GSM 1 HELLOMOTO Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V177 wireless phone. Earpiece Listen to your calls & messages. Left Soft Key Perform functions identified by left display prompt. Send/Answer Key Make & answer calls. Press idle screen to see recently dialed calls. Menu Key Open a menu when it appears in the display. Right Soft Key Perform functions identified by right display prompt. Power/End Key Press & hold to turn the phone on/off. Press & release to end call or exit menu system. Power Connector Insert the charger. PTT (push to talk) Key Navigation Key Press up and down to scroll through lists, left and right to set volume. 2 check it out! check it out! Note: Your phone may not appear exactly as the phone image above. Headset Jack Insert the headset accessory for handsfree use. Antenna Exposed on the top-back of the phone. Battery External Display View incoming call information and greetings. Lanyard Attachment Speaker PTT (push to talk) Key 3 check it out! Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc., under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc., in the U.S. and other countries. America Online, AOL, the America Online & Design logo, the AOL & Design logo, and the Triangle Logo are registered trademarks of America Online, Inc. in the United States and/or other countries. Instant Messenger and Buddy List are trademarks of America Online, Inc. Microsoft, Windows, ActiveSync, and Windows Media are registered trademarks of Microsoft Corporation; and Windows XP and Windows Mobile are trademarks of Microsoft Corporation. © Motorola, Inc., 2005. The information contained in Motorola’s User’s Guides is believed to be correct at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice. The contents of Motorola’s user’s guides are provided “as is.” Except as required by applicable law, no warranties of any kind, either express or implied, 4 check it out! including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability, or contents of this guide. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Manual Number: 680XXXXAXX-O 5 feature locator main menu nPhonebook sRecent Calls • Received calls • Dialed Calls • NotePad • Call Times • Call Costs eMessage •Create • Inbox •Drafts •Outbox •Quick Notes •Voicemail •Browser Msgs • Info Services •MMS Templates ÉOffice Tools •Calculator • MyMenu •Alarm Clock • Stop Watch •Chat • Dialing Services •IM • Operator Service QGames & Apps áWeb Access • Start Browser •Web Shortcuts •Go to URL • Browser Settings • Stored Pages •History • General Settings hMultimedia •Pictures • Sounds lPersonalize • Home Screen • Main Menu • Color Settings •Greetings • Wallpaper • Screen Saver •Quick Dial w Settings • (see next page) 6 settings menu tRing Style •Style •Details HCall Forward • Voice Calls •Fax Calls • Data Calls • Cancel All • Forward Status UIn Call Setup • In-Call Timer •Call Cost Setup • My Caller ID • Answer Options • Call Waiting ZInitial Setup • Time and Date • 1-Touch Dial • Display Settings • Backlight •Scroll • Language • Contrast •DTMF • Master Reset • Master Clear •TTY Setup mPhone Status •My Numbers • Active Line •Battery Meter SHeadset • Auto Answer jNetwork •New Network •Network Setup • Available Networks • My Network List • Service Tone •Call Drop Tone • Band Selection uSecurity • Phone Lock • Lock PTT Key • Fixed Dial •Call Barring • SIM PIN •New Passwords vPTT Settings • PTT Service 7 contents check it out! . . . . . . . . . . 2 contents . . . . . . . . . . . . . 7 essentials . . . . . . . . . . . 18 about this guide . . . . . 18 SIM card . . . . . . . . . . . 19 battery. . . . . . . . . . . . . 19 turn it on & off. . . . . . . 21 make a call . . . . . . . . . 21 answer a call . . . . . . . . 22 your phone number . . 22 main attractions . . . . . . 23 multimedia messages. 23 push to talk (PTT) calls 25 using instant messaging . 41 basics. . . . . . . . . . . . . . . 46 display . . . . . . . . . . . . . 46 menus. . . . . . . . . . . . . 50 text entry . . . . . . . . . . 52 volume . . . . . . . . . . . . 58 navigation key . . . . . . . 58 external display . . . . . . 58 handsfree speaker . . . 58 codes & passwords . . 59 lock & unlock phone . . 59 check battery meter . . 60 fold back the phone . . 60 customize . . . . . . . . . . . 61 ring style . . . . . . . . . . . 61 time & date. . . . . . . . . 62 wallpaper . . . . . . . . . . 62 screen saver . . . . . . . . 62 display appearance . . . 63 answer options . . . . . . 63 personal greetings . . . 64 optional handsfree use setup. . . . . . . . . . . . . . 64 calls . . . . . . . . . . . . . . . . 65 recent calls . . . . . . . . . 65 redial . . . . . . . . . . . . . . 66 return a call . . . . . . . . . 66 notepad. . . . . . . . . . . . 66 hold or mute a call . . . 67 call waiting . . . . . . . . . 67 caller ID. . . . . . . . . . . . 68 emergency calls . . . . . 68 international calls . . . . 69 1-Touch Dial. . . . . . . . . 69 voicemail. . . . . . . . . . . 70 inserting special characters into dialing sequences . . . . . . . . . 70 8 other features . . . . . . . 72 advanced calling . . . . 72 phonebook . . . . . . . . . 74 messages . . . . . . . . . 77 instant messaging . . . 79 ch…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56FE1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment ( IHDT56FE1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business

APPLICANT: MOTOROLA FCC ID: IHDT56FE1 July 12, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Device Business, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56FE1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a dual band GSM portable transceiver, which operates in the 850 MHz and 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

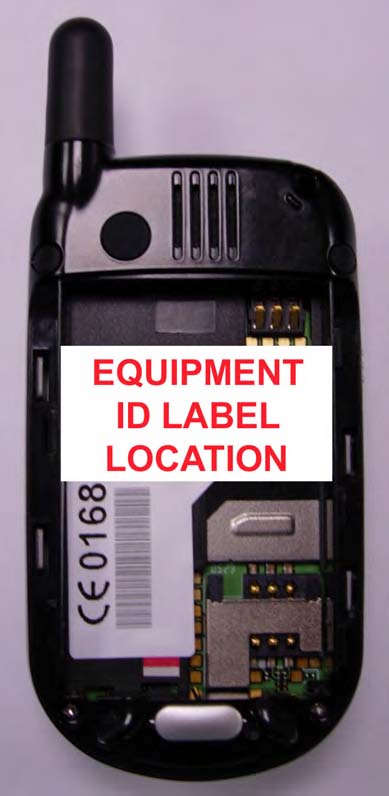

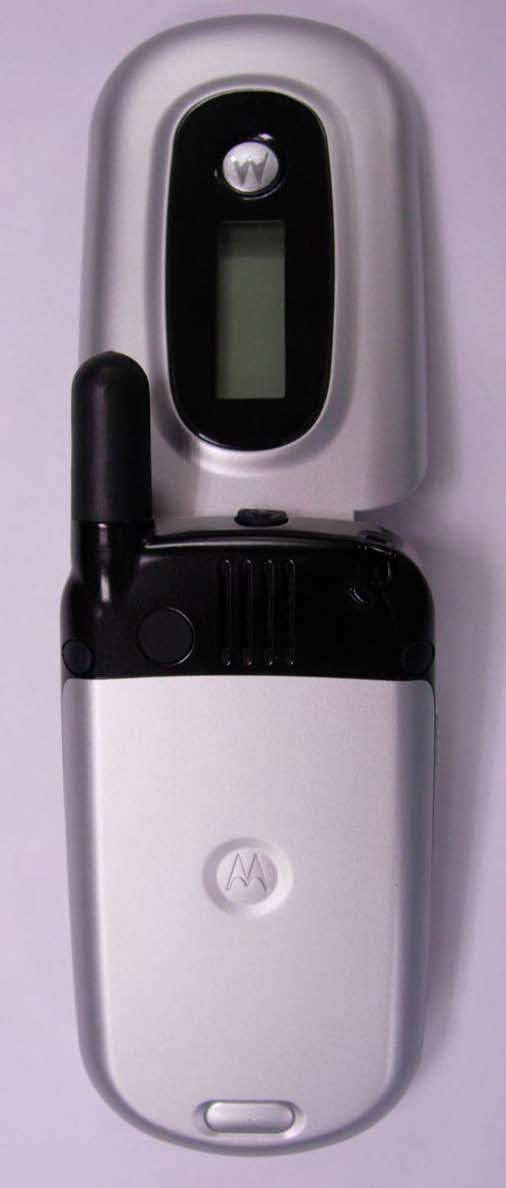

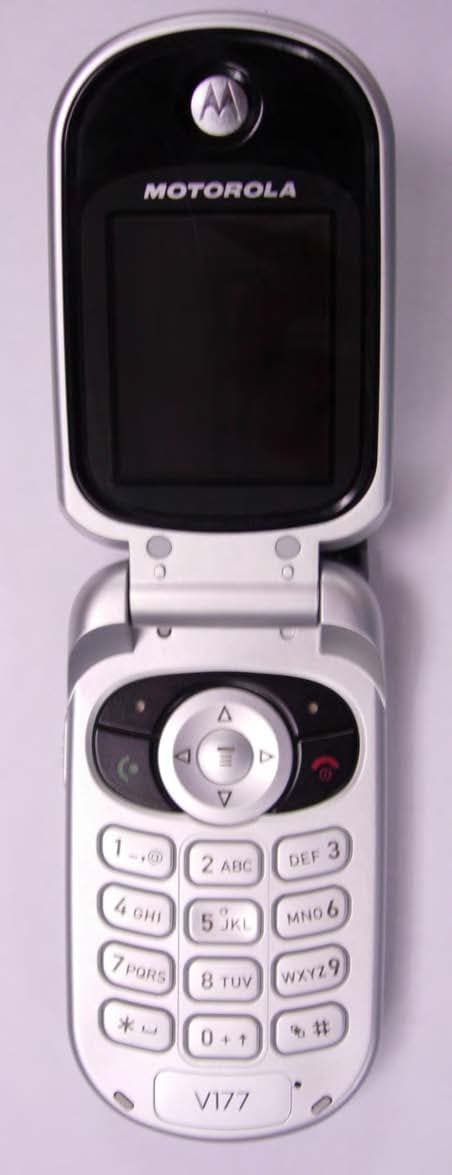

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FE1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FE1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 Front View Rear View EXHIBIT 9 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 EXHIBIT 9 Housing Internal Views 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 EXHIBIT 9 Housing Internal Views 3 of 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56FE1 Date of test: Date of Report: 6/23/2005 – 6/24/2005 7/1/2005 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Paul Ma RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FE1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................3 3.1 Dosimetric System .................................................................................................................................................3 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................4 5. SYSTEM ACCURACY VERIFICATION............................................................................................................4 6. TEST RESULTS......................................................................................................................................................5 6.1 Head Adjacent Test Results..................................................................................................................................6 6.2 Body Worn Test Results .......................................................................................................................................7 6.3 Push to Talk Mode Test Results ...........................................................................................................................8 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .......9 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................10 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN AND PTT CONFIGURATION............11 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................12 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................13 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................16 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FE1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FE1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Stubby Location Upper Right Corner Length (max) 19mm Dimensions Width (max) 10mm Configuration Helix 2.2 Device description FCC ID Number IHDT56FE1 Serial number 004400013683279 Mode(s) of Operation GSM850 GSM1900 Modulation Mode(s) GMSK GMSK Maximum Output Power Setting 32.7 30 Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 1850.2-1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled 3 Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety…

Text truncated - open the document above for the full version.

Date: August 30, 2005 Subject: Request for additional information regarding FCC ID: IHDT56FE1 (Portable PCS GSM transceiver) Reference: Application Received: 08/04/2005 Correspondence Reference Number: 150804B.IHD Confirmation Number: 1508040393 Date of Original Email: 08/25/05 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. On p.8 of the EMC report, the measured EIRP values do not correspond to the maximum values listed in the statements at the bottom of the page. Please address. RESPONSE: The values were incorrectly reported, and have been corrected. Please reference Exhibit 6A submitted on August 30, 2005. 2. The Table of Contents of the EMC report references EDGE data that is not in the actual report. Is the EUT capable of EDGE operation? RESPONSE: This unit does not have EDGE and references have been removed. Please reference Exhibit 6A submitted on August 30, 2005. 3. Please verify that the EUT has no GPRS capability. RESPONSE: The unit does have GPRS Class 8 capability and the header has been corrected on p.8 of the SAR report to reference the correct tests. Please reference Exhibit 11A submitted on August 30, 2005. 4. Please verify that the following is a typo: p.8 of the SAR report- the measured PTT SAR value for PCS operation should be 0.098, per the corresponding SAR plot RESPONSE: The PTT SAR value for PCS operation should be 0.098. Please reference Exhibit 11A submitted on August 30, 2005. 1

APPLICANT: MOTOROLA INC FCC ID: IHDT56FE1 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 16549-1 Report Date – August 18, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Staff Electrical Engineer Date: August 18, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56FE1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 850 Reference Plot 9 GSM 850 Occupied Bandwidth Plot 9 GSM 850 Ch128 Lower Band Edge 10 GSM 850 Ch251 Upper Band Edge 10 GSM 1900 Reference Plot 11 GSM 1900 Occupied Bandwidth Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions 16 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions from Unintentional Radiators 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 16549-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56FE1 Test Report Details Tests Performed By: Motorola Mobile Devices business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDB FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 1900 Model Number: V175/V176/V177 Version: SJUG1042AA Serial Numbers: 1, 2 & 3 Testing Complete Date: August 17, 2005 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (MDB) Test Report Number: 16549-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56FE1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 2.26 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 17.9 dB 6 Field Strength of Spurious Emissions 14.7 dB 7 Frequency Stability 50 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 16549-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56FE1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. ManufacturerEquipment TypeModel No.Serial Number Cal. Due Date Rohde & SchwarzReceiverESI26838786/0102/7/2006 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2005 Hewlett-PackardEMC Analyzer7405US3944019111/13/2005 ETSDRG Horn Antenna26524555/25/2006 ETSDRG Horn Antenna311562222/9/2006 ETSLog-Periodic Antenna314811886/14/2006 ETSBiconical Antenna3110B33702/16/2006 AttenuatorWeinschelAS-6667510/14/2005 AttenuatorWeinschelAS-6667711/4/2005 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011955/23/2006 ThermotronEnvironmental ChamberS-4315801/18/2006 Giga-TronicsPower Meter8651A865050812/27/2005 All equipment is on a one-year calibration cycle. Test Report Number: 16549-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56FE1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 850 Frequency (MHz) …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56FE1 Appendix A – Radiated Emissions Test Setup Photos A.1 Radiated Emissions Measurement A.2 Substitution Measurement End of Test Report Test Report Number: 16549-1 EXHIBIT 6 26
