IHDT56FG1Portable Dual Band GSM/ EDGE Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FG1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: V235 GSM 1 HELLOMOTO Introducing your new Motorola V235 GSM wireless phone. Here’s a quick anatomy lesson. Left Soft Key Navigate menus. Select menu items. Open menus. Volume Keys Charge up, go handsfree. Voice dial. Right Soft Key Turn on & off, hang up, exit menus. Make & answer calls. Smart Key 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc., 2005. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual Number: 68XXXXX102-O 3 feature locator feature locator main menu nPhonebook sRecent Calls • Received Calls • Dialed Calls • Notepad •Call Times* • Data Times * • Data Volumes * eMessages • Create Message • Message Inbox •Outbox •Drafts • Info Services * •Voicemail •Quick Notes •Drafts •MMS Templates • Browser Msgs • Info Services ÉTools •Calculator • Datebook • Shortcuts •Alarm Clock • Dialing Services QGames & Apps áWeb Access •Browser • Web Shortcuts • Stored Pages •History •Go To URL •Browser Setup • Web Sessions hMultimedia • Pictures • Sounds •Camera • Video Camera • Videos ÜVo i c e R e c o r d s w Settings • (see next page) * optional features This is the standard main menu layout. Your phone’s menu may be a little different. 4 feature locator settings menu lPersonalize • Home Screen •Main Menu • Color Style • Greeting • Wallpaper • Screen Saver •Quick Dial tRing Styles •Style •style Detail LConnection •Sync H Call Forward * •Voice Calls • Fax Calls • Data Calls • Cancel All • Forward Status UIn-Call Setup • In-Call Timer • My Caller ID • Talk and Fax • Answer Options • Call Waiting ZInitial Setup • Time and Date • 1-Touch Dial • Display Timeout • Backlight •Scroll • Language • Contrast •DTMF • Master Reset •Master Clear mPhone Status • My Tel. Numbers • Active Line * •Battery Meter • Software Update • Other Information SHeadset • Auto Answer • Voice Dial JCar Settings • Auto Answer • Auto Handsfree •Power-off Delay • Charger Time jNetwork •New Network •Network Setup •Available Networks • My Network List * • Service Tone * • Network Jingle * • Call Drop Tone uSecurity • Phone Lock • Lock Application • Fixed Dial • Restrict Calls * • Call Barring * • SIM PIN •New Passwords • Certificate Mgmt * cJava Settings • Java System • Delete All Apps • App Vibration • App Volume • App Backlight * optional features 5 contents contents feature locator. . . . . . . . . 3 Safety Information . . . . . 7 EU Conformance. . . . . . 14 Recycling Information . 15 essentials . . . . . . . . . . . 16 about this guide . . . . . 16 SIM card . . . . . . . . . . . 16 battery. . . . . . . . . . . . . 17 turn it on & off. . . . . . . 19 make a call . . . . . . . . . 20 answer a call . . . . . . . . 20 your phone number . . 20 main attractions . . . . . . 21 take & send a photo . . 21 record video . . . . . . . . 23 cable connections . . . . 24 basics. . . . . . . . . . . . . . . 25 display . . . . . . . . . . . . . 25 menus. . . . . . . . . . . . . 28 text entry . . . . . . . . . . 30 volume . . . . . . . . . . . . 35 navigation key . . . . . . . 35 external display . . . . . . 35 handsfree speaker . . . 36 codes & passwords . . 36 lock & unlock phone . . 37 customize . . . . . . . . . . . 38 ring style . . . . . . . . . . . 38 time & date. . . . . . . . . 39 wallpaper . . . . . . . . . . 39 screen saver . . . . . . . . 39 display appearance . . . 40 answer options . . . . . . 41 calls . . . . . . . . . . . . . . . . 42 turn off a call alert . . . . 42 recent calls . . . . . . . . . 42 redial . . . . . . . . . . . . . . 43 return a call . . . . . . . . . 44 notepad. . . . . . . . . . . . 44 hold or mute a call . . . 44 call waiting . . . . . . . . . 45 caller ID. . . . . . . . . . . . 45 emergency calls . . . . . 45 international calls . . . . 46 1-touch dial . . . . . . . . . 46 voicemail. . . . . . . . . . . 47 6 contents other features . . . . . . . 48 advanced calling . . . . 48 phonebook . . . . . . . . 50 messages . . . . . . . . . 54 personalizing . . . . . . . 57 call times & costs . . . 63 handsfree . . . . . . . . . 64 data & fax calls . . . . . 65 network . . . . . . . . . . . 66 personal organizer . . . 66 security . . . . . . . . . . . 68 fun & games . . . . . . . 69 troubleshooting . . . . . 72 SAR Data . . . . . . . . . . . 73 Warranty . . . . . . . . . . . 75 index . . . . . . . . . . . . . . 81 7 Safety Information Safety and General Information Safety Informati on IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMAT…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56FG1 ATTESTATION STATEMENTS Transceiver type FCC ID: IHDT56FG1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 N. US Highway 45, Libertyville, Illinois. NAME: GAO WILSON TITLE: SR. MANAGER OF ENGINEERING, PERSONAL COMMUNICATIONS SECTOR EXHIBIT 2A APPLICANT MOTOROLA INC. FCC ID: IHDT56FG1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT 56FG1) is in compliance with all applicable parts of the FCC Rules. NAME: Feng Ronghui TITLE: Lead Engineer Personal Communications Sector Date: May 18, 2005 Exhibit 2B

APPLICANT: MOTOROLA FCC ID: IHDT56FG1 August 30, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56FG1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 12 Operational Description • Exhibit 10 Parts List Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. Note: This device contains 900 and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

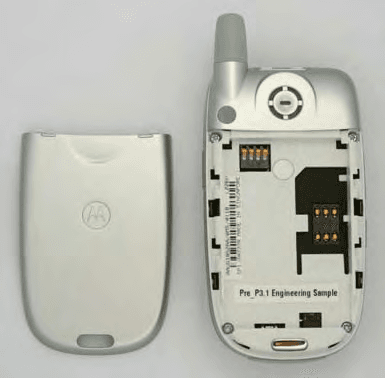

APPLICANT: MOTOROLA FCC ID: IHDT 5 6FG1 Exhibit 3 APPLICANT: MOTOROLA FCC ID: IHDT 5 6FG1 Equipment ID Label Location Exhibit 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FG1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FG1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA FCC ID: IHDT 5 6FG1 Exhibit 9 APPLICANT: MOTOROLA FCC ID: IHDT 5 6FG1 Exhibit 9

APPLICANT: MOTOROLA, INC. FCC ID: IDHT56FG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IDHT56FG1 Date of test: Date of Report: 7/3/2005 to 7/26/2005 8/3/2005 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Paul Ma RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FG1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IDHT56FG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................5 5. SYSTEM ACCURACY VERIFICATION............................................................................................................5 6. TEST RESULTS......................................................................................................................................................6 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .......................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................14 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................15 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................18 APPLICANT: MOTOROLA, INC. FCC ID: IDHT56FG1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FG1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type External Location Upper Right Corner Length 20mm Dimensions Width 10mm Configuration Helix 2.2 Device description FCC ID Number IHDT56FG1 Serial number(s) 1 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK GMSK GMSK 8PSK 8PSK 8PSK 8PSK Maximum Output Power Setting 32.10 dBm 32.30 dBm 30.00 dBm 30.00 dBm 32.10 dBm 32.30 dBm 30.00 dBm 30.00 dBm 29.00 dBm 29.00 dBm 28.00 dBm 28.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 2:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 Mhz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 M…

Text truncated - open the document above for the full version.

Date: September 12, 2005 Subject: Request for additional information regarding FCC ID: IHDT56FG1 (Portable PCS GSM transceiver) Reference: Application Received: 08/04/2005 Correspondence Reference Number: 150804A.IHD Confirmation Number: 1508040393 Date of Original Email: 08/25/05 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please provide ERP and EIRP data for cellular and PCS EDGE operation (to be listed on the grant). RESPONSE: Please reference replacement EMC Report labeled Exhibit 6A submitted on September 12, 2005. 2. Please submit the probe cal report for the SN1520 probe used for one SAR test run. RESPONSE: Please reference supplemental SAR report submitted on September 12, 2005. 1

APPLICANT: MOTOROLA INC FCC ID: IHDT56FG1 Mobile Devices Business PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 16510-1 Report Date – September 11, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Staff Electrical Engineer Date: September 11, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56FG1 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 10 GSM 850 Reference Plot 11 GSM 850 Occupied Bandwidth Plot 11 GSM 850 Ch128 Lower Band Edge 12 GSM 850 Ch251 Upper Band Edge 12 GSM 1900 Reference Plot 13 GSM 1900 Occupied Bandwidth Plot 13 GSM 1900 Ch512 Lower Band Edge 14 GSM 1900 Ch810 Upper Band Edge 14 GSM 850 Edge Occupied Bandwidth Plot 15 GSM 850 Edge Lower Band Edge 15 GSM 850 Edge Upper Band Edge 16 GSM 1900 Edge Occupied Bandwidth Plot 17 GSM 1900 Edge Lower Band Edge 17 GSM 1900 Edge Upper Band Edge 18 Spurious Emissions at Antenna Terminals 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 GSM 850 Edge Tabular and Graphical Data 25 GSM 1900 Edge Tabular and Graphical Data 26 Test Report Number: 16510-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56FG1 Frequency Stability 27 GSM 850 Tabular and Graphical Data 28 GSM 1900 Tabular and Graphical Data 29 Field Strength of Spurious Emissions from Unintentional Radiators 30 GSM 850 Tabular and Graphical Data 31 GSM 1900 Tabular and Graphical Data 32 GSM 850 Edge Tabular and Graphical Data 33 GSM 1900 Edge Tabular and Graphical Data 34 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 35 Figure A.2 – Substitution Measurement 35 Test Report Number: 16510-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56FG1 Test Report Details Tests Performed By: Motorola Mobile Devices business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Mobile Devices business (MDb) 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: EDGE GSM 850, 1900 Model Number: V235 Version: AAUG1881AA Serial Numbers: 1, 2 & 3 Testing Complete Date: August 5, 2005 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 16510-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56FG1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 2.264 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 14.4 dB 6 Field Strength of Spurious Emissions 5.6 dB 7 Frequency Stability 20 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 16510-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56FG1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial Number Cal. Due Date Rohde & SchwarzReceiverESI26838786/0102/7/2006 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2005 Hewlett-PackardEMC Analyzer7405US3944019111/13/2005 ETSDRG Horn Antenna26524555/25/2006 ETSDRG Horn Antenna311562222/9/2006 ETSLog-Periodic Antenna314811886/14/2006 ETSBiconical Antenna3110B33702/16/2006 AttenuatorWeinschelAS-6667510/14/2005 AttenuatorWeinschelAS-6667711/4/2005 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011955/23/2006 ThermotronEnvironmental ChamberS-4315801/18/2006 Giga-TronicsPower Meter8651A865050812/27/…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56FG1 Appendix A – Radiated Emissions Test Setup Photos A.1 Radiated Emissions Measurement A.2 Substitution Measurement End of Test Report Test Report Number: 16510-1 EXHIBIT 6 35
