IHDT56FK1Portable Cellular / PCS GSM Transceiver

V560 GSM D R A F T 1 Welcome Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola V560 GSM wireless phone. Left Soft Key Perform function in lower left display. Voice Key Create voice records & voice dial names. Headset Jack Volume Keys Smart Key 5-Way Navigation Key with Center Select Menu Key Right Soft Key Perform function in lower right display. Power & End Key Turn phone on/off, end calls, exit menu system. Accessory Connector Port Insert charger & phone accessories. Send Key Make & answer calls. D R A F T 2 Check It Out! FeatureDescription Connect to a Personal Area Network Pair your phone with an access point for a personal area network: M >Settings >Connection >Bluetooth Link > Access Points >[Look For Devices] Bluetooth® Wireless Pairing Pair your phone with a Bluetooth® headset, car kit, or computer: M >Settings >Connection >Bluetooth Link > Setup >Power >On, press BACK(-), press > Handsfree >[Look For Devices] Camera Lens Record video clips & take photos. Handsfree Speaker (on back of phone) External Display View incoming call information. Mirror Aim camera lens for self portraits. D R A F T 3 Record Video Clip Record a video clip: Press M >Multimedia >Videos > [New Video], point lens at subject, press CAPTURE(+) to begin recording, press STOP(+) to stop recording. Play Video Clip Play a video clip: M >Multimedia >Videos >video clip Take Photo Press M >Multimedia >Camera, point lens at subject, press CAPTURE(+) to take a photo. Send Photo Send a photo to a phone number or email address: Take photo, then press STORE(+) > Send In Message. Set Photo as Picture ID Assign a photo to a phonebook entry to allow picture caller ID: Take photo, then press STORE(+) > Apply as Phonebook Entry. Send Multimedia Message Send a multimedia message with pictures, animations, sounds, and videos: M >Messages >Create Message > New Multimedia Msg FeatureDescription 032380o D R A F T 4 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc. 2004, 2005. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: 68XXXXXX95-O D R A F T 5 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 8 European Union Directives Conformance Statement. . 15 Caring for the Environment by Recycling . . . . . . . . . . . 16 Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Battery Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 23 Turning Your Phone Off. . . . . . . . . . . . . . . . . . . . . . . . . . 23 Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 25 Highlight Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Using a Personal Area Network . . . . . . . . . . . . . . . . . . . 26 Recording and Playing Video Clips . . . . . . . . . . . . . . . . 29 Taking and Sending a Photo. . . . . . . . . . . . . . . . . . . . . . 34 Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 36 Using Bluetooth® Wireless Pairing. . . . . . . . . . . . . . . . . 40 Learning to Use Your Phone. . . . . . . . . . . . . . . . . . . . . . 45 Using the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Using the 5-Way Navigation Key. . . . . . . . . . . . . . . . . . . 50 Using Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Using the Smart Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 D R A F T 6 Using the External Display . . . . . . . . . . . . . . . . . . . . . . 65 Using the Handsfree Speaker . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56FK1 ATTESTATION STATEMENTS Transceiver type FCC ID: IHDT56FK1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at 600 NORTH US HIGHWAY 45, LIBERTYVILLE , ILLINOIS. NAME: DrewLundholm TITLE: ENGINEERING Manager, PERSONAL COMMUNICATIONS SECTOR Page 1 of 2 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56FK1 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56FK1) is in compliance with all applicable parts of the FCC Rules. NAME:Shirley Wong TITLE: SR. RFENGINEER, PCS Development Date: 04/13/05 Page 2 of 2 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56FK1 May 10, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56FK1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. The unit also contains a power class I 2.4 GHz Bluetooth transmitter (Part 15.247). Except for higher Bluetooth power, this transceiver is extremely similar to FCC ID: IHDT56DR1. Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Personal Communications Sector 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

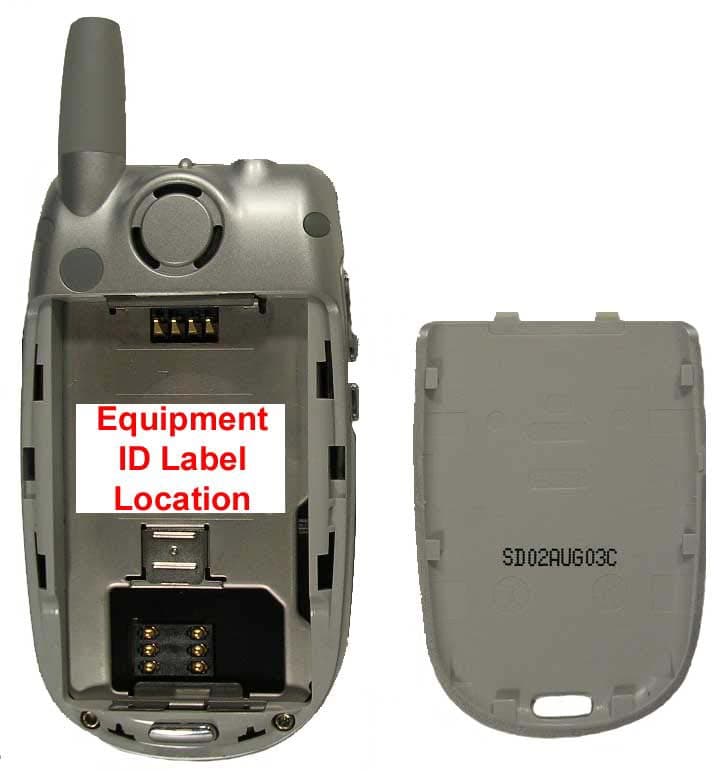

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FK1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FK1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 EXHIBIT 9 Rear View Shields Removed Rear View 1of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 EXHIBIT 9 Front View Front View (keypad popple) 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 EXHIBIT 9 3 of 3 Inside View of Housings

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 Front View Rear View Exhibit 9A 1 of 3 APPLICANT: MOTOROLA INC.FCC ID: IHDT56FK1 Page # of 3 EXHIBIT 3 APPLICANT MOTOROLA FCC ID: IHDT56FK1 REAR COVER REMOVED Exhibit 9A 2 of 3 APPLICANT: MOTOROLA INC.FCC ID: IHDT56FK1 Page # of 3 EXHIBIT 3 APPLICANT MOTOROLA FCC ID: IHDT56FK1 MAIN BOARD REMOVED Exhibit 9A 3 of 3

BT module and support circuitBT Antenna Top layer Bottom layer(mirror image) Phone housing APPLICANT MOTOROLA FCC ID: IHDT56FK1 Exhibit 9B 1 of 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 Front View Front View (keypad popple) BLUETOOTH ANTENNA BLUETOOTH ANTENNA Exhibit 9B 2 of 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56FK1 Date of test: Date of Report: March 22, 2005 – May 6, 2005 May 9, 2005 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Katerina Royzen Electrical Engineer I Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FK1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................5 5. SYSTEM ACCURACY VERIFICATION............................................................................................................6 6. TEST RESULTS......................................................................................................................................................7 6.1 Head Adjacent Test Results..................................................................................................................................8 6.2 Body Worn Test Results .....................................................................................................................................10 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....15 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................16 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................17 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................18 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE ..................................................................18 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET..........................................................................19 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................22 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FK1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FK1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Stubby Location Right Side Length 21mm Dimensions Width 8mm Configuration Fixed 2.2 Device description FCC ID Number IHDT56FK1 Serial number TA13602121 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Blue Tooth Class I Modulation Mode(s) GSM GSM GSM GSM GSM GSM GSM GSM Blue Tooth Maximum Output Power Setting 33.00 dBm 32.70 dBm 30.00 dBm 30.00 dBm 33.00 dBm 32.70 dBm 30.00 dBm 30.00 dBm 16.17 dBm Duty Cycle 1:08 1:08 1:08 1:08 2:08 2:08 2:08 2:08 1:01 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20- 1909.80 MHz…

Text truncated - open the document above for the full version.

June 17, 2005 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FK1) Prepared by: Katerina Royzen Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FK1) . The requested information is addressed below in the same numbering sequence received. 4) SAR report pg 15 says "SAR distribution comparison" - how are "distributions" compared and to what? Response: The plots in the Appendix 1 show SAR distribution of a given scan performed for system accuracy verification. The SAR value derived from this distribution is compared per IEEE 1528 to the target value of a standard dipole in the table on page 6. 5) Please describe held-to-head and body-worn BT & part 22/24 simultaneous transmission operating modes if any, and how SAR was evaluated for these, or give pointer to filing location if info is already there. Response: The phone is capable of using Bluetooth as a primary transmitting mode, without any GSM/GPRS transmitting. For this mode, SAR measurements are performed with the phone in the head and body-worn positions with only the Bluetooth transmitting. The phone is also capable of simultaneous transmission of a GSM/GPRS mode and Bluetooth mode. The intent of the simultaneous transmission is to maintain: a GSM call while connected to a Bluetooth accessory – such as a Bluetooth headset, or a GPRS connection while connected to a Bluetooth accessory – such as a handheld PDA. In both of these conditions the phone is intended to be positioned in a body-worn configuration. For SAR evaluation, the SAR value for the body-worn tests performed only in Bluetooth mode is added to the SAR value of the body-worn tests performed only in GSM or GPRS mode. The sum represents the GSM or GPRS as the primary transmitter and the Bluetooth collocated transmitting. A sum of the GSM and Bluetooth value would represent an overestimate of the SAR for a simultaneous transmitting condition since these maxima don’t occur in the same location on the phone.

APPLICANT: MOTOROLA INC FCC ID: IHDT56FK1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 16084-1 Report Date – May 11, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Mark Sidlow Title: Senior Electrical Engineer Date : May 11, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56FK1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Reference Plot 9 GSM 850 Occupied Bandwidth Plot 9 GSM 850 Ch128 Lower Band Edge 10 GSM 850 Ch251 Upper Band Edge 10 GSM 1900 Reference Plot 11 GSM 1900 Occupied Bandwidth Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 15 Field Strength of Spurious Emissions 16 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions from Unintentional Radiators 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 16084-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56FK1 Test Report Details Tests Performed By: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Personal Communications Sector 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 1900 Model Number: V560 Version: SJUG0353AA Serial Numbers: TA13602621, TA13602551, TA13602791, TA13602633 Testing Complete Date: May 5, 2005 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 16084-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56FK1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 2.81 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 21.1 dB 6 Field Strength of Spurious Emissions 5.4 dB 7 Frequency Stability 76 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 16084-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56FK1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial Number Cal. Due Date Rohde & SchwarzReceiverESI26838786/0105/17/2005 Hewlett-PackardEMC Analyzer8593EM3536A0011810/2/2005 Hewlett-PackardEMC Analyzer7405US3944019111/13/2005 MiteqPreamplifier 0.1-26.5GHzNSP2650-NF-S9663501/8/2006 ETSDRG Horn Antenna3115622210/4/2005 ETSLog-Periodic Antenna314811897/15/2005 ETSBiconical Antenna3110B337011/14/2005 AttenuatorWeinschelAS-6667510/14/2005 AttenuatorWeinschelAS-6667711/4/2005 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011956/20/2005 ThermotronEnvironmental ChamberS-4315801/18/2006 Giga-TronicsPower Meter8651A865050812/27/2005 Hewlett-PackardPre-Amplifier8447F2805A034195/19/2005 All equipment is on a one-year calibration cycle. Test Report Number: 16084-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56FK1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if …
