IHDT56FP1Portable Dual Band GSM Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type: IHDT56FP1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: James How Boon Hua TITLE: Senior Engineering Manager Mobile Devices Business EXHIBIT 2A APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56FP1) is in compliance with all applicable parts of the FCC Rules. NAME: Tjandra Janto TITLE: Electrical Lead, Royale Blade Date: 9/14/05 EXHIBIT 2B APPLICANT MOTOROLA INC. FCC ID: IHDT56FP1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: James How Boon Hua TITLE: ENGINEERING MANAGER Mobile Device Business Motorola, Inc. EXHIBIT 2C

APPLICANT: MOTOROLA FCC ID: IHDT56FP1 September 14, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Device Business, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56FP1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in 850 and 1900 MHz bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Note: This device contains 900 MHz and 1800 MHz GSM, functions which are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

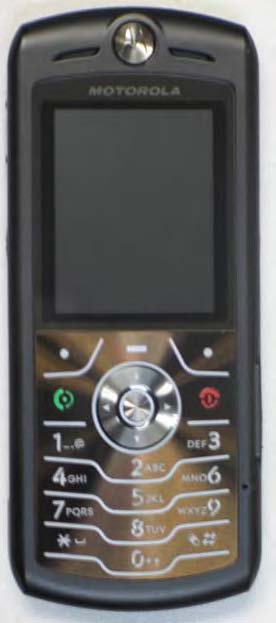

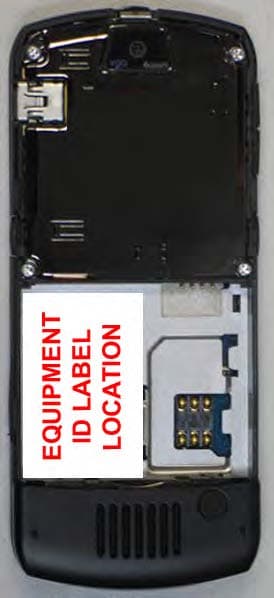

Rear View with Battery Cover Removed Showing ID Label Rear View Front View APPLICANT: MOTOROLA INC. FCC ID: IHDT56FP1 EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FP1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FP1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

Keypad PCBA (Front view) Front View With Mylar Removed APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 EXHIBIT 9 Keypad PCBA (Rear Vie w) R ear View With Shields Removed APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 EXHIBIT 9 Keypad PCBA (Rear View) M a in PCBA (R ea r View ) Rear View With Shields Removed APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 EXHIBIT 9 Main PCBA (Rear View ) Main PCBA (Front View) Front View With Shields Removed APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 EXHIBIT 9 Chassis (Front View) Display Module Keypad PCBA Coaxial Cable Keypad Front Housing APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 EXHIBIT 9 PCB Cover Antenna Cover Antenna Battery Door E X H I B I T 9 A P P L I C A N T : M O T O R O L A , I N C . FCC ID: IHDT56FP1 Main PCBA Antenna Antenna Cover PCB Cover Camera module APPLICANT: MOTOROLA, INC. F C C I D : I H D T 5 6 F P 1 E X H I B I T 9

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56FP1 Date of test: Date of Report: 08/25/2005 through 09/04/2005 09/26/2005 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FP1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................5 5. SYSTEM ACCURACY VERIFICATION............................................................................................................5 6. TEST RESULTS......................................................................................................................................................6 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .....................................................................................................................................10 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....12 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................13 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................14 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................15 APPENDIX 5: DIPOLE CHARACTERIZATION CERTIFICATE ..................................................................15 APPENDIX 6: MEASUREMENT UNCERTAINTY BUDGET..........................................................................16 APPENDIX 7: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FP1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FP1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the transceiver Length 36 mm Dimensions Width 1 mm Configuration FJA 2.2 Device description Model Number L7 SLVR Serial number TA81900192 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Blue Tooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK GMSK GMSK Blue Tooth Maximum Output Power Setting 33.00 dBm 32.50 dBm 29.50 dBm 29.50 dBm 33.00 dBm 32.50 dBm 29.50 dBm 29.50 dBm 4.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 …
