IHDT56FR1Portable Dual Band GSM Transceiver

Dummy Page - To be discarded before printing use this template with A6Moto StructApps V190 GSM Asia User’s Guide 6/6/05 V190 GSM 1 HELLOMOTO Introducing your new Motorola V190 GSM wireless phone. Here’s a quick anatomy lesson. For Push to Talk (PTT) details, see page 49. Left Soft Key Navigate menus. Select menu items. Read messages. Open menus. Volume Keys Charge up. Right Soft Key Turn on & off, hang up, exit menus. Go handsfree. or Make & answer calls. Go online. Smart/PTT Key 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. All other product or service names are the property of their respective owners. © Motorola, Inc., 2005. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall 3 not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual Number: 68XXXXXX97-O 4 feature locator feature locator main menu nPhonebook sRecent Calls • Received Calls • Dialed Calls • Notepad •Call Times* •Call Cost* • Data Times * • Data Volumes * eMessages • Create Message • Message Inbox •Voicemail •Browser Msgs • Info Services * •Quick Notes • Outbox •Drafts • MMS Templates ÉTools • SIM Tool Kit Apps * • Voice Message • Calculator • Datebook •Shortcuts •Alarm Clock •Chat • Dialing Services • Fixed Dial •Quick Dial •Voice Dial QGames & Apps áWeb Access •Browser • Web Shortcuts • Stored Pages •History •Go To URL •Browser Setup •Web Sessions* hMultimedia •Pictures • Sounds • Videos * ãIM • Log In • Offline Convs. • IM Account • Offline Settings •Help w Settings • (see next page) * optional features This is the standard main menu layout. Your phone’s menu may be a little different. 5 feature locator settings menu lPersonalize • Home Screen • Main Menu • Color Style •Greeting • Wallpaper • Screen Saver tRing Styles •Style •style Detail • Ring Lights • Event Lights ÅSync * H Call Forward * •Voice Calls •Fax Calls •Data Calls •Cancel All • Forward Status UIn-Call Setup • In-Call Timer • Call Cost Setup * • My Caller ID • Talk and Fax • Answer Options • Call Waiting ZInitial Setup •Time and Date • 1-Touch Dial • Display Timeout • Backlight • TTY Setup * •Scroll • Language • Contrast •DTMF • Master Reset • Master Clear mPhone Status •My Tel. Numbers • Credit Info/Available * • Active Line * •Battery Meter • Other Information SHeadset • Auto Answer • Voice Dial JCar Settings • Auto Answer • Auto Handsfree • Power-Off Delay • Charger Time jNetwork •New Network •Network Setup •Available Networks • My Network List * •Service Tone* • Network Jingle * • Call Drop Tone uSecurity • Phone Lock •Lock PTT Key* • Lock Application •Fixed Dial • Restrict Calls * • Call Barring * •SIM PIN •New Passwords • Certificate Mgmt * 6PTT Settings * •PTT Service cJava Settings • Java System • Delete All Apps • App Vibration •App Volume •App Priority* • App Backlight • Set Standby App * • DNS IP * * optional features 6 contents contents feature locator . . . . . . . . 4 Safety Information . . . . 8 EU Conformance . . . . . 15 Recycling Information. 16 essentials. . . . . . . . . . . 17 about this guide. . . . . 17 SIM card . . . . . . . . . . 17 battery . . . . . . . . . . . . 18 turn it on & off . . . . . . 20 make a call . . . . . . . . 21 answer a call . . . . . . . 21 your phone number . . 21 main attractions . . . . . 22 play videos . . . . . . . . 22 multimedia messages 23 cable connections . . . 25 basics . . . . . . . . . . . . . . 26 display . . . . . . . . . . . . 26 menus . . . . . . . . . . . . 29 text entry. . . . . . . . . . 31 volume . . . . . . . . . . . 36 navigation key . . . . . . 36 external display . . . . . 37 handsfree speaker. . . 37 codes & passwords. . 37 lock & unlock phone . 38 customize . . . . . . . . . . 39 ring style . . . . . . . . . . 39 ring & event lights . . . 40 time & date . . . . . . . . 40 wallpaper. . . . . . . . . . 41 screen saver . . . . . . . 41 display appearance . . 42 answer options . . . . . 42 calls . . . . . . . . . . . . . . . 43 turn off a call alert . . . 43 recent calls . . . . . . . . 43 redial . . . . . . . . . . . . . 44 return a call . . . . . . . . 45 notepad . . . . . . . . . . . 45 hold or mute a call. . . 45 call waiting . . . . . . . . 46 caller ID . . . . . . . . . . .…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FR1 ATTESTATION STATEMENTS Transceiver type: FCC ID:IHDT56FR1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at Motorola, located at 600 NORTH US HIGHWAY 45, LIBERTYVILLE , ILLINOIS. NAME: Swee Min Liew TITLE: Engineering Manager Mobile Device Business Date: June 23, 2005 EXHIBIT 2A APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FR1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56FR1 ) is in compliance with all applicable parts of the FCC Rules. NAME: Swee Min Liew TITLE: Engineering Manager Mobile Device Business Date: June 23, 2005 EXHIBIT 2B

APPLICANT: MOTOROLA FCC ID: IHDT56FR1 JUNE 20 , 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Personal Communications Sector, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56FR1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in both the 850 MHz and 1900 MHz PCS bands. Note: This device contains 900 MHz and 1800 MHz GSM functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FR1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FR1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

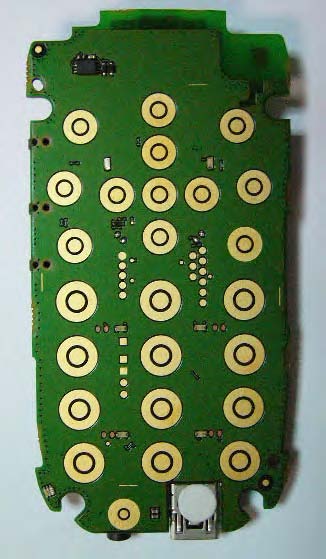

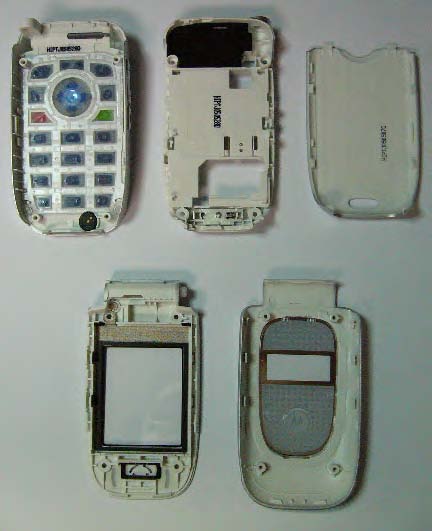

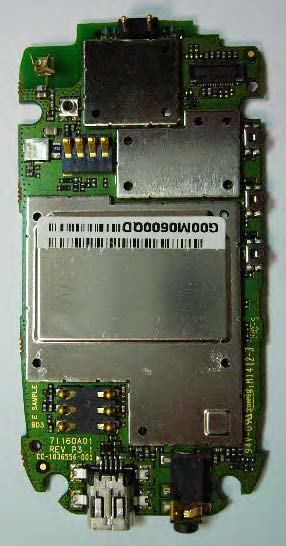

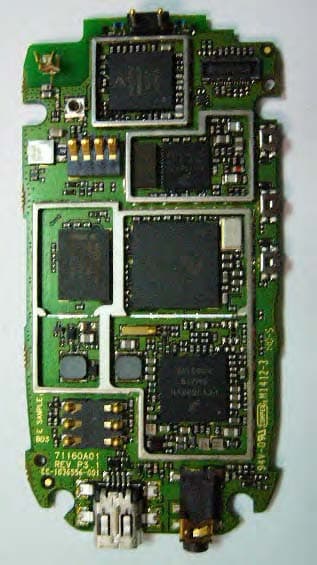

FrontView RearView RearViewwithoutshields APPLICANT: MOTOROLA FCC ID: IHDT56FR1 EXHIBIT 9 1 0F 2 Inside View of Housings APPLICANT: MOTOROLA FCC ID: IHDT56FR1 EXHIBIT 9 2 0F 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FR1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56FR1 Date of test: Date of Report: 05/10/2005 to 05/18/2005 6/07/2005 Laboratory: Motorola Personal Communications Sector Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FR1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FR1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................5 5. SYSTEM ACCURACY VERIFICATION............................................................................................................6 6. TEST RESULTS......................................................................................................................................................7 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .....................................................................................................................................10 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....12 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................13 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................14 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................15 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................16 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FR1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Personal Communications Sector Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FR1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type External Location Upper Right Corner Length 20mm Dimensions Width 10mm Configuration Helix 2.2 Device description FCC ID Number IHDT56FR1 Serial number(s) G00M030068 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM GSM GSM GSM GSM Maximum Output Power Setting 32.50 dBm 32.30 dBm 30.00 dBm 30.00 dBm 32.50 dBm 32.30 dBm 30.00 dBm 30.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Catego…

Text truncated - open the document above for the full version.

Date: August 16, 2005 Subject: Request for additional information regarding FCC ID: IHDT56FR1 (Portable PCS GSM transceiver) Reference: Application Received: 06/20/2005 Correspondence Reference Number: 150620A.IHD Confirmation Number: 1506200324 Date of Original Email: 08/10/2005 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. According to the manual, the EUT may also function as a pc peripheral. How is this portion of the EUT authorized? DoC? Certification? If certification, please submit a Part 15B test report for the EUT. Response: The pc peripheral is authorized under a Declaration of Conformity. Compliance to Section 15.105(b) is included in a user’s manual supplement. 2. There are several discrepancies between the model numbers of the various batteries/accessories listed in the body of the SAR report (Section 6.2), the SAR data tables, and the actual SAR plots. Please confirm that these are typos, and that the model numbers listed in Section 6.2 are correct. Response: Please refer to the supplemental SAR report submitted on August 16, 2005. 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FR1 Exhibit 11 Page 1 of 2 August 16, 2005 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FR1) Prepared by: Albert Patapack Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FR1 Exhibit 11 Page 2 of 2 Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FR1). The requested information is addressed below in the same numbering sequence received. 2. There are several discrepancies between the model numbers of the various batteries/accessories listed in the body of the SAR report (Section 6.2), the SAR data tables, and the actual SAR plots. Please confirm that these are typos, and that the model numbers listed in Section 6.2 are correct. Response : The fourth paragraph of section 6.2 of the original report should be replaced with the following paragraph: There is one Body-Worn Accessory, using two belt clips, available for this phone: Half Leather Case with Tab: VLV2203/SYN1072A Plastic Belt Clips: SYN8631A (wishbone) and SYN8763A (universal) This case, and the two belt clips, was used for the SAR body worn measurements. In addition, cabled headset SYN8390B was used for body worn testing. Additionally, the body worn scan immediately following page 14 of the original test report states the accessory model number to be SYN87963A. This is a typo with the correct model number being SYN8763A.

APPLICANT: MOTOROLA INC FCC ID: IHDT56FR1 PERSONAL COMMUNICATIONS SECTOR PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 16193-1 Report Date – June 15, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature: Name: _Michael Hill Title: Senior Staff Electrical Engineer Date: June 15, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56FR1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configurations 5 Measuring Equipment and Calibration Information 5 Measurement Procedures and Data RF Power Output 6 Radiated Power (ERP) 7 Occupied Bandwidth 8 GSM 850 Reference Plot 9 GSM 850 Occupied Bandwidth Plot 9 GSM 850 Ch128 Lower Band Edge 10 GSM 850 Ch251 Upper Band Edge 10 GSM 1900 Reference Plot 11 GSM 1900 Occupied Bandwidth Plot 11 GSM 1900 Ch512 Lower Band Edge 12 GSM 1900 Ch810 Upper Band Edge 12 Spurious Emissions at Antenna Terminals 13 GSM 850 Tabular and Graphical Data 14 GSM 1900 Tabular and Graphical Data 15 Field Strength of Spurious Emissions 16 GSM 850 Tabular and Graphical Data 17 GSM 1900 Tabular and Graphical Data 18 Frequency Stability 19 GSM 850 Tabular and Graphical Data 20 GSM 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions from Unintentional Radiators 22 GSM 850 Tabular and Graphical Data 23 GSM 1900 Tabular and Graphical Data 24 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 25 Figure A.2 – Substitution Measurement 25 Test Report Number: 16193-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56FR1 Test Report Details Tests Performed By: Motorola Mobile Devices Business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 900 Model Number: V190 Version: AAUG1828AA Serial Numbers: G00M03008G, G00M0300D6 Testing Complete Date: June 15, 2005 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 16193-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56FR1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 2.21 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 12.5 dB 6 Field Strength of Spurious Emissions 0.9 dB 7 Frequency Stability 84 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 16193-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56FR1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial NumberCal. Due Date Rohde & SchwarzReceiverESI26838786/0102/7/2006 Hewlett-PackardEMC Analyzer7405US394401911/27/2006 MiteqPreamplifier 0.1-26.5GHzNSP2650-NF-S966350N/A ETSDRG Horn Antenna311562222/9/2006 A.H. Systems Inc.DRG Horn AntennaSAS-2--/5713655/25/2006 ETSLog-Periodic Antenna314811887/15/2005 ETSBiconical Antenna3110B337011/14/2005 AttenuatorWeinschelAS-6667510/14/2005 AttenuatorWeinschelAS-6667711/4/2005 Hewlett-PackardSignal Generator83623B3844A011956/20/2006 ThermotronEnvironmental ChamberS-4315801/17/2006 AgilentPower MeterEE4418BGB4020638812/5/2005 AgilentPower SensorE4412BUS3848632112/5/2005 Hewlett-PackardPre-Amplifier8447F2805A034193/24/2006 All equipment is on a one-year calibration cycle. Test Report Number: 16193-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56FR1 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a HPE4406A Vector Signal Analyzer through a 10dB passive attenuator, adaptor (if needed), and specialized RF connecto…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56FR1 Appendix A – Radiated Emissions Test Setup Photos A.1 Radiated Emissions Measurement A.2 Substitution Measurement End of Test Report Test Report Number: 16193-1 EXHIBIT 6 24
