IHDT56FX1Portable Tri-Mode Dual-Band Transceiver(AMPS/CDMA)

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: Sprint PCS ® Phone Guide Sprint PCS Vision SM Phone VI-C290 by Motorola® 10/21/05 DRAFT www.sprint.com © 2005 Sprint Nextel. All rights reserved. No reproduction in whole or in part without prior written approval. Sprint, the “Going Forward” logo, the NEXTEL name and logo, and other trademarks are trademarks of Sprint Nextel. Printed in the U.S.A. Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc., 2005. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse- engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: Table of Contents Welcome to Sprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Your Phone’s Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii Section 1: Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1A. Setting Up Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting Started With Sprint PCS Service . . . . . . . . . . . . . . . . . . . . . .3 Setting Up Your Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Sprint PCS Account Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Section 2: Your Sprint PCS Phone . . . . . . . . . . . . . . . . . . . 9 2A. Your Sprint PCS Phone: The Basics . . . . . . . . . . . . . . . . 10 Front View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Viewing the Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Features of Your Sprint PCS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Turning Your Phone On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using Your Phone’s Battery and Charger . . . . . . . . . . . . . . . . . . . . 20 Navigating Through Phone Menus . . . . . . . . . . . . . . . . . . . . . . . . . 23 Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Making and Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 2B. Controlling Your Phone’s Settings . . . . . . . . . . . . . . . . 39 Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Location Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Messaging Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 TTY Use With Sprint PCS Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Phone Setup Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 2C. Setting Your Phone’s Security . . . . . . . . . . . . . . . . . . . . 54 Accessing the Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Using Your Phone’s Lock Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Using Special Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Erasing Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Erasing My Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Resetting Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Security Features for Sprint PCS Vision SM . . . . . . . . . . . . . . . . . . . . . 59 2D. Controlling Your Roaming Experience . . . . . . . . . . . . . 60 Unde…

Text truncated - open the document above for the full version.

Section 3 Sprint PCS Service Features 90Section 3A: Sprint PCS Service Features: The Basics Section 3A Sprint PCS Service Features: The Basics In This Section Using Voicemail Using Text SMS Messaging Using Voice SMS Messaging Using Caller ID Responding to Call Waiting Making a Three-Way Call Using Call Forwarding Now that you’ve mastered your phone’s fundamentals, it’s time to explore the calling features that enhance your Sprint PCS Service. This section outlines your basic Sprint PCS Service features. Section 3A: Sprint PCS Service Features: The Basics91 Sprint PCS Service Using Voicemail Setting Up Your Voicemail All unanswered calls to your Sprint PCS Phone are automatically transferred to your voicemail, even if your phone is in use or turned off. Therefore, you will want to set up your Sprint PCS Voicemail and personal greeting as soon as your phone is activated. To set up your voicemail: 1.Press and hold . 2.Follow the system prompts to: Create your passcode Record your greeting Record your name announcement Choose whether or not to activate One-Touch Message Access (a feature that lets you access messages simply by pressing and holding , bypassing the need for you to enter your passcode). Note: Voicemail Passcode If you are concerned about unauthorized access to your voicemail account, Sprint recommends you enable your voicemail passcode. 1 1 92Section 3A: Sprint PCS Service Features: The Basics Voicemail Notification There are several ways your Sprint PCS Phone alerts you of a new message: By displaying a message on the screen. By sounding the assigned ringer type. By the LED blinking red. By displaying at the top of your screen. New Voicemail Message Alerts When you receive a new voice message, your phone alerts you and prompts you to call your voicemail. To call your voicemail: Press and hold . To display your Missed Log: Press Detail (right softkey). Note: When you are roaming off the Nationwide Sprint PCS Network, you may not receive notification of new voicemail messages. It is recommended that you periodically check your voicemail by dialing 1 + area code + you Sprint PCS Phone number. When your voicemail answers, press ( * ) and enter your passcode. You will be charged roaming rates when accessing voicemail while roaming off the Nationwide Sprint PCS Network. Your phone accepts messages even when it is turned off. However, you are only notified of new messages when your phone is turned on and you are in a Sprint PCS Service Area. 1 Section 3A: Sprint PCS Service Features: The Basics93 Sprint PCS Service Retrieving Your Voicemail Messages You can review your messages directly from your Sprint PCS Phone or from any other touch-tone phone. To dial from your Sprint PCS Phone, you can either speed dial your voicemail or use the menu keys. Using One-Touch Message Access Press and hold . (Your phone will dial your voicemail box.) Using the Menu Keys on Your Phone to Access Your Messages 1.Select Menu > Messaging > Voicem ail. 2.Press to listen to your messages. Using a Phone Other Than Your Sprint PCS Phone to Access Messages 1.Dial your Sprint PCS Phone number. 2.When your voicemail answers, press . 3.Enter your passcode. Note: You are charged for airtime minutes when you are accessing your voicemail from your Sprint PCS Phone. Tip: When you call into voicemail, you first hear the header information (date, time, and sender information) for the message. To skip directly to the message, press 4 during the header. 1 TALK 94Section 3A: Sprint PCS Service Features: The Basics Voicemail Button Guide Here’s a quick guide to your keypad functions while listening to voicemail messages. For further details and menu options, see “Voicemail Menu Key” on page 97. Date/TimeSend ReplyAdvance ReplayRewindForward EraseCall BackSave CancelHelpSkip Voicemail Options Your Sprint PCS Phone offers several options for organizing and accessing your voicemail. Using Expert Mode Using the Expert Mode setting for your personal voicemail box helps you navigate through the voicemail system more quickly by shortening the voice prompts you hear at each level. To turn Expert Mode on or off: 1.Press and hold to access your voicemail. (If your voicemail box contains any new or saved messages, press to access the main voicemail menu.) 2.Press to change your Personal Options, following the system prompts . 3.Press for Expert Mode. 4.Press to turn Expert Mode on or off . 123 456 789 0# 1 3 4 1 Section 3A: Sprint PCS Service Features: The Basics95 Sprint PCS Service Setting Up Group Distribution Lists Create up to 20 separate group lists, each with up to 20 customers. 1.Press and hold to access your voicemail. (If your voicemail box contains any new or saved messages, press to access the main voicemail menu.) 2.Press to change your Personal Options, following the system prompts. 3.Press for Administrative Options. 4.Press for Group Distribution Lists. 5.Follow the voice prompts to create, edit, rename, or delete group lists. Sprint PCS Callback Return a call after listening to a message without disconnecting from voicemail. Press after listening to a message. (Once the call is complete, you’re returned to the voicemail main menu.) Voicemail-to-Voicemail Message Record and send a voice message to other Sprint PCS Voicemail users. 1.From the main voicemail menu, press to send a message . 2.Follow the voice prompts to enter the phone number. 3.Follow the voice prompts to record and send your voice message. 1 3 2 5 8 2 96Section 3A: Sprint PCS Service Features: The Basics Voicemail-to-Voicemail Message Reply Reply to a voice message received from any other Sprint PCS Voicemail user. 1.After listening to a voice message, press . 2.Follow the voice prompts to record and send your reply. Voicemail-to-Voicemail Message Forwarding Forward a voice message, except those marked “Private,” to other Sprint PCS Voicemail users. 1.After listening to a message, press . 2.Follow the voice prompts to enter the phon…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type: FCC ID: IHDT56FX1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Jong Soo Hwang TITLE: Engineering Manager Mobile Devices Business Date: November 17, 2005 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56FX1) is in compliance with all applicable parts of the FCC Rules. NAME: Jang Ho Lee TITLE: Lead Engineer Mobile Devices Business Date: November 17, 2005 EXHIBIT 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FX1 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56FX1. NAME: Andrew Bachler TITLE: FCC Liaison Mobile Devices Motorola, Inc. December 12, 2005 Exhibit 2C

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 Exhibit 2C 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 Exhibit 2D SPECIFICATION COMPLIANCE STATEMENT Engineer-in-Charge Equipment Authorization Branch Federal Communications Commission We hereby certify that this transmit and receive equipment (FCC ID: IHDT56FX1) for tri-mode mobile station cellular use is capable of compliance with the TIA/EIA-95-B Mobile Station-Base Station Compatibility Standards for Dual-Mode Spread Spectrum Systems, December 1998. Furthermore, we certify compliance to ANSI/TIA/EIA-553-A-1999, Mobile Station-Land Station Compatibility Specification. Jong Soo Hwang Engineering Manager Mobile Devices Business

APPLICANT: MOTOROLA FCC ID: IHDT56FX1 December 12, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Device business, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56F X1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the conventional Analog Cellular standard in the 800 MHz cellular band, and the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. Hearing Aid Compatibility exhibits are included in the application. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: December 19, 2005 Subject: Request for additional information regarding FCC ID: IHDT56FX1 (Portable PCS GSM transceiver) Reference: Application Received: 11/17/2005 Correspondence Reference Number: 151117A.IHD Confirmation Number: 1511170558 Date of Original Email: 12/15/05 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Regarding the use of cdma2000, filings should be clear about transmitter setup & operation capabilities to ensure devices are configured properly according to communication protocol and operating requirements in order to obtain valid SAR results. Please address the following questions. a . What is the CDMA MS Protocol Revision number? b . Please address the applicability of test codes to simulate the required test conditions. c . Please identify the CDMA Radio Configurations, Service Options, multiplex options, voice/data, code channel combinations and options available to the EUT. d. Please identify the CDMA Radio Configurations, Service Options, multiplex options, voice/data, code channel combinations and options used for the SAR tests. e. Because of the different RC's, SO's, data rates, channel combinations and modulations, the filing should include justification for the selection of applicable configurations used to establish and maintain maximum output in order to demonstrate SAR compliance for other configurations that were not tested. Please provide the justification for the specific combination(s) used during the SAR tests. RESPONSE: Please reference Supplemental SAR Report Exhibit 11A submitted on 12-19-05 2. Does the EUT employ EV-DO? If so, Body-worn SAR should be repeated in EV-DO (Rev. 0 only) using the CDMA 2000 body- worn channel configuration that resulted in the highest SAR among the various Radio Configurations in this frequency band (that is, just a single SAR test for EV-! DO, as a sanity check). If this EV-DO SAR is greater than the highest body-worn SAR in CDMA 2000, perform body-worn SAR for the other 2 channels (among the required H, M, L channels). Note: EV-DO operates independently of CDMA 2000 with different modulation, channel and protocol structures. It is not an integral part (seamless) of the CDMA 2000 structure, but overlays the 1x structure. EV-DO Rev A allows 307 kbps and higher order modulations; therefore, may need additional considerations. The above procedures applies to single band CDMA 2000 1x handsets with built-in EV-DO (Rev. 0) using the 1 same transmit path hardware. Please contact us if the device in question operates in other configurations or EV-DO does not apply to body-worn conditions. RESPONSE: Please reference Supplemental SAR Report Exhibit 11A submitted on 12-19-05 3. Regarding the HAC test report, please provide details of the WD’s signal. Include wideband and 0 span spectrum analyzer plots. How was the signal set up and controlled? What settings were used i.e. power control modes, and radio service mode. Also, please include details of what exact standard the CDMA radio is capable of using i.e. IS-95. RESPONSE: Please reference Supplemental HAC Report Exhibit 6C submitted on 12-19-05 4. Regarding the HAC test report, please provide additional details justifying the conversion to peak; particularly the procedure used to measure power. Provide 0 span spectrum plots. RESPONSE: Please reference Supplemental HAC Report Exhibit 6C submitted on 12-19-05 5. Please provide a table listing the RBW/VBW/detector used to perform cellular cdma occupied bandwidth and bandedge measurements. RESPONSE: Please reference Supplemental EMC Report Exhibit 6B submitted on 12-19-05 6. Please provide the lower conducted bandedge plot for the PCS band. RESPONSE: Please reference Supplemental EMC Report Exhibit 6B submitted on 12-19-05 7. Please provide a statement affirming compliance with the Wireless 911 Call Processing requirement of Section 22.921 for AMPS operation. RESPONSE: Please reference Exhibit 2C submitted on 12-19-05 8. Please provide a statement affirming compliance with ANSI TIA/EIA 553-A-1999 for AMPS operation. RESPONSE: Please reference Exhibit 2C submitted on 12-19-05 2

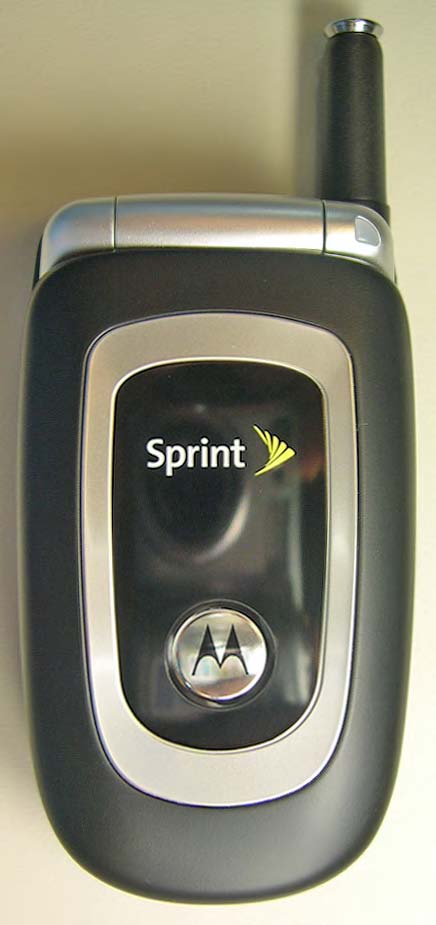

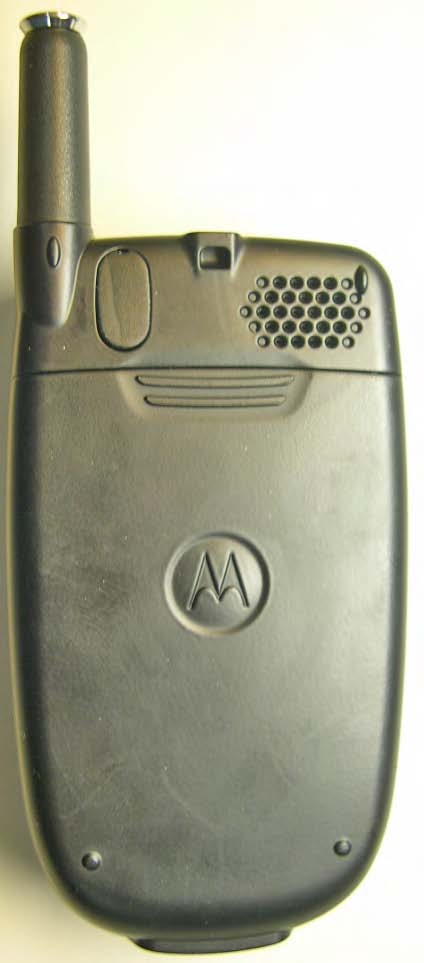

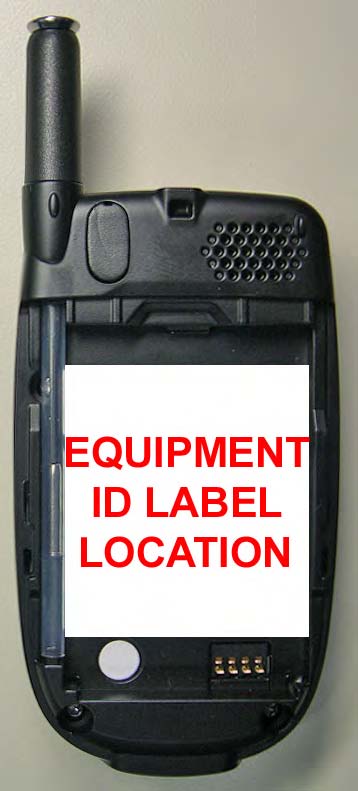

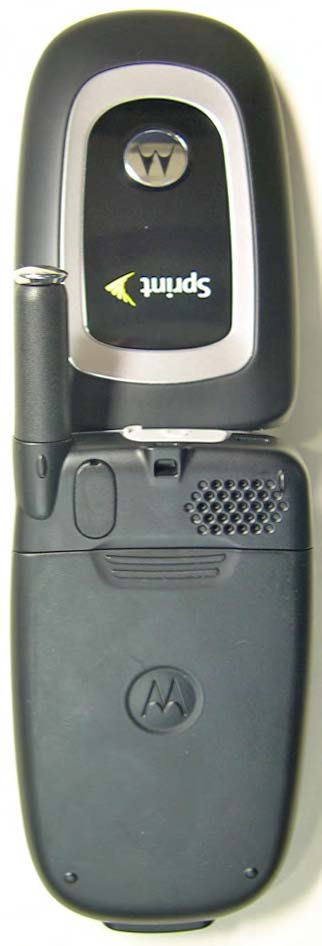

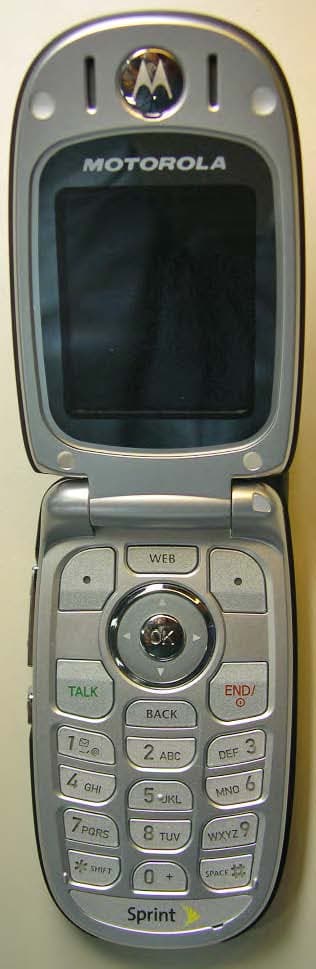

Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA INC. FCC ID: IHDT56FX1 EXHIBIT 3 1 OF 2 Rear View with Battery Cover Removed Showing ID Label Rear View Front View APPLICANT: MOTOROLA INC. FCC ID: IHDT56FR1 EXHIBIT 3 2 OF 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FX1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FX1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

Main Board Top without Popples Main Board Top APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 EXHIBIT 9 1 0F 3 Flip Board Main Board Bottom without Shields EXHIBIT 9 2 of 3 Main Board Bottom APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 Internal View of the Housing EXHIBIT 9 3 0F 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56FX1 Date of test: Date of Report: 20-Sept-2005 through 06-Oct-2005 26-Oct-2006 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FX1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................5 5. SYSTEM ACCURACY VERIFICATION............................................................................................................6 6. TEST RESULTS......................................................................................................................................................7 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .....................................................................................................................................10 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....12 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................13 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................14 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................15 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................16 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................19 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FX1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type External Location Upper Right Length 98mm Dimensions Width 3mm Configuration Extendable Whip 2.2 Device description FCC ID Number IHDT56FX1 Serial number 3347E318 Mode(s) of Operation 800 AMPS 800 CDMA 1900 CDMA Modulation Mode(s) FM QPSK QPSK Maximum Output Power Setting 27.8dBm 25.00dBm 25.00dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824.04-848.97 MHz 824.70-848.31 MHz 1851-1909MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3 Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Busi…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 Exhibit 11 Page 1 of 2 December 16, 2005 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FX1) Prepared by: Albert Patapack Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Steven Hauswirth Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FX1 Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FX1). The requested information is addressed below in the same numbering sequence received. 1a . What is the CDMA MS Protocol Revision number. RESPONSE: Protocol revision 6 (complaint to IS-2000 Rev 0). 1b . Please address the applicability of test codes to simulate the required test conditions, as defined in 3GPP2, TIA, and other standards. RESPONSE: All phones are tested using a base station simulator, not in test mode as stated in section 6 Test Results in the SAR report. Future reports will have this section edited to properly reflect the configuration of the phone during testing. 1c. Please identify the CDMA Radio Configurations, Service Options, multiplex options voice/data, code channel combinations and options available to the EUT. RESPONSE: To test voice calls on the DUT, the test equipment was configured to use “all up bits” for RC1 / SO2 on J-STD-008 for CDMA 1900MHz and TSB-74 for CDMA 800MHz on the Agilent E8285A CDMA Mobile Station test set. 1d. Please identify the CDMA Radio Configurations, Service Options, multiplex options, voice/data, code channel combinations and options used for the SAR tests. RESPONSE: Please see answer to inquiry #3e below. 1e.Because of the different RC's, SO's, data rates, channel combinations and modulations, the filing should include justification for the selection of applicable configurations used to establish and maintain maximum output in order to demonstrate SAR compliance for other configurations that were not tested. Please provide the justification for the specific combination(s) used during the SAR tests. RES…

Text truncated - open the document above for the full version.
