IHDT56FY1Portable Dual-Band GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: C257 GSM 1 HELLOMOTO Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola C257 wireless phone. Earpiece Listen to your voice calls & messages. Left Soft Key Perform functions identified by left display prompt. Send/Answer Key Make & answer calls. Press in idle screen to see recently dialed calls. Menu Key Open a menu when it appears in the display. Right Soft Key Perform functions identified by right display prompt. Power/End Key Press & hold to turn the phone on/off. Press & release to end phone calls, exit menu system. Power Connector Insert the charger. Navigation Key Scroll up, down, left or right. 2 check it out! check it out! Note: Your phone may not appear exactly as the phone image above. Headset Jack Insert the headset accessory for handsfree use. Battery Lanyard Attachment Speakers 3 check it out! Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. 200x All other product or service names are the property of their respective owners. © Motorola, Inc. 2005. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user's authority to operate the equipment. Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. Manual Number: 680XXXXAXX-O 4 feature locator feature locator main menu nPhonebook sRecent Calls • Received calls • Dialed Calls • NotePad •Call Times •Call Costs eMessage •Create •Inbox •Draft • Outbox •Quick Notes •Voicemail •Browser Msgs • Info Services • MMS Templates ÉOffice Tools • Calculator •MyMenu •Alarm Clock • Stop Watch •Chat • Dialing Services •IM QGames & Apps áWeb Access •Start Browser • Web Shortcut •Go to URL •Browser Setting • Stored Pages •History • General Setting hMultimedia •Pictures • Sounds lPersonalize • Home Screen •Main Menu • Color Setting • Greeting • Wallpaper • Screen Saver •Quick Dial w Settings • (see next page) 5 feature locator settings menu tRing Style •Style •Detail HCall Forward •Voice Calls •Fax Calls •Data Calls •Cancel All • Forward Status UIn Call Setup • In-Call Timer • Call Cost Setup • My Caller ID • Answer Options • Call Waiting ZInitial Setup •Time and Date • 1-Touch Dial • Display Settings • Backlight •Scroll • Language • Contrast •DTMF • Master Reset • Master Clear mPhone Status • My Numbers • Active Line • Battery Meter SHeadset • Auto Answer jNetwork •New Network •Network Setup •Avail. Networks • My Network List •Service Tone • Call Drop Tone • Band Selection uSecurity • Phone Lock • Lock Keypad • Auto Key Lock •Fixed Dial • Call Barring •SIM PIN •New Passwords 6 contents check it out!. . . . . . . . . . 2 feature locator . . . . . . . . 4 contents . . . . . . . . . . . . . 6 essentials. . . . . . . . . . . . 9 about this guide. . . . . . 9 SIM card . . . . . . . . . . . 9 battery . . . . . . . . . . . . . 10 turn it on & off . . . . . . 12 make a call . . . . . . . . 13 answer a call . . . . . . . 13 your phone number . . 13 main attractions . . . . . 14 multimedia messages 14 using instant messaging . 16 basics . . . . . . . . . . . . . . 20 display . . . . . . . . . . . . 20 menus . . . . . . . . . . . . 23 text entry. . . . . . . . . . 25 volume . . . . . . . . . . . 28 navigation key . . . . . . 29 handsfree speaker. . . 29 codes & passwords. . 29 lock & unlock phone . 30 customize . . . . . . . . . . 31 ring style . . . . . . . . . . 31 time & date . . . . . . . . 31 wallpaper. . . . . . . . . . 32 screen saver . . . . . . . 32 display appearance . . 33 answer options . . . . . 33 personal greetings . . 33 optional handsfree operation . . . . . . . . . . 34 calls . . . . . . . . . . . . . . . 35 recent calls . . . . . . . . 35 redial . . . . . . . . . . . . . 36 return a call . . . . . . . . 36 notepad . . . . . . . . . . . 36 hold or mute a call. . . 37 call waiting . . . . . . . . 37 caller ID . . . . . . . . . . . 38 emergency calls . . . . 38 international calls . . . 39 1-Touch dial . . . . . . . . 39 voicemail . . . . . . . . . . 40 inserting special characters into dialing sequences. . . . . . . . . 40 7 other features . . . . . . . . 42 advanced calling . . . . . 42 phonebook . . . . . . . . . 44 messages . . . . . . . . . . 47 instant messaging. . . . 49 chat . . . . . . . . . . . . . . . 50 personalizing . . . . . . . . 50 call times & costs . . . . 52 handsfree operation . . 53 network. . . . . . . . . . . . 54 personal organizer. . . . 54 fun & games . . . . . . . . 56 service and repairs . . . . 57 check here first . . . . . . 57 service and repairs . . . 58 8 European Union Directives Conformance Statement Hereby, Motorola declares that this product is in compliance with: •The essential requirements and other relevant provisions of Directive 1999/5/EC •All other relevant EU Directives The above gives an example of a typical Product Approval Number. You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your DoC, enter …

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56FY1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business Exhibit 2A APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56FY1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business Exhibit 2B

APPLICANT: MOTOROLA FCC ID: IHDT56FY1 September 27, 2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Device Business, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56FY1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a dual band GSM portable transceiver, which operates in the 850 MHz and 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

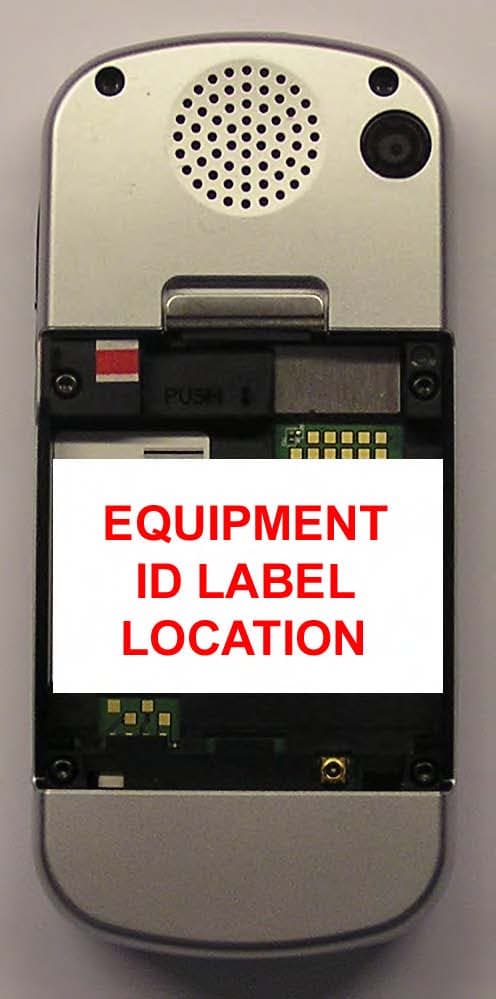

Rear View with Battery Cover Removed Showing ID Label Rear View Front View APPLICANT: MOTOROLA INC. FCC ID: IHDT56FY1 EXHIBIT 3

Main Board Top Main Board Bottom APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 EXHIBIT 9 1 0F 2 Internal View of Phone APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 EXHIBIT 9 2 0F 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56FY1 Date of test: Date of Report: 08/17/2005 09/12/2005 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FY1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................5 5. SYSTEM ACCURACY VERIFICATION............................................................................................................6 6. TEST RESULTS......................................................................................................................................................7 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .......................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....10 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................11 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................12 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................13 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................14 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................17 APPENDIX 7: DIPOLE CHARACTERIZATION CERTIFICATE ..................................................................22 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FY1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Location Upper Back Length 19mm Dimensions Width 38mm Configuration Patch 2.2 Device description FCC ID Number IHDT56FY1 Serial number Phone 1 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GSM GSM Target Value for Maximum Output Power Setting 32.40 dBm 30.20 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 1850.2-1909.8 MHz Device Category Portable RF Exposure Limits General Population / Uncontrolled APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 3 Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Saf…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 Exhibit 11 Page 1 of 2 December 06, 2005 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FY1) Prepared by: Albert Patapack Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FY1 Exhibit 11 Page 2 of 2 Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56FY1). The requested information is addressed below in the same numbering sequence received. 1. On p.9 of the SAR report, it is stated that a 2.5 cm separation distance was used for SAR body tests, however, the SAR Table on that page, as well as the SAR plot pages, list 1.5 cm. Please address. Response: The statement on p.9 of the SAR report is a generic statement stating the maximum test separation distance at which a phone without an accessory will be tested. The actual test separation distance may be less than that. The separation stated in the body worn data tables, as well as on any body worn SAR plots, is the separation at which the phone was actually tested. 2. Please verify that the EUT is not capable of multi-slot GPRS operation. Response: The table on p.3 of the test report does not contain GPRS information. The table has been correct and is attached below. As the corrected table shows, the EUT is capable of only single time-slot GPRS operation (Class 8 GPRS). FCC ID Number IHDT56FY1 Serial number Phone 1 Mode(s) of Operation GSM 850 GSM 1900 GPRS 850 GPRS 1900 Modulation Mode(s) GSM GSM GSM GSM Target Value for Maximum Output Power Setting 32.40 dBm 30.20 dBm 32.40 dBm 30.20 dBm Duty Cycle 1:8 1:8 1:8 1:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 1850.2-1909.8 MHz 824.2-848.8 MHz 1850.2- 1909.8 MHz Device Category Portable RF Exposure Limits General Population / Uncontrolled

Date: December 6, 2005 Subject: Request for additional information regarding FCC ID: IHDT56FY1 (Portable PCS GSM transceiver) Reference: Application Received: 09/27/2005 Correspondence Reference Number: 150927A.IHD Confirmation Number: 1509270473 Date of Original Email: 12/05/05 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. On p.9 of the SAR report, it is stated that a 2.5 cm separation distance was used for SAR body tests, however, the SAR Table on that page, as well as the SAR plot pages, list 1.5 cm. Please address. RESPONSE: Please reference Exhibit 11A submitted on December 6, 2005. 2. Please verify that the EUT is not capable of multi-slot GPRS operation. RESPONSE: Please reference Exhibit 11A submitted on December 6, 2005. 3. Two items are listed as being past their cal due date, on p.6/28 of the EMC Test Report. Please address. RESPONSE: The dates in the table were incorrect; please reference the updated table below. ManufacturerEquipment TypeModel No.Serial Number Cal. Due Date Rohde & SchwarzReceiverESI26838786/0102/7/2006 Hewlett-PackardEMC Analyzer7405US394401911/27/2006 ETSDRG Horn Antenna311562222/9/2006 A.H. Systems Inc.DRG Horn AntennaSAS-2--/5713655/25/2006 ETSLog-Periodic Antenna314811886/14/2006 ETSBiconical Antenna3110B33702/16/2006 AttenuatorWeinschelAS-6667512/27/2005 AttenuatorWeinschelAS-6667711/14/2006 Hewlett-PackardSignal Generator83623B3844A011956/20/2006 ThermotronEnvironmental ChamberS-4315801/17/2006 AgilentPower MeterEE4418BGB4020638812/5/2005 AgilentPower SensorE4412BUS3848632112/5/2005 Hewlett-PackardPre-Amplifier8447F2805A034193/24/2006 1

APPLICANT: MOTOROLA INC FCC ID: IHDT56FY1 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 17020-1 Report Date – November 21, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Staff Electrical Engineer Date: November 21, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 Table of Contents EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56FY1 Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 850 Reference Plot 10 GSM 850 Occupied Bandwidth Plot 10 GSM 850 Ch128 Lower Band Edge 11 GSM 850 Ch251 Upper Band Edge 11 GSM 1900 Reference Plot 12 GSM 1900 Occupied Bandwidth Plot 12 GSM 1900 Ch512 Lower Band Edge 13 GSM 1900 Ch810 Upper Band Edge 13 Spurious Emissions at Antenna Terminals 14 GSM 850 Tabular and Graphical Data 15 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions 17 GSM 850 Tabular and Graphical Data 18 GSM 1900 Tabular and Graphical Data 19 Frequency Stability 20 GSM 850 Tabular and Graphical Data 21 GSM 1900 Tabular and Graphical Data 22 Field Strength of Spurious Emissions from Unintentional Radiators 23 GSM 850 Tabular and Graphical Data 24 GSM 1900 Tabular and Graphical Data 26 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 27 Figure A.2 – Substitution Measurement 27 Test Report Number: 17020-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56FY1 Test Report Details Tests Performed By: Motorola Mobile Devices business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDB FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Radiated Emissions Performed By: Underwriters Laboratories International EMC Services 333 Pfingsten RD Northbrook, IL 60062 Contact: Lubomir Madjarov (Tel) 847/664-3957 (Fax) 847/313-3957 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 1900 Model Number: C261 Version: SJUG1156AA Serial Numbers: 004400-01-652435-5, 004400-01-652436-3, 004400-01-652429-8 Testing Complete Date: November 21, 2005 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: Test Report Number: 17020-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56FY1 X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 17020-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56FY1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 3.46 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 22.7 dB 6 Field Strength of Spurious Emissions 20.68 7 Frequency Stability 52.0 Hz 8 Field Strength of Spurious Emissions 9.7db from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 17020-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC…

Text truncated - open the document above for the full version.
