IHDT56FZ1Portable Dual-Band GSM Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 EXHIBIT 8 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: motorola.com A1200 GSM Cover.Print.Front.A1200.UG.fm Page 1 Thursday, October 20, 2005 3:24 PM 1 HELLOMOTOIntroducing your new Motorola A1200 GSM wireless phone. Here’s a quick anatomy lesson. Power Key Headset Jack Microphone Accessory Connector PortTouchscreen Display Camera Key5-Way Navigation JoystickHome Key Voice Recognition Key Speakerphone/Earpiece Up Volume Key Down Volume Key Smart Key 2 Camera KeyActivate camera and take photos when flip is closed. Voice Recognition KeyUse voice commands to make calls & perform basic phone functions. Accessory Connector PortInsert battery charger &other phone accessories. Up Volume Key Raise earpiece/speakerphone volume during a call, set alert profile in flip-closed display. Smart Key Open quick menu in flip-closed display. Down Volume Key Lower earpiece/speakerphone volume during a call, set alert profile in flip-closed display. Headset Jack Remove cover, insert stereo headset jack to listen to songs and video clips. 3 Mirror Aim camera lens for self-portraits. Phone Lock SwitchSlide left to lock phone keys, right to unlock keys. SpeakerListen to audio playbackof music & video clips. Camera Lens Stylus Use with touchscreen display. Camera Key Activate camera and take photos when flip is closed. 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Microsoft, Windows, Sync and Windows Media are registered trademarks of Microsoft Corporation; and Windows XP and Windows Mobile are trademarks of Microsoft Corporation. All other product or service names are the property of their respective owners.© Motorola, Inc., 2005. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. 5 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 68XXXXX127-O 6 contents contentsSafety Information . . . . . 9Use and Care . . . . . . . . . 15EU Conformance . . . . . . 16Recycling Information . . 17essentials . . . . . . . . . . . . 18 about this guide. . . . . . 18SIM card . . . . . . . . . . . 18battery . . . . . . . . . . . . . 19memory card . . . . . . . . 22turn it on & off . . . . . . . 24make a call. . . . . . . . . . 25answer a call . . . . . . . . 25your phone number . . . 26 basics . . . . . . . . . . . . . . . 27 display . . . . . . . . . . . . . 27global navigation bar . . 28application launcher . . . 28 button bar . . . . . . . . . . 30status bar. . . . . . . . . . . 30text entry . . . . . . . . . . . 31tap & hold . . . . . . . . . . 34volume. . . . . . . . . . . . . 34navigation joystick . . . . 35smart key. . . . . . . . . . . 35flip-closed features . . . 35speakerphone . . . . . . . 37codes & passwords . . . 37lock & unlock phone . . 38share information . . . . 38 customize. . . . . . . . . . . . 40 profiles. . . . . . . . . . . . . 40wallpaper . . . . . . . . . . . 41color scheme . . . . . . . . 41backlight . . . . . . . . . . . 42flip answer . . . . . . . . . . 42 calls. . . . . . . . . . . . . . . . . 43 recent calls . . . . . . . . . 43redial . . . . . . . . . . . . . . 44hold or mute a call . . . . 44call waiting. . . . . . . . . . 44caller ID . . . . . . . . . . . . 45cancel incoming call . . 45emergency calls . . . . . 46international calls . . . . . 46turbo dial . . . . . . . . . . . 46dial extension orvoicemail number . . . . 47dial extensionnumber during a call . . 48 address book . . . . . . . . . 49 view contact list . . . . . 49add new contact . . . . . 50create group . . . . . . . . 51 7 contents address book (continued) call or send message . 51search . . . . . . . . . . . . . 52sort . . . . . . . . . . . . . . . 52delete contact . . . . . . 52storage location . . . . . 52copy contacts . . . . . . . 53categories. . . . . . . . . . 54check capacity . . .…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type: FCC ID: IHDT56FZ1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, located at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Zhou Guangping TITLE: Engineering Manager Mobile Devices Business Date: October 26, 2005 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56FZ1) is in compliance with all applicable parts of the FCC Rules. NAME: Wang Zhengzhuang TITLE: Lead Engineer Mobile Devices Business Date: October 26, 2005 EXHIBIT 2

Date: November 16, 2005 SHORT TERM CONFIDENTIALITY REQUEST To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Reference: FCC ID: IHDT56FZ1 (Portable GSM Transceiver) Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. . Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for a short term limited time: • Exhibit 3 External Photographs • Exhibit 9 Internal Photographs • Exhibit 8 Users Manual Contact Information & Signature: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

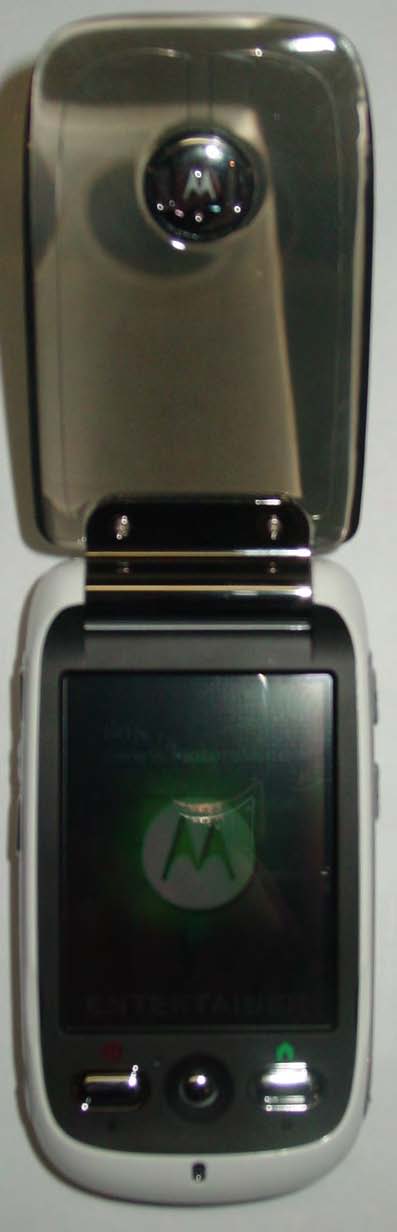

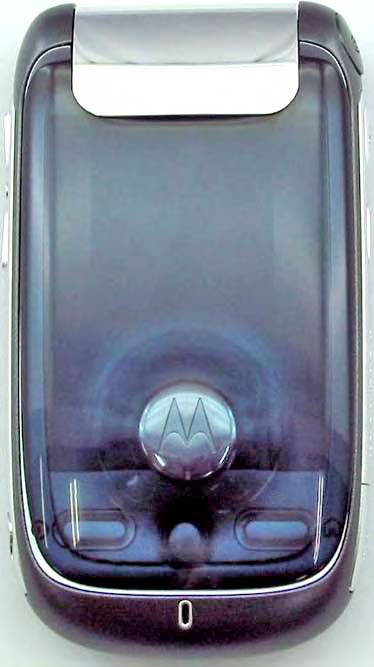

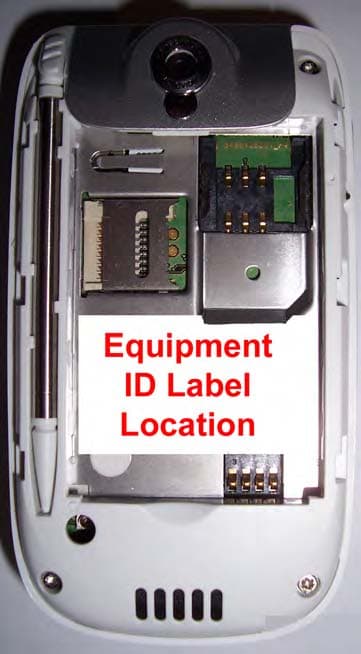

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 EXHIBIT 3A Front View Flip Opened Rear View Flip Opened APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 EXHIBIT 3B Rear View with Battery Cover Removed Showing ID Label Rear View Front View

APPLICANT: MOTOROLA INC. FCC ID: IHDT56FZ1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56FZ1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

Main Board Top without Shields Main Board Top APPLICANT: MOTOROLA FCC ID: IHDT56FZ1 EXHIBIT 9 1 0F 3 Main Board Bottom without Shields Main Board Bottom APPLICANT: MOTOROLA FCC ID: IHDT56FZ1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 Internal View of the Housing EXHIBIT 9 3 0F 3

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56FZ1 Date of test: Date of Report: 12-Sept-2005 through 23-Sept-2005 25-Oct-2005 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56FZ1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................5 5. SYSTEM ACCURACY VERIFICATION............................................................................................................5 6. TEST RESULTS......................................................................................................................................................6 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .......................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................14 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................15 APPENDIX 6: DIPOLE CHARACTERIZATION CERTIFICATE ..................................................................18 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56FZ1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of transceiver housing Length 34.3mm Dimensions Width 7.7mm Configuration FJA 2.2 Device description FCC ID Number IHDT56FZ1 Serial number 00440001659000 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Blue Tooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK GMSK GMSK GFSK Maximum Output Power Setting 33.00 dBm 33.00 dBm 30.00 dBm 30.00 dBm 33.00 dBm 33.00 dBm 30.00 dBm 30.00 dBm 4.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.20 – 1909.80 MHz 2400 - 2483.5 MHz Production Unit …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 5 5 Appendix 5 Measurement Uncertainty Budget APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 6 6 Uncertainty Budget for Device Under Test: 30 – 3000 MHz h = i = a b c d e = f(d,k) f g c x f / e c x g / e k Tol. Prob c i c i 1 g 10 g (± %) Dist (1 g) (10 g) u i u i Uncertainty Component IEEE 1528 section Div. (±%) (±%) v i Measurement System Probe Calibration E.2.15.9 N 1.00 1 1 5.9 5.9 ∞ Axial Isotropy E.2.24.7 R 1.73 0.707 0.7071.9 1.9 ∞ Hemispherical Isotropy E.2.29.6 R 1.73 0.707 0.7073.9 3.9 ∞ Boundary Effect E.2.31.0 R 1.73 1 1 0.6 0.6 ∞ Linearity E.2.44.7 R 1.73 1 1 2.7 2.7 ∞ System Detection Limits E.2.51.0 R 1.73 1 1 0.6 0.6 ∞ Readout Electronics E.2.60.3 N 1.00 1 1 0.3 0.3 ∞ Response Time E.2.71.1 R 1.73 1 1 0.6 0.6 ∞ Integration Time E.2.81.1 R 1.73 1 1 0.6 0.6 ∞ RF Ambient Conditions - Noise E.6.13.0 R 1.73 1 1 1.7 1.7 ∞ RF Ambient Conditions - Reflections E.6.10.0 R 1.73 1 1 0.0 0.0 ∞ Probe Positioner Mech. Tolerance E.6.20.4 R 1.73 1 1 0.2 0.2 ∞ Probe Positioning w.r.t Phantom E.6.31.4 R 1.73 1 1 0.8 0.8 ∞ Max. SAR Evaluation (ext., int., avg.) E.5 3.4 R 1.73 1 1 2.0 2.0 ∞ Test sample Related Test Sample Positioning E.4.23.2 N 1.00 1 1 3.2 3.2 29 Device Holder Uncertainty E.4.14.0 N 1.00 1 1 4.0 4.0 8 SAR drift 6.6.2 5.0 R 1.73 1 1 2.9 2.9 ∞ Phantom and Tissue Parameters Phantom Uncertainty E.3.14.0 R 1.73 1 1 2.3 2.3 ∞ Liquid Conductivity (target) E.3.25.0 R 1.73 0.64 0.43 1.8 1.2 ∞ Liquid Conductivity (measurement) E.3.33.3 N 1.00 0.64 0.43 2.1 1.4 ∞ Liquid Permittivity (target) E.3.25.0 R 1.73 0.6 0.49 1.7 1.4 ∞ Liquid Permittivity (measurement) E.3.31.9 N 1.00 0.6 0.49 1.1 0.9 ∞ Combined Standard Uncertainty RSS 11.1 10.8 411 Expanded Uncertainty (95% CONFIDENCE LEVEL) k=2 22.2 21.6 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 7 7 Uncertainty Budget for System Check: 30 – 3000 MHz h = i = a b c d e = f(d,k) f g c x f / e c x g / e k Tol. Prob. c i c i 1 g 10 g (± %) Dist. (1 g) (10 g) u i u i Uncertainty Component IEEE 1528 section Div. (±%) (±%) v i Measurement System Probe Calibration E.2.15.9 N 1.00 1 1 5.9 5.9 ∞ Axial Isotropy E.2.24.7 R 1.73 1 1 2.7 2.7 ∞ Spherical Isotropy E.2.29.6 R 1.73 0 0 0.0 0.0 ∞ Boundary Effect E.2.31.0 R 1.73 1 1 0.6 0.6 ∞ Linearity E.2.44.7 R 1.73 1 1 2.7 2.7 ∞ System Detection Limits E.2.51.0 R 1.73 1 1 0.6 0.6 ∞ Readout Electronics E.2.60.3 N 1.00 1 1 0.3 0.3 ∞ Response Time E.2.71.1 R 1.73 1 1 0.6 0.6 ∞ Integration Time E.2.80.0 R 1.73 1 1 0.0 0.0 ∞ RF Ambient Conditions - Noise E.6.13.0 R 1.73 1 1 1.7 1.7 ∞ RF Ambient Conditions - Reflections E.6.10.0 R 1.73 1 1 0.0 0.0 ∞ Probe Positioner Mechanical Tolerance E.6.20.4 R 1.73 1 1 0.2 0.2 ∞ Probe Positioning w.r.t. Phantom E.6.31.4 R 1.73 1 1 0.8 0.8 ∞ Max. SAR Evaluation (ext., int., avg.) E.5 3.4 R 1.73 1 1 2.0 2.0 ∞ Dipole Dipole Axis to Liquid Distance 8, E.4.2 2.0 R 1.73 1 1 1.2 1.2 ∞ Input Power and SAR Drift Measurement 8, 6.6.2 5.0 R 1.73 1 1 2.9 2.9 ∞ Phantom and Tissue Parameters Phantom Uncertainty E.3.14.0 R 1.73 1 1 2.3 2.3 ∞ Liquid Conductivity (target) E.3.25.0 R 1.73 0.640.43 1.8 1.2 ∞ Liquid Conductivity (measurement) E.3.33.3 R 1.73 0.640.43 1.2 0.8 ∞ Liquid Permittivity (target) E.3.25.0 R 1.73 0.6 0.49 1.7 1.4 ∞ Liquid Permittivity (measurement) E.3.31.9 R 1.73 0.6 0.49 0.6 0.5 ∞ Combined Standard Uncertainty RSS 9.0 8.8 9999 9 Expanded Uncertainty (95% CONFIDENCE LEVEL) k=2 17.7 17.3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 18 Appendix 6 Dipole Characterization Certificate Certification of System Performance Check Targets Based on APP-0396 -Historical Data- 900MHz IEEE1528 Target:10.8(W/kg) Measurement Uncertainty (k=1): 9.0% Measurement Period: 9-Nov-04 to 2-June-05 # of tests performed:813 Grand Average: 11.3(W/kg) % Delta (Average - IEEE1528 Target) 4.4% Is % Delta <= Expanded Measurement Uncertainty (k=2)? Yes Accept/Reject Average as new system performance check target? ACCEPT Historic data included the following 900MHz Dipoles: 69, 77 79, 80 91, 94 96, 97 -New System Performance Check Targets- per APP-0396 (based on analysis of historical data) FrequencySAR Target (W/kg)PermittivityConductivity (S/m) 900MHz11.3 41.5 ± 5%0.97 ± 5% -Approvals- Submitted by:Date:2-Jun-05 Signed: Approved by:Date:2-Jun-05 Signed: Marge Kaunas Comments: Comments: Mark Douglas Spreadsheet detailing referenced historical measurements is available upon request.

APPLICANT: MOTOROLA INC FCC ID: IHDT56FZ1 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 16837-1 Report Date – November 7, 2005 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Michael E. Hill Title: Senior Staff Electrical Engineer Date: November 7, 2005 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56FZ1 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 GSM 850 Reference Plot 10 GSM 850 Occupied Bandwidth Plot 10 GSM 850 Ch128 Lower Band Edge 11 GSM 850 Ch251 Upper Band Edge 11 GSM 1900 Reference Plot 12 GSM 1900 Occupied Bandwidth Plot 12 GSM 1900 Ch512 Lower Band Edge 13 GSM 1900 Ch810 Upper Band Edge 13 Spurious Emissions at Antenna Terminals 14 GSM 850 Tabular and Graphical Data 15 GSM 1900 Tabular and Graphical Data 16 Field Strength of Spurious Emissions 17 GSM 850 Tabular and Graphical Data 18 GSM 1900 Tabular and Graphical Data 19 Frequency Stability 20 GSM 850 Tabular and Graphical Data 21 GSM 1900 Tabular and Graphical Data 22 Field Strength of Spurious Emissions from Unintentional Radiators 23 GSM 850 Tabular and Graphical Data 24 GSM 1900 Tabular and Graphical Data 25 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 27 Figure A.2 – Substitution Measurement 27 Test Report Number: 16837-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56FZ1 Test Report Details Tests Performed By: Motorola Mobile Devices business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDB FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Radiated Emissions Performed By: Underwriters Laboratories International EMC Services 333 Pfingsten RD Northbrook, IL 60062 Contact: Lubomir Madjarov (Tel) 847/664-3957 (Fax) 847/313-3957 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 1900 Model Number: A1200 Version: CHWF1397 Serial Numbers: Testing Complete Date: November 2, 2005 Test Report Number: 16837-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56FZ1 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 16837-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56FZ1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Modulation Characteristics NA 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 1.69 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 24.5 dB 6 Field Strength of Spurious Emissions 8.7 dB 7 Frequency Stability 61.8 Hz 8 Field Strength of Spurious Emissions 3.3 dBμV from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 16837-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56FZ1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. ManufacturerEquipment TypeModel No.Serial Number Cal. Due Date Rohde & SchwarzReceiverESI26838786/0102/7/2006 Hewlett-PackardEMC Analyzer7405US3944019111/13/2005 ETSDRG Horn Antenna26524555/25/2006 ETSDRG Horn Antenna311562222/9/2006 ETSLog-Periodic Antenna314811886/14/2006 ETSBiconical Antenna3110B33702/16/2006 AttenuatorWeinschelAS-6667512/27/2005 AttenuatorWeinschelAS-6667711/4/2005 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011955/23/2006 ThermotronEnvironmental ChamberS-4315801/18/2006 Giga-TronicsPower Meter8651A865050812/27/2005 U.L. Equipment Hewlett PackardQP Adapter85650A2811A01069 1/6/2006 Hewlett PackardS/A Display8566B2542A12974 1/6/2006 Hewlett PackardS/A8566B2637A03376 1/6/2006 Hewlett PackardRF Preselector85685A2810A00692 1/6/2006 Rohde & SchwarzS/AFSEK20DE2525315 3/15/2006 EMCOHorn Antenna 1-18GHz31152638 7/29/2006 EMCOHorn Antenna 18-26.…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 7 P P a a g g e e 1 1 Photographs of the device under test APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 7 P P a a g g e e 2 Figure 1. Front of Phone Figure 2. Phone Open APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 7 P P a a g g e e 3 Figure 3. Back of Phone Figure 4. Phone Against the Flat Phantom APPLICANT: MOTOROLA, INC. FCC ID: IHDT56FZ1 E E x x h h i i b b i i t t 7 P P a a g g e e 4 Figure 5. Phone Against the Head Phantom (Cheek Touch) Figure 6. Phone Against the Head Phantom (15°Tilt)
