IHDT56GD2Cellular WCDMA PCS GSM/ EDGE Transceiver with BT

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 INSTRUCTION MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The User’s Manual will have the following text added to it: See following page. EXHIBIT 8 FCC NoticeFCC Notice To UsersFCC NoticeMotorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. motorola.com 3G Cover.Print.Front.UG.landscape-V6.fm Page 1 Wednesday, July 12, 2006 10:45 AM 1 HELLOMOTOIntroducing your new Motorola 3G wireless phone. Here’s a quick anatomy lesson. Left Soft Key Go online. V i deo C a ll Key Volume Keys Intern a l C a mer a Lens Sm a rt Key Send Key Make & answer calls. N a v iga t i on Key Navigate m enus. Center KeyOpen m enus, select m enu ite m s. R ig ht Soft Key Cle a r/B ac k Key C a mer a Key M ic ro p hone Power/End Key Turn on/off, hang up, exit m enus. 2 A cc essory Conne c tor Port Insert battery charger & phone accessories. Volume Keys Scroll and adjust volu m e. Sm a rt Key Open the audio player and select options. C a mer a Key Extern a l C a mer a Lens C a mer a L ig ht Extern a l D i s p l a y See inco m ing call infor m ation, use as ca m era viewfinder when flip is closed. To u c h-Sens i t i ve Aud i o Pl a yer Keys RewindPlay/PauseFast-forward 3 Press and hold the Power Key O for a few seconds or until the display lights up to turn on your phone. 1 Press the Navigation Key u p , down, left, or r ig ht ( S ) to highlight a m enu feature. 3 Press the Center Key s to select it. 4 Press the Center Key s key to open the M ai n Menu . 2 Service Provider12/31/07 12:00 Options Main Menu Select Web Access Back 6 contents caller ID . . . . . . . . . . . . 63emergency calls . . . . . 63voicemail . . . . . . . . . . . 64 other features . . . . . . . . 65 advanced calling . . . . . 65phonebook. . . . . . . . . . 69messages . . . . . . . . . . 74instant messaging . . . . 77personalizing . . . . . . . . 79call times & costs . . . . 81handsfree . . . . . . . . . . 82data calls . . . . . . . . . . . 83network . . . . . . . . . . . . 85personal organizer . . . . 85security . . . . . . . . . . . . 88fun & games . . . . . . . . 88 service and repairs . . . . 92SAR Data . . . . . . . . . . . . 93Warranty. . . . . . . . . . . . . 9 4 WHO Information . . . . . 98 index. . . . . . . . . . . . . . . . 99 menu map 7 menu map main menu9 Video Camera É Tools •USIM*•Calculator• Datebook•Alarm Clock• Dialing Services • Fixed Dial *• Service Dial *•Quick Dial • Activation List• Messenger *• World Clock I Camera h Multimedia • Media Finder •Music• Pictures• Videos• Voice Records• Ring Tones• Wallpapers • Themes•Camera• Video Camera• Voice Record á Web Access •Browser• My Bookmarks•History•Go To URL•Browser Setup• Web Sessions * Q Games & Apps e Messages • Create Message•Voicemail• Message Inbox•EmailMsgs• Hot Messages•Browser Msgs• Info Services *• Outbox•Drafts• Templates s Recent Calls • (press the * or # to scroll through the call lists) n Phonebook w Settings • (see next page) L Connection • Bluetooth™ Link• USB Settings•MOTOSYNC™* % Airplane Mode • Airplane Mode• Prompt at Startup * optional features This is the standard main menu layout. Your phone’s menu may be a little different. 8 menu map settings menul Personalize • Home Screen• Headlines• Main Menu•Voice Dial Setup•Skin• Greeting• Wallpaper • Screen Saver t Ring Styles •Style• style Detail L Connection • Bluetooth™ Link• USB Settings•MOTOSYNC™* H Call Forward * • Voice Calls• Video Calls•Cancel All• Forward Status U In-Call Setup • In-Call Timer• Call Cost Setup *• My Caller ID• Answer Options• Call Waiting•MSG Alert * optional features Z Initial Setup • Time and Date• Speed Dial•AutoRedial• Display Timeout• Backlight• Charging Lights• TTY Setup *•Scroll• Text Marquee• Language•Battery Save• Brightness•DTMF• Live Video Share Service *• Master Reset•Master Clear m Phone Status •My Tel. Numbers• Credit Info/Available *• Active Line *•Battery Meter• User Accounts• Download Location• Storage Devices• Voice Dial Languages• Software Update *• Other Information S Headset • Auto Answer• Ringer Options•Voice Dial J Car Settings • Auto Answer• Auto Handsfree• Power-Off Delay• Charger Time % Airplane Mode j Network •New Network•Network Setup• Available …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GD2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56GD2) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Lazaar Louis TITLE: Engineering Manager Motorola PCS Development Date: March 16, 2007 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GD2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56GD2) is in compliance with all applicable parts of the FCC Rules. NAME: Dan Farley TITLE: Lead Engineer Motorola PCS Development Date: March 16, 2007 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GD2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Dan Farley TITLE: Lead Engineer Motorola PCS Development Date: March 16, 2007 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56GD2 March 16, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56GD2. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver with EDGE and GPRS capability, which operates in the 850 and 1900 MHz PCS band, and a 3G portable transceiver which operates WCDMA in the 850 MHz band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and may be connected to a computer via a USB connection ( Part 15, Class B, Computing Device Peripheral). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

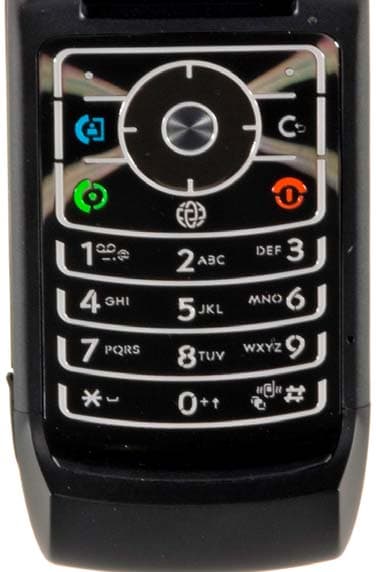

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 BACK OF PHONE FLIP OPEN FRONT OF PHONE FLIP OPEN EXHIBIT 3 1 of 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT 5 6GD 2 EXHIBIT 3 2 of 2 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GD2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GD2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Main Board Side A - Without Shields Main Board Side A - With Shields EXHIBIT 9 1 of 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Main Board, Side B, Without Shields Main Board, Side B, With Shields EXHIBIT 9 2 of 2

APPLICANT: MOTOROLA INC FCC ID: IHDT56GD2 Test Report Number: 20140-1 Supplement 1 EXHIBIT 6A1 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 20140-1 Supplement Report Date – October 4, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: October 4, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01/2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56GD2 Test Report Number: 20140-1 Supplement EXHIBIT 6A1 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56GD2 Test Report Number: 20140-1 Supplement EXHIBIT 6A1 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Signaling Capability: GSM 1900, EDGE, WCDMA 850, Bluetooth FCC ID : IHDT56GD2 Serial Numbers: LVE04D0048, LVE04D0034, LVE04D0023 Testing Complete Date: October 4, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47: X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT56GD2 Test Report Number: 20140-1 Supplement EXHIBIT 6A1 4 Summary of Testing Test Test Name # Pass/Fail 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56GD2 Test Report Number: 20140-1 Supplement EXHIBIT 6A1 5 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 A.H. Systems Inc. DRG Horn Antenna SAS 200/571 365 5/12/07 ETS Log-Periodic Antenna 3148 1188 5/12/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel AS-6 6675 1/10/07 Attenuator Weinschel AS-6 6677 11/14/06 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56GD2 Test Report Number: 20140-1 Supplement EXHIBIT 6A1 6 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDT56GD2 Test Report Number: 20140-1 Supplement EXHIBIT 6A1 7 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. 30 MHz – 1000 MHz Frequency Level Measured Antenna Factor Cable Loss Limit Margin Height Angle Pol. MHz dBuV/m dBuV dB dB dBuV/m dB cm deg 30.88 37.09 15.99 13.3 7.8 40 2.9 100 232 VERT 31 38.1 17 13.3 7.8 40 1.9 100 141 VERT 31.16 37.79 16.7 13.3 7.8 40 2.2 100 67 VERT 31.36 37.58 16.58 13.2 7.8 40 2.4 100 70 VERT 34.36 36.22 15.98 12.4 7.8 40 3.8 100 205 VERT 34.88 36.12 15.98 12.3 7.8 40 3.9 100 159 VERT 147.28 39.79 16.63 13.1 10.1 43.5 3.7 100 218 VERT 191.4 38.68 12.67 15.5 10.5 43.5 4.8 100 348 VERT 196.36 35.84 10.07 15.2 10.6 43.5 7.7 100 237 HORI Above 1 GHz Frequency Level Measured Antenna Factor Gain Limit Margin Height Angle Pol. MHz dBμV/m dBμV dB dB dBμV/m dB cm deg 1122.3 36.85 21.77 23.8 8.8 53.9 17 334 332 VERT 1126.2 35.53 20.37 23.9 8.7 53.9 18.4 134 307 VERT 1946.7 39.54 17.65 28.1 6.2 53.9 14.4 100 200 HORI 1975.6 39.7 17.…

Text truncated - open the document above for the full version.

EMC Pictures Figure 1. AC Line Conducted Emissions Measurement Setup Figure 2. Radiated Emissions Measurement Setup APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 1 of 8 EXHIBIT 7 Figure 3. Radiated Emissions Measurement Setup APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 2 of 8 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20153-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1 1 Appendix 7 Photographs of the device under test >> EXTRACTED FROM FCC EXHIBIT 11 <<< APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 3 of 8 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20153-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 2 2 Figure 1 – Front of Transceiver Figure 2 – Back of Transceiver APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 4 of 8 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20153-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 3 3 Figure 3 – Front of Transceiver, Flip Open APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 5 of 8 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20153-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 4 4 Figure 4 – Transceiver against head, Cheek Touch position Figure 5 – Transceiver against head, Cheek Touch position APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 6 of 8 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20153-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 5 5 Figure 6 – Transceiver against head, 15º Tilt position Figure 7 – Transceiver against head, 15º Tilt position APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 7 of 8 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20153-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 6 6 Figure 8 – Transceiver against body, Back of Phone 15 mm from Phantom position APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GD2 Page 8 of 8 EXHIBIT 7
