IHDT56GE1Portable Dual-Band Transceiver (AMPS/ CDMA)

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. APPLICANT: MOTOROLA,INC. FCC ID: IHDT56GE1 EXHIBIT 8 motorola.com W315 CDMA 1 HELLOMOTOIntroducing your new Motorola W315 CDMA wireless phone. Here’s a quick anatomy lesson. Left Soft Key Volume Keys Make & answer calls. Cle a r/B ac k Key Turn on & off, hang up, exit m enus. Scroll up, down, left, or right. R ig ht Soft Key Select. 2 Home S c reen M ai n Menu 12:00 Exit Select Games & Apps Service Provider 08/25/06 Styles Settings u 1 Press the Main Menu soft key to open the M ai n Menu . 2 Press the Center Key i n ( s ) to select it. Press the Navigation Key u p , down, left, or r ig ht ( S ) to highlight a m enu feature. 34 Press and hold the Power Key for a few seconds or until the display lights up to turn on your phone. 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2006.Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Manual Number: 4 contents contentsmenu map . . . . . . . . . . . . 6Use and Care . . . . . . . . . . 8essentials . . . . . . . . . . . . . 9 about this guide. . . . . . . 9battery . . . . . . . . . . . . . 10turn it on & off . . . . . . . 11make a call. . . . . . . . . . 12answer a call . . . . . . . . 12store a phone number . . . . . . . . . . . . 12call a stored phone number . . . . . . . . . . . . 12your phone number . . . 13 main attractions . . . . . . 1 4 text message. . . . . . . . 14digital audio player . . . . 14cable connections . . . . 16 basics . . . . . . . . . . . . . . . 17 display . . . . . . . . . . . . . 17text entry . . . . . . . . . . . 20volume. . . . . . . . . . . . . 24navigation key . . . . . . . 25smart key. . . . . . . . . . . 25external display . . . . . . 25handsfree speaker . . . . 25codes & passwords . . . 26lock & unlock phone . . 26 customize. . . . . . . . . . . . 27 ring style . . . . . . . . . . . 27time & date . . . . . . . . . 28wallpaper . . . . . . . . . . . 28screen saver . . . . . . . . 29themes . . . . . . . . . . . . 29 display appearance . . . 30answer options . . . . . . 31 calls. . . . . . . . . . . . . . . . . 32 turn off a call alert . . . . 32recent calls . . . . . . . . . 32redial . . . . . . . . . . . . . . 33return a call . . . . . . . . . 33caller ID . . . . . . . . . . . . 34emergency calls . . . . . 34voicemail . . . . . . . . . . . 35 other features . . . . . . . . 36 advanced calling . . . . . 36contacts. . . . . . . . . . . . 40messages . . . . . . . . . . 42personalizing . . . . . . . . 45call times & costs . . . . 48handsfree . . . . . . . . . . 48 contents 5 data calls . . . . . . . . . . 49network . . . . . . . . . . . 50personal organizer . . . 51security. . . . . . . . . . . . 52fun & games. . . . . . . . 52 service and repairs . . . . 55Specific Absorption Rate Data . . . . . . . . . . . 56Safety and General Information . . . . . . . . . . 61Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . 66Hearing Aid Compatibility with Mobile Phones . . . . . . . 70Information from the World Health Organization . . . . . . . . . 71 Smart Practices While Driving . . . . . . . . 73index . . . . . . . . . . . . . . . 75 6 menu map menu map main menun Contacts s Recent Calls • Received Calls• Dialed Calls• Missed Calls• Notepad•View Timers*•Data Volumes* e Messaging •Voicemail• New TXT Msg• Inbox•Drafts•Saved•Quick Notes• Sent•Settings t Alert Styles •Style• Style Detail • Sounds h Gallery •Pictures• Sounds w Settings • (see next page) É To o l s •Calculator• Calendar•Alarm•Games l Phone Info x Shortcuts * optional features This is the standard main menu layout. Your phone’s menu may be a little different. menu map 7 settings menu Personalize • Main Menu• Scroll Keys• Color Style• Greeting• Banner• Flip Tone• Wallpaper • Themes• Speed Dial Initial Setup • Time and Date• Auto PIN Dial• Auto Redial• Backlight• Animation• Language• Brightness• Contrast• TTY Setup•DTMF• Master Reset• Master Clear Connection • Incoming Call In-Call Setup • In-Call Timer• Answer Options• SpeakerPhone Phone InfoSecurity • Phone Lock• Lock Side Keys• Lock Application• Restrict Calls• New Passwords Location •Location On•911 Only * optional features Network • Current Network• Set Mode• Service Tone• Call Drop Tone More • Car Settings• Headset 8 menu map Use and CareUse and Care To care for your Motorola phone, please keep it away from: liquids of any kind dust and dirt Don’t expose your phone to water, rain, extreme humidity, sweat, or other moisture. Don’t expose your phone to dust, dirt, sand, food, or other inappropriate materials. extreme heat or cold cleaning solutions Avoid temperatures below -10°C/14°F or above 45°C/113°F. To clean your phone, use only a dry soft cloth. Don’t use alcohol or …

Text truncated - open the document above for the full version.

Courtenay Geraghty From: Gregory Czumak [[email protected]] Sent: Thursday, October 20, 2005 3:25 PM To: PCTEST - Courtenay Subject: FW: CDMA 2000 application Follow Up Flag: Follow up Flag Status: Red Attachments: CDMA-2000 SAR Config.doc Page 1 of 2 11/7/2005 From: Kwok Chan [mailto:[email protected]] Sent: Thursday, May 19, 2005 11:37 AM To: Gregory Czumak Cc: PCTEST - Al Cirwithian; PCTEST - Randy Ortanez Subject: RE: CDMA 2000 application Greg: According to information available to us, the attached describes the basic criteria for reviewing typical CDMA- 2000 client devices. This should be considered as a draft while we are continuing to review & identify other test and product specific issues. Please let us know if this is insufficient or if more coordination is necessary, and continue to inform us on subsequent CDMA-2000 filings. Kwok Chan -----Original Message----- From: Gregory Czumak [mailto:[email protected]] Sent: Thursday, May 19, 2005 9:10 AM To: Kwok Chan Cc: PCTEST - Al Cirwithian; PCTEST - Randy Ortanez; PCTest - Andrea Zaworski; PCTEST - Keats Ortiz; PCTEST - Steve Liu; PCTEST - Yukio Tanuma Subject: CDMA 2000 application Hi Kwok, I hope all is well with you and your family (your kids must be getting big... I know mine are!). Based on the info provided last week at the Workshop, I am contacting you to let you know that I am currently reviewing an application for a WLL PCS CDMA phone that has CDMA 2000 capabilities. As with most WLL phones that we see, it is designed to replace the phone on your desk (i.e., it sits on the desk, and looks like a regular corded phone- no RF in the handset, just a whip antenna sticking out of the back of the base portion). The lab performed body SAR measurements with a separation distance of 2.5 cm. Is there anything specific for which I should look, given its CDMA 2000 capabilities? Please let me know at your earliest convenience (of course, we are under pressure to finish the review ASAP). I appreciate your time and effort- thank you. Take care. Greg Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 2 11/7/2005

Date: March 23, 2006 SHORT TERM CONFIDENTIALITY REQUEST To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Reference: FCC ID: IHDT56GE1 Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. . Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for a short term limited time: • Exhibit 3 External Photographs • Exhibit 9 Internal Photographs • Exhibit 8 Users Manual • Exhibit 7 and 7A Test Setup Photos Contact Information & Signature: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

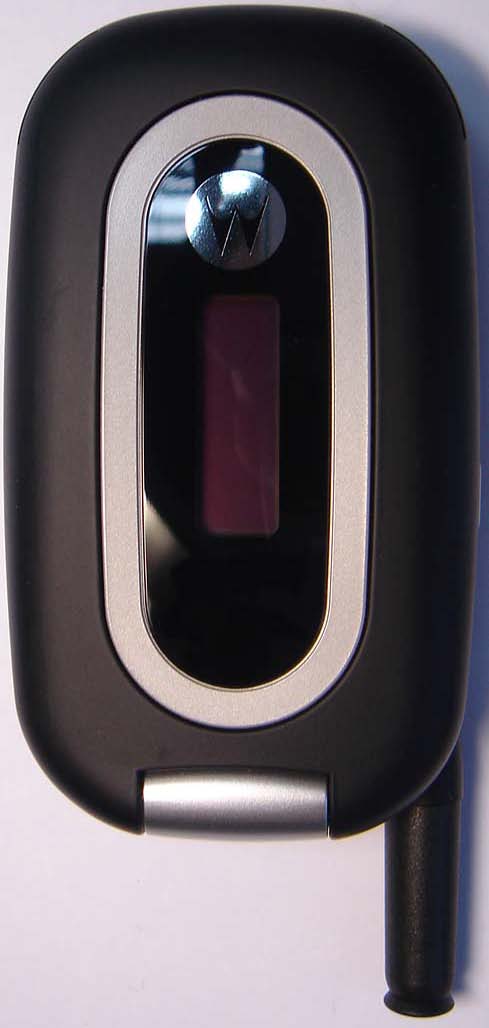

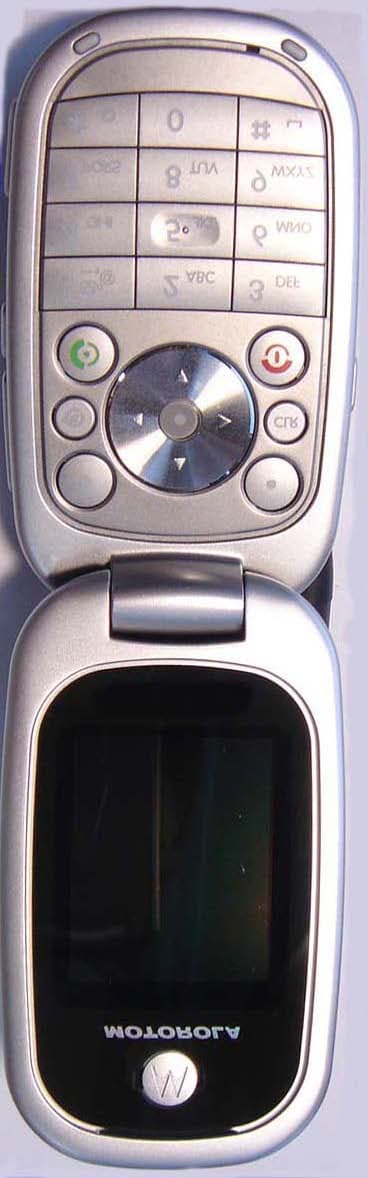

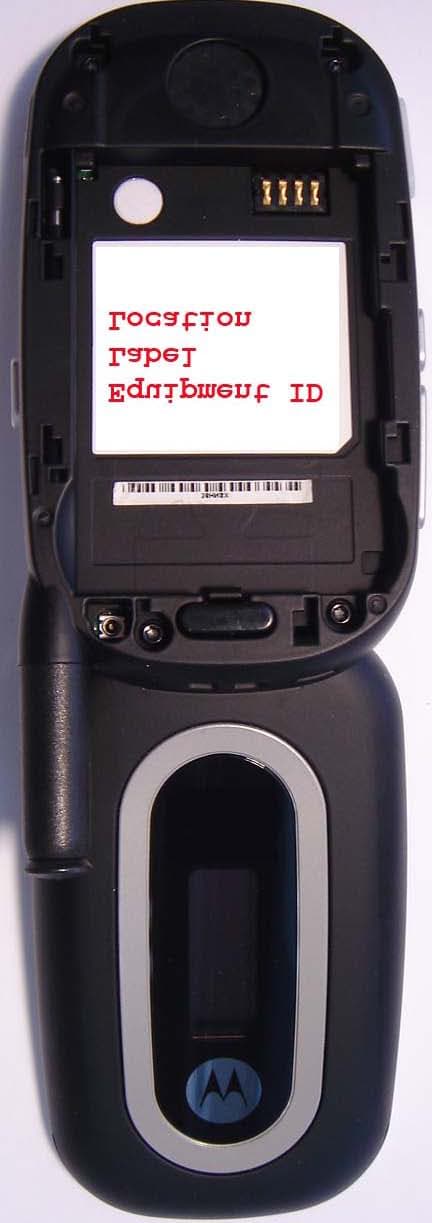

APPLICANT:MOTOROLA,INC. FCCID:IHDT56GE1 EXHIBIT3 Frontviewflipopened Rearviewflipopenedwithbatterycoverremoved Page 1 of 2 APPLICANT:MOTOROLA,INC. FCCID:IHDT56GE1 EXHIBIT3 FrontView RearView Page 2 of 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GE1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GE1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1a

APPLICANT : MOTOROLA, INC. FCC ID : IHDT56GE1 EXHIBIT 9 (Keypad PCB Layout) weiV tnorF Front View (Keypad Installed) Page 1 of 3 APPLICANT : MOTOROLA, INC. FCC ID : IHDT56GE1 EXHIBIT 9 Rear View (Shields On) Rear View (Shields Off) Page 2 of 3 APPLICANT : MOTOROLA, INC. FCC ID : IHDT56GE1 EXHIBIT 9 Housing Internal Views Page 3 of 3

0 0 Portable Cellular Phone SAR Test Report Test Report #: 18029-2 Date of Report: 22-Mar-2006 Date of Test: 10-Mar-2006 through 17-Mar-2006 FCC ID #: IHDT56GE1 Generic Name: N/A Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Albert Patapack Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GE1 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18029-2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 13 References 17 Appendix 1: SAR distribution comparison for system accuracy verification 18 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 19 Appendix 3: SAR distribution plots for Body Worn Configuration 20 Appendix 4: Probe Calibration Certificate 21 Appendix 5: Measurement Uncertainty Budget 22 Appendix 6: Photographs of the device under test (See FCC Exhibit 7) Appendix 7: Dipole Characterization Certificate 31 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GE1 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18029-2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ICNIRP (10g), the final SAR reading for this phone is 0.95W/kg for head adjacent use and 0.54W/kg for body worn use. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 1.50W/kg for head adjacent use and 0.75W/kg for body worn use. These measurements were performed using a Dasy4™ v4.6 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type External Location Upper Right Length 94 mm Dimensions Width 3 mm Configuration Extendable Whip 2.2 Device description Serial number 1E7540D2 Mode(s) of Operation 800 AMPS 800 CDMA 1900 CDMA Modulation Mode(s) FM QPSK QPSK Maximum Output Power Setting 27.80dBm 25.00dBm 25.00dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824-849MHz 824-849MHz 1851-1909MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GE1 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18029-2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.6) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date 437 28-Nov-2006 DASY4™ DAE V1 661 26-Aug-2006 1398 20-Feb-2007 E-Field Probe ETDV6 1513 19-Sept-2006 Dipole Validation Kit, DV900V2 80 02-Jun-2006 S.A.M. P…

Text truncated - open the document above for the full version.

March 29, 2006 Supplement to HAC Test Report for Motorola portable cellular phone (FCC ID IHDT56GE1) Prepared by: Katerina Royzen Motorola Personal Communications Sector Product Safety Laboratory Libertyville, Illinois Summary of FCC request for additional information There was a request for additional information regarding Motorola’s HAC Test Report for Motorola portable cellular phone (FCC ID IHDT56GE1). The requested information is addressed below in the same numbering sequence received. 1) The HAC report indicates that the EUT also contains a Bluetooth transmitter and a WLAN transmitter. These are not referenced anywhere else in the application. Please address. There is a mistake in Table 1 of the HAC report. EUT for FCC ID IHDT56GE1 does not have Bluetooth. The note, which is below the table, only applies if the EUT contains secondary transmitter. The note is clarified appropriately. 2. Description of the Device Under Test Table 1: Information for the Device Under Test FCC ID Number IHDT56GE1 Serial number 1E7541F5 Mode(s) of Operation 800 AMPS 800 CDMA 1900 CDMA Modulation Mode(s) FM QPSK QPSK Maximum Output Power Setting 27.80dBm 25.00dBm 25.00dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824-849MHz 824-849MHz 1851-1909MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable Note: If DUT contains Bluetooth Class II or Bluetooth Class I or WLAN device, then the secondary transmitter was not enabled during testing. The intended use of the PCS transmitter does not include simultaneous operation when held to ear.

APPLICANT: MOTOROLA INC FCC ID: IHDT56GE1 Mobile Devices business (MDb) PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 18031-1 Report Date – March 22, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated . Signature Name: _Mark Sidlow Title: Senior Electrical Engineer Date: March 22, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1846-01 EXHIBIT 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56GE1 Table of Contents Description Page Test Report Details 4 Applicable Standards 4 Summary of Testing 5 General and Special Conditions 5 Equipment and Cable Configurations 6 Measuring Equipment and Calibration Information 6 Measurement Procedures and Data RF Power Output 7 Radiated Power (ERP) 8 Occupied Bandwidth 9 Measurement Results 9 AMPS-Unmodulated Carrier 10 AMPS Supervisory Audio Tone 10 AMPS Voice 11 AMPS Signaling Tone 11 AMPS – 10kb/s Wideband Data 12 AMPS Lower Band Edge 12 AMPS Upper Band Edge 13 CDMA 800 Reference Level Plot 14 CDMA 800 Occupied Bandwidth Plot 14 CDMA 800 Lower Band Edge 15 CDMA 800 Upper Band Edge 15 CDMA 1900 Reference Level Plot 16 CDMA 1900 Occupied Bandwidth Plot 16 CDMA 1900 Lower Band Edge 17 CDMA 1900 Upper Band Edge 17 Spurious Emissions at Antenna Terminals 18 AMPS 800 Tabular and Graphical Data 19 CDMA 800 Tabular and Graphical Data 20 CDMA 1900 Tabular and Graphical Data 21 Field Strength of Spurious Emissions 22 AMPS 800 Tabular and Graphical Data 23 CDMA 800 Tabular and Graphical Data 24 CDMA 1900 Tabular and Graphical Data 25 Test Report Number: 18031-1 EXHIBIT 6 2 APPLICANT: MOTOROLA INC FCC ID: IHDT56GE1 Frequency Stability 26 AMPS 800 Tabular and Graphical Data 27 CDMA 800 Tabular and Graphical Data 30 CDMA 1900 Tabular and Graphical Data 29 Field Strength of Spurious Emissions from Unintentional Radiators 30 AMPS 800 Tabular and Graphical Data 31 CDMA 800 Tabular and Graphical Data 32 CDMA 1900 Tabular and Graphical Data 33 Appendix A - Radiated Emissions Test Setup Photos Figure A.1 – Radiated Emissions Measurement 34 Figure A.2 – Substitution Measurement 34 Test Report Number: 18031-1 EXHIBIT 6 3 APPLICANT: MOTOROLA INC FCC ID: IHDT56GE1 Test Report Details Tests Performed By: Motorola mobile Devices business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (561) 523-4538 Motorola PCS FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: AMPS 800, CDMA 800, CDMA 1900 Model Number: W300 Version: KAUF0015 Serial Numbers: 1E7541F6, 1E7540D1, 1E7541F7 Testing Complete Date: March 22, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Part 90 - Private Land Mobile Radio Service Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (CDMA), RSS-129 (CDMA), RSS-133 (PCS) Test Report Number: 18031-1 EXHIBIT 6 4 APPLICANT: MOTOROLA INC FCC ID: IHDT56GE1 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) NA 3 Modulation Characteristics Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) 7.35 3 Modulation Characteristics NA 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal 10.9dBm 6 Field Strength of Spurious Emissions 7.4 dBm 7 Frequency Stability 13.52 Hz 8 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators The margin with respect to the limit is the minimum margin for all modes and bands. ( ) indicates the margin at which the product exceeds the limit. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. Test Report Number: 18031-1 EXHIBIT 6 5 APPLICANT: MOTOROLA INC FCC ID: IHDT56GE1 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Measuring Equipment and Calibration Information ManufacturerEquipment TypeModel No.Serial Number Cal. Due Date Rohde & SchwarzReceiverESI26838786/0106/17/2006 Hewlett-PackardEMC Analyzer7405US402402196/8/2006 ETSDRG Horn Antenna26524555/25/2006 ETSDRG Horn Antenna35624555/19/2006 ETSLog-Periodic Antenna314811886/14/2006 ETSBiconical Antenna3110B33698/18/2006 AttenuatorWeinschelAS-6667711/10/2006 AttenuatorWeinschelAS-3667711/10/2006 AttenuatorAgilent8491A369049/19/2006 Rohde & SchwarzMobile Test SetCMD 80DE29008N/A Hewlett-PackardSignal Generator83623B3844A011956/20/2006 ThermotronEnvironmental ChamberS-4315801/31/2007 AgilentPower MeterEE4418BGB402063886/4/2006 AgilentPower SensorE4412AUS3…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GE1 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B HAC Test Report IHDT56GE1 Date of test: Date of Report: March 16, 2006 – March 18, 2006 March 22, 2006 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Katerina Royzen RF Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC IHDT56GE1 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI PC63.19-2001 rd 3.6 standard. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: M Category = M3 ©Motorola, Inc. 2005 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GE1 P P a a g g e e 2 2 E E x x h h i i b b i i t t 6 6 B B Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 4. VALIDATION .........................................................................................................................................................5 5. PROBE MODULATION FACTOR ......................................................................................................................6 6. TEST RESULTS......................................................................................................................................................7 APPENDIX 1: DETAILS OF THE WD’S SIGNAL .............................................................................................11 APPENDIX 2: DETAILS JUSTIFYING THE CONVERSION TO PEAK .......................................................14 A2.1 Procedure for PMF measurements ...................................................................................................15 A2.2 0 Span Spectrum Plots for PMF measurements ..............................................................................16 APPENDIX 3: HAC DISTRIBUTION PLOTS FOR VALIDATION ................................................................18 APPENDIX 4: HAC DISTRIBUTION PLOTS FOR E-FIELD AND H-FIELD ...............................................19 APPENDIX 5: MOTOROLA UNCERTAINTY BUDGET .................................................................................20 A5.1 Motorola Uncertainty Budget for RF HAC Testing .......................................................................21 A5.2 Probe Rotation Contributions to Isotropy Error ............................................................................21 APPENDIX 6: PICTURES OF TEST SETUP ............................................................. (See FCC Exhibit 7A) APPENDIX 7: PROBE CALIBRATION CERTIFICATES ................................................................................25 APPENDIX 8: DIPOLE CHARACTERIZATION CERTIFICATE ..................................................................26 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GE1 P P a a g g e e 3 3 E E x x h h i i b b i i t t 6 6 B B 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed Hearing Aid Compatibility (HAC) measurements for the portable cellular phone (FCC ID IHDT56GE1). The portable cellular phone was tested in accordance with ANSI PC63.19-2001 rd 3.6 standard. The test results presented herein clearly demonstrate compliance FCC 47 CFR § 20.19. This report demonstrates compliance for near field emissions only and not for the T-coil performance compliance. 2. Description of the Device Under Test Table 1: Information for the Device Under Test FCC ID Number IHDT56GE1 Serial number 1E7541F5 Mode(s) of Operation 800 CDMA 1900 CDMA BlueTooth Modulation Mode(s) QPSK QPSK GFSK Maximum Output Power Setting 25 dBm 25 dBm 4.00dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Range(s) 824-849MHz 1851-1909MHz 2400-2483.5MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable * The composite DSS is a Part…
