IHDT56GF1Portable Dual-Band GSM Transceiver

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GF1 INSTRUCTION MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The User’s Manual will have the following text added to it: "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help." The text on the following two pages will be added for SAR Data, related to FCC requirements. EXHIBIT 8 motorola.com 680XXXX142-O battery & SIM card using your phone 12 3 4 5 6 List Change Ringtone Set Alarm Adjust Date & Time 1 2 4 Call in-process Out of network Keypad Locked Vibrate Silent action icons Enter numbers. Enter letters. Add a number to your phonebook. Delete an item. Select an option Write a Message Use Speakerphone These icons help you use your phone. When the fol- lowing icons show on your screen you can: speed dial Use speed dial numbers to quickly call so in your phonebook. For contacts 1-9 in your phon the corresponding keypa For the remaining the contact n to call y pre phonebook use the phonebook to make a call | [select name] | add a new phonebook entry enter number | | enter name | Whenever you see press to add the number to the phonebook. or delete phonebook entry | [select name] | text messages send a text message | enter message || enter number or press an | TIP: Press a ke y mo letters. For example times. Todelete automatically deleted he SIM card is full. date, time, & alarms just date & time | enter date & time | | | rm | enter alarm time | | | cemail tovoicemail | call voicemail number If your voicemail number is stored as phonebo contact 1, press and hold the 1 key to qu your voicemail messages. lock/unlock To lock/unlock y presses, pre m | | 1 5 rted by your service provider. Press *** [number code] * to access advanced phone settings. nge language time format mail number s ON| OFF N| OFF nce Display* ON | OFF ypad lock ON | OFF t SIM Pin SIM Pin ON | OFF Restricted Calling (Phon Reset factory settings 520 470 644 510 | 511 250 | 251 500 | 1 260 | hone Setting Number Code advanced settings mess To displa ** TIP: Press a key more than once to see more ters. For example, for the letter N, press 6 two mes. ON OFF change ringtones change ringer volume change earpiece volume | | | | | screen, press | | | | | TIP: To change your ringer to vibrate, press until the phone vibrates. | Navigation Pad Signal Strength Make & answer calls. Battery Strength Action Key Phonebook Turn on & off, hang up, exit menus. Lock & unlock keypad. Headset & Phone Charge Connector MOTOFONE F3 weak strong rings and volume | | Set Balance Inq Reserved for MOTOROLA warranty Language 2 DRAFT FT A DR RR DDRDRDRDRDRDRDRDDDRDRDRDRDRDRDRDRDRDDRDRDRDRDRDRDRDRDRDRDRDRDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD AFT F TTTTTTTTTTTTTT AFAFAF FT TT FT T FTFT TTT FTFTFT T FTFTFT TT F Action Key Press this key to select to sele items in menus & on theitems in menus & on th TT screen. scre PhonebookPhonebook Opens ys yoour storedur stored TT phone number list.number list. Main MenuMain Menu Navigation Key FTFT MoMoveleft, right, up & down. FFTFTFTFTFTFTFTFT TTT 5 6 1 Write MessagesWrite Me Read MessagesRead Messag View Recent Call Listew Recent Call L Ch 3 RAFRAF AAAAAAAAAAAA VoicV TeTxt messa Successful T lettet time TT DRDRA A RARA make a calle a call enter number enter num| end a calla call | AAAAAAAAA use speakuse speakerphonephone WheneWhever you see on the scree on the scr to stto sart/stop speakerphone.erphone. RARARARAR view rview recent callsec RRR AAAAA | RARA calls RRRR DRDR RRRRRRRRARARR FT T DRAFTDDRA A RA AFT TT AFA FT AF T | || AAAAAAAA || and select a name nd select a name || | | read a teext messagxt messagee more than once to see moremore than once to see more mple, fmple, foor the letr the letter N, presst6 twwoo ete a cete a characterharacter,r press . To delete the entire AAAAAAAAAAAAAAAAAAAAAAAAAA | || || | | ToT read and scroll through the message press .roll through th | | [message opens] rreeply tply tooa text messaggee AAAAAAAAAAAAAAAAAAAAAAAA HiHi NONOTETE:: TTeeTTTxt messages are autoxt messages are auto (oldest to ne(oldest to newweest) when the Sst) when | enter message essage || || T adju | set an alarm | | TT vvoicemoi listen ten too If TT FT T AFAF FTFT AFAF FF TTTTT F AFAFAFAFAFAFAFAFAF TTTTTTTTTTTTTTTT FTFTFTFTFTFTFTFTFTFTFTFTFTFT TToTviewa previous message, press .s message, pr FTFTFTFFFFF AAAAAAAAAAAAAAAAAAAA TTTT ttuurrn off an alarfm | | | TTTTTTTTTTTTTTT AA | message, press and hold .sage, press a FTFFFFFT DRAFTDRDRA AA RA AFT FT l someone l someone honebook, press and hold honebook, press and hol ypad number for two seconds.ypad number for two seconds. ing conting contacts in yacts in our phonebook, enter k, enter ct number and press ct number and #. For example, e, l yl your 1our 155 phonebook cont phoneact, press ress 15# 15#. er ebook ebo o quico quickly access kly ac ock keypadpad your keypad to prevent accidentt accidental key press and hold the press and hol*key ffoor 2 seconds. r 2 sec ToT vi…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GF1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56GF1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: John Boos TITLE: Engineering Manager Motorola Mobile Devices Business Date: October 13, 2006 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GF1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56GF1) is in compliance with all applicable parts of the FCC Rules. NAME: John Boos TITLE: Engineering Manager Motorola Mobile Devices Business Date: October 13, 2006 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GF1 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56GF1. NAME: John Boos TITLE: Engineering Manager Motorola Mobile Devices Business Date: October 13, 2006 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56GF1 October 5, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Device Business, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56GF1. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a dual band GSM portable transceiver, which operates in the 850 MHz and 1900 MHz PCS bands. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Device Business 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: November 10, 2006 Subject: Request for additional information regarding FCC ID: IHDT56GF1 Reference: Correspondence Reference Number: IHD0645 Confirmation Number: 1610090645 Date of Original Email: November 10, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Is the EUT capable of connecting to a pc? If so, then it must also either be certified or DoC’ed as a Class B peripheral. Please address. Response: No, the phone can not be connected to a pc. 2. The Operational Description lists GPRS (Class 12). Is this available to the EUT? If so, then please provide body SAR data in this mode (duty cycle 1:2 if Class 12). Response: The Operational Description exhibit is in error. The phone can operate in only one transmit timeslot. 3. In the tables on pages 7-10 of the SAR report, all of the 1-g and 10-g SAR values are reversed. Please correct. Response: Please refer to the revised SAR report submitted on November 10, 2006. 4. 4. Please specify if the EUT is capable of non-U.S. band operation. Response: The phone can operate only in the US bands. (The revised SAR report submitted on November 10, 2006 corrects reference to the non-US bands.) 5. 5. Please correct the max SAR values listed in the user’s manual to those for U.S (FCC) testing (i.e., 1-g values). Response: Please refer to the revised user’s manual submitted on November 10, 2006. 1

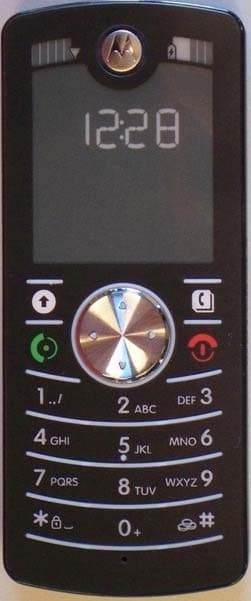

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GF1 BACK OF PHONE WITH BATTERY COVER REMOVED BACK OF PHONE FRONT OF PHONE EXHIBIT 3

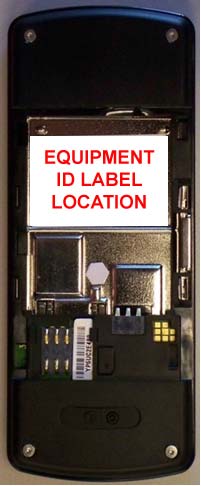

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GF1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GF1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GF1 Main Board Top Main Board Top With Shields Without Shields Main Board Bottom Main Board Bottom With Shields Without Shields EXHIBIT 9 1 of 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GF1 INSIDE FRONT HOUSING INSIDE BACK HOUSING EXHIBIT 9 2 of 2

Portable Cellular Phone SAR Test Report Test Report #: 19219-2 Date of Report: 31 October, 2006 Date of Test: 26 & 27 October, 2006 FCC ID #: IHDT56GF1 Generic Name: N/A Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Steven Hauswirth Principal Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation WI-0247 RF Power Measurement WI-1847 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19219-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 8 References 11 Appendix 1: SAR distribution comparison for system accuracy verification 12 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 13 Appendix 3: SAR distribution plots for Body Worn Configuration 14 Appendix 4: Probe Calibration Certificate 15 Appendix 5: Measurement Uncertainty Budget 16 Appendix 6: Photographs of the device under test 18 Appendix 7: Dipole Characterization Certificate 21 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19219-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ICNIRP (10g), the final SAR reading for this phone is 0.36 W/kg for head adjacent use and 0.52 W/kg for body worn use. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.50 W/kg for head adjacent use and 0.72 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Top and Bottom of Back Housing Length 40 mm Dimensions Ant #1 Width 20 mm Length 40 mm Dimensions Ant #2 Width 18 mm Configuration Patch 2.2 Device description Serial number YP6UC2E482 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GMSK GMSK Maximum Output Power Setting 33.10 30.00 Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 8 24.2-848.8MHz 1850.2-1909.8MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19219-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE V1 SN437 18-Jul-07 E-Field Probe ETDV6 SN3037 17-Nov-06 Dipole Validation Kit, DV900V2 SN096 22-May-07 S.A.M. Phantom used for 900MHz TP-1131 Dipole Validation Kit, DV1800V2 SN272 S.A.M. Phantom used for 1800 TP-1250 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Gen…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Test Report Number: 19218-1 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 19218-1 Report Date – November 2, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: November 2, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Test Report Number: 19218-1 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 8 Spurious Emissions at Antenna Terminals 13 Measurement results 13 Field Strength of Spurious Emissions 16 Measurement results 16 Frequency Stability 18 Measurement results 18 Field Strength of Spurious Emissions -Unintentional Radiators 21 Measurement results 21 AC Line Conducted Emissions 23 Measurement results 23 APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Test Report Number: 19218-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850 & 1900 FCC ID : IHDT56GF1 Serial Numbers: YP6UC2E054, YP6UC2E295, YP6UC2E462 Testing Complete Date: November 2, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H – Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Test Report Number: 19218-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Occupied Bandwidth Pass 4 Spurious Emissions at Antenna Terminal Pass 5 Field Strength of Spurious Emissions Pass 6 Frequency Stability Pass 7 Field Strength of Spurious Emissions Pass from Unintentional Radiators 8 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability 70 Hz 7 Field Strength of Spurious Emissions See results from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Test Report Number: 19218-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel 2 AS-6 6675 1/6/07 Attenuator Weinschel 2 AS-6 6677 11/10/06 Attenuator Weinschel 2 AS-6 7075 1/31/07 Attenuator Weinschel 2 AS-6 6675 1/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E9323A US40412063 11/22/06 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Test Report Number: 19218-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.20 33.94 836.60 33.34 848.80 33.03 GSM 1900 Frequency (MHz) Power (dBm) 1850.20 29.87 1880.00 30.60 1909.80 30.27 APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Test Report Number: 19218-1 EXHIBIT 6 7 RADIATED POWER (EIRP AND ERP) Measurement Procedure The phone was tested in a 16’ anechoic chamber with a 2-axis position system that permits taking complete spherical scans of the EUT’s radiation patterns. For all tests, the phone was supported in a free space type environment, vertic…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56GF1 Radiated Emissions Test Setup Photos EXHIBIT 7 Radiated Emissions Measurement Setup Antenna Substitution Measurement
