IHDT56GG1Portable PCS/ Cellular GSM/ EDGE Transceiver w/ BT

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. APPLICANT: MOTOROLA,INC. FCC ID: IHDT56GG1 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1.5 7 W/kg, and when worn on the body, as described in this user guide, is 0. 50 W/kg. The SAR value for this product in its data transmission mode (body-worn use) is 0. 25 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements). 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. MOTOMANUAL MOTO RIZR™ Z6 www.motorola.com 1 HELLOMOTOIntroducing your new MOTO RIZR™ Z6 GSM wireless phone. N a v iga t i on Key Scroll up/down/left/right,control song playback in the m usic player. R ig ht Soft Key Cle a r/B ac k Key Power/End Key Turn on/off, hang up, exit m enus. Bluetooth Ind ica tor L ig ht Mus ic L ib r a ry Key Left Soft Key Send Key Make & answer calls. Center Key Open m ain m enu & select m enu ite m s. Push B a r Push down to close slider. Ch a r g e Ind ica tor L ig ht 2 H a ndsfree S p e a ker (on back of phone) Volume Keys Set ring volu m e when slider is closed. Sm a rt Key Select m enu ite m s, launch browser. Push B a r Push up to open slider. C a mer a Lens & H ig h-Intens i ty LED C a mer a L ig ht (on back of phone)C a mer a Key Activate ca m era & take photos. M i n i -USB Port Insert battery charger& phone accessories. Vo ic e Comm a nd Key Use voice co mm ands to m ake calls & perfor m basic phone functions. 3 Service Provider10/15/2008 10:10AM Options Main Menu Main Menu Options Back Games Web Access Settings Recent Calls Contacts Office Tools Web Access Messages Multimedia Home S c reen M ai n Menu Press & hold the power key P until the display lights up, to turn on your phone. 1 Note: This is the standard ho m e screen and m ain m enu layout. Yo u r p hone’s home s c reen a nd m ai n menu m a y b e d i fferent. Press thecenter key s to select it. 4 Press thenavigation key S up/down/left/right to scroll to a m enu feature. 3 Press the center key s to open the M ai n Menu . 2 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the S…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GG1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56GG1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Mark Koziol TITLE: Engineering Manager Motorola Mobile Devices Business Date: 01-05-2007 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GG1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Mark Koziol TITLE: Engineering Manager Motorola Mobile Devices Business Date: 01-05-2007 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GG1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment ( IHDT56GG1) is in compliance with all applicable parts of the FCC Rules. NAME: Mark Koziol TITLE: Engineering Manager Motorola Mobile Devices Business Date: 01-05-2007 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 January 5, 2007 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56GG1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 days: • Exhibit 3 External Photographs • Exhibit 7 Test Setup Photographs • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

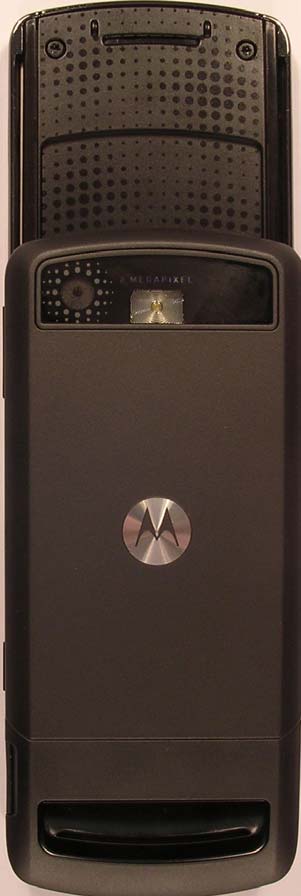

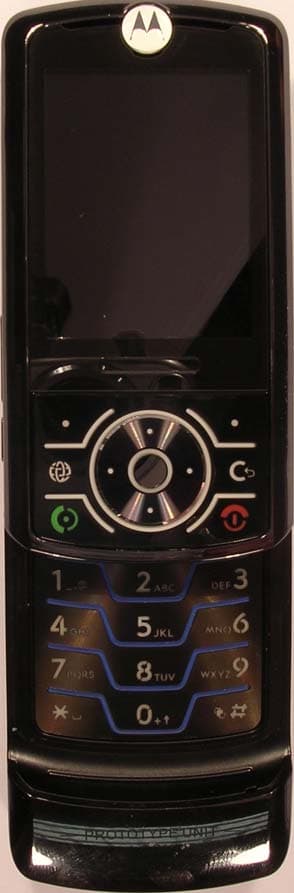

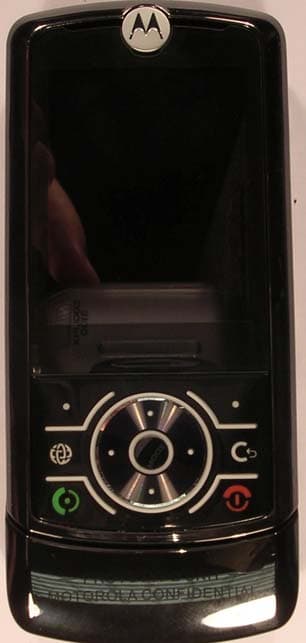

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 FRONT WITH PHONE SLIDE EXTENDED REAR WITH PHONE SLIDE EXTENDED EXHIBIT 3 Page 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 EXHIBIT 3 Page 2 of 3 BACK OF PHONE WITH BATTERY COVER REMOVED REAR WITH PHONE SLIDE RETRACTED APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 FRONT WITH PHON E SLIDE RETRACTED EXHIBIT 3 Page 3 of 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GG1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GG1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Main Board (Side A) With Shields and daughter board on the side Main Board (Side A) With Shields EXHIBIT 9 1 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 PCB (side B) and popples (flipped) on the side PCB (side B) and popples on PCB EXHIBIT 9 2 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 PCB (side A) With no Shields PCB (side B) With no Shields EXHIBIT 9 3 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Housing EXHIBIT 9 4 of 4

0 0 Portable Cellular Phone SAR Test Report Test Report #: 19581-1F Date of Report: 11/30/2006 Date of Test: 11/2/2006 – 11/11/2006 FCC ID #: IHDT56GG1 Generic Name: MQ5-4411A22 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Paul Ma RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation WI-0247 RF Power Measurement WI-1847, WI-1873 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 11 References 13 Appendix 1: SAR distribution comparison for system accuracy verification 14 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 15 Appendix 3: SAR distribution plots for Body Worn Configuration 16 Appendix 4: Probe Calibration Certificate 17 Appendix 5: Measurement Uncertainty Budget 18 Appendix 6: Photographs of the device under test 20 Appendix 7: Dipole Characterization Certificate 26 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 1.57 W/kg for head adjacent use and 0.50 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.6 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom of Transceiver Length 36.6 mm Dimensions Width 8.0 mm Configuration FJA 2.2 Device description Serial Number LAS03H0031 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Bluetooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK GMSK GMSK 8PSK 8PSK 8PSK 8PSK GFSK Maximum Output Power Setting 33.00 dBm 33.00 dBm 30.50 dBm 30.50 dBm 33.00 dBm 33.00 dBm 30.50 dBm 30.50 dBm 29.00 dBm 29.00 dBm 28.00 dBm 28.00 dBm 4.0 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 1:8 1:8 1:8 1:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 2400.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.6) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Descr…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56GG1 Test Report Number: 19587-1 EXHIBIT 6 1 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 19587-1 Report Date – December 28, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: December 28, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56GG1 Test Report Number: 19587-1 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 8 Occupied Bandwidth 9 Measurement results 10 Spurious Emissions at Antenna Terminals 18 Measurement results 19 Field Strength of Spurious Emissions 23 Measurement results 24 Frequency Stability 30 Measurement results 31 Field Strength of Spurious Emissions -Unintentional Radiators 35 Measurement results 36 AC Line Conducted Emissions 38 Measurement results 39 APPLICANT: MOTOROLA INC FCC ID: IHDT56GG1 Test Report Number: 19587-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, EDGE, Bluetooth FCC ID : IHDT56GG1 Serial Numbers: LAS03H0062, LAS03H0080, LAS03H0034 Testing Complete Date: December 28, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT56GG1 Test Report Number: 19587-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56GG1 Test Report Number: 19587-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel AS-6 7075 6/29/07 Attenuator Weinschel AS-6 6675 1/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E4412B US38486321 02/03/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56GG1 Test Report Number: 19587-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.2 33.03 836.6 33.03 848.8 32.94 EDGE 850 Frequency (MHz) Power (dBm) 824.2 29.16 836.6 29.09 848.8 28.93 GSM 1900 Frequency (MHz) Power (dBm) 1850.2 30.40 1880.0 30.56 1909.8 30.43 EDGE 1900 Frequency (MHz) Power (dBm) 1850.2 27.92 1880.0 27.96 1909.8 27.83 APPLICANT: MOTOROLA INC FCC ID: IHDT56GG1 Test Report Number: 19…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS EMC Report #19587-1, AC Line - Part 15 PC Peripheral APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 1 of 14 EXHIBIT 7 EMC Report #19587-1, AC Part 15 Radiated APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 2 of 14 EXHIBIT 7 EMC Report #19587-1, Antenna - Substitution APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 3 of 14 EXHIBIT 7 EMC Report #19587-1, Radiated Emission, Slider Down APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 4 of 14 EXHIBIT 7 EMC Report #19587-1, Radiated Emission, Slider Up APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 5 of 14 EXHIBIT 7 File MC15003 Project 06CA58127 Page A1 of A3 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC APPENDIX A PHOTOS (Extracted from UL EMC Test Report with Project # 06CA58127) APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 6 of 14 EXHIBIT 7 File MC15003 Project 06CA58127 Page A2 of A3 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC Radiated Emissions X-Axis, Slider Up . Radiated Emissions Y-Axis, Slider Up Radiated Emissions Z-Axis, Slider Up APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 7 of 14 EXHIBIT 7 File MC15003 Project 06CA58127 Page A3 of A3 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC Radiated Emissions X-Axis, Slider Down . Radiated Emissions Y-Axis, Slider Down Radiated Emissions Z-Axis, Slider Down APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 8 of 14 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 0 0 Appendix 6 Photographs of the device under test APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 9 of 14 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1 1 Figure 1. Front of Phone Figure 2. Front of Phone – Slider Up APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 10 of 14 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 2 2 Figure 3. Back of Phone Figure 4. Back of Phone - Slider Up APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 11 of 14 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 3 3 Figure 5. Phone Against the Head Phantom (Cheek Touch) Figure 6. Phone Against the Head Phantom (Cheek Touch) – Slider Up APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 12 of 14 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 4 4 Figure 7. Phone Against the Head Phantom (15 degrees Tilt) Figure 8. Phone Against the Head Phantom (15 degrees Tilt) – Slider Up APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 13 of 14 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19581-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 5 5 Figure 9. Phone Against the Flat Phantom APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GG1 Page 14 of 14 EXHIBIT 7
