IHDT56GJ1Dual-Band Portable Transceiver (CDMA) w/ Bluetooth

motorola.com MOTO RAZR Ve CDMA English 1 HELLOMOTOIntroducing your new Motorola MOTO RAZR Ve CDMA wireless phone. Here’s a quick anatomy lesson. 1 N Mute Options Left Soft Key R ig ht Soft Key Cle a r/B ac k Key Volume Keys Sm a rt/ S p e a ker p hone Key Turn on & off,hang up, exitm enus. Scroll up, down,left, or right. Make & answer calls. Skip back. Skip forward. Play/Pause Mus ic Pl a yer Controls 2 1 N Message Contacts MENU Thu, Oct 23 12:45pm 1 N OK 1. New Contact2. Contact List3. Groups4. Speed Dials CONTACTS B 12 34 s s Press and hold the Power Key for a few seconds or until th edisplay lights up to turn on your phone. Press the navigation key left/right to highlight a m enu option, then down to highlight a suboption. Press the center key to select. S P Press the center key to open the M ai n Menu. Home S c reen M ai n Menu 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2006.Manual Number: 4 contents contentsmenu map . . . . . . . . . . . . 6Use and Care . . . . . . . . . . 8essentials . . . . . . . . . . . . . 9 about this guide. . . . . . . 9battery . . . . . . . . . . . . . 10turn it on & off . . . . . . . 12make a call. . . . . . . . . . 12answer a call . . . . . . . . 13store a phone number . 13call a stored phone number . . . . . . . . . . . . 13your phone number . . . 14 main attractions . . . . . . 15 get & play music . . . . . 15record & play voice records . . . . . . . . . . . . 19 record & play video clips . . . . . . . . . . . . . . . 20send a photo in a message . . . . . . . . . . . 22send a multimedia (PIX/FLIX) message . . . 24receive a multimedia (PIX/FLIX) message . . . 26download pictures . . . . 27download V CAST videos . . . . . . . . . . . . . 28Bluetooth wireless . . . 28memory card . . . . . . . . 33cable connections . . . . 35TTY operation . . . . . . . 36phone updates. . . . . . . 37 basics . . . . . . . . . . . . . . . 38 home screen . . . . . . . . 38text entry . . . . . . . . . . . 41volume. . . . . . . . . . . . . 44change sound settings . . . . . . . . . . . . 45external screen . . . . . . 46handsfree speaker . . . . 46standalone mode. . . . . 47change codes & passwords . . . . . . . . . . 48lock/unlock side keys . . 48lock & unlock phone . . 49 customize. . . . . . . . . . . . 50 sound settings . . . . . . . 50get ringtones . . . . . . . . 52 contents 5 talking phone settings. . . . . . . . . . . . 52answer options. . . . . . 52wallpaper . . . . . . . . . . 53screen saver . . . . . . . . 53backlight . . . . . . . . . . . 54brightness. . . . . . . . . . 54hide/show location information . . . . . . . . . 54AGPS limitations & tips . . . . . . . . . . . . . 55 calls . . . . . . . . . . . . . . . . 57 redial a number. . . . . . 57recent calls . . . . . . . . . 57return unanswered calls . . . . . . . . . . . . . . 58attach number . . . . . . 59speed dial . . . . . . . . . . 59emergency calls . . . . . 60 AGPS during an emergency call . . . . . . 60voicemail . . . . . . . . . . 61in-call options . . . . . . . 62 other features . . . . . . . . 63 advanced calling . . . . . 63contacts . . . . . . . . . . . 64messages . . . . . . . . . . 67personalizing. . . . . . . . 69call times & costs . . . . 73handsfree . . . . . . . . . . 75network . . . . . . . . . . . 75personal organizer . . . 76security. . . . . . . . . . . . 77fun & games. . . . . . . . 77 service & repairs. . . . . . 79Specific Absorption Rate Data. . . . . . . . . . . . 80Safety and General Information . . . . . . . . . . 8 4 Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . 89Hearing Aid Compatibility with Mobile Phones . . . . . . . 93Information from the World Health Organization . . . . . . . . . 9 4 Smart Practices While Driving . . . . . . . . . . . . . . 96Index . . . . . . . . . . . . . . . 98 6 menu map menu map main menuB GET IT NOW* • Get Tunes & Tones• Get PIX & FLIX• Get Fun & Games• Get News & Info•Get Going• Get Extras C MESSAGING •New Msg• Inbox• Sent•Drafts•Voicemail• E-mail*• Mobile IM*•Chat* n CONTACTS • New Contact• Contact List• Groups• Speed Dials A RECENT CALLS •Missed• Received• Dialed•All•View Timers D SETTINGS & TOOLS • (see next page) * optional features This is the standard main menu layout. Your phone’s menu may be a little different. menu map 7 settings menu My AccountTools • Voice Commands• Calendar•Alarm Clock• World Clock• Notepad•Calculator Sound Settings • Master Volume• Call Sounds• Alert Sounds• Keypad Volume• Service Alerts•Power On/Off• Alarm Sounds• Talking Phone Display Settings • Banner• Backlight• Brightness• Wallpaper• Screensaver• Display Themes Phone Settings • Standalone Mode• Shortcut Key• Language•Location• Security• System Select•NAM Select• Master Clear• Master Reset Call Settings • Answer Options• Auto Retry• TTY Mode• One Touch Dial•Voice Privacy• Data Settings• DTMF Tones Bluetooth • Add New Device Memory • Save Options• Phone Memory•Card Memory Phone Info • My Number•…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56GJ1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 08-03-2006 Page 1 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56GJ1) is in compliance with all applicable parts of the FCC Rules. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 08-03-2006 Page 2 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 08-03-2006 Page 3 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ1 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56GJ1. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 08-03-2006 Page 4 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ1 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B-Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 08-03-2006 Page 5 of 5 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56GJ1 August 3, 2006 SHORT TERM CONFIDENTIALITY REQUEST 45 DAY EXTENSION Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56GJ1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request Extension: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for an additional 45 days: • Exhibit 3 External Photographs • Exhibit 7A Photographs of the device under test for the RF Exposure (SAR) Tests • Exhibit 7B Photographs of the device under test for the HAC Tests • Exhibit 8 Users Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13A

APPLICANT: MOTOROLA FCC ID: IHDT56GJ1 October 23, 2006 SHORT TERM CONFIDENTIALITY REQUEST 45 DAY EXTENSION Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56GJ1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request Extension: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for an additional 45 days: • Exhibit 3 External Photographs • Exhibit 7A Photographs of the device under test for the RF Exposure (SAR) Tests • Exhibit 7B Photographs of the device under test for the HAC Tests • Exhibit 8 Users Manual • Exhibit 9 Internal Photographs Motorola confirms that this product (FCC ID: IHDT56GJ1) has not been marketed. Furthermore, Motorola is aware that that External, Internal, Test Setup Photos and User's Manual were publicly viewable since October 21, 2006. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13B-1

Front of the phone (flip open) Rear of the phone (flip open) Applicant: Motorola, Inc.FCC ID: IHDT56GJ1 Exhibit 3 1 of 2 Front of phone Back of phone with battery cover removed Back of phone Applicant: Motorola, Inc. FCC ID: IHDT56GJ1 Exhibit 3 2 of 2

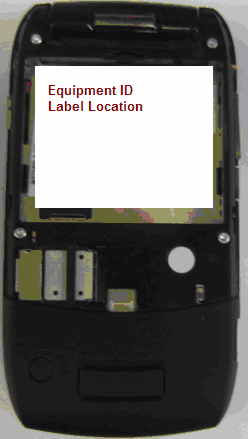

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GJ1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

Main board bottom with shields Main board bottom without shields Main board top with shields Main board top without shields Applicant: Motorola, Inc.FCC ID: IHDT56GJ1 Exhibit 9 1 of 4 Flip board Flip LCD Applicant: Motorola, Inc.FCC ID: IHDT56GJ1 Exhibit 9 2 of 4 Inside back transceiver housing Inside front transceiver housing Applicant: Motorola, Inc.FCC ID: IHDT56GJ1 Exhibit 9 3 of 4 Inside Front Flip housing Inside Back Flip housing Applicant: Motorola, Inc.FCC ID: IHDT56GJ1 Exhibit 9 4 of 4

APPLICANT: MOTOROLA INC FCC ID: IHDT56GJ1 Test Report Number: 18607-2 Supplement 1 EXHIBIT 6 AC Line Test Report Details Tests Performed By: Motorola Mobile Devices business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDB FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: CDMA 800, 1900 and Bluetooth FCC ID Number: IHDT56GJ1 Serial Numbers: 80435BD6 Testing Complete Date: August 31, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT56GJ1 Test Report Number: 18607-2 Supplement EXHIBIT 6 2 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Attenuator Weinschel 2 AS-6 6675 1/6/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56GJ1 Test Report Number: 18607-2 Supplement EXHIBIT 6 3 AC LINE CONDUCTED CFR 47 Part 15.207 Measurement Procedure Measured levels of ac power line conducted emission shall be the radio-noise voltage from the line probe or across the 50 Ω LISN port, where permitted, terminated into a 50 Ω noise meter, or where permitted or required, the radio-noise current on the power line sensed by a current probe. All radio-noise voltage and current measurements shall be made on each current- carrying conductor at the plug end of the EUT power cord or calibrated extension cord by the use of mating plugs and receptacles on the EUT and LISN. Equipment shall be tested with power cords that are normally supplied using an LISN, the 50 Ω measuring port is terminated by a 50 Ω radio-noise meter or a 50 Ω resistive load. All other ports are terminated in 50 Ω. Detectors - Quasi Peak and Average Detector Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. Measurement Results See attached: APPLICANT: MOTOROLA INC FCC ID: IHDT56GJ1 Test Report Number: 18607-2 Supplement EXHIBIT 6 4 0 10 20 30 40 50 60 70 80 Level [ dBμV] 150k300k500k1M2M3M5M 7M 10M30M Fr equency [ Hz] + + + + ++ x x x x x x x M ES 186073 L P15_f in Q P + M ES 186073 L P15_f in AV M ES 186073 L P15_pr e PK M ES 186073 L P15_pr e AV LI M EN 55022 V Q P Volt age Q P Lim it LI M EN 55022 V AV Volt age AV Lim it Part 15 AC Line Conducted Emissions – Line Coupling 0 10 20 30 40 50 60 70 80 Level [ dBμV] 150k300k500k1M2M3M5M 7M 10M30M Fr equency [ Hz] + + + + + + x x x x x x x M ES 186073 N P15_f in Q P + M ES 186073 N P15_f in AV M ES 186073 N P15_pr e PK M ES 186073 N P15_pr e AV LI M EN 55022 V Q P Volt age Q P Lim it LI M EN 55022 V AV Volt age AV Lim it Part 15 AC Line Conducted Emissions – Neutral Coupling

Radiated Emissions Test Setup Photos Radiated Emissions Measurement Setup (Representative Photo- Not Actual Phone Tested) APPLICANT: MOTOROLA INC FCC ID: IHDT56GJ1 Test Report Number: 18607-2 Supplement EXHIBIT 6 5 AC Line Conducted Emissions Test Setup Photos AC Line Conducted Emissions Measurement Setup. (Representative Photo- Not Actual Phone Tested)
