IHDT56GJ2Dual-Band Portable Transceiver (CDMA) w/ Bluetooth

motorola.com MOTO RAZR maxx Ve CDMA English 1 HELLOMOTOIntroducing your new MOTO RAZR ™ maxx Ve CDMA wireless phone. Here’s a quick anatomy lesson. 1 N Left Soft Key R ig ht Soft Key Cle a r/B ac k Key Volume Keys Sm a rt/ S p e a ker p hone Key Turn on & off,hang up, exitm enus. Scroll up, down,left, or right. Make & answer calls. Two-st ag e ShutterRele a se Key Skip Back/ Rewind Skip Forward/ Fast Forward Play/Pause Mus ic Pl a yer Controls: C a mer a Lens C a mer a Fl a sh Alert L ig hts 2 N Message Contacts MENU Thu, Oct 23 12:45pm N OK 1. New Contact2. Contact List3. Groups 4. Speed Dials CONTACTS B 0 ❙❙❙ 0 P P ❘❘❘❘❘❘❘❘ EV1X 1 2 34 s s Press and hold the Power Key for a few seconds, or until the display lights up, to turn on your phone. Press the navigation key left/right to highlight a m enu option, then down to highlight a suboption. Press the center key to select. S P Press the center key to open the M ai n Menu. Home S c reen M ai n Menu 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Windows is a registered trademark of Microsoft Corporation. All other product or service names are the property of their respective owners.© Motorola, Inc., 2006.Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 6809504A09-O 4 contents contentsmenu map . . . . . . . . . . . . 6Use and Care . . . . . . . . . . 8essentials . . . . . . . . . . . . . 9 about this guide. . . . . . . 9battery . . . . . . . . . . . . . 10turn it on & off . . . . . . . 12make a call. . . . . . . . . . 12answer a call . . . . . . . . 13store a phone number . 13call a stored phone number . . . . . . . . . . . . 13see your phone number . . . . . . . . . . . . 14 main attractions . . . . . . 15 get & play music . . . . . 15record & play voice records . . . . . . . . . . . . 29 record & play video clips . . . . . . . . . . . . . . . 30send a photo in a message . . . . . . . . . . . 32send a multimedia (picture/video) message . . . . . . . . . . . 36receive a multimedia (picture/video) message . . . . . . . . . . . 38download pictures . . . . 39download V CAST videos . . . . . . . . . . . . . 39manage memory . . . . . 39Bluetooth connections 42cable connections . . . . 45TTY operation . . . . . . . 45 basics . . . . . . . . . . . . . . . 4 8 home screen . . . . . . . . 48enter text . . . . . . . . . . . 51adjust volume . . . . . . . 56change sound settings. 56external display . . . . . . 56handsfree speaker . . . . 56standalone mode. . . . . 58change lock code . . . . . 58lock & unlock phone . . 59 customize . . . . . . . . . . . . 61 conserve battery charge . . . . . . . . . . . . . 61sounds settings . . . . . . 61get ringtones . . . . . . . . 63talking phone settings . 63answer options . . . . . . 64 contents 5 wallpaper . . . . . . . . . . 64screen saver . . . . . . . . 65backlight . . . . . . . . . . . 66brightness. . . . . . . . . . 66clock format . . . . . . . . 66AGPS & your location . 67AGPS limitations & tips . . . . . . . . . . . . . 68 calls . . . . . . . . . . . . . . . . 69 redial a number. . . . . . 69automatic redial . . . . . 69recent calls . . . . . . . . . 70return unanswered calls . . . . . . . . . . . . . . 71speed dial . . . . . . . . . . 71emergency calls . . . . . 72AGPS during an emergency call . . . . . . 72voicemail . . . . . . . . . . 73in-call options . . . . . . . . 74 other features . . . . . . . . 75 advanced calling . . . . . 75messages . . . . . . . . . . 76contacts . . . . . . . . . . . 78personalizing. . . . . . . . 81call times & data volumes . . . . . . . . . . . 89handsfree . . . . . . . . . . 90Bluetooth wireless connections . . . . . . . . 91network . . . . . . . . . . . 92personal organizer . . . 93security. . . . . . . . . . . . 94fun & games. . . . . . . . 95 service & repairs. . . . . . 97Specific Absorption Rate Data. . . . . . . . . . . . 98Safety and General Information . . . . . . . . . 103 Industry Canada Notice to Users . . . . . . . . . . . . 108FCC Notice To Users. . 109Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . 110Hearing Aid Compatibility with Mobi…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56GJ2) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11-27-2006 Page 1 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56GJ2) is in compliance with all applicable parts of the FCC Rules. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11-27-2006 Page 2 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11-27-2006 Page 3 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ2 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56GJ2. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11-27-2006 Page 4 of 5 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ2 911 Call Processing Method Compliance Statement Method Used Pursuant to 47 CFR Sec. 22.921, this Motorola CDMA phone at the time of commercial distribution will use a call completion method for 911 calls that is approved or endorsed by the FCC. At this time Motorola intends that this phone will incorporate either the Automatic A/B-Intelligent Retry method or the Automatic A/B-Intelligent Retry, Version 2 method for providing 911 emergency calling support. NAME: Robert Netz TITLE: Engineering Manager Motorola Mobile Devices Business Date: 11-27-2006 Page 5 of 5 EXHIBIT 2

APPLICANT: MOTOROLA FCC ID: IHDT56GJ2 November 30, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56GJ2. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). The unit may be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). This equipment is identical to FCC ID: IHDT56GJ1, except for a software adjustment to increase the Bluetooth transmitter power output. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA FCC ID: IHDT56GJ2 November 30, 2006 SHORT TERM CONFIDENTIALITY REQUEST 45 DAY EXTENSION Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56GJ2 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request Extension: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for an additional 45 days: • Exhibit 3 External Photographs • Exhibit 7A Photographs of the device under test for the RF Exposure (SAR) Tests • Exhibit 7B Photographs of the device under test for the HAC Tests • Exhibit 8 Users Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13A

Date: December 13, 2006 Subject: Request for additional information regarding FCC ID: IHDT56GJ2 (Portable PCS CDMA transceiver) Reference: Correspondence Reference Number: IHD0784 Confirmation Number: 12010785-86 Date of Original Email: December 11, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please fully address the FCC 3G policy recently issued in June 2006. Service Options for this CDMA2000 device. Please provide details of device capability, RF modes/options used for EMC and SAR and also the method used for mode selection. (Exh 6 Page 6, Exh 11 Page 4). Response: Exhibit 6 (page 6) and exhibit 11 (page 4) contain tables which address the recently issued FCC 3G policy. (Note: This information referenced as being per the “Preliminary Guidance for Reviewing Applications for Certifications of 3G Devices” released on May 9, 2006; is applicable to the FCC 3G policy released in June 2006.) 2. Cellular CDMA Body SAR evaluation contains only one channel evaluated, while the SAR value is greater than 3dB below the SAR limit for ANSI C95.1. Please submit SAR data for 1013 and 384 channels for Body SAR. Response: Please refer to the supplemental SAR report. 3. The statements required by Sections 15.19, 15.21 and 15.105 cannot be located in the user’s manual. Please confirm that they will be included there prior to shipment of the EUT. Response: Please refer to page 109 in the replacement user’s manual. 4. Please submit a copy of your most recent A2LA Accreditation No. 1651-01 for Scope EMC/SAR, if available. Response: Please refer to the attached accreditation certificate. 5. Please clarify which Table on Page 14, Exhibit 6B-2 is for 1/8 Rate and which is for Full Rate. Response: The first table is full rate and the second table is 1/8 rate. Please refer to the replacement HAC test report which corrects the typo. 1

Front of the phone (flip open) Rear of the phone (flip open) Applicant: Motorola, Inc.FCC ID: IHDT56GJ2 Exhibit 3 1 of 2 Front of phone Back of phone with battery cover removed Back of phone Applicant: Motorola, Inc. FCC ID: IHDT56GJ 2 Exhibit 3 2 of 2

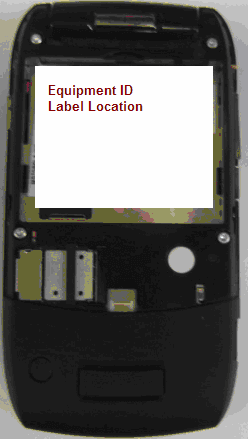

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GJ2 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GJ2 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

Main board bottom with shields Main board bottom without shields Main board top with shields Main board top without shields Applicant: Motorola, Inc.FCC ID: IHDT56GJ2 Exhibit 9 1 of 4 Flip board Flip LCD Applicant: Motorola, Inc.FCC ID: IHDT56GJ2 Exhibit 9 2 of 4 Inside back transceiver housing Inside front transceiver housing Applicant: Motorola, Inc.FCC ID: IHDT56GJ2 Exhibit 9 3 of 4 Inside Front Flip housing Inside Back Flip housing Applicant: Motorola, Inc.FCC ID: IHDT56GJ2 Exhibit 9 4 of 4

Portable Cellular Phone SAR Test Report Test Report #: 18656-2 F Date of Report: Nov-29-2006 Date of Test: Jun-27-2006 to Jul-11-2006 FCC ID #: IHDT56GJ2 Generic Name: N/A Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Thomas Nipple RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation WI-0247 RF Power Measurement WI-1847 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18656-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 9 References 12 Appendix 1: SAR distribution comparison for system accuracy verification 13 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 14 Appendix 3: SAR distribution plots for Body Worn Configuration 15 Appendix 4: Probe Calibration Certificate 16 Appendix 5: Measurement Uncertainty Budget 17 Appendix 6: Photographs of the device under test 19 Appendix 7: Dipole Characterization Certificate 25 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18656-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ICNIRP (10g), the final SAR reading for this phone is 0.79 W/kg for head adjacent use and 0.80 W/kg for body worn use. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 1.31 W/kg for head adjacent use and 1.20 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.6 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom of Handset Length 38.5 mm Dimensions Width 8.4 mm Configuration FJA 2.2 Device description Serial number 806A1B93 Mode(s) of Operation 800 CDMA 1900 CDMA Bluetooth Modulation Mode(s) QPSK QPSK GMSK Maximum Output Power Setting 25.00 dBm 25.00 dBm 4.00 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824.70 – 848.31 MHz 1851.25 – 1908.75 MHz 2400.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled Per the “Preliminary Guidance for Reviewing Applications for Certifications of 3G Devices” released on May 9, 2006, RC1, RC3 and RC3 (FCH + SCH) CDMA modes were considered. The conducted power measurements (per steps 3, 4 & 10 of section 4.4.5.2 of 3GPP2 C.5.011 / TIA -98-E) show that the portable cellular phone FCC ID IHDT56GJ1 has the same output conducted power for both CDMA modes. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 18656-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 Conducted power (dBm) for CDMA modes RC1 RC3 RC3 (FCH + SCH) Ch 1013 25.15 25.12 Ch 384 25.15 25.12 CDMA 800 Ch 777 24.91 24.90 Ch 25 25.18 25.05 Ch 600 25.06 24.98 CDMA 1900 Ch 1175 25.00 25.05 Per Motorola designs; the maximum power, when in a mode that allows supplemental channels, will always be less that the RC3 / RC1 maximum conducted power limit. 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.6) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GJ2 Exhibit 11 Page 1 December 13, 2006 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56GJ2) Prepared by: Thomas Nipple Motorola Mobile Devices Product Safety Laboratory Libertyville, Illinois APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GJ2 Exhibit 11 Page 2 Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56GJ2). The requested information is addressed below in the same numbering sequence received. 2. Cellular CDMA Body SAR evaluation contains only one channel evaluated, while the SAR value is greater than 3dB below the SAR limit for ANSI C95.1. Please submit SAR data for 1013 and 384 channels for Body SAR. Response: 2. Results of testing provided below. This table replaces the noted table from the report. Body-Worn with SNN5756A; Back of Phone 15mm From Phantom 10g SAR value 1g SAR value f (MHz) Description Conducted Output Power (dBm) Temp (°C) Drift (dB) Measured (W/kg) Extrapolated (W/kg) Measured (W/kg) Extrapolated (W/kg) Chan. 1013 25.07 19.6 -0.0190.639 0.64 0.921 0.93 Channel 384 24.89 19.6 -0.1570.613 0.64 0.877 0.91 800MHz Channel 777 24.80 20.0 0.2 0.801 0.80 1.20 1.20 Table 11: SAR measurement results at the highest possible output power, measured in a body-worn position against the ICNIRP and ANSI SAR Limit.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GJ2 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B - - 1 1 HAC Test Report for Near Field Emissions IHDT56GJ2 Date of Test: Date of Report: Jul-08-2006 to Jul-14-2006 Nov-28-2006 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Katerina Royzen Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC IHDT56GJ2 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI C63.19-2006. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) Results Summary: M Category = M4 ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GJ2 P P a a g g e e 2 2 E E x x h h i i b b i i t t 6 6 B B - - 1 1 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 4. VALIDATION .........................................................................................................................................................5 5. PROBE MODULATION FACTOR ......................................................................................................................6 6. TEST RESULTS......................................................................................................................................................7 APPENDIX 1: DETAILS OF THE WD’S SIGNAL .............................................................................................11 APPENDIX 2: DETAILS JUSTIFYING THE CONVERSION TO PEAK .......................................................14 A2.1 Procedure for PMF measurements ...................................................................................................15 A2.2 0 Span Spectrum Plots for PMF measurements ..............................................................................16 APPENDIX 3: HAC DISTRIBUTION PLOTS FOR VALIDATION ................................................................18 APPENDIX 4: HAC DISTRIBUTION PLOTS FOR E-FIELD AND H-FIELD ...............................................19 APPENDIX 5: MOTOROLA UNCERTAINTY BUDGET .................................................................................20 A5.1 Motorola Uncertainty Budget for RF HAC Testing .......................................................................21 A5.2 Probe Rotation Contributions to Isotropy Error ............................................................................21 APPENDIX 6: PICTURES OF TEST SETUP ......................................................................................................22 APPENDIX 7: PROBE CALIBRATION CERTIFICATES ................................................................................25 APPENDIX 8: DIPOLE CHARACTERIZATION CERTIFICATE ..................................................................26 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GJ2 P P a a g g e e 3 3 E E x x h h i i b b i i t t 6 6 B B - - 1 1 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed Hearing Aid Compatibility (HAC) measurements for the portable cellular phone (FCC ID IHDT56GJ2). The portable cellular phone was tested in accordance with ANSI PC63.19-2006 standard. The test results presented herein clearly demonstrate compliance FCC 47 CFR § 20.19. This report demonstrates compliance for near field emissions only and not for the T-coil performance compliance. 2. Description of the Device Under Test Table 1: Information for the Device Under Test FCC ID Number IHDT56GJ2 Serial number 806A1B93 Mode(s) of Operation 800 CDMA 1900 CDMA Bluetooth Modulation Mode(s) QPSK QPSK GMSK Maximum Output Power Setting 25.00 dBm 25.00 dBm 4.00 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.70 – 848.31 MHz 1851.25 – 1908.75 MHz 2400.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable Note: No Bluetooth profile exists in this phone that will allow a Bluetooth link while in a cellular call that passes audio to the earpiece. If the user had Bluetooth enabled and a link established, they could not be listening to the phone through the earpiece. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GJ2 P P a a g g e e 4 4 E E x x h h i i b b i i t t 6 6 B B - - 1 1 3. Test Equipment Used The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the HAC measurements are taken within a shielded enclosure. The measurement uncertainty budget is given in Appendix 5. The list of calibrated equipment used for the measurements is shown below. Table 2: Dosimetric System Equipment Description Serial Number Cal Due Date E-Field Probe ER3DV6R 2247 Apr-28-2007 H-Field Probe H3DV6 6074 Apr-27-2007 DASY4™ DAE4 650…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GJ2 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B - - 2 2 HAC Test Report for T-coil IHDT56GJ2 Date of test: Date of Report: July 17, 2006 - July 19, 2006 Nov 28, 2006 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Katerina Royzen Engineer Statement of Com…

Text truncated - open the document above for the full version.
