BETA DRAFT Phone User Guide Sprint® PowerSource TM Phone ic902 by Motorola® www.sprint.com © 2007 Sprint Nextel. All rights reserved. SPRINT, the “Going Forward” logo, the NEXTEL name and logo, and other trademarks are trademarks of Sprint Nextel. Printed in the U.S.A. @NNTN7130BETA@ NNTN7130BETA BETA DRAFT Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 www.hellomoto.com 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. © Motorola, Inc., 2007. MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse- engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Manual number: NNTN7130BETA Software Version: To be added when published USR Version: To be added when published CP Version: To be added when published BETA DRAFT Table of Contents Welcome to Sprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Your Phone’s Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv Section 1: Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1A. Setting Up Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Setting Up Your Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Account Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1B. Your Phone: The Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Your ic902 by Motorola . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Getting Started With Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Finding Your Phone Number and Walkie-Talkie Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Basic Phone Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Section 2: Using Your Phone . . . . . . . . . . . . . . . . . . . . . . . 37 2A. Making and Answering Calls . . . . . . . . . . . . . . . . . . . . . 38 Types of Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Making and Answering Phone Calls . . . . . . . . . . . . . . . . . . . . . . . . . 40 Making and Answering Walkie-Talkie Calls . . . . . . . . . . . . . . . . . 49 Making and Answering Talkgroup Calls . . . . . . . . . . . . . . . . . . . . . 58 Making and Answering Direct Talk Calls . . . . . . . . . . . . . . . . . . . . 61 Using Call Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Keeping Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 2B. Controlling Your Phone’s Settings . . . . . . . . . . . . . . . . 72 Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Location Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 Messaging Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 BETA DRAFT Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 TTY Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 Phone Setup Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Walkie-Talkie Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 2C. Setting Your Phone’s Security . . . . . . . . . . . . . . . . . . . . 94 Accessing Your Security Menu . . . . .…

Text truncated - open the document above for the full version.

BETA DRAFT 128Section 2F: Using Contacts A picture — You can assign a picture to display whenever you receive a call from the Contacts entry. A date — You can assign a special date to a Contacts entry. Your phone reminds you of the date when it occurs. Important: Entries for Group Walkie-Talkie and Talkgroups contain different information. See “Contacts Entries for Walkie- Talkie Groups and Talkgroups” on page 137. BETA DRAFT Section 2F: Using Contacts129 Contacts Finding Contacts Entries There are several ways to display your Contacts entries: by name, by speed dial number, by Category and Type, and by email address. Follow the steps outlined below to find entries in your Contacts. Finding Names To find Contacts entries by name: 1.Press O > Contacts > Find All Names. 2.Scroll through the entries using your navigation keys and highlight the one you want. 3.Highlight the phone number you want to call and press t . – or – To view the entry’s details, press O and then press your navigation keys left or right. – or – To send a message, press Send Msg (left softkey), create the message, and then press Send (left softkey). Tip: You can also find an entry by entering the name in the keypad. Press Contacts (left softkey) and use your keypad to enter the name. Use Voice Recognition to find Contacts just by saying “Lookup” followed by the name. See “Lookup <Name>” on page 171. BETA DRAFT 130Section 2F: Using Contacts Finding Speed Dial Numbers To find phone numbers by their assigned speed dial numbers: 1.Press O > Contacts > Speed Dial #s . 2.Scroll to an entry using your navigation keys. Speed dial numbers are displayed in numeric order. 3.To display the entry details, select Options (right softkey), highlight View Contact, and then press O . – or – To dial the phone number assigned to a speed dial number, press t . Filtering Entries To filter Contacts entries by Category or Type: 1.Press O > Contacts > Filter Names . 2.Scroll to the Category or Type you want to filter by and press O . 3.Scroll to an entry using your navigation keys. 4.To view the entry’s details, press O and then press your navigation keys left or right. – or – Highlight the phone number you want to call and press t . – or – To send a message, press Send Msg (left softkey), create the message, and then press Send (left softkey). BETA DRAFT Section 2F: Using Contacts131 Contacts Finding Email Addresses To find phone numbers you have stored with email addresses: 1.Press O > Contacts > Filter Names . 2.Select Email, press O , and then highlight the entry you want. 3.To view the entry’s details, press O and then press your navigation keys left or right. – or – To send a message to the email address, press Send Msg (left softkey), create the message, and then press Send (left softkey). BETA DRAFT 132Section 2F: Using Contacts Creating a Contacts Entry To add a new Contacts entry: 1.Press O > Contacts > Add New Entry . 2.Highlight Contact and press O . 3.Enter the Contacts name and press O . 4.To enter a Walkie-Talkie number, highlight Walkie-Talkie, enter the number, and press O . 5.To enter a phone number, highlight Number 1, enter the number, and press O . 6.Assign Mobile, Home, Work, or Pager to the number and press O . 7.If you want to change the default speed dial number, highlight Speed Dial and press O . 8.Select an available speed dial number and press Assign (left softkey). 9.Select Save (left softkey). If you want, you can add a picture, a special ringer, additional phone numbers, an email or Web address, and an important date. Scroll left or right to view what other information you can assign to your Contacts entry. Adding a Phone Number to a Contacts Entry To add a phone number to an entry: 1.Press O > Contacts > Find All Names. 2.Scroll through the entries using your navigation keys, highlight the one you want, and press O . 3.Press Options (right softkey), select Edit, and press O . 4.Scroll to an empty Number using your navigation keys. 5.Enter the new phone number . BETA DRAFT Section 2F: Using Contacts133 Contacts 6.Assign Mobile, Home, Work, or Pager to the number and press O . 7.Press Save (left softkey). Assigning Speed Dial Numbers Default speed dial numbers are assigned when you add a new Contacts entry and when you add a new phone number to an existing entry. If you do not want to use the default speed dial number, you can change it. To assign a speed dial number to an existing phone number: 1.Display a Contacts entry. (See “Finding Contacts Entries” on page 129.) 2.Press Options (right softkey), select Edit, and press O . 3.Highlight Speed Dial below the phone number you want to assign a speed dial number to, and press O . 4.Select an available speed dial number and press Assign (left softkey). 5.Press Save (left softkey). Assigning a Ringer or Picture to an Entry You can assign a ringer to a Contacts entry so you can identify the caller by the ring. (See “Ringer Types” on page 73.) When you assign a picture to an entry, your phone displays it whenever you receive calls from that number. Note: If you attempt to assign an already in-use speed dial number to a new phone number, a dialog appears asking if you wish to replace the existing speed dial number. Select OK (left softkey) to assign the location to the new phone number and move the old number to the next available speed dial number. BETA DRAFT 134Section 2F: Using Contacts To assign a ringer or picture to an entry: 1.Display a Contacts entry. (See “Finding Contacts Entries” on page 129.) 2.Press Options (right softkey), select Edit, and press O . 3.Use your navigation key to scroll right to the tab with the Add Picture and Assign Ringer options. 4.Scroll down to Add Picture or Assign Ringer and press O . 5.Use your navigation keys to scroll through the available files. To hear a ringer, press Listen (right softkey). 6.Highlight your desired picture or ringer and press O . 7.Press Save (left softkey) to save the entry. Assigning an Email Address or Web A…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 13a - 1 EXHIBIT 13A 29 January 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of dual transmitter with FCC ID: IHDT56GP1. Gentlemen; Motorola Inc., 600 North US Hwy 45, Libertyville, IL herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56GP1. This dual mode radio product is designed to support air interfaces with two independent networks. Calls can only occur on one network at a time, and there are no handoffs possible between the networks. This radio product is CDMA 2000 EV-DO capable within the PCS band (1850-1910/1930-1990 MHz), and is also capable of iDEN time division multiplexing transmissions in 800 MHz SMR band (806- 821/851-866 MHz). These transceivers are of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical and Operational Requirements for Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5794). Transmissions are not possible until a lock to the respective base station control channel has been achieved, then transmissions are limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter then assigns the transceiver a traffic channel for transmission of digital voice or data. Attached Exhibit 12 provides additional descriptive details. This device also possesses a transmitter that operates in the ISM band (902 – 928 MHz). This operational mode is selected via the user menu. While in this mode there is no connectivity to any networks and the transceiver uses only the FHSS protocol, as permitted in the ISM band. Conversations are held via the high-audio speaker or audio accessory: the earpiece is disabled. Certification for this transceiver is also sought and performance data is provided in Exhibit 6c for that purpose. All transmitters contained in this radio product have been subjected to routine environmental evaluation according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The EME exposure details, taking into account various network interactions, are described in Exhibits 11 and 12. This transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 13a - 2 EXHIBIT 13A This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). For these reasons a Declaration of Conformity has been prepared and provided on page 258 of the User Guide in the Exhibit 8. Enclosed is a complete Certification Application. Contact me at (847) 523-6167 if you require any additional information. Sincerely, Andrew J. Bachler FCC Liaison Motorola Mobile Devices Business Email: [email protected]

FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 13b - 1 EXHIBIT 13B CONFIDENTIALITY REQUESTED 29 January 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for Transmitter with FCC ID: IHDT56GP1. Dear Sir or Madam: Motorola is requesting that Exhibit 4 (Circuit Descriptions), Exhibit 5 (Schematic Diagrams), Exhibit 10 (Parts List and Tune-Up Procedures), and Exhibit 12 (Transmitter Description) not be made routinely available for public inspection. Motorola considers the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. Motorola is also requesting that the FCC mark Exhibit 3 (External Photos), Exhibit 8 (User Manual), and Exhibit 9 (Internal Photos) as Temporary Confidentiality as outlined in Public Notice DA 04-1705, dated June 15, 2004. This provision will give Motorola temporary confidentiality prior to product launch. Please mark Exhibits 4, 5, 10, and 12 as “Confidential” and Exhibit 3, 8, and 9 as “Temporary Confidential”. Please contact me if you require any additional information. Sincerely, Andrew J. Bachler FCC Liaison Motorola Mobile Devices Business Email: [email protected]

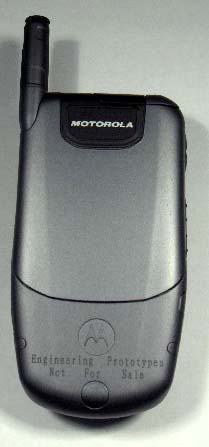

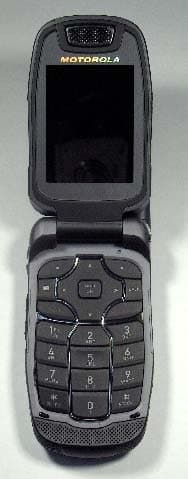

FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Motorola Inc. Pag e 3 - 1 EXHIBIT 3 Temporary Confidentiality Requested Exhibit 3: External Photographs -- Pursuant to 47 CFR 2.1033(c) 12 EQUIP- MENT ID LABEL LOCA- TION Front Back Back – Battery Compartment Bottom Top FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Motorola Inc. Pag e 3 - 2 EXHIBIT 3 Exhibit 3: External Photographs -- Pursuant to 47 CFR 2.1033(c) 12 (cont.) Flip Open Flip Open – Left Side Flip Open – Right Side – Antenna Extended

FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 1 - 1 EXHIBIT 1 Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c) 11 1.1 Location Back side of the radio product chassis. 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. FCC ID: IHDT56GP1 IC: 109O-GP1 Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Application References -- Pursuant to 47 CFR 2.948 and 2.1061 Reference is made to the following Motorola "Application References" 1. Flom Test Labs, 3356 N. San Marcos Place, Suite 107, Chandler, AZ 85225 (FCC Registration: 31040/SIT / Industry of Canada: IC 2044) 2. Electronic Technology Solutions Inc., 10222 NW 50 St., Fort Lauderdale, FL 33351 1A.3 Data Submittal Procedure Data located in Exhibit 6 is supplied in accordance with 47CFR Part 2, Subpart J, Part 15 Subparts A, B, and C, Part 24 and Part 90, Subparts I and S of the Commission’s rules. 1A.4 Similar, currently Certified Transceiver FCC ID: AZ489FT7019 FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 1 - 2 EXHIBIT 1 1A.5 Additional Considerations These transceivers are of the receive-first type described in International Telecommunications Union Recommendation ITU-R M.1221 entitled Technical and Operational Requirements for Cellular Multimode Mobile Radio Stations. It must first find, acquire and lock onto a control channel from a predefined set of control channel frequencies assigned to a companion Authorized base station (e.g. – FCC ID: ABZ89FC5794). Transmissions are not possible until a lock to the respective base station control channel has been achieved, then transmissions are limited to digitally modulated service request bursts on the reverse control channel. Upon recognition of a proper request, the control channel base station transmitter then assigns the transceiver a traffic channel for transmission of digital voice or data. Attached Exhibit 12 provides additional descriptive details. This transceiver can also transmit in the 902 - 928 MHz ISM band. To operate in this mode, the user must make a menu selection. While in this mode there is no connectivity to any networks and the transceiver uses only the FHSS protocol, as permitted in the ISM band. Conversations are held only via the speakerphone; the earpiece is disabled. Certification for this transceiver is also sought and performance data is provided in Exhibit 6c for that purpose. All transmitters contained in this radio product have been subjected to routine environmental evaluation according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). The EME exposure details, taking into account various network interactions, are described in Exhibits 11 and 12. This transmitter complies with 47 CFR 90.203 of the rules in that the operator cannot directly program transmit frequencies using only the unit's normally accessible external controls. This radio product is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). For this reason a Declaration of Conformity has been prepared and provided on page 258 of the User Guide in the Exhibit 8. Compliance with Part 15 requirements for the Direct-Conversion (zero IF superheterodyne) receiver has been determined by verification in accordance with 47CFR15.1.

FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 2 - 1 EXHIBIT 2 Exhibit 2: Identification Label -- Pursuant to 47 CFR 2.925, 2.1065 and 2.1033(c) 11 The technical data supplied with this application, having been taken under my supervision is hereby duly certified. The following is a statement of my qualifications: B.S. Electrical Engineering, 1983, Iowa State University M.S.E. Microwaves and Communications, 1990 Arizona State University 17 Years Experience in RF/Microwave Design/ Development/ Measurement NAME: John Goshinska SIGNATURE: DATE: January 17, 2007 TITLE: Hardware Lead Electrical Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct: NAME: Bob Muszkiewicz SIGNATURE:

FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Page 13c - 1 EXHIBIT 13C Date: 29 January 2007 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Labelling Proposal for Transmitter with FCC ID: IHDT56GP1. Dear Sir / Madam, Motorola Inc., 600 North US Hwy 45, Libertyville, IL herein submits it’s Labelling Proposal for the Transmitter with FCC ID: IHDT56GP1. Motorola complies to FCC Rule Part 2.925 (d) that the label is permanently affixed and is readily visible to the purchaser at the time of purchase.” Further, at the time of purchase, batteries are shipped in another section or compartment of the radio packaging and are not attached to the radio. In some instances they may be shipped in separate boxes. So, the customer needs to physically install the battery by removing the battery cover, if any, or attach the battery before using the radio. Hence, the FCC label would be visible to the user every time he goes through that exercise! Thus meeting the requirement of FCC Rule Part 2.925 (d). Further, the placement of the label in the battery compartment is done because space is limited on the exterior of the device. The battery compartment also helps to protect the label from getting obliterated or made unreadable through regular handling and use. It also helps when to further protect the label when it is being used in hazardous situations by Police, Fire and other EMS Services. Please contact me at (847) 523-6167 if you require any additional information. Sincerely, Andrew J. Bachler FCC Liaison Motorola Mobile Devices Business Email: [email protected]

FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 9 - 1 EXHIBIT 9 Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c) 12 Temporary Confidentiality Requested Flip Assembly – Internal Display Flip Assembly – External Display FCC Filing Package for Motorola Transceiver FCC ID: IHDT56GP1 iDEN, Motorola Inc., 600 North US Hwy 45, Libertyville, IL 60048, USA WWW.MOT.COM/iDEN Pag e 9 - 2 EXHIBIT 9 Main Assembly Main Assembly – Shields Removed

FCC ID: IHDT56GP1 SR4605 N&E EME Form-SAR-Rpt-Rev. 5.05 Page 1 of 37 TESTING CERT: 2518.01 FCC ID: IHDT56GP1 DECLARATION OF COMPLIANCE SAR ASSESSMENT Part 1 of 3 Networks & Enterprise EME Test Laboratory 8000 West Sunrise Blvd Fort Lauderdale, FL. 33322 Date of Report: January 10, 2007 Report Revision: O Report ID: ic902_Rev O_070110 SR4605 Responsible Engineer: Stephen C. Whalen (EME Principle Staff Engineer) Date/s Tested: 12/12/06-12/21/06 Manufacturer/Location: Motorola – Chandler, AZ Sector/Group/Div.: iDEN Mobile Devices Date submitted for test: 12/01/06 DUT Description: CDMA2000 / EV-DO signaling; TDMA, 1:6 iDEN, 16QAM Modulation; MOTOtalk, FHSS, 114:120 8FSK; Bluetooth Class 2 and GPS capable Test TX mode(s): CDMA2000 / EV-DO, iDEN 1:6, MOTOtalk 114:120, Bluetooth CW Max. Power output: CDMA – 295.1mW, iDEN – 640mW, MOTOtalk – 891mW, Bluetooth – 2.5mW Nominal Power: CDMA – 251.2mW (conducted), iDEN - 600mW (conducted), MOTOtalk – 850mW (conducted), Bluetooth 1.0mW (conducted) Tx Frequency Bands: CDMA2000 - 1851.250-1909.950MHz, iDEN– 806-825MHz, MOTOtalk - 902-928MHz, Bluetooth 2.402-2.480GHz Signaling type: CDMA2000 / EV-DO; iDEN TDMA; MOTOtalk - (FHSS 8FSK), Bluetooth Class 2 Model(s) Tested: H93ZAH9JR7AN Model(s) Certified: H93ZAH9JR7AN Serial Number(s): 364AGW0262, 364AGW025D Classification: General Population/Uncontrolled Rule Part(s): 15C (MOTOtalk and BT), 90 (iDEN) & 24E (CDMA) Approved Accessories: Antenna(s): 8575175B01, Multi-band retractable (1850-1990MHz, ½ wave, -0.15dBd; 902-928MHz, ¼ wave, -1.55dBd; 806-870MHz, ¼ wave, -1.75dBd) Battery(ies): SNN5782B (BT 70 High Capacity Battery, Li Ion), NTN2356NA (High Capacity Battery Cover) SNN5759A (BT 90 Maximum Capacity Battery, Li Ion), NTN2357NA (Maximum Capacity Battery Cover) Body worn accessory(ies): NNTN6757A (Swivel carry holster) Audio/Data cable accessory(ies): NNTN5330A (PTT headset, ear bud), NNTN5004A (PTT headset, over-the-ear), NNTN5005A (PTT headset, over-the-head), NNTN5006A (PTT headset, flexible ear wrap), NNTN5751A (Stereo mixing headset w/ PTT), NNTN5752A (Stereo mixing headset w/ PTT), NNTN5211A (2-wire surveillance headset w/ PTT), NNTN6312A (3-wire surveillance headset w/PTT), NNTN5774A (Stereo headset w/ PTT), NNTN6365A (Stereo headset adapter), NNTN6531A (USB data cable), SKN6371C (USB data cable) Max. Calc. : 1-g Avg. SAR: 1.41 W/kg (Body); 10-g Avg. SAR: 1.01 W/kg (Body) Max. Calc. : 1-g Avg. SAR: 0.72 W/kg (Face); 10-g Avg. SAR: 0.51 W/kg (Face) Max. Calc. : 1-g Avg. SAR: 1.53 W/kg (Head); 10-g Avg. SAR: 0.75 W/kg (Head) Based on the information and the testing results provided herein, the undersigned certifies that when used as stated in the operating instructions supplied, said product complies with the national and international reference standards and guidelines listed in section 2.0 of this report. This report shall not be reproduced without written approval from an officially designated representative of the Motorola EME Laboratory. This reporting format is consistent with the test report guidelines of the TIA TSB-150 December 2004 The results and statements contained in this report pertain only to the device(s) evaluated. Signature on file Deanna Zakharia N&E EME Lab Senior Resource Manager, Laboratory Director, Approval Date: 1/10/07 Certification Date: [ ] Certification No.: [ ] FCC ID: IHDT56GP1 SR4605 N&E EME Form-SAR-Rpt-Rev. 5.05 Page 2 of 37 Part 1 of 3 1.0 Introduction and Overview...................................................................................... 3 2.0 Referenced Standards and Guidelines ..................................................................... 3 2.1 SAR Limits ................................................................................................... 4 3.0 Description of Device Under Test (DUT) ............................................................... 4 4.0 Description of Test System ..................................................................................... 5 4.1 Description of Robotics/Probes/Readout Electronics ................................... 5 4.2 Description of Phantom(s) ............................................................................ 5 4.2.1 Flat Phantom................................................................................... 5 4.2.2 SAM Phantom ................................................................................ 6 4.3 Description of Equivalent Tissues ................................................................ 6 5.0 Additional Test Equipment...................................................................................... 7 6.0 SAR Measurement System Verification.................................................................. 7 6.1 Equivalent Tissue Test results ...................................................................... 7 6.2 System Check Test results ............................................................................ 8 7.0 DUT Test Strategy and Methodology .......................................…
