IHDT56GT1Dual-Band GSM/ EDGE Transceiver with Bluetooth

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 INSTRUCTION MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The User’s Manual will have the following text added to it: "NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help." EXHIBIT 8 motorola.com K1 GSM Cover.Print.Front.UG.landscape-K1.fm Page 1 Friday, March 24, 2006 5:56 PM 1 HELLOMOTOIntroducing your new Motorola K1 GSM wireless phone. Here’s a quick anatomy lesson. For Push to Talk (PTT) details, see page 53. Left Soft Key Volume Keys Charge up or go handsfree. Make & answer calls. Sm a rt Key Go online. Scroll up, down, left, or right. Select. R ig ht Soft Key Cle a r Key Vo ic e D ia l Key Turn on & off, hang up, exit m enus. 2 Home S c reen M ai n Menu Press and hold the Power Key o for a few seconds or until the display lights up to turn on your phone. 1 Press the Navigation Key u p , down, left, or r ig ht ( S ) to highlight a m enu feature. 3 Press the Center Key i n ( s ) to select it. 4 Press the Center Key s key to open the M ai n Menu . 2 Styles Camera Service Provider 12/31/09 12:00 Exit Select Games & Apps 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. © Motorola, Inc., 2006. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 68XXXXX141-O 4 contents contentsmenu map . . . . . . . . . . . . 6Safety Information . . . . . 8Use and Care . . . . . . . . . 13EU Conformance . . . . . . 1 4 Recycling Information . . 15essentials . . . . . . . . . . . . 16 about this guide. . . . . . 16SIM card . . . . . . . . . . . 16battery . . . . . . . . . . . . . 17turn it on & off . . . . . . . 19make a call. . . . . . . . . . 20answer a call . . . . . . . . 20store a phone number . 20call a stored phone number . . . . . . . . . . . . 21your phone number . . . 21 main attractions . . . . . . 22 phone updates. . . . . . . 22headlines . . . . . . . . . . . 22Bluetooth™ wireless . . 24audio player . . . . . . . . . 25take & send a photo . . 26record & send a video . 29text messages . . . . . . . 30memory card . . . . . . . . 32cable connections . . . . 34 basics . . . . . . . . . . . . . . . 36 display . . . . . . . . . . . . . 36text entry . . . . . . . . . . . 39volume. . . . . . . . . . . . . 42navigation key . . . . . . . 43smart key. . . . . . . . . . . 43external display . . . . . . 43 handsfree speaker . . . . 43codes & passwords . . . 44lock & unlock phone . . 44 customize. . . . . . . . . . . . 4 5 ring style . . . . . . . . . . . 45time & date . . . . . . . . . 46wallpaper . . . . . . . . . . . 47screen saver . . . . . . . . 47themes . . . . . . . . . . . . 47display appearance . . . 48answer options . . . . . . 49 calls. . . . . . . . . . . . . . . . . 50 turn off a call alert . . . . 50recent calls . . . . …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GT1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56GT1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Barry Worster TITLE: Engineering Manager Motorola Mobile Devices Business Date: July 6, 2006 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GT1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56GT1) is in compliance with all applicable parts of the FCC Rules. NAME: Barry Worster TITLE: Engineering Manager Motorola Mobile Devices Business Date: July 6, 2006 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56GT1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Barry Worster TITLE: Engineering Manager Mobile Device Business Motorola, Inc. Date: July 6, 2006 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 July 6, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56GT1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4: Block Diagrams • Exhibit 5: Schematics • Exhibit 10: Parts List / Tune-up Information • Exhibit 12: Operational Description Description: This equipment is a GSM portable transceiver with EDGE, and it operates in the 850 and 1900 MHz PCS bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and a USB connector for connection to a computer ( Part 15, Class B Computing Device Peripheral). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13

Date: July 13, 2006 Subject: Request for additional information regarding FCC ID: IHDT56GT1 (Portable PCS GSM transceiver) Reference: Correspondence Reference Number: IHD0382 Confirmation Number: 1607110382/383/384 Date of Original Email: July 13, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. The R&S receiver calibration date on page 5 of the EMC has expired. Please revise or update. Response: Product testing started on June 11, using the R&S ESI26 receiver ( S/N 838786/010, cal date: 6/17/2006). Before testing was completed, it was replaced with the R&S ESI40 receiver (S/N 100226, cal date 6/5/2007. Both units are listed in the report. 2. The user's manual has incorrect SAR values on page 88b and 88c. Response: The final manual will have the correct values. Please refer to the attached user manual pages. 3. Please confirm that a statement according to FCC Part 15.19(a) will be included in the production version of the user's manual. Response: The final user’s manual will contain the required FCC Part 15.19(a) statement. 4. The Bluetooth test report has a plot that shows an emission in the restricted band above 2483.5 MHz but there is no tabulated radiated data in the test report to show compliance. Please confirm. Response: Please refer to Exhibit 6B-2 for radiated measurements. 1 88b Specific Absorption Rate Data TThe model wireless phone meets the government’s requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/ kg 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1. 0 W/kg, and when worn on the body, as 88c described in this user guide, is 1.19 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements). 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site: http://www.phonefacts.net or the Canadian Wireless Telecommunications Association (CWTA) Web site: http://www.cwta.ca 1.In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. AThe SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product.

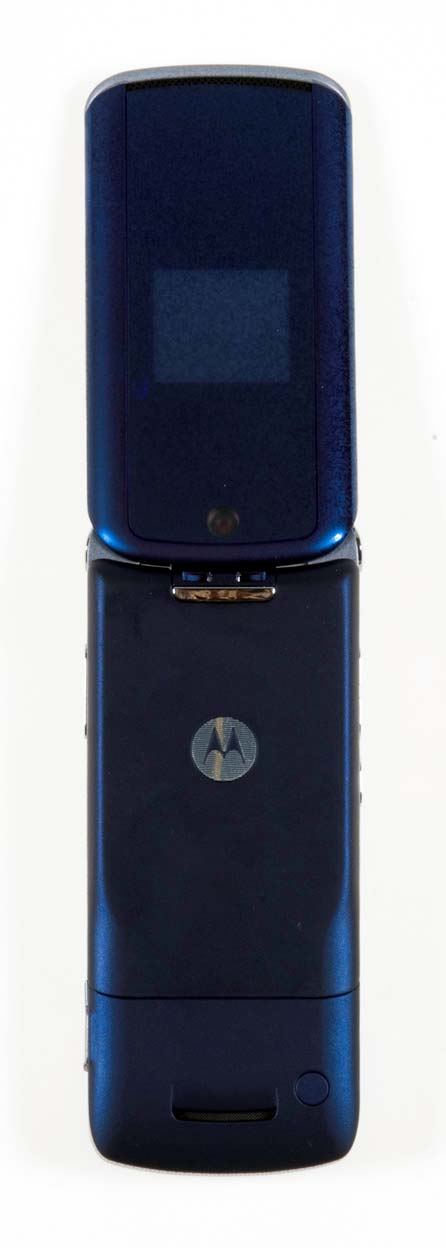

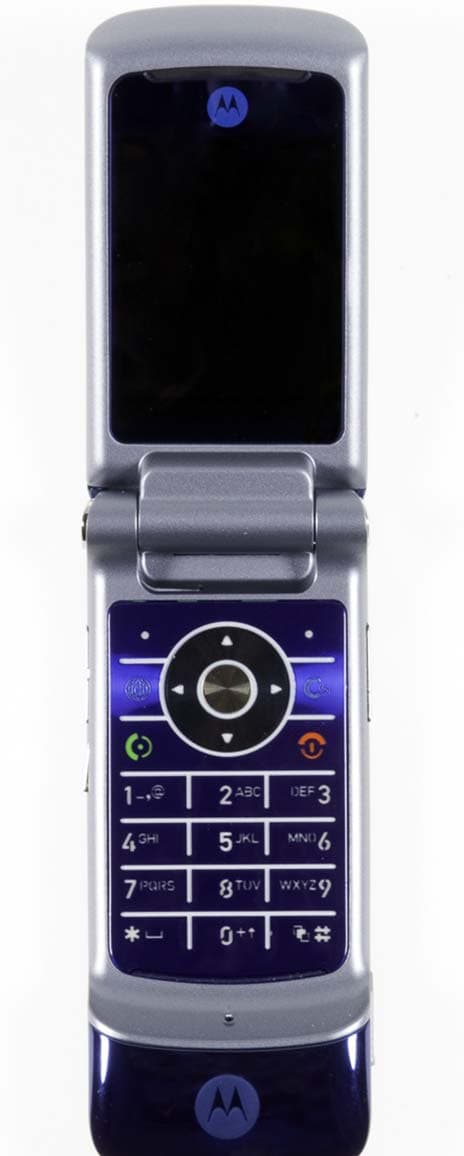

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 EXHIBIT 3 Page 1 of 2 FRONT OF PHONE FLIP OPEN BACK OF PHONE FLIP OPEN APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED EXHIBIT 3 Page 2 of 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GT1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GT1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 Main Board Bottom Without Shields Main Board Bottom With Shields EXHIBIT 9 Page 1 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 Main Board Top Without Popples or Shields Main Board Top With Popples and Shields EXHIBIT 9 Page 2 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 Flip Board Flip LCD EXHIBIT 9 Page 3 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 Daughter PCB Bottom Daughter PCB Top EXHIBIT 9 Page 4 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 Inside Back Housing Inside Front Housing EXHIBIT 9 Page 5 of 5

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Exhibit 11: SAR Test Report IHDT56GT1 Date of test: Date of Report: 6/9/2006 through 6/23/2006 7/5/2006 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Paul Ma RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI/IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 1999 CENELEC EN 50361 (2001) Simulated Tissue Preparation APP-0247 RF Power Measurement DOI-0876, 0900, 0902, 0904, 0915 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC ID IHDT56GT1 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093). It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 Table of Contents 1. INTRODUCTION ...................................................................................................................................................3 2. DESCRIPTION OF THE DEVICE UNDER TEST.............................................................................................3 2.1 Antenna description ..............................................................................................................................................3 2.2 Device description..................................................................................................................................................3 3. TEST EQUIPMENT USED....................................................................................................................................4 3.1 Dosimetric System .................................................................................................................................................4 3.2 Additional Equipment...........................................................................................................................................4 4. ELECTRICAL PARAMETERS OF THE TISSUE SIMULATING LIQUID ..................................................4 5. SYSTEM ACCURACY VERIFICATION............................................................................................................5 6. TEST RESULTS......................................................................................................................................................6 6.1 Head Adjacent Test Results..................................................................................................................................7 6.2 Body Worn Test Results .......................................................................................................................................9 APPENDIX 1: SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION .....11 APPENDIX 2: SAR DISTRIBUTION PLOTS FOR PHANTOM HEAD ADJACENT USE ..........................12 APPENDIX 3: SAR DISTRIBUTION PLOTS FOR BODY WORN CONFIGURATION ..............................13 APPENDIX 4: PROBE CALIBRATION CERTIFICATE ..................................................................................14 APPENDIX 5: MEASUREMENT UNCERTAINTY BUDGET..........................................................................15 APPENDIX 6: PHOTOGRAPHS OF DEVICE UNDER TEST...........................................................................18 APPENDIX 7: DIPOLE CHARACTERIZATION CERTIFICATE ..................................................................22 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 1 Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of portable cellular phone (FCC ID IHDT56GT1). The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with FCC OET Bulletin 65 Supplement C 01-01. 2 Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom of Phone Length 37 mm Dimensions Width 7.5 mm Configuration FJA Antenna 2.2 Device description FCC ID Number IHDT56GT1 Serial number(s) LCYA3D0017 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Modulation Mode(s) GMSK GMSK GMSK GMSK GMSK GMSK GMSK GMSK 8PSK 8PSK 8PSK 8PSK Maximum Output Power Setting 33.00 dBm 33.00 dBm 30.50 dBm 30.50 dBm 33.00 dBm 33.00 dBm 30.50 dBm 30.50 dBm 27.00 dBm 27.00 dBm 26.00 dBm 26.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 4:8 4:8 4:8 4:8 4:8 4:8 4:8 4:8 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56GT1 Test Report Number: 18556-2 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 18556-2 Report Date – July 7, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: July 7, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56GT1 Test Report Number: 18556-2 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 17 Measurement results 18 Field Strength of Spurious Emissions 22 Measurement results 23 Frequency Stability 27 Measurement results 28 Field Strength of Spurious Emissions -Unintentional Radiators 32 Measurement results 33 AC Line Conducted Emissions 35 Measurement results 36 Appendix A - Radiated Emissions Test Setup Photos 37 Figure A.1 – Radiated Emissions Measurement 37 Figure A.2 – Substitution Measurement 37 APPLICANT: MOTOROLA INC FCC ID: IHDT56GT1 Test Report Number: 18556-2 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, 1900, Bluetooth FCC ID : IHDT56GT1 Serial Numbers: LCYA3D0004, LCYA3D0035, LCYA3D0048 Testing Complete Date: July 6, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 - Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT56GT1 Test Report Number: 18556-2 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 Occupied Bandwidth Pass 4 Spurious Emissions at Antenna Terminal Pass 5 Field Strength of Spurious Emissions Pass 6 Frequency Stability Pass 7 Field Strength of Spurious Emissions Pass from Unintentional Radiators 8 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal 15.9 dB 5 Field Strength of Spurious Emissions 15.6 dB 6 Frequency Stability 75 Hz 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions 3.3 dB The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56GT1 Test Report Number: 18556-2 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 6/17/06 Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1189 8/22/06 ETS Biconical Antenna 3110B 3369 8/15/06 Attenuator Weinschel 2 AS-6 6675 6/6/07 Attenuator Weinschel 2 AS-6 6677 11/10/06 Attenuator Weinschel 2 AS-6 7075 1/31/07 Attenuator Weinschel 2 AS-6 6675 6/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E4412B US38486321 02/03/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56GT1 Test Report Number: 18556-2 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of a Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.2 33.00 836.6 32.96 848.8 32.98 GSM 1900 Frequency (MHz) Power (dBm) 1850.20 30.50 1880.00 30.53 19…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GT1 Radiated Emissions Test Setup Photos Radiated Emissions Measurement Substitution Measurement EXHIBIT 7 Page 1 of 1
