IHDT56GZ1Portable Dual-Band GSM/ EDGE Transceiver with BT

APPLICANT MOTOROLA INC. FCC ID: IHDT56GZ1 INSTRUCTION MANUAL A preliminary draft copy of the Users Manual follows: The following text will be added to the manual 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.105 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro- vide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help. motorola.com L7i GSM Cover.Print.Front.UG.landscape-L7i.fm Page 1 Wednesday, August 9, 2006 4:41 PM 1 HELLOMOTOIntroducing your new Motorola L7i GSM wireless phone. Here’s a quick anatomy lesson.To change your Keypad Lock setting, see page 49. Left Soft Key Volume Keys Charge up or go handsfree. Make & answer calls. Vo ic e Key Go online. Scroll up, down, left, or right. Open m enu and select. R ig ht Soft Key Cle a r/B ac k Key Sm a rt Key Turn on & off, hang up, exit m enus. 2 Home S c reen M ai n Menu Press the Navigation Key u p , down, left, or r ig ht S to highlight a m enu feature. 3 Press the Center Key s to select it. 4 Press the Center Key s key to open the M ai n Menu . 2 Press and hold the Power Key O for a few seconds or until the display lights up to turn on your phone. 1 Options M a in Menu Service Provider 12:00 Exit Select G a mes & Apps 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Microsoft, Windows and Windows Me are registered trademarks of Microsoft Corporation; and Windows XP is a trademark of Microsoft Corporation. © Motorola, Inc., 2006. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 68XXXXX163-O 4 contents contentsmenu map . . . . . . . . . . . . 6Safety Information . . . . . 8Use and Care . . . . . . . . . 13EU Conformance . . . . . . 1 4 Recycling Information . . 15essentials . . . . . . . . . . . . 16 about this guide. . . . . . 16SIM card . . . . . . . . . . . 16battery . . . . . . . . . . . . . 17turn it on & off . . . . . . . 20make a call. . . . . . . . . . 20answer a call . . . . . . . . 20store a phone number . 21call a stored phone number . . . . . . . . . . . . 21your phone number . . . 22 main attractions . . . . . . 23 Bluetooth™ wireless . . 23audio player . . . . . . . . . 26photos . . . . . . . . . . . . . 27videos . . . . . . . . . . . . . 30text messages . . . . . . . 31memory card . . . . . . . . 33cable connections . . . . 35phone updates. . . . . . . 36 basics . . . . . . . . . . . . . . . 37 display . . . . . . . . . . . . . 37text entry . . . . . . . . . . . 40volume. . . . . . . . . . . . . 44navigation key . . . . . . . 45smart key. . . . . . . . . . . 45voice commands . . . . . 45handsfree speaker . . . . 47 codes & passwords . . . 48lock & unlock…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type: IHDT56GZ1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: James How Boon Hua TITLE: Senior Engineering Manager Mobile Devices Business EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56GZ1) is in compliance with all applicable parts of the FCC Rules. NAME: Leng SoonWah TITLE: Electrical Lead, Royale Blade Date: 8/23/06 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56GZ1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Leng SoonWah TITLE: ENGINEERING MANAGER Mobile Device Business Motorola, Inc. 8/23/06 EXHIBIT 2A

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 October 6, 2006 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56GZ1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4: Block Diagrams • Exhibit 5: Schematics • Exhibit 10: Parts List / Tune-up Information • Exhibit 12: Operational Description Description: This equipment is a GSM portable transceiver with EDGE, and it operates in the 850 and 1900 MHz PCS bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and a USB connector for connection to a computer ( Part 15, Class B Computing Device Peripheral). Note: This device contains 900 MHz and 1800 MHz GSM, functions that are not operational in U.S. territories. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13

Date: October 30, 2006 Subject: Request for additional information regarding FCC ID: IHDT56GZ1 Reference: Correspondence Reference Number: IHD0637 Confirmation Number: 1610060636/0638 Date of Original Email: October 25, 2006 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please supply all EMC test setup photographs pertaining to the subject equipment under test for line conducted, Part 15B, and 22/24 radiated tests. Response: Please refer to exhibit 7A, submitted October 30, 2006. 2. Please clarify occupied bandwidth data on Pages 9, 11, 13, and 15. Response: Please refer to the following plots. 1 GSM 850 – Occupied Bandwidth – Channel 190 (836.6MHz) page 9 Occupied Bandwidth - GSM 850 836.4767, 9.42 836.7203, 10.11 -5 0 5 10 15 20 25 30 836.45836.5836.55836.6836.65836.7836.75 Frequency (MHz) Amplitude (dBm) Occupied Bandwidth Bandwidth Markers Occupied Bandwidth = 243.6 kHz GSM 1900 – Occupied Bandwidth – Channel 661 (1880.00MHz) page 11 Occupied Bandwidth - GSM 1900 1879.8737, 7.79 1880.1191, 3.56 -5 0 5 10 15 20 25 1879.851879.91879.9518801880.051880.11880.15 Frequency (MHz) Amplitude (dBm) Occupied Bandwidth Bandwidth Markers Occupied Bandwidth = 245.4 kHz 2 GSM 850 EDGE – Occupied Bandwidth – Channel 190 (836.6MHz) page 13 Occupied Bandwidth - GSM 850 836.4746, 1.31 836.7191, 4.05 -10 -5 0 5 10 15 20 25 836.45836.5836.55836.6836.65836.7836.75 Frequency (MHz) Amplitude (dBm) Occupied Bandwidth Bandwidth Markers Occupied Bandwidth = 244.5 kHz GSM 1900 EDGE – Occupied Bandwidth – Channel 661 (1880.00MHz) page 15 Occupied Bandwidth - GSM 1900 1879.8734, 3.78 1880.1167, 2.02 -10 -5 0 5 10 15 20 25 1879.851879.91879.9518801880.051880.11880.15 Frequency (MHz) Amplitude (dBm) Occupied Bandwidth Bandwidth Markers Occupied Bandwidth = 243.3 kHz 3 3. GPRS and EDGE appear to be multislot class 12 according to device description on Page 2, Exhibit 11. Please address for Body SAR compliance. Response: The correct GPRS & EDGE multislot class is 10 (multislot class 12 is a typo). Please refer to the revised SAR report, which also includes the Bluetooth class 2 tabular data. 4. Please confirm if units tested in 9/28 (AHAM1900092) and 7/30 (AHAM2130008) for SAR, are identical units. Otherwise please provide justification for component SAR testing. Response: Confirmed; the two units are identical. 4

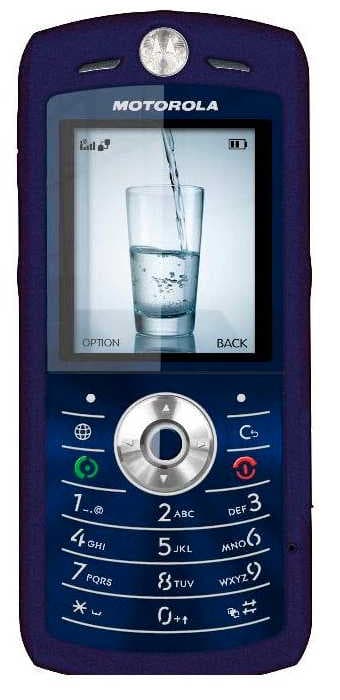

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED EXHIBIT 3

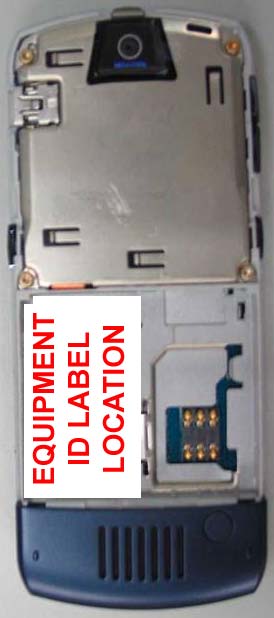

APPLICANT: MOTOROLA INC. FCC ID: IHDT56GZ1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56GZ1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

Keypad PCBA (Front view) Front View With Mylar Removed EXHIBIT 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 Keypad PCBA (Rear Vie w) R ear View With Shields Removed EXHIBIT 9 Keypad PCBA (Rear View) APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 M a in PCBA (R ea r View ) Rear View With Shields Removed EXHIBIT 9 Main PCBA (Rear View ) APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 Main PCBA (Front View) Front View With Shields Removed EXHIBIT 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 Chassis (Front View) Display Module Keypad PCBA Coaxial Cable Keypad Front Housing EXHIBIT 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 PCB Cover Antenna Cover Antenna Battery Door E X H I B I T 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 Main PCBA Antenna Antenna Cover PCB Cover Camera module EXHIBIT 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1

0 0 Portable Cellular Phone SAR Test Report Test Report #: 19161- 2F Date of Report: 10/02/2006 Date of Test: 7/29/2006-8/1/2006, and 9/22/2006 – 9/28/2006 FCC ID #: IHDT56GZ1 Generic Name: MQ4-4411F21 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Jon Park Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate ANSI / IEEE C95.1-1992, 1999 (SAR) IEEE C95.3-1991 IEEE 1528, IEC 62209-1 FCC OET Bulletin 65 (including Supplements A, B, C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50361 (2001) Simulated Tissue Preparation WI-0247 RF Power Measurement WI-1847 On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #1651-01 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19161-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 10 References 13 Appendix 1: SAR distribution comparison for system accuracy verification 14 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 15 Appendix 3: SAR distribution plots for Body Worn Configuration 16 Appendix 4: Probe Calibration Certificate 17 Appendix 5: Measurement Uncertainty Budget 18 Appendix 6: Photographs of the device under test 20 Appendix 7: Dipole Characterization Certificate 24 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19161-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the transceiver Length36 mm Dimensions Width 1 mm Configuration FJA 2.2 Device description Serial number(s) AHA2130008 and AHAM190092 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Blue Tooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSKGMSKGMSK GMSK 8PSK 8PSK 8PSK 8PSK GFSK Maximum Output Power Setting 32.30 dBm 33.60 dBm 31.00 dBm 29.80 dBm 32.30 dBm 33.60 dBm 31.00 dBm 29.80 dBm 29.00 dBm 29.00 dBm 28.00 dBm 28.00 dBm 4.00 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 2:8 2:8 2:8 2:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 Mhz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2 – 1909.8 MHz 2400 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19161-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE3 378 5/22/2007 DASY4™ DAE4 316 11/24/2006 DASY4™ DAE3 367 5/19/2007 E-Field Probe ET3DV6R 1513 9/19/2006 E-Field Probe ET3DV6 1524 5/30/2007 E-Field Probe ET3DV6 1525 5/30/2007 …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56GZ1 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 18878-1 Report Date – September 13, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: September 13, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56GZ1 Test Report Number: 18878-1 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 17 Measurement results 18 Field Strength of Spurious Emissions 22 Measurement results 23 Frequency Stability 27 Measurement results 28 Field Strength of Spurious Emissions -Unintentional Radiators 32 Measurement results 33 AC Line Conducted Emissions 35 Measurement results 36 Appendix A - Radiated Emissions Test Setup Photos 48 Figure A.1 – Radiated Emissions Measurement 48 Figure A.2 – Substitution Measurement 48 APPLICANT: MOTOROLA INC FCC ID: IHDT56GZ1 Test Report Number: 18878-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900, EDGE, Bluetooth FCC ID : IHDT56GZ1 Serial Numbers: AHA2130023, AHA2130047, AHA2130001, AHA2130005 Testing Complete Date: September 13, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: TIA EIA 137-A, TIA EIA 98-C, ANSI 63.4 2001, RSS-118 (AMPS), RSS-128 (TDMA), RSS-129 (CDMA), RSS-133 (PCS) APPLICANT: MOTOROLA INC FCC ID: IHDT56GZ1 Test Report Number: 18878-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56GZ1 Test Report Number: 18878-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US39440191 1/05/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/6/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel 2 AS-6 6675 6/6/07 Attenuator Weinschel 2 AS-6 6677 11/10/06 Attenuator Weinschel 2 AS-6 7075 1/31/07 Attenuator Weinschel 2 AS-6 6675 6/06/07 Thermotron Environmental Chamber S-4 31580 1/31/07 Agilent Power Meter E4416A GB41293246 02/03/07 Agilent Power Sensor E4412B US38486321 02/03/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 All equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56GZ1 Test Report Number: 18878-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. CFR47 Part 2.1046 Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.2 32.28 836.6 32.31 848.8 32.27 GSM 1900 Frequency (MHz) Power (dBm) 1850.2 29.81 1880.0 29.80 1909.8 29.82 EDG…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 Figure 1. AC Line Conducted Emissions Measurement Setup Figure 2. Part 15 Radiated Emissions Measurement Setup Exhibit 7A 1 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 Figure 3.Part 22/24 Radiated Emissions Measurement Setup Figure 4. Radiated Emissions X-Axis Exhibit 7A 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56GZ1 Figure 5. Radiated Emissions Y-Axis Figure 6. Radiated Emissions Z-Axis Exhibit 7A 3
