IHDT56HC1Portable Cellular/ PCS CDMA Transceiver with BT

motorola.com W385 CDMA English 1 HELLOMOTOIntroducing your new Motorola W385 CDMA wireless phone. Here’s a quick anatomy lesson. 1 N Left Soft Key R ig ht Soft Key Cle a r/B ac k Key Volume Keys Sm a rt/ S p e a ker p hone Key Turn on & off,hang up, exitm enus. Scroll up, down,left, or right. Make & answer calls. Two-st ag e ShutterRele a se Key Skip Back/ Rewind Skip Forward/ Fast Forward Play/Pause Mus ic Pl a yer Controls: C a mer a Lens C a mer a Fl a sh Alert L ig hts F O R P O S I T I O N O N L Y 2 N Message Contacts MENU Thu, Oct 23 12:45pm N OK 1. New Contact2. Contact List3. Groups 4. Speed Dials CONTACTS B 0 ❙❙❙ 0 P P ❘❘❘❘❘❘❘❘ EV1X 1 2 34 s s Press and hold the Power Key for a few seconds, or until the display lights up, to turn on your phone. Press the navigation key left/right to highlight a m enu option, then down to highlight a suboption. Press the center key to select. S P Press the center key to open the M ai n Menu. Home S c reen M ai n Menu F O R P O S IT I O N O N L Y 3 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Windows is a registered trademark of Microsoft Corporation. All other product or service names are the property of their respective owners.© Motorola, Inc., 2007.Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: -O 4 contents contentsmenu map . . . . . . . . . . . . 6Use and Care . . . . . . . . . . 8essentials . . . . . . . . . . . . . 9 about this guide. . . . . . . 9battery . . . . . . . . . . . . . 10turn it on & off . . . . . . . 12make a call. . . . . . . . . . 12answer a call . . . . . . . . 13store a phone number . 13call a stored phone number . . . . . . . . . . . . 13see your phone number . . . . . . . . . . . . 14 main attractions . . . . . . 15 record & play voice records . . . . . . . . . . . . 15take a photo. . . . . . . . . 16 send a multimedia message . . . . . . . . . . . 18receive a multimedia message . . . . . . . . . . . 20download pictures . . . . 21Bluetooth connections . . . . . . . . . 21cable connections . . . . 24TTY operation . . . . . . . 24 basics . . . . . . . . . . . . . . . 26 home screen . . . . . . . . 26enter text . . . . . . . . . . . 29adjust volume . . . . . . . 34change sound settings. 34external display . . . . . . 34handsfree speaker . . . . 34standalone mode. . . . . 36 change lock code . . . . . 36lock & unlock phone . . 37 customize . . . . . . . . . . . . 39 conserve battery charge . . . . . . . . . . . . . 39sounds settings . . . . . . 39get ringtones . . . . . . . . 41talking phone settings . 41answer options . . . . . . 42wallpaper . . . . . . . . . . . 42screen saver . . . . . . . . 43backlight . . . . . . . . . . . 44brightness . . . . . . . . . . 44clock format . . . . . . . . . 44AGPS & your location . 45AGPS limitations & tips . . . . . . . . . . . . . . 46 contents 5 calls . . . . . . . . . . . . . . . . 4 7 redial a number. . . . . . 47automatic redial . . . . . 47recent calls . . . . . . . . . 48return unanswered calls . . . . . . . . . . . . . . 49speed dial . . . . . . . . . . 49emergency calls . . . . . 50AGPS during an emergency call . . . . . . 50voicemail . . . . . . . . . . 51in-call options . . . . . . . 52 other features . . . . . . . . 53 advanced calling . . . . . 53messages . . . . . . . . . . 54contacts . . . . . . . . . . . 55personalizing. . . . . . . . 59call times & data volumes . . . . . . . . . . . 66handsfree . . . . . . . . . . 68 Bluetooth wireless connections . . . . . . . . 68network . . . . . . . . . . . 70personal organizer . . . 71security. . . . . . . . . . . . 72fun & games. . . . . . . . 72 service & repairs. . . . . . 7 4 Specific Absorption Rate Data. . . . . . . . . . . . 75Safety and General Information . . . . . . . . . . 79Industry Canada Notice to Users. . . . . . . 8 4 FCC Notice To Users. . . 85Motorola Limited Warranty for the United States and Canada . . . . . . . . . . . . . 86 Hearing Aid Compatibility with Mobile Phones . . . . . . . 90Information from the World Health Organization . . . . . . . . . 91California Perchlorate Label . . . . . . . . . . . . . . . 93Smart Practic…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HC1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56HC1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at : Motorola Korea, Inc 18F, Hibrand Building 215, Yangjae-dong, seocho-gu, Seoul 137-924, Korea NAME: HyunSeok Han TITLE: Engineering Manager Motorola Korea Mobile Devices Business Date: January 11, 2007 Page 1 of 4 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HC1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment ( IHDT56HC1) is in compliance with all applicable parts of the FCC Rules. NAME: JongHwa Lee TITLE: Engineering Manager Motorola Korea Mobile Devices Business Date: January 11, 2007 Page 2 of 4 EXHIBIT 2 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Jong Hwa Lee TITLE: Engineering Manager Mobile Device Business Motorola, Inc. Date: January 11, 2007 Page 3 of 4 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HC1 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56HC1. NAME: Jong Hwa Lee TITLE: Engineering Manager Mobile Device Business Motorola, Inc. Date: January 11, 2007 Page 4 of 4 EXHIBIT 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 January 11, 2007 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56HC1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 days: • Exhibit 3 External Photographs • Exhibit 7 Test Setup Photographs • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: January 24, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HC1 Reference: Correspondence Reference Number: IHD0004 Confirmation Number: 01300005-06 Date of Original Email: January 18, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 1. Page 8 of the EMC Report states that the RBW used for cellular band occupied bandwidth and bandedge measurements was 3 kHz. This appears to be a typo, from a GSM test report. Please address. Response: Typo was corrected and a replacement report with file name “HC-EX06 (REPLACEMENT 01-24-2007).pdf” was uploaded to the PC Test Website on 01-24-2007. 2. Please verify that EDR mode is not available to the Bluetooth transmitter. If it is available, then please submit 20 dBc bandwidth and bandedge plots in the higher data rate mode(s). Response: Confirmed - EDR mode is not available to the Bluetooth transmitter. 3. Please verify that EvDO mode is not available to the EUT. Response: Confirmed - EvDO mode is not available to the EUT. 4. Please update the Test dates on the HAC RF Emissions Report. There appears to be a typo. Response: Typo was corrected and a replacement report with file name “HC-EX06B1 (HAC Test Report for RF Emissions) REPLACEMENT 01-24-2007.pdf” was uploaded to the PC Test Website on 01-24-2007. 1

Date: February 15, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HC1 Reference: FCC Correspondence Reference Number: 35978 731 Confirmation Number: TC249651 Date of Original Email: February 8, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 1. Test Report 6A3 Supplemental does not explain test setup for AC line conductive emissions. It is not clear what the power plug end of the EUT is (Laptop, adapter, etc). Response: The EUT is powered via an internal battery. The EUT is connected to the Laptop through a USB data cable. The EUT does receive some power from the Laptop through the data cable that is used to charge the internal battery. 2. Exhibit "Test report 6A2 UL" of application 259651-JBP is the same exhibit in application 445315- DSS. This should be removed from application 259651. Response: No action / response necessary on Motorola’s part. 1

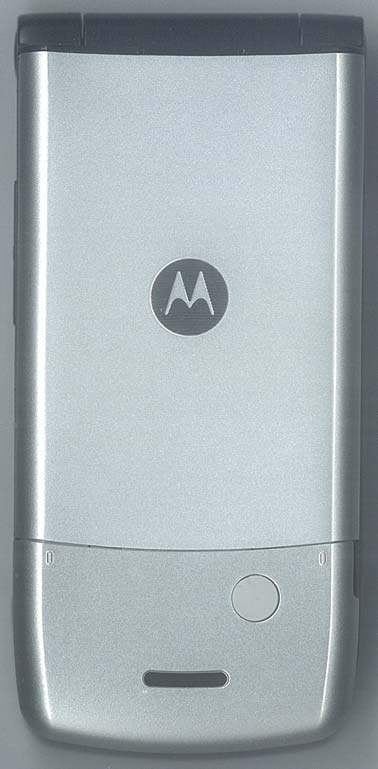

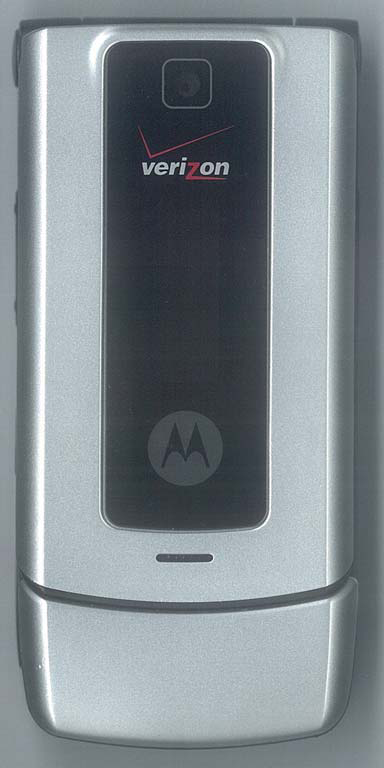

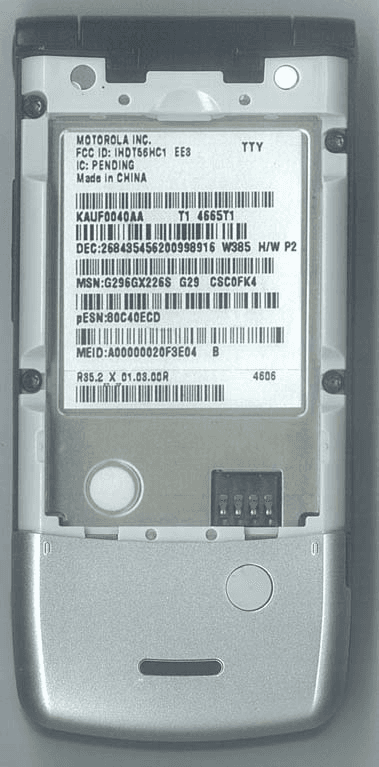

EX H IBIT 3 1 o f 2 1 C H 6 5 T D H I : D I C C F . C N I , A L O R O T O M : T N A C I L P P A FRONT OF PHONE B ACK OF PHO N E B ACK OF PHO N E WITH B ATTER Y COVER REMOVE D 2007-01-05 10:06:19 W21637 w21637-02 EQUIPMENT IDLABELLOCATION EX H IBIT 3 2 o f 2 1 C H 6 5 T D H I : D I C C F . C N I , A L O R O T O M : T N A C I L P P A KEY-SIDE IN FLIP OPE N B ACK -S I D E I N F LI P O P E N 2007-01-05 10:06:19 W21637 w21637-02

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56HC1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

EXHIBIT 9 1of 6 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 LCD View of Flip Board LCD View with Metal bracket of Flip Board 2007-01-05 10:10:15 W21637 w21637-02 EXHIBIT 9 2of 6 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 CLI View with Metal bracket of Flip Board CLI View without Metal bracket of Flip Board CLI View without FPCB of Flip Board 2007-01-05 10:10:15 W21637 w21637-02 EXHIBIT 9 3of 6 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 Inside Front housing of Flip Board Inside Rear housing of Flip Board 2007-01-05 10:10:15 W21637 w21637-02 EXHIBIT 9 4of 6 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 Main PCB Key-Side View Main PCB Key-Side View without Key-Dome Main PCB Key-Side View without Shields 2007-01-05 10:10:15 W21637 w21637-02 EXHIBIT 9 5of 6 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 Main PCB Bottom View Main PCB Bottom View without Shields 2007-01-05 10:10:15 W21637 w21637-02 EXHIBIT 9 6of 6 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HC1 Inside Rear housing of Main Board Inside Front housing of Main Board 2007-01-05 10:10:15 W21637 w21637-02

APPLICANT: MOTOROLA INC FCC ID: IHDT56HC1 Test Report Number: 19720-1 Supplement 1 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 19720-1 Supplement Report Date – December 19, 2006 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: December 19, 2006 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 1651-01 APPLICANT: MOTOROLA INC FCC ID: IHDT56HC1 Test Report Number: 19720-1 Supplement 2 EXHIBIT 6A3 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56HC1 Test Report Number: 19720-1 Supplement 3 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Signaling Capability: CDMA 800, CDMA 1900, Bluetooth FCC ID : IHDT56HC1 Serial Numbers: 80D9E0F6, 805CE168, 80A64C02, 807F3D2B, 80EB7C49, 80C68034 Testing Complete Date: December 19, 2006 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 : X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT56HC1 Test Report Number: 19720-1 Supplement 4 EXHIBIT 6A3 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56HC1 Test Report Number: 19720-1 Supplement 5 EXHIBIT 6A3 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 A.H. Systems Inc. DRG Horn Antenna SAS 200/571 365 5/12/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel AS-6 6675 1/06/07 Attenuator Weinschel AS-6 7075 06/29/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. The Dell M20 Laptop Computer, the Iomega Z250S Zip Drive and the Olympus D-600L Camera are labeled as DoC. APPLICANT: MOTOROLA INC FCC ID: IHDT56HC1 Test Report Number: 19720-1 Supplement 6 EXHIBIT 6A3 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDT56HC1 Test Report Number: 19720-1 Supplement 7 EXHIBIT 6A3 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. 30 MHz – 1000 MHz Frequency MHz Level dBμV/m Measured dBμV Transd dB Cables dB Limit dBμV/m Margin dB Height cm Angle deg Pol. 35.44 33.53 13.49 12.2 7.8 40 6.5 100 240 VERT 39.16 34.97 15.59 11.5 7.9 40 5 100 113 VERT 71.88 35.17 17.5 9 8.7 40 4.8 100 244 VERT 75.92 37.02 18.77 9.5 8.8 40 3 100 272 VERT 79.68 34.04 15.51 9.7 8.8 40 6 100 267 VERT 878.88 38.79 -0.46 23.5 15.8 46 7.2 150 20 HORI 904.68 39.27 -0.36 23.7 15.9 46 6.7 100 333 HORI 940.88 38.44 -0.36 22.8 16.0 46 7.6 100 188 VERT Above 1 GHz Frequency MHz Level dBμV/m Measured dBμV Transd dB Gain dB Limit dBｵV/m Margin dB Height cm Angle deg Pol. 1118.9 37.84 22.81 23.8 8.8 53.9 16.1 145 279 VERT 1168.0 36.35 20.69 24.1 8.4 53.9 17.5 131 98 VERT 1512.6 37.62 1…
