INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDT56HE1 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 0.67 W/kg, and when worn on the body, as described in this user guide, is 0.68 W /kg. 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. FCC NoticeFCC Notice To UsersFCC NoticeMotorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. KLSWRS Š  Q  5HIHUHQFH*XLGH  5HY5-DQXDU\ &RS\ULJKW‹'DQJHU,QF$OOULJKWVUHVHUYHG  &RQWHQWV &RQWHQWV :HOFRPH 'HYLFH%DVLFV 2SHQLQJDQG&ORVLQJWKH'LVSOD\ 3KRQH &RQWUROV &RQWU RO%XWWRQV 6RXQG &RQWUROV : LUHOHVV2Q2II&RQWURO 'LVSOD \&RQWUROV 4XLF N-XPS %DWW HU\&KDUJHU 5 HPRYDEOH%DWWHU\ 6,0 &DUG6ORW 0HPRU \&DUG6ORW 86% 3RZHU3RUW 5HJLVWUDWLRQ 6H WWLQJ8S<RXU'HYLFH %OXHWRRWK Š 7HFKQRORJ\6HWXS %DFNJURXQGV ) RQW6L]H %DF NOLJKWLQJ  .H\*XDUG0RGH 'HYLFH3ULYDF\&RGH 6RXQG 3URILOHV $SSOLFDWLRQ &XVWRPL]DWLRQ 'HI DXOW/RFDOH /DQJXDJH 6H…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA, INC. FCC ID: IHDT56HE1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56HE1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: June 29, 2007 Exhibit 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56HE1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56HE1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: June 29, 2007 Exhibit 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HE1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business DATE: June 29, 2007 Exhibit 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HE1 Exhibit 13 July 09, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56HE1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver which operates in the 850 and 1900 MHz PCS band. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247) and employs EDGE and GPRS. The unit may be connected to a computer via a USB connection (Part 15, Class B; Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

Date: September 14, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HE1 Reference: Correspondence Reference Number: IHD7621 731 Confirmation Number: 707110621-23 Date of Original Email: September 10, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. The Operational Description submitted only describes the charging and safety aspects of the EUT. Please submit an Operational Description of the RF function of the EUT. Response: Please refer to exhibit 12A. 2. Please submit an Operational Description for the Bluetooth transmitter. Response: Please refer to exhibit 12B. 3. Please provide the actual cal due dates for the test equipment used in the UL Bluetooth Radiated Emissions report. Response: The UL lab confirms that their report is written In accordance with ISO 17025, and all test equipment was within the calibration cycle at the time of test. 4. The Recommended Limit (Target Value) for the 1800 MHz SAR System Verification should be the “Grand Average” value from the Dipole Characterization Certificate, as it was for the 900 MHz measurement. Please correct, and also submit the Dipole Characterization Certificate for the 1800 MHz dipole used in the System Verification tests. Response: Please refer to the following table and the 1800 MHz certificate. Dielectric Parameters f (MHz) Description SAR (W/kg), 1gram ε r σ (S/m) Ambient Temp (°C) Tissue Temp (°C) Measured, 08-Aug-2007 11.48 40.2 0.97 21.3 21.4 900 Recommended Limits 11.24 41.5 ±5% 0.97 ±5% 18-25 18-25 Measured, 13-Aug-2007 35.85 40.4 1.36 21.6 21.9 Measured, 21-Aug-2007 37.10 39.7 1.39 20.8 20.8 1800 Recommended Limits 37.5 40.0 ±5% 1.4 ±5% 18-25 18-25 1 Certification of System Performance Check Targets Based on WI-0396 -Historical Data- 1800MHz IEEE1528 Target:38.1(W/kg) Measurement Uncertainty (k=1): 9.0% Measurement Period: 10-May-06 to 18-April-07 # of tests performed:1314 Grand Average: 37.5(W/kg) % Delta (Average - IEEE1528 Target) -1.6% Is % Delta <= Expanded Measurement Uncertainty (k=2)? Yes Accept/Reject Average as new system performance check target? ACCEPT Applies to Dipole SN's: 246tr, 250tr, 251tr, 259tr, 263tr, 271tr, 272tr, 276tr, 277tr, 279tr, 280tr, 281tr, 283tr, 284tr, 2d128, 2d129 -New System Performance Check Targets- per WI-0396 (based on analysis of historical data) FrequencySAR Target (W/kg)PermittivityConductivity (S/m) 1800MHz37.540.0 ± 5%1.40 ± 5% -Approvals- Submitted by:Date:24-Apr-07 Signed: Approved by:Date:1-May-07 Signed: Marge Kaunas Comments: Comments: Mark Douglas Spreadsheet detailing referenced historical measurements is available upon request.

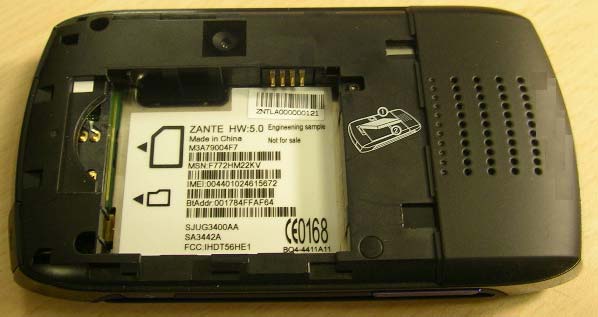

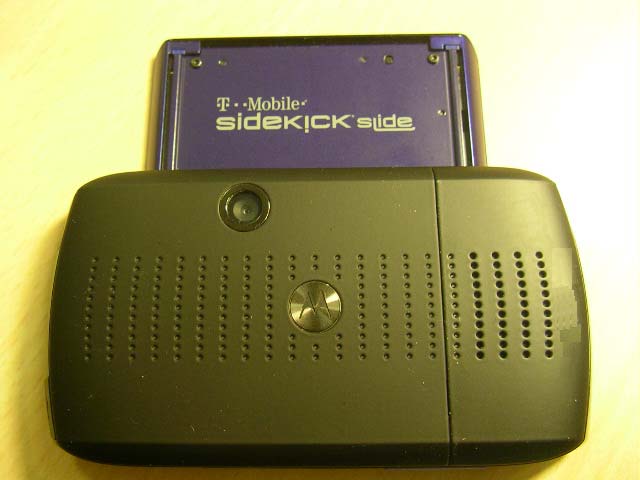

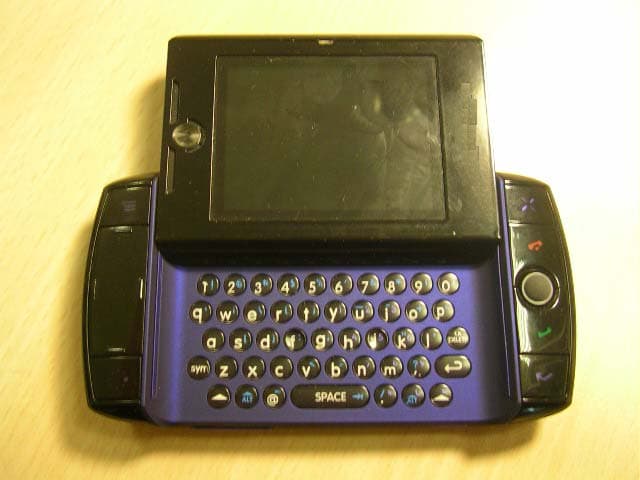

Applicant: Motorola, Inc. FCC ID: IHDT56HE1 Page 1 of 2 Pages Exhibit 3 Front Closed Front Open Applicant: Motorola, Inc. FCC ID: IHDT56HE1 Page 2 of 2 Pages Exhibit 3 Back Closed Without Battary cover Back Open

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HE1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56HE1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

Applicant: Motorola, Inc. FCC ID: IHDT56HE1 Page 1 of 4 Pages Exhibit 9 Main Board Front With shields Without Shields Applicant: Motorola, Inc. FCC ID: IHDT56HE1 Page 2 of 4 Pages Exhibit 9 Main Board Back With shields Without Shields Applicant: Motorola, Inc. FCC ID: IHDT56HE1 Page 3 of 4 Pages Exhibit 9 Sub Board Front Back Applicant: Motorola, Inc. FCC ID: IHDT56HE1 Page 4 of 4 Pages Exhibit 9 Housing

0 0 Portable Cellular Phone SAR Test Report Test Report #: 20973-1F Date of Report: 29-Aug-2007 Date of Test: 08-Aug-2007 ~ 21-Aug-2007 FCC ID #: IHDT56HE1 Generic Name: BQ4-4411A11 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yanjae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Brian Lee RF Engineer Accreditation: TESTING CERT #2518-03 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20973-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 11 References 15 Appendix 1: SAR distribution comparison for system accuracy verification 16 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 17 Appendix 3: SAR distribution plots for Body Worn Configuration 18 Appendix 4: Probe Calibration Certificate 19 Appendix 5: Measurement Uncertainty Budget 20 Appendix 6: Photographs of the device under test 22 Appendix 7: Dipole Characterization Certificate 27 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20973-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.67 W/kg for head adjacent use and 0.68 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Back of phone at the top Width 24.7mm Dimensions Length 57.45mm Configuration FICA 2.2 Device description Serial Number 355564010000145 Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Bluetooth Modulation Mode(s) GMSK GMSK GMSK GMSK GMSKGMSKGMSKGMSK8PSK 8PSK 8PSK 8PSK GFSK Maximum Output Power Setting 32.70 dBm 32.70 dBm 30.00 dBm 30.00 dBm 32.70 dBm 32.70 dBm 30.00 dBm 30.00 dBm 28.00 dBm 28.00 dBm 27.00 dBm 27.00 dBm 4.0 dBm Duty Cycle 1:8 1:8 1:8 1:8 2:8 2:8 2:8 2:8 1:8 1:8 1:8 1:8 1:1 Transmitting Frequency Rang(s) 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 824.2- 848.8 MHz 880.2- 914.8 MHz 1710.2- 1784.8 MHz 1850.2- 1909.8 MHz 2400.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20973-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56HE1 Test Report Number: 20974-1 EXHIBIT 6 1 of 39 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 20974-1 Report Date – August 27, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: August 27, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56HE1 Test Report Number: 20974-1 EXHIBIT 6 2 of 39 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 17 Measurement results 17 Field Strength of Spurious Emissions 22 Measurement results 22 Frequency Stability 25 Measurement results 25 Field Strength of Spurious Emissions -Unintentional Radiators 30 Measurement results 30 AC Line Conducted Emissions 32 Measurement results 32 APPLICANT: MOTOROLA INC FCC ID: IHDT56HE1 Test Report Number: 20974-1 EXHIBIT 6 3 of 39 Test Report Details Tests Performed By: Motorola Mobile Devices Business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM1900, EDGE, Bluetooth FCC ID: IHDT56HE1 Serial Numbers: 355564010000210, 355564010000202, 355564010000194, 355564010000111 Testing Complete Date: August 23, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: ANSI/TIA-603-C-2004, ANSI 63.4 2003, APPLICANT: MOTOROLA INC FCC ID: IHDT56HE1 Test Report Number: 20974-1 EXHIBIT 6 4 of 39 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged batter…
