IHDT56HL1Portable Cellular/ PCS GSM/ EDGE Transceiver w/ BT

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 USER MANUAL • A preliminary draft copy of the User’s Manual follows this cover page. • The text on the following two pages will be added to the User's Manual for SAR Data, related to FCC requirements. EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 0.72 W/kg, and when worn on the body, as described in this user guide, is 0.6 3 W/kg. The SAR value for this product in its data transmission mode (body-worn use) is 0.5 3 W/kg. (Body-worn measurements differ among phone models, depending upon available accessories and regulatory requirements). 2 While there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. MOTOMANUAL MOTO MING™ A1200e www.motorola.com 1 HELLOMOTOIntroducing your new Motorola MOTO MING™ A1200e GSM wireless phone. Down Volume Key U p Volume Key Sm a rt Key E a r pi e c e Send Key He a dset J ac k M ic ro p hone To u c hs c reen D i s p l a y C a mer a Key Vo ic e Re c o g n i t i on Key 5-W a y N a v iga t i on Joyst ic k Power/End KeyM i n i -USB Port 2 Camera Key Activate camera and take photos. Voice Recognition Key Use voice commands to make calls & perform basic phone functions. Mini-USB Port Remove cover, insert battery charger & other phone accessories. Up Volume Key Raise earpiece/speakerphone volume during a call, set alert profile in flip-closed display. Smart Key Open quick menu in flip-closed display. Down Volume Key Lower earpiece/speakerphone volume during a call, set alert profile in flip-closed display. Headset Jack Remove cover, insert stereo headset jack to listen to songs and video clips. 3 Mirror Aim camera lens for self-portraits. Camera Mode SwitchSlide right to set normal picture mode, slide left to set macro mode (for close-up shots of business cards or small objects). SpeakerListen to audio playbackof music & video clips. Camera Lens Stylus Use with touchscreen display. Camera Key Activate camera and take photos. 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. T…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HL1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56HL1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Jiang Fang TITLE: Engineering Manager Motorola Mobile Devices Business Date: 12-27-2006 Page 1 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HL1 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Jiang Fang TITLE: Engineering Manager Motorola Mobile Devices Business Date: 12-27-2006 Page 2 of 3 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HL1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56HL1) is in compliance with all applicable parts of the FCC Rules. NAME: Jiang Fang TITLE: Engineering Manager Motorola Mobile Devices Business Date: 12-27-2006 Page 3 of 3 EXHIBIT 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 December 27, 2006 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56HL1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 days: • Exhibit 3 External Photographs • Exhibit 7 Test Setup Photographs • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

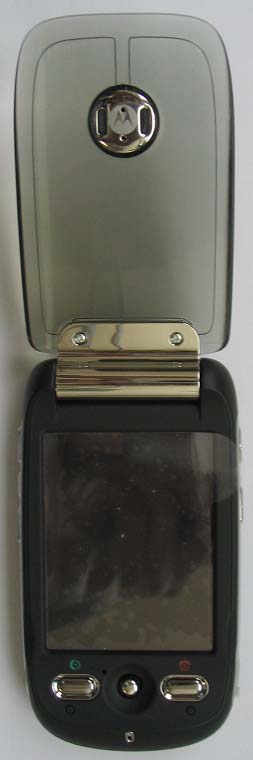

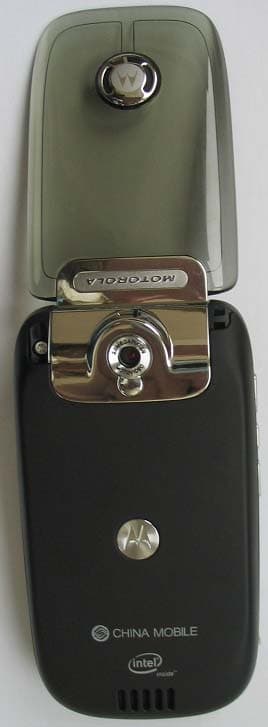

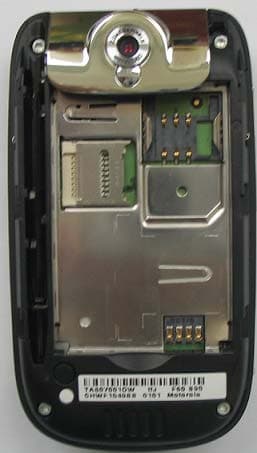

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 EXHIBIT 3 Page 1 of 2 FRONT OF PHONE FLIP OPEN BACK OF PHONE FLIP OPEN APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED EXHIBIT 3 Page 2 of 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56HL1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Main Board Bottom Without Shields Main Board Bottom With Shields EXHIBIT 9 1 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Main Board Top Without Shields Main Board Top With Shields EXHIBIT 9 2 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 LCD EXHIBIT 9 3 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 EXHIBIT 9 4 of 4 Inside Back Housing Inside Front Housing REPLACE WITH YOUR PHOTO REPLACE WITH YOUR PHOTO

APPLICANT: MOTOROLA INC FCC ID: IHDT56HL1 Test Report Number: 19594-2 Supplement 1 of 10 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 19594-2 Supplement Report Date – January 25, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: January 25, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56HL1 Test Report Number: 19594-2 Supplement 2 of 10 EXHIBIT 6A3 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56HL1 Test Report Number: 19594-2 Supplement 3 of 10 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Signaling Capability: GSM 850, GSM 1900, EDGE, Bluetooth FCC ID : IHDT56HL1 Serial Numbers: TA807000HK, TA8070002N, TA807000HH TA807000CL, TA807000GC Testing Complete Date: January 25, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 : X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT56HL1 Test Report Number: 19594-2 Supplement 4 of 10 EXHIBIT 6A3 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56HL1 Test Report Number: 19594-2 Supplement 5 of 10 EXHIBIT 6A3 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 A.H. Systems Inc. DRG Horn Antenna SAS 200/571 365 5/12/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 Attenuator Weinschel AS-6 7075 6/29/07 Attenuator Weinschel AS-6 6675 1/06/07 Attenuator Weinschel AS-6 7074 06/29/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. The Dell M20 Laptop Computer, the Iomega Z250S Zip Drive and the Olympus D-600L Camera are labeled as DoC. APPLICANT: MOTOROLA INC FCC ID: IHDT56HL1 Test Report Number: 19594-2 Supplement 6 of 10 EXHIBIT 6A3 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDT56HL1 Test Report Number: 19594-2 Supplement 7 of 10 EXHIBIT 6A3 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. 30 MHz – 1000 MHz Frequency MHz Level dBμV/m Measured dBμV Transd dB Cables dB Limit dBμV/m Margin dB Height cm Angle deg Pol. 121.76 38.6 17.11 11.8 9.7 43.5 4.9 112 230 VERT 127.08 37.85 16.07 12 9.8 43.5 5.7 133 261 VERT 130.92 36.42 14.48 12.1 9.8 43.5 7.1 100 256 VERT 817.72 36.86 -0.85 22.2 15.5 46 9.1 202 257 HORI 869.04 38.53 -0.46 23.2 15.8 46 7.5 190 118 HORI 888.56 38.23 -0.46 22.8 15.8 46 7.8 150 123 VERT Above 1 GHz Frequency MHz Level dBμV/m Measured dBμV Transd dB Gain dB Limit dBμV/m Margin dB Height cm Angle deg Pol. 1062.9 35.39 20.53 23.8 8.9 53.9 18.5 248 236 VERT 1126.7 37.48 22.32 23.9 8.7 53.9 16.4 164 282 VERT 1921.8 …

Text truncated - open the document above for the full version.

EMC TEST SETUP PHOTOS EMC Report #19594-2, AC Line - Part 15 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 1 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) EMC Report #19594-2, Part 15, PC Peripheral APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 2 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) EMC Report #19594-2, Antenna - Substitution APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 3 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) EMC Report #19594-2, Tx Radiated APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 4 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19600-1F Figure1: Front of Phone Figure2: Back of Phone PHOTOS FROM SAR TEST REPORT# 19600-1F ( This and next two pages) APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 5 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19600-1F Figure3: Phone Open Figure4: Phone Against the Flat Phantom APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 6 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 19600-1F Figure5: Phone Against the Head Phantom (Cheek Touch) Figure6: Phone Against the Head Phantom (15° Tilt) APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 7 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) FCC ID - IHDT56HL1 File MC15003 Project 06CA62134 Page A1 of A2 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC APPENDIX A PHOTOS FCC ID: IHDT56HL1 UL EMC TESTS APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 8 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007) FCC ID - IHDT56HL1 File MC15003 Project 06CA62134 Page A2 of A2 UL International EMC Services www.ul.com/hitech/emc (800) USE UL EMC Radiated Emissions X-Axis . Radiated Emissions Y-Axis Radiated Emissions Z-Axis APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HL1 Page 9 of 9EXHIBIT 7 (REPLACEMENT 1-29-2007)
