INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDT56HS1 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1. 28 W /kg, and when worn on the body, as described in this user guide, is 1. 29 W/kg. 2 W hi le there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. User’s Guide 9m MOTO 1 HELLOMOTOThanks for purchasing the MOTO Q™ 9m wireless phone! It's a phone with a distinct edge—personalization, music, videos, and e-mail—all in a streamlined, intelligent, must-have device. Anytime Entertainment – Can't live without your favorite movies or music? Purchase V CAST music or videos. Transfer video and music files from your computer to your phone and instantly a media library is available anytime. Freedom from Wires – Your life just got a little less wired. With Bluetooth™ wireless technology, streaming video and wireless stereo sound is now a reality. Work Remotely – Tired of being connected to your desk or computer? With Windows Mobile, now you can keep on top of work e-mail and edit Microsoft Office® documents from wherever you are in the world. Help & QuickStart Tour – On-phone help is available anytime. Just press Start > V Help and Quickstart . 2Here’s a quick anatomy lesson. N a v iga t i on Key Navigate m enus. Center Sele c t Key Select m enu ite m s. Mess agi n g Key Press to open m essaging. Thum b Wheel Press to select ite m s. B ac k Keys Enter KeyC ap s Key R ig ht Soft Key S p e a ker p hone/ Vo ic e Re c o g n i t i on Key Mult i med ia Key Send Key Make & answer calls. Left Soft Key Home Key Hold to open a quick list of options. Alt Key M ic ro p hone Power/End Key B ac k Key 3 To avoid damaging your phone, carry it in an approved protective sleeve or case rather than a pocket, purse, or bag. USB Port Charge battery and connect phone accessories Stor ag e C a rd Slot Insert MiniSD m e m ory card C a mer a Lens C a mer a Fl a sh B a ttery Door Rele a se S p e a kers 4From the home screen, press Start to open the main menu. To change your home screen shortcuts and main menu appearance, see page 34.For help while using your phone, press Start > 1 Help and QuickStart to open the in-device help. Also see the MOTO Q 9m Support Web site at http://www.motorola.com/support/q9m . 0841 AM 19 APR 07 Start Contacts No.9 (Scherzo) Ludwig van 1x Mutimedia Home Screen Menu Screen Press and release the Power/End Key ( O ) to turn on your phone. 1 Press the Start key (left soft key) to open the main menu. 2 Press up, down, left, or right on the the Navigation Key ( S ) to highlight a menu feature. 3 Press the Center Select Key ( s) ) to select the highlighted feature. 4 g 9 c @ x u ( C Note: To open the regular home screen, press and hold the multimedia key (see page 2). 5 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.comCertain mobile phone features are dependent o…

Text truncated - open the document above for the full version.

Hearing Aid Compatibility with Mobile Phones Some Motorola phones are measured for compatibility with hea ring aids. If the box for your particular model has “Rated for Hearing Aids” printed on it, the following explanation applies. When some mobile phones are used near some hearing device s (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate. The wireless telephone industry has developed ratings for som e of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box. The ratings are not guarantees. Results will vary depe nding on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone Exhibit 8A 1 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56HS1 successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs. M-Ratings: Phone s rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings. T-Ratings: Phone s rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.) Hearing devices may also be measured for immunity to this type of interfere nce. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones. Exhibit 8A 2 APPLICANT: MOTOROLA, INC.FCC ID: IHDT56HS1

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HS1 Page 1 of 2 EXHIBIT 2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56HS1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. Motorola – Mobile Device Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Ansheng Wang TITLE: Engineering Manager Mobile Device Date: June 26, 2007 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HS1 Page 2 of 2 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56HS1) is in compliance with all applicable parts of the FCC Rules. NAME: Ansheng Wang TITLE: Lead Engineer Mobile Device Date: June 26, 2007

APPLICANT: MOTOROLA FCC ID: IHDT56HS1 Jun 14, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56HS1. C onfidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 & 5A Schematics • Exhibit 10 Parts List • Exhibit 12 & 12A Operational Description Description: This equipment has the capability to operate in the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: Jun 14, 2007 SHORT TERM CONFIDENTIALITY REQUEST To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Reference: FCC ID: IHDT56 HS1 Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. . Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 & 5A Schematics • Exhibit 10 Parts List • Exhibit 12 & 12A Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for a short term limited time: • Exhibit 3 External Photographs • Exhibit 9 Internal Photographs • Exhibit 7 & 7A Test Setup Photos • Exhibit 8 & 8A Users Manual Contact Information & Signature: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

1 Date: July 05, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HS1 Reference: Correspondence Reference Number: IHD7547 Confirmation Number: 706180547-48 Date of Original Email: July 5, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Please verify that the FCC ID label will be visible at the time of purchase. Response: FCC ID label will be visible at shown location in Exhibit 3, External photos. 2. Please submit an operational Description for the Bluetooth transmitter. Response: Please refer to Exhibit 12A Supplement to Operational Description: “HS-EX12A.pdf”. 3. It does not appear that a schematic diagram for the Bluetooth transmitter was submitted. If it was, please indicate exactly where it is. If not, please submit one. Response: Please refer to attached Exhibit 5A: “HS-EX05A.pdf”. 4. Please specify the stage of production of the unit(s) used for HAC testing, as required by the FCC. Response: Representative samples of units that will be shipped are used for HAC testing. 5. Two different user’s manuals were submitted, with different (and incorrect) max SAR levels contained therein. Please clarify and correct. Response: The latest submitted user’s manual on 06-28-07 is the correct one. The max SAR values are 1.28W/kg for held to ear and 1.29 W/kg for body-worn. Please disregard the WiFi data at this point 6. The SAR report includes data for a 2.4 GHz WiFi, but this device is not mentioned, nor is data provided for it, anywhere else in the application. Please clarify and correct. Response: A Class II Permissive Change for Wi-Fi will be submitted to FCC. This application does not require a grant for Wi-Fi at this point. 7. Please confirm the language required by the FCC regarding HAC compliance is in the users manual. Response: Please refer to Exhibit 8A Supplement to User Manual: “HS-EX08A.pdf”. Note: A revised Confidentiality cover letter is also attached to include supplement exhibits: “HS-EX13 Revised 07-05-07.pdf” & “HS-EX13A Revised 07-05-07.pdf”

PCTEST Engineering Laboratory, Inc. 6660 Dobbin Road Suite A-E Columbia, Maryland 21045-4844 Tel.: 410-290-6652 / Fax: 410-290-6654 August 9, 2007 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Tim Harrington SUBJECT: Motorola Inc. FCC ID: IHDT56HS1 Correspondence Reference No.: 41538 Request for Tech. Info.: 08/08/2007 Dear Tim: Transmitted herewith, on behalf of Motorola Inc is an amendment provided in response to the request for technical information dated August 8, 2007. 1. Please note that we have uploaded a Revised SAR Report, which shows that the filing is in accordance with FCC 3G Measurement Procedures as of June 2006. 2. Motorola has revised the SAR Report per their correspondence with the FCC Lab staff. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Motorola Inc.

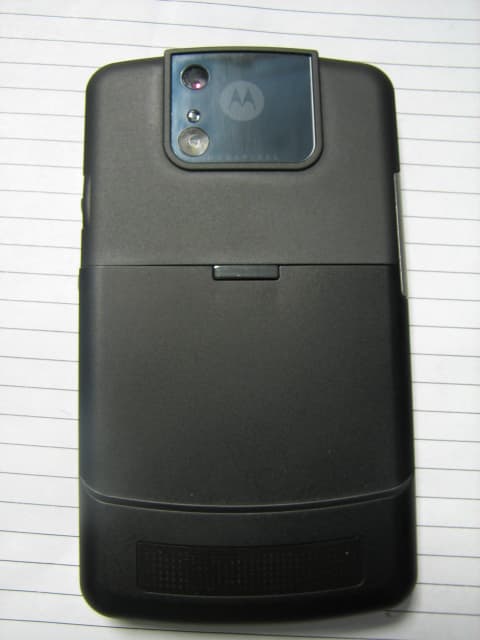

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HS2 EXHIBIT 3 EQUIPMENT ID LABEL LOCATION FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HS1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56HS1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3. Other information may also be included on this label. EXHIBIT 1

Applicant: Motorola Inc. FCC ID: IHDT56HS1 Page 1 of 5 Motorola Confidential Proprietary Exhibit 9 Rear Housing Exterior Interior Rear Housing Applicant: Motorola Inc. FCC ID: IHDT56HS1 Page 2 of 5 Motorola Confidential Proprietary Exhibit 9 Interior Front Housing Main PCB w/no shields – Front Side Applicant: Motorola Inc. FCC ID: IHDT56HS1 Page 3 of 5 Motorola Confidential Proprietary Exhibit 9 Main PCB w/ shields – Front Side Main PCB w/ no shields – Back Side Applicant: Motorola Inc. FCC ID: IHDT56HS1 Page 4 of 5 Motorola Confidential Proprietary Exhibit 9 Main PCB w/ shields – Back Side Daughter PCB w/ no shields – Front Side Applicant: Motorola Inc. FCC ID: IHDT56HS1 Page 5 of 5 Motorola Confidential Proprietary Exhibit 9 Daughter PCB w/ shields – Front Side

Portable Cellular Phone SAR Test Report Test Report #: 20699-1F Date of Report: Jun-22-2007 revi sed Aug-09-2007 Date of Test: Jun-12-2007 to Jun-19-2007 FCC ID #: IHDT56HS1 Generic Name: N/A Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Thomas Nipple RF Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate # 2518-02 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20669-1F FCC ID: IHDT56HS1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 7 6.2 Push-to-Talk Mode/Dispatch Mode Test Results 11 6.3 Body Worn Test Results 13 References 18 Appendix 1: SAR distribution comparison for system accuracy verification 19 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 20 Appendix 3: SAR distribution plots for Push-To-Talk Use 21 Appendix 4: SAR distribution plots for Body Worn Configuration 22 Appendix 5: Probe Calibration Certificate 23 Appendix 6: Measurement Uncertainty Budget 24 Appendix 7: Photographs of the device under test 26 Appendix 8: Dipole Characterization Certificate 33 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20669-1F FCC ID: IHDT56HS1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1 g average set in [3] and 2.0 W/kg in a 10 g average set in [2]. 2. Description of the Device Under Test 2.1 Antenna description Type 800 MHz Band, Internal Location Bottom, Back of Transceiver Length 50.96 mm Dimensions Width 15.97 mm Configuration PIFA Type 1900 MHz Band, Internal Location Top, Back of Transceiver Length 19.70 mm Dimensions Width 21.85 mm Configuration PIFA 2.2 Device description Serial number A000000212FA75 Mode(s) of Operation 800 CDMA 1900 CDMA 800 EV-DO 1900 EV-DO BlueTooth Modulation Mode(s) QPSK QPSK QPSK QPSK GFSK Maximum Output Power Setting 26.00 dBm 25.00 dBm 26.00 dBm 25.00 dBm 4.00 dBm Duty Cycle 1:1 1:1 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.70 – 848.31 MHz 1851.25 – 1908.75 MHz 824.70 – 848.31 MHz 1851.25 – 1908.75 MHz 2400 – 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2.908) Identical Prototype Device Category Portable RF Exposure Limit General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20669-1F FCC ID: IHDT56HS1 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (DASY4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10 g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1 g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4 W/kg to 10 W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE V1 437 Jul-18-2007 E-Field Probe ET3DV6 1514 Jul-14-2007 DASY4™ DAE V1 702 May-30-2008 E-Field Probe ES3DV3 3124 Mar-20-2008 Dipole Validation Kit, DV900V2 96 May-01-2008 S.A.M. Phantom used for 800 MHz TP-1131 Dipole Validation Kit, DV1800V2 272TR S.A.M. Phantom used for 1900 TP-1250 3.2 Additional Equipme…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56HS1 Test Report Number: 20700-1 EXHIBIT 6 1 of 31 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 20700-1 Report Date – June 22, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: June 22, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56HS1 Test Report Number: 20700-1 EXHIBIT 6 2 of 31 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 8 Occupied Bandwidth 9 Measurement results 9 Spurious Emissions at Antenna Terminals 14 Measurement results 15 Field Strength of Spurious Emissions 17 Measurement results 18 Frequency Stability 20 Measurement results 21 Field Strength of Spurious Emissions -Unintentional Radiators 23 Measurement results 24 AC Line Conducted Emissions 25 Measurement results 26 APPLICANT: MOTOROLA INC FCC ID: IHDT56HS1 Test Report Number: 20700-1 EXHIBIT 6 3 of 31 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: CDMA 800, CDMA 1900, Bluetooth FCC ID : IHDT56HS1 Serial Numbers: A000000212FAEA, A000000212FC90, A000000212FA5B Testing Complete Date: June 20, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services APPLICANT: MOTOROLA INC FCC ID: IHDT56HS1 Test Report Number: 20700-1 EXHIBIT 6 4 of 31 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56HS1 Test Report Number: 20700-1 EXHIBIT 6 5 of 31 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI26 100001 5/02/2008 Hewlett Packard EMC Analyzer E7405 US39440191 1/24/2008 Hewlett Packard Signal Generator 83623B 3844A00935 3/18/2008 ETS Horn Antenna 3115 6222 3/21/2008 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/24/2008 ETS Log-Periodic Antenna 3148 1189 9/12/2007 ETS Biconical Antenna 3110B 3369 9/12/2007 Attenuator Weinschel AS-6 7075 6/29/2007 Attenuator Weinschel AS-6 7074 6/29/2007 Thermotron Environmental Chamber S-4 31580 1/29/2008 Agilent Power Meter E4416A GB41293263 12/27/2008 Agilent Power Sensor E4412B MY44420342 12/28/2007 ETS LISN 3810/2 23630 6/26/2007 ETS LISN 3810/2 2179 6/26/2007 APPLICANT: MOTOROLA INC FCC ID: IHDT56HS1 Test Report Number: 20700-1 EXHIBIT 6 6 of 31 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. Per the “Preliminary Guidance for Reviewing Applications for Certifications of 3G Devices” released on May 9, 2006, both RC1 and RC3 CDMA modes are considered. The conducted power measurements (steps 3 & 4 of section 4.4.5.2 of 3GPP2 C.5.011 / TIA -98-E) show that the portable cellular phone FCC ID IHDT56HS1 has the same output conducted power for both CDMA modes. Measurement Results Conducted power (dBm) for CDMA modes RC1 RC3 Channel SO2 SO55 SO2 SO55 RC3 (FCH + SCH) 1013 25.83 25.80 25.78 25.93 384 25.97 25.9…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HS1 P P a a g g e e 1 1 E E x x h h i i b b i i t t 6 6 B B - - 1 1 HAC Test Report for Near Field Emissions IHDT56HS1 Date of test: Date of Report: Jun-15-2007 to Jun-16-2007 Jun-20-2007 Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Room: MW113 Libertyville, Illinois 60048 Test Responsible: Thomas Nipple RF Engineer Statement of Compliance: Motorola declares under its sole responsibility that portable cellular telephone FCC IHDT56HS1 to which this declaration relates, complies with recommendations and guidelines FCC 47 CFR §20.19. The measurements were performed to ensure compliance to the ANSI C63.19-2006. It also declares that the product was tested in accordance with t…

Text truncated - open the document above for the full version.
