IHDT56HU1Portable Cellular/ PCS GSM/ EDGE Transceiver w/ BT

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. The text on the following three pages will be added to the user manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDT56HU1 EXHIBIT 8 SAR DataSpecific Absorption Rate DataSAR DataThis model wireless phone meets the government’s requirements for exposure to radio waves.Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and by the Canadian regulatory authorities. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age or health.The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC and by the Canadian regulatory authorities is 1.6 W/kg. 1 Tests for SAR are conducted using standard operating positions accepted by the FCC and by Industry Canada with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output.Before a phone model is available for sale to the public in the U.S. and Canada, it must be tested and certified to the FCC and Industry Canada that it does not exceed the limit established by each government for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) reported to the FCC and available for review by Industry Canada. The highest SAR value for this model phone when tested for use at the ear is 1 . 36 W/kg, and when worn on the body, as described in th is user guide, is 0. 5 6 W/kg. 2 Wh i le there may be differences between the SAR levels of various phones and at various positions, they all meet the governmental requirements for safe exposure. Please note that improvements to this product model could cause differences in the SAR value for later products; in all cases, products are designed to be within the guidelines. SAR Data Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Web site:http://www.phonefacts.netor the Canadian Wireless Telecommunications Association (CWTA) Web site:http://www.cwta.ca1. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 2. The SAR information includes the Motorola testing protocol, assessment procedure, and measurement uncertainty range for this product. FCC NoticeFCC Notice To UsersFCC NoticeMotorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. MOTOMANUAL MOTO ROKR™ U9 www.motorola.com 1 HELLOMOTOYo u r MOTO ROKR™ U9 phone is made to be held, and made to be seen! Music at your fingertips: Fondly reminisce, relax, or get pumped while listening to music. Cool, surprising touch sensor music buttons appear only in music mode. Floating, external screensavers: Express your mood with cool, animated graphics that express your individual style.Soft & smooth finish: With its small, curvaceous, thin figure, MOTO ROKR U9 stands out among a market flooded with “angular-styled” devices. For more information: To learn more about your phone’s features, press Main Menu > V Help , or go to www.hellomoto.com . 2Introducing your new MOTO ROKR™ U9 GSM wireless phone. Here’s a…

Text truncated - open the document above for the full version.

IMPORTANT SAFETY AND LEGAL INFORMATION> 2 Software Copyright Notice The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Part Number: 6809476A21-O 3 Contents Safety and General Information . . . . . . . . . . . . . . . . . . . . 4 FDA Consumer Information on Wireless Phones. . . . . 10 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RF Energy Interference . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Export Law Assurances. . . . . . . . . . . . . . . . . . . . . . . . . . 20 Wireless: The New Recyclable . . . . . . . . . . . . . . . . . . . . 21 Wireless Phone Safety Tips . . . . . . . . . . . . . . . . . . . . . . 23 4 Safety and General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR PHONE. The information provided in this document supersedes the general safety information in user’s guides published prior to December 1, 2002. Exposure To Radio Frequency (RF) Energy Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits. Your Motorola phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. Operational Precautions To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards, always adhere to the following procedures. External Antenna Care Use only the supplied or Motorola-approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the phone. Do NOT hold the external antenna when the phone is IN USE. Holding the external antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 5 Phone Operation When placing or receiving a phone call, hold your phone as you would a wireline telephone. Body-Worn Operation To maintain compliance with RF energy exposure guidelines, if you wear a phone on your body when transmitting, always place the phone in a Motorola-supplied or approved clip, holder, holster, case, or body harness for this phone, if available. Use of accessories not approved by Motorola may exceed RF energy exposure guidelines. If you do not use one of the body-worn accessories approved or supplied by Motorola, and are not using the phone held in the normal use position, ensure the phone and its antenna are at least 1 inch (2.5 centimeters) from your body when transmitting. Data Operation When using any data feature of the phone, with or without an accessory cable, position the phone and its antenna at least 1 inch (2.5 centimeters) from your body. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. For a list of approved Motorola accessories, visit our website at www.Motorola.com. RF Energy Interference/Compatibility Note: Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 6 Facilities Turn off your phone in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew instructions. Medical Devices Pacemakers Pacemaker manufacturers recommend that a minimum separation of 6 inches (15 centimeters) be maintained between a handheld wireless phone and a pacemaker. Persons with pacemakers should: •ALWAYS keep the phone more than 6 inches (15 centimeters) from your pacemaker when the phone is turned ON. •NOT carry the phone in the breast pocket. •Use the ear opposite the pacemaker to minimize the potential for interference. •Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 7 Use While Driving Check the laws and regulations on the use of phones in the area where you drive. Always obey them. When using your phone while driving, please: •Give full attention to driving and to the road. •Use handsfree operation, if availabl…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT56HU1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Mobile Devices Business Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Wilson Gao TITLE: Engineering Manager Mobile Devices Business Date: May 21, 2007 EXHIBIT 2A APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56HU1) is in compliance with all applicable parts of the FCC Rules. NAME: Wilson Gao TITLE: Engineering Manager Mobile Devices Business Date: May 21, 2007 EXHIBIT 2B

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HU1 May 11, 2007 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiv er FCC ID IHDT56HU1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 days : • Exhibit 3 External Photographs • Exhibit 7 Test Setup Photographs • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail (A.Bach [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

1 Date: June 12, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HU1 Reference: Correspondence Reference Number: IHD7414 Confirmation Number: 705140414-16 Date of Original Email: June 8, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. The Operational Description lists Class 12 EDGE, however, p.3/42 of the SAR report indicates a 1:8 duty cycle for EDGE, and p.12/42 lists EDGE Class 10. Is Class 12 EDGE implemented in the EUT? If so, EDGE body SAR must be recalculated with the appropriate duty cycle. Please address. Response: Yes, Class 12 is implemented, but as described in Section 6.2 (near bottom of page 9) of SAR report, the peak power is reduced by 4 dB in Class 12 mode, while Class 10 reflects 3 dB higher average power. The result is 1 dB loss in average power from Class 10 to Class 12. Thus, Class 10 provides worst case results for Class 12. 2. Please submit an Operational Description for the Bluetooth transmitter. That which is included in the Operational Description document only describes the BT module’s interaction with the phone. Response: The transmitter is contained in a single chip solution, which integrates the Bluetooth baseband, RF transceiver, ARM7 TDMI, memory (ROM and RAM), and power management on one chip using 90nm process manufacturing and Digital RF Processor technology. The integrated radio can be enabled to operate with 2G, 2.5G and 3G mobile phones. A shared antenna with mobile WLAN chipsets is used to allow collaborative coexistence mechanism between WLAN and Bluetooth networks. Bluetooth Specification v2.0 adaptive frequency hopping (AFH) and extended Synchronous Connection Oriented (eSCO) is used to deliver a high- quality Bluetooth voice and enhanced data throughput. 3. The first internal photo (p.1/6) with the shields removed is of poor quality. Please resubmit a clearer photo. Response: Please refer to revised exhibit 9 attached: “HU-EX09 Revised.pdf”

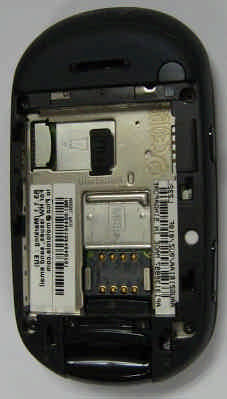

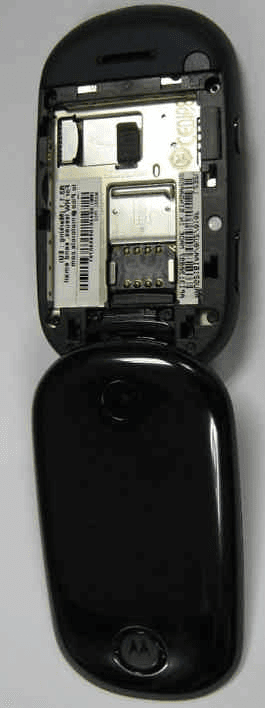

APPLICANT: MOTOROLA INC.FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 3 Front ViewRear ViewRear View with Battery Cover Removed Showing ID Label Equipment ID Lable Location 1 of 4 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 3 Front View Rear View 2 of 4 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 3 Front View Flip Opened Rear View Flip Opened 3 of 4 APPLICANT: MOTOROLA INC.FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 3 Rear View with Battery Cover Removed Equipment ID Lable Location 4 of 4

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDT56HU1

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 9 Front View (Shields Removed) Rear View (Shields Removed) APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 9 Rear View with Shields Front View with Shields APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 9 Flip Internal View (Front) APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 9 Flip Internal View (Rear) APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 9 Rear Housing Internal View (Front) APPLICANT: MOTOROLA INC. FCC ID: IHDT56HU1 MOTOROLA CONFIDENTIAL PROPRIETARY EXHIBIT 9 Rear Housing Internal View (Rear)

APPLICANT: MOTOROLA INC FCC ID: IHDT56HU1 Test Report Number: 20332-1 Supplement 1 of 10 EXHIBIT 6A3 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 20332-1 Supplement Report Date – May 4, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: May 4, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56HU1 Test Report Number: 20332-1 Supplement 2 of 10 EXHIBIT 6A3 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 APPLICANT: MOTOROLA INC FCC ID: IHDT56HU1 Test Report Number: 20332-1 Supplement 3 of 10 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices business 600 North US Hwy 45 Libertyville, IL 60048 Signaling Capability: GSM 850, GSM 1900, EDGE, Bluetooth FCC ID : IHDT56HU1 Serial Numbers: 355561010000034, 355561010000042, 355561010000059, 355561010000067, 355561010000075 Testing Complete Date: May 4, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 : X Part 15 Subpart B – Unintentional Radiators Applicable Standards: ANSI 63.4 2003 APPLICANT: MOTOROLA INC FCC ID: IHDT56HU1 Test Report Number: 20332-1 Supplement 4 of 10 EXHIBIT 6A3 Summary of Testing Test Test Name # Pass/Fail _________ 1 Field Strength of Spurious Emissions Pass from Unintentional Radiators 2 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 Field Strength of Spurious Emissions see results from Unintentional Radiators 2 AC Line Conducted Emissions see results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56HU1 Test Report Number: 20332-1 Supplement 5 of 10 EXHIBIT 6A3 Equipment List Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/08 Rohde Schwarz Receiver ESI40 100226 6/05/07 A.H. Systems Inc. DRG Horn Antenna SAS 200/571 365 5/12/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3369 6/02/07 Attenuator Weinschel AS-6 7075 6/29/07 Attenuator Weinschel AS-6 7074 6/29/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 Dell Laptop Computer M20 NA NA Iomega Zip Drive Z250S P9HM1992CK NA Olympus Camera D-600L 4020727 NA All equipment is on a one-year calibration cycle. The Dell M20 Laptop Computer, the Iomega Z250S Zip Drive and the Olympus D-600L Camera are labeled as DoC. APPLICANT: MOTOROLA INC FCC ID: IHDT56HU1 Test Report Number: 20332-1 Supplement 6 of 10 EXHIBIT 6A3 Measurement Procedures and Data FIELD STRENGTH OF EMISSIONS FROM UNINTENTIONAL RADIATORS Measurement Procedure The equipment under test is placed inside the semi-anechoic chamber on a wooden table on the turntable center. For each radiated emission, the antenna mast is raised and lowered from 1 to 4 meters and the turntable is rotated 360 degrees to obtain a maximum peak reading on the spectrum analyzer. The final radiated emissions are then measured using an EMI receiver employing a CISPR quasi-peak detector function below 1000 MHz and an average detector function above 1000 MHz. This is repeated for both horizontal and vertical polarizations of the receive antenna. The field strength of each radiated emission is calculated by correcting the EMI receiver level for cable loss, amplifier gain, and antenna correction factors. Field Strength (dBuV/m) = EMI Receiver Level (dBuV) + Cable Loss (dB) - Amplifier Gain (dB) + Antenna Correction Factor (1/m) Test Setup The EUT and the host equipment were setup according to the procedures in ANSI C63.4- 2003. The EUT was connected to a laptop computer using a USB data cable. The USB data cable is 1 m in length. The parallel and the serial ports of the computer were populated. The EUT was communicating with the laptop computer continuously. APPLICANT: MOTOROLA INC FCC ID: IHDT56HU1 Test Report Number: 20332-1 Supplement 7 of 10 EXHIBIT 6A3 Measurement Results Operating Mode – Rx Mode, Data Transfer Mode. Notes: Worst Case emissions reported. 30 MHz – 1000 MHz Frequency MHz Level dBμV/m Measured dBμV Transd dB Cables dB Limit dBμV/m Margin dB Height cm Angle deg Pol. 30.92 33.23 12.72 12.7 7.8 40 6.8 100 94 VERT 34.56 32.75 13.28 11.6 7.8 40 7.2 114 201 VERT 35.8 30.15 11.01 11.3 7.8 40 9.8 121 158 VERT 879.76 39.09 -0.18 23.5 15.8 46 6.9 220 274 HORI 916.08 40.23 -0.08 24.4 15.9 46 5.8 100 201 HORI 920.2 40.12 -0.13 24.3 16.0 46 5.9 250 222 HORI 939.4 39.85 -0.08 23.9 16.0 46 6.1 350 257 HORI Above 1 GHz Frequency MHz Level dBμV/m Measured dBμV Transd dB Gain dB Limit dBμV/m Margin dB Height cm Angle deg Pol. 1128.8 35.62 20.42 23.9 8.7 53.9 18.3 137 109 VERT 1948.1…

Text truncated - open the document above for the full version.

EMC TEST SETUP PHOTOS EMC Report #20330-1, AC Line - Part 15 APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 1 of 8EXHIBIT 7 EMC Report #20332-1, Part 15, PC Peripheral APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 2 of 8EXHIBIT 7 EMC Report #20332-1, Antenna - Substitution APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 3 of 8EXHIBIT 7 EMC Report #20332-1, Tx Radiated APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 4 of 8EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20420-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 8 8 Appendix 6 Photographs of the device under test >> PHOTOS WERE EXTRACTED FROM FCC EXHIBIT 11, SAR REPORT<<< APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 5 of 8EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20420-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 9 9 Figure 1. Front of Phone Figure 2. Back of Phone APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 6 of 8EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20420-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 0 0 Figure 3. Front of Phone Open Figure 4. Phone Against the Head Phantom (Cheek Touch) APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 7 of 8EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20420-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1 1 Figure 5. Phone Against the Head Phantom (15 degrees Tilt) Figure 6. Phone Against the Flat Phantom APPLICANT: MOTOROLA, INCFCC ID: IHDT56HU1 Page 8 of 8EXHIBIT 7
