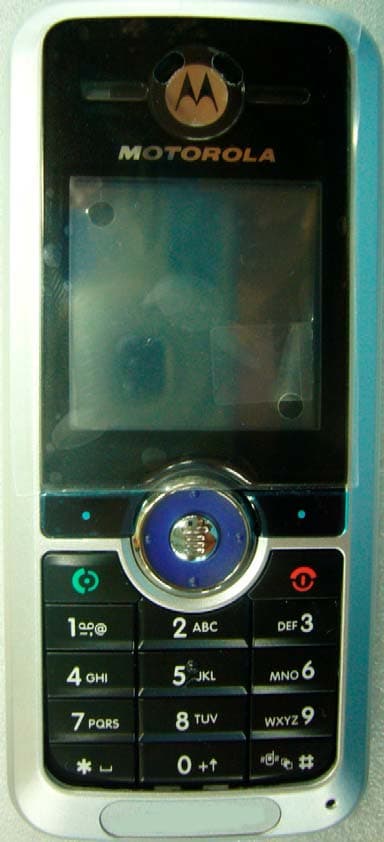

IHDT56HY1Portable Cellular/ PCS GSM Transceiver

INSTRUCTION MANUAL A preliminary draft of the User’s Manual follows this page. Text on the following page will be added to the manual. APPLICANT: MOTOROLA,INC. FCC ID: IHDT56HY1 EXHIBIT 8 FCC NoticeFCC Notice To UsersFCC NoticeMotorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).If your mobile device or accessory has a USB connector, or is otherwise considered a computer peripheral device whereby it can be connected to a computer for purposes of transferring data, then it is considered a Class B device and the following statement applies:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. motorola.com C168 GSM English 1 HELLOMOTO Welcome to the world of Motorola digital wireless communications! We are pleased that you have chosen the Motorola C168 wireless phone. Headset Jack Power Connector Insert charger. Navigation Key Press S to scroll through menus and lists. Menu Key Opens a menu when M is in the display. Right Soft Key Performs functions in lower right display. Left Soft Key Performs functions in lower left display. Send/Answer Key Make and answer calls. Press when idle to see the list of recently dialed calls. Power/End Key Turns phone on/off, ends calls, exits menus. Microphone 2 Motorola, Inc. Consumer Advocacy Office 1307 East Algonquin Road Schaumburg, IL 60196 1-800-331-6456 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider's network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user's guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. www.hellomoto.com MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2005. Manual Number: UGXXXX Cover Number: UGCGXXXX 3 Use and Care To care for your Motorola phone, please keep it away from: liquids of any kind Don’t expose your phone to water, rain, extreme humidity, sweat, or other moisture. extreme heat or cold Avoid temperatures below -10°C/14°F or above 45°C/113°F. microwaves Don’t try to dry your phone in a microwave oven. dust and dirt Don’t expose your phone to dust, dirt, sand, food, or other inappropriate materials. 4 cleaning solutions To clean your phone, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions. the ground Don’t drop your phone. 5 feature locator main menu n Phonebook s Recent Calls • Received Calls • Dialed Calls • Notepad • Erase All • Call Time • Call Cost • GPRS Data Counter • GPRS Connection Time e Messages • Create Message • Message Inbox •Outbox •Drafts •Voicemail •Browser Msgs •Quick Notes •MMS Templates É Tools •Calculator • Calendar • Shortcuts •Chat • SIM Tool Kit * •Lantern * Q Games á Web Access •Browser • Web Shortcuts •Go to URL • Web Sessions • Web Settings h Multimedia •Pictures • Sounds •FM Radio A Alarm Clock w Settings (see next page) * optional features This is the standard main menu layout. Menu organization and feature names may vary on different phones. Your phone may not have all of these features. 6 Settings Menu l Personalize • Home Screen •Color Style • Wallpaper • Screen Saver •Quick Dial t Ring Styles •Style •(Style) Detail H Call Forward • When Busy • No Reply • Not Reachable • Not Available • All Calls • Cancel All U In-Call Setup • In-Call Timer •Call Cost Setup • Show Number • Call Waiting • Anykey Answer • Session Information • Auto Redial S Headset & Car Settings Z Initial Setup • Time and Date • Backlight • Language • Contrast • Input Mode • Connection Indication • Master Reset • Master Clear Auto power off m Phone Status • My Tel. Number • Active Line • Battery Meter u Security • Phone Lock • Lock Keypad •Fixed Dial • Call Barring • SIM PIN •New Passwords j Network •New Network •Network Setup •Available Networks •Service Tone Lantern * optional features 7 contents contents Use and Care. . . . . . . . . . 3 European Union Directives Conformance Statement 9 essentials . . . . . . . . .…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HY1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56HY1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business Date: February 23, 2007 Page 1 of 2 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56HY1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56HY1) is in compliance with all applicable parts of the FCC Rules. NAME: Diane Steel TITLE: Lead Electrical Engineer Motorola Mobile Devices Business Date: February 23, 2007 Page 2 of 2 EXHIBIT 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 February 23, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiver, FCC ID: IHDT56HY1. Motorola is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver which operates in the 850 and 1900 MHz PCS band. The unit also employs GPRS. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

Date: March 30, 2007 Subject: Request for additional information regarding FCC ID: IHDT56HY1 Reference: Correspondence Reference Number: IHD7134 Confirmation Number: 702260134 Date of Original Email: March 29, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois Questions and responses follow: 1. Signal Generator HP8648C in the SAR Report shows equipment that may have been out of cal during the period of testing. Please address. Response: When used during the testing process, the equipment met the cal date requirements. (Signal generator HP8648C, SN 38474630 was used on February 27 & 28. The second HP8648C Signal generator in the equipment table, SN3847A04840, was used on March 7.) 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 EQUIPMENT ID LABEL LOCATION FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56HY1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56HY1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Back Front EXHIBIT 9 1 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Main Board Top Without Shields Main Board Top With Shields EXHIBIT 9 2 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 EXHIBIT 9 3 of 5 Keypad PCB Views APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Housing EXHIBIT 9 4 of 5 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Housing EXHIBIT 9 5 of 5

0 0 Portable Cellular Phone SAR Test Report Test Report #: 20116-2F Date of Report: 20-Mar-2007 Date of Test: 27-Feb-2007 through 07-Mar-2007 FCC ID #: IHDT56HY1 Generic Name: C168i Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 11th Floor, Hibrand Living Hall, 215, Yangae-Dong, Seocho-Gu, Seoul, South Korea, 137-130 Report Author: Jon Park Senior Staff Engineer Accreditation: This laboratory is accredited to ISO/IEC 17025-1999 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers A2LA certificate #2518-03 Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with CENELEC en50361:2001, IEEE 1528, as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2006 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20116-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 6 6.2 Body Worn Test Results 10 References 13 Appendix 1: SAR distribution comparison for system accuracy verification 14 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 15 Appendix 3: SAR distribution plots for Body Worn Configuration 16 Appendix 4: Probe Calibration Certificate 17 Appendix 5: Measurement Uncertainty Budget 18 Appendix 6: Photographs of the device under test 20 Appendix 7: Dipole Characterization Certificate 24 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20116-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 1.44 W/kg for head adjacent use and 0.79 W/kg for body worn use. These measurements were performed using a Dasy4™ v4. 7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Antenna Location Bottom of the transceiver Width 18.025 mm Dimensions Length 42.00 mm Configuration Mono Pole 2.2 Device description Serial number 011219000000144 Mode(s) of Operation GSM 850 GSM 1900 Modulation Mode(s) GMSK GMSK Maximum Output Power Setting 32.6 dBm 30.4 dBm Duty Cycle 1:8 1:8 Transmitting Frequency Rang(s) 824.2-848.8 MHz 1850.2-1909.8 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20116-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE V1 365 25-Sep-2007 1501 23-Mar-2007 E-Field Probe ETDV6 1515 24-Aug-2007 Dipole Validation Kit, DV900V2 77 22-May-2007 S.A.M. Phantom used for 800/900MHz TP-1155 Dipole Validation Kit, DV1800V2 280tr S.A.M. Phantom used for 1800/1900MHz TP-1086 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04630 02-Mar-2007 Power Meter E4419B US39250623 24-May-2007 Power Sensor…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56HY1 EXHIBIT 6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 20118-1 Report Date – March 15, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: March 15, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56HY1 Test Report Number: 20118-1 EXHIBIT 6 2 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 13 Measurement results 14 Field Strength of Spurious Emissions 16 Measurement results 17 Frequency Stability 19 Measurement results 20 Field Strength of Spurious Emissions -Unintentional Radiators 22 Measurement results 23 AC Line Conducted Emissions 24 Measurement results 25 APPLICANT: MOTOROLA INC FCC ID: IHDT56HY1 Test Report Number: 20118-1 EXHIBIT 6 3 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: GSM 850, GSM 1900 FCC ID : IHDT56HY1 Serial Numbers: 011219000000037, 011219000000011, 011219000000029 Testing Complete Date: March 06, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services APPLICANT: MOTOROLA INC FCC ID: IHDT56HY1 Test Report Number: 20118-1 EXHIBIT 6 4 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56HY1 Test Report Number: 20118-1 EXHIBIT 6 5 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 100001 3/08/07 Rohde Schwarz Receiver ESI40 100226 6/05/07 Hewlett Packard EMC Analyzer E7405 US40240219 6/01/07 Hewlett Packard Signal Generator 83712A 3429A00286 6/06/07 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/12/07 A.H. Systems DRG Horn Antenna SAS 200/571 265 9/12/07 ETS. Horn Antenna 3115 6222 3/03/07 ETS Log-Periodic Antenna 3148 1188 6/05/07 ETS Biconical Antenna 3110B 3370 3/03/07 ETS Biconical Antenna 3110B 3369 6/02/07 Weinschel Attenuator AS-6 7075 6/29/07 Weinschel Attenuator AS-6 7074 6/29/07 Thermotron Environmental Chamber S-4 31580 1/31/08 Agilent Power Meter E4416A GB41293263 12/27/08 Agilent Power Sensor E9323A MY44420342 12/28/07 ETS LISN 3810/2NM 00062907 5/10/07 ETS LISN 3810/2NM 00062912 5/10/07 APPLICANT: MOTOROLA INC FCC ID: IHDT56HY1 Test Report Number: 20118-1 EXHIBIT 6 6 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agilent power meter through a 20dB passive attenuator, adaptor (if needed), and specialized RF connector. The peak power output is measured for all channels. Measurement Results GSM 850 Frequency (MHz) Power (dBm) 824.2 32.68 836.6 32.59 848.8 32.66 GSM 1900 Frequency (MHz) Power (dBm) 1850.20 30.26 1880.00 30.38 1909.80 30.45 APPLICANT: MOTOROLA INC FCC ID: IHDT56HY1 Test Report Number: 20118-1 EXHIBIT 6 7 RADIATED POWER (EIRP AND ERP) Measurement Procedure The phone was tested in a 16’ anechoic chamber with a 2-axis position system that permits taking complete spherical scans of the EUT’s radiation patterns. For all tests, the phone was supported in a free space ty…

Text truncated - open the document above for the full version.

EMC TEST SETUP PHOTOS Antenna - Substitution APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Page 1 of 6 EXHIBIT 7 Tx Radiated APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Page 2 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20116-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 0 0 Appendix 6 Photographs of the device under test >>EXTRACTED FROM FCC EXHIBIT 11 <<<< APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Page 3 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20116-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1 1 Figure 1. Front of Phone Figure 2. Back of Phone APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Page 4 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20116-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 2 2 Figure 3. Phone Against the Flat Phantom Figure 4. Phone Against the Head Phantom (Cheek Touch) APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Page 5 of 6 EXHIBIT 7 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 20116-2F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 3 3 Figure 5. Phone Against the Head Phantom (15°Tilt) APPLICANT: MOTOROLA, INC. FCC ID: IHDT56HY1 Page 6 of 6 EXHIBIT 7
