IHDT56JB1Portable Cellular/ PCS CDMA Transceiver with BT

motorola W755 HELLOMOTOIntroducing your new Motorola W755 CDMA wireless phone!Connect on So Many Levels – Whether it’s with work or friends, connect in all kinds of ways – voice, messaging, downloads, or swapping an optional memory card – you’ll be on top of all the latest news and views to share! Rich Multimedia Experience – Use the robust MP3 player and external touch screen keys to listen to your tunes. Slip a microSD card into the removable memory slot to save many more songs!A handy 1.3 megapixel digital camera lets you take great quality pictures. Save images on your phone or on the memory card. Or instead...make a mini -movie with your phone’s camcorder. Handsfree Convenience – Use your phone with Bluetooth® wireless headsets to answer and make calls or listen to music. 2Here’s a quick anatomy lesson. Volume Keys Sm a rt/S p e a ker p hone Key C a mer a /C a m c order Key Left Soft Key Perfor m function in lower left display. R ig ht Soft Key Perfor m function in lower right display. Vo ic e Key Create voice records, activate speech dialing & voice co mm ands. Power & End KeyTurn phone on/off, end calls, exit m enu syste m . A cc essory Conne c tor Port Insert charger & phone accessories. 4-W a y N a v iga t i on Key w i th Center Sele c t Press center key to open m ain m enu. Send Key Make & answer calls. Cle a r Key B ac kl ig ht Sensor He a dset J ac k 3 C a mer a Lens Sm a rt/ S p e a ker p hone Key Bluetooth Key Press and hold to turn Bluetooth on or off. Extern a l D i s p l a y View inco m ing call infor m ation, use as ca m era viewfinder when flip is closed. \ H G V ib r a te Key Press and hold to change ringer to vibrate. Press and hold to turn ringer back on. Med ia Pl a yer Control Keys 4 Motorola, Inc.Consumer Advocacy Office1307 East Algonquin RoadSchaumburg, IL 60196www.hellomoto.com1-800-331-6456 (United States)1-888-390-6456 (TTY/TDD United States for hearing impaired)1-800-461-4575 (Canada)Certain mobile phone features are dependent on the capabilities and settings of your service provider’s network. Additionally, certain features may not be activated by your service provider, and/or the provider’s network settings may limit the feature’s functionality. Always contact your service provider about feature availability and functionality. All features, functionality, and other product specifications, as well as the information contained in this user’s guide are based upon the latest available information and are believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. Java and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Microsoft, Windows and Windows Me are registered trademarks of Microsoft Corporation; and Windows XP is a trademark of Microsoft Corporation. © Motorola, Inc. 2008. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. Software Copyright NoticeThe Motorola products described in this manual may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.Manual Number: 68095xxxxx-A contents 5 contentsmenu map . . . . . . . . . . . . . . . . 7Use and Care . . . . . . . . . . . . . . 9essentials . . . . . . . . . . . . . . . . 10 about this guide. . . . . . . . . . 10battery . . . . . . . . . . . . . . . . . 10turn it on & off . . . . . . . . . . . 14make a call . . . . . . . . . . . . . 14answer a call . . . . . . . . . . . . 14store a phone number . . . . . 15call a stored phone number. 15see your phone number . . . 15 tips & tricks . . . . . . . . . . . . . . 16basics . . . . . . . . . . . . . . . . . . . 17 main screen. . . . . . . . . . . . . 17adjust volume . . . . . . . . . . . 20change sound settings . . . . 20handsfree speaker. . . . . . . . 21 touch sensitive buttons . . . . 22standalone mode . . . . . . . . . 22change lock code . . . . . . . . . 23lock & unlock phone. . . . . . . 24manage memory . . . . . . . . . 25TTY operation . . . . . . . . . . . 28handsfree. . . . . . . . . . . . . . . 30voice privacy . . . . . . . . . . . . 31 personalize . . . . . . . . . . . . . . . 32 sounds settings . . . . . . . . . . 32get ringtones . . . . . . . . . . . . 34talking phone settings . . . . . 35answer options . . . . . . . . . . 35wallpaper . . . . . . . . . . . . . . . 36backlight. . . . . . . . . . . . . . . . 37brightness . . . . . . . . . . . . . . 37AGPS & your location . . . . . 38 AGPS limitations & tips . . . 39more personalizing. . . . . . . 39 calls . . . . . . . . . . . . . . . . . . . . 4 9 redial a number . . . . . . . . . 49automatic redial . . . . . . . . . 49recent calls. . . . . . . . . . . . . 50return missed calls. . . . . . . 51speed dial. . . . . . . . . . . . . . 52emer…

Text truncated - open the document above for the full version.

SPECIFICATION COMPLIANCE STATEMENT Transceiver type (FCC ID: IHDT56JB1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Dave Thompson TITLE: Engineering Manager Motorola Mobile Devices Business Date: DECEMBER 10, 2007 Applicant: Motorola, Inc.FCC ID: IHDT56JB1 Exhibit 2 1 of 4 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56JB1) is in compliance with all applicable parts of the FCC Rules. NAME: Dave Thompson TITLE: Engineering Manager Motorola Mobile Devices Business Date: DECEMBER 10, 2007 Applicant: Motorola, Inc.FCC ID: IHDT56JB1 Exhibit 2 2 of 4 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • th e hopping sequence must be pseudorandom • all Channels are used eq ually on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in se quence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the tran smitter is presen ted with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hoppi ng systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Dave Thompson TITLE: ENGINEERING MANAGER Mobile Device Business Motorola, Inc. December 12, 2007 Applicant: Motorola, Inc.FCC ID: IHDT56JB1 Exhibit 2 3 of 4 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56JB1. NAME: Dave Thompson TITLE: Engineering Manager Mobile Device Business Motorola, Inc. Date: December 12, 2007 Applicant: Motorola, Inc.FCC ID: IHDT56JB1 Exhibit 2 4 of 4

APPLICANT: MOTOROLA FCC ID: IHDT56JB1 DECEMBER 10, 2007 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular/PCS Transceiver with HAC complicace, FCC ID: IHDT56JB1. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment has the capability to operate in the Digital CDMA standard in both the 800 MHz and the 1900 MHz PCS bands. The unit also contains a 2.4 GHz Bluetooth transmitter (Part 15.247). Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56JB1 SHORT TERM CONFIDENTIALITY REQUEST 45 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56JB1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 45 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: January 15, 2008 Subject: Request for additional information regarding FCC ID: IHDT56JB1 Reference: Correspondence Reference Number: IHD71044 Confirmation Number: 712131044-46 Date of Original Email: December 21, 2007 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. Attestation Statements show the incorrect FCC IDs. Please update. Response: Please refer to the revised Exhibit 2. 2. HAC Stage of Production Letter indicates Class II Change information. Please amend for this original filing. Response: Please refer to the revised Exhibit 2. 3. Schematics indicate presence of WLAN capability. Please confirm if WLAN will be disabled for this filing. Response: Confirmed; WLAN is disabled. 4. Exhibit 12 Page 1 refers to an incorrect FCC ID. Please amend. Response: Please refer to the revised Exhibit 12. 5. Please include required Body-Worn RF Exposure statement in the Users Manual. Response: Please refer to the revised User Manual – Exhibit 8, pages 114-115, & 111. EMC 6. Please confirm what RC/SO combination was used to generate the test results in Exhibit 6? Response: All EMC testing in Exhibit 6 was done in RC3/SO55 mode. 1 7. Please provide ABM2 investigation for the 3G modes for Section 6 of the T-coil Report per July 2006 FCC guidance Response: Please refer to the HAC supplemental response for IHDT56JD1 SAR 8. Please confirm if FCC 3G Measurement Procedures for SAR is in accordance to v2.0 released in October 2007. Response: Motorola confirms that the SAR measurements were performed per the “SAR Measurement Procedures for 3G Devices” released in October, 2007. In which RC1, RC3 and RC3 (FCH + SCH) CDMA modes, EVDO Rev O, EVDO Rev A were considered. The conducted power measurements (per steps 3, 4 & 10 of section 4.4.5.2 of 3GPP2 C.5.011 / TIA -98-E) for each mode were shown in the table in the original filing. 9. Please clarify which RC/SO mode was used during testing for the SAR evaluation. It is not stated in Section 6.1 or 6.2 of Exhibit 11. Response: The SAR testing was performed using CDMA RC3/SO55 mode. 10. Please be sure to capture entire concave contour for dipole validations. Scans are OK. Response: Future applications will capture the entire concave contour for dipole validations. HAC 11. Power Supply 6623A and Directional Coupler 778D used in HAC RF Emissions evaluation appears to be out of calibration. Please address. Response: Please refer to the supplement to the SAR (and HAC) test reports. 12. Please explain the approximation notation reference in regards to the input power to the dipole validation section on Page 5, Exhibit 6B-1. Response: Please refer to the supplement to the SAR (and HAC) test reports. 13. Please update Page 8 Exhibit 6B-1 with the updated procedure that incorporates method shown in test photographs. Response: Please refer to the supplement to the SAR (and HAC) test reports. 14. Please explain conducted setup in Figure 5 Exhibit 7A-1 for RF Emissions testing. The RF Emissions testing is to be performed without RF cable (which would bypass the radiating antenna thereby lowering the emissions). Please clarify. Response: Please refer to the supplement to the SAR (and HAC) test reports. 15. Please clarify if RF cable was connected to the EUT during T-coil testing. It is not clear in Figure 6, Exhibit 7A-2. Response: Motorola confirms that the RF cable connecting the EUT and the CMU200 network 2 simulator box was in place during the T-coil testing.. 16. Please address effect of updated procedure on the uncertainty budget on Page 20, Exhibit 6B-1. Response: Please refer to the supplement to the SAR (and HAC) test reports. 17. Users Manual table of contents alludes to a Hearing Aid Compatibility mode or function in the Call Settings, however no settings are indicated in the body of the Users Manual. Please address. Response: Please refer to the revised User Manual – Exhibit 8, page 56. 18. Please include HAC language required per 20.19 in the users manual informing consumers about hearing aid compatibility of cellular phones. Response: Please refer to the revised User Manual – Exhibit 8, page 123. BT 19. The Bluetooth Operational Description of the frequency hopping spread spectrum transmitter does not contain enough detail. Please submit a description that addresses the RF function of the transmitter (how power is derived and limited, description of the modulation system, how spurious emissions are attenuated, etc.). Response: Please refer to the revised exhibit 12. 20. Please include whether BT contains EDR/high data rate functions. If so, please include bandwidth plots in this mode. Response: The phone does not support EDR mode. 21. Please include information regarding test competency of Denmark laboratory or ISO/IEC 17025 accreditation status. Response: Last December, United Kingdom Accreditation Service granted ISO-17025 accreditation as UKAS 2404. We are still awaiting the certificates. 22. Final measurements performed in Exhibit 6A-1 Page 11 show a table indicating a generic FCC ID. Please clarify. Response: Please refer to the revised Exhibit 6A-1 test report. 23. FYI - For Exhibit 6A1, plots on Pg 16, 17 and 27 please place marker on highest peak outside of band edges to show compliance. The marker appears to only be placed on the band edge, but gives no information about level of compliance of spurs outside of the band edge when the spurs rise above the levels seen exactly on the edge. Response: Future applications will highlight the highest peak outside of the band edge. 3

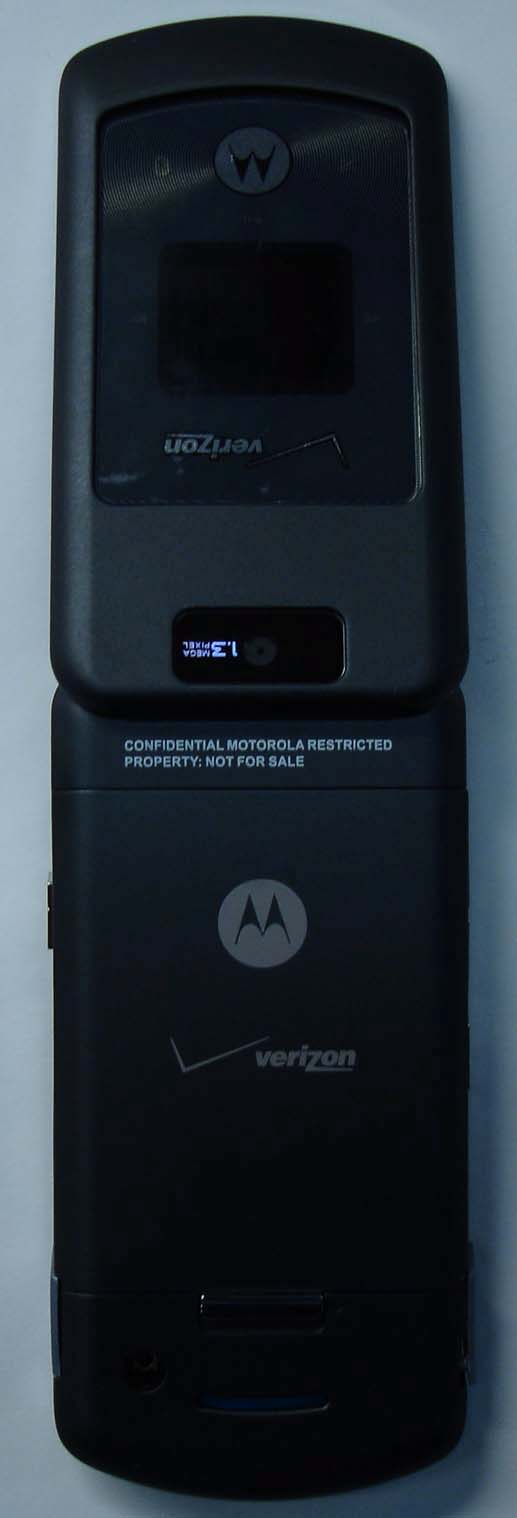

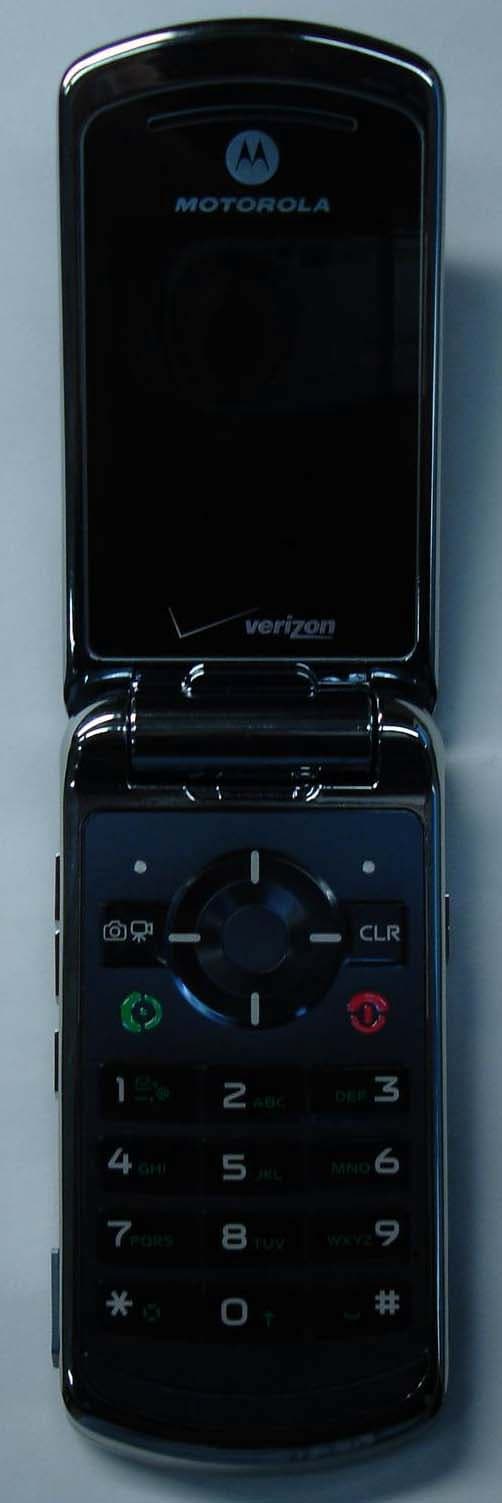

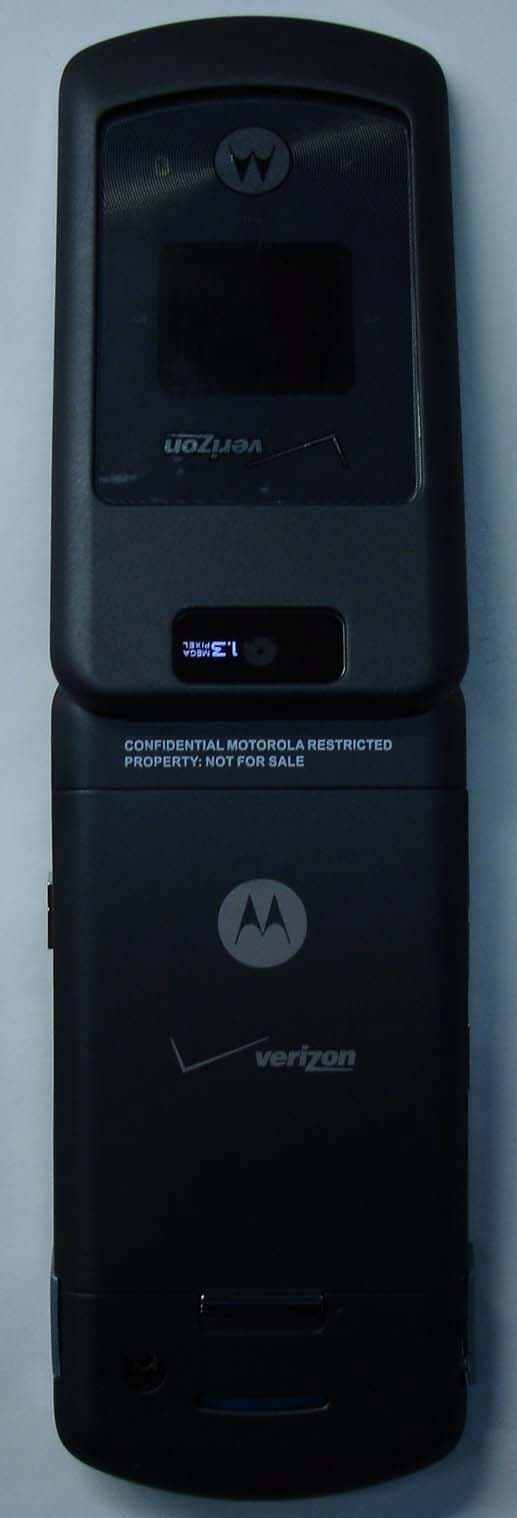

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56JB1 EXHIBIT 3 FRONT OF PHONE FLIP OPEN BACK OF PHONE FLIP OPEN APPLICANT: MOTOROLA, INC. FCC ID: IHDT56JB1 FRONT OF PHONE BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED EXHIBIT 3

APPLICANT: MOTOROLA INC. FCC ID: IHDT56JB1 FCC IDENTIFICATION (COOL W755) INFORMATION FCC ID: IHDT56JB1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56JB1 BACK VIEW WITH SHIELDS FRONT VIEW BACK VIEW W/O SHIELDS EXHIBIT 9

0 0 Portable Cellular Phone SAR Test Report Test Report #: 21369-1F Date of Report: 12/11/2007 Date of Test: 11/14/2007 – 11/20/2007 FCC ID #: IHDT56JB1 Generic Name: N/A Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, Illinois 60048 Report Author: Paul Ma RF Engineer Accreditation: TESTING CERT #2518-02 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 (2001) CENELEC EN 50361 (2001) ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2007 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21369-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 1 1 Table of Contents 1. Introduction 2 2. Description of the Device Under Test 2 2.1 Antenna description 2 2.2 Device description 2 3. Test Equipment Used 3 3.1 Dosimetric System 3 3.2 Additional Equipment 3 4. Electrical parameters of the tissue simulating liquid 4 5. System Accuracy Verification 5 6. Test Results 6 6.1 Head Adjacent Test Results 7 6.2 Body Worn Test Results 11 References 14 Appendix 1: SAR distribution comparison for system accuracy verification 15 Appendix 2: SAR distribution plots for Phantom Head Adjacent Use 16 Appendix 3: SAR distribution plots for Body Worn Configuration 17 Appendix 4: Probe Calibration Certificate 18 Appendix 5: Measurement Uncertainty Budget 19 Appendix 6: Dipole Characterization Certificate21 See Exhibit 7B for Pictures of Test Setup. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21369-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom of Transceiver Length 37 mm Dimensions Width 5 mm Configuration FJA 2.2 Device description Serial number 807360AB Mode(s) of Operation 800 CDMA 1900 CDMA Bluetooth Modulation Mode(s) QPSK QPSK GMSK Maximum Output Power Setting 25.00 dBm 25.00 dBm 4.00 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Rang(s) 824.70 – 848.31 MHz 1851.25 – 1908.75 MHz 2400.0 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21369-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 6. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE3 378 4/13/2008 E-Field Probe ES3DV3 3115 7/16/2008 S.A.M. Phantom used for 900MHz TP-1005 S.A.M. Phantom used for 1800 MHz TP-1139 Dipole Validation Kit, D900V2 91 5/1/2008 Dipole Validation Kit, D1800V2 259TR 5/1/2008 3.2 Additional Equipment Description Serial Number Cal Due Date Signal Generator HP8648C 3847A04843 7/10/2008 Power Meter E4419B US39250622 6/7/2009 Power Sensor #1 - 9301A US39211006 6/20/2008 Power Sensor #2 - 9301A US39211007 6/11/2008 Network Analyzer HP8753ES US39171846 7/19/2008 Dielectric Probe Kit HP85070B US99360070 MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 21369-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 4. Electrical parameters of the tissue simulating liquid…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56JB1 Test Report Number: 21368-1 EXHIBIT 6 1 of 31 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 21368-1 Report Date – December 11, 2007 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: December 11, 2007 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. A2LA Certificate Number: 2518-02 APPLICANT: MOTOROLA INC FCC ID: IHDT56JB1 Test Report Number: 21368-1 EXHIBIT 6 2 of 31 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 7 Measurement results 7 Occupied Bandwidth 8 Measurement results 9 Spurious Emissions at Antenna Terminals 13 Measurement results 14 Field Strength of Spurious Emissions 16 Measurement results 17 Frequency Stability 19 Measurement results 20 Field Strength of Spurious Emissions -Unintentional Radiators 22 Measurement results 23 AC Line Conducted Emissions 24 Measurement results 25 APPLICANT: MOTOROLA INC FCC ID: IHDT56JB1 Test Report Number: 21368-1 EXHIBIT 6 3 of 31 Test Report Details Tests Performed By: Motorola Mobile Devices business (MDb) Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 Motorola MDb FRN: 0004321311 FCC Registration Number: 316588 Industry Canada Number: IC3908-1 Tests Requested By: Motorola Inc. Mobile Devices Business 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: CDMA 800, CDMA 1900, Bluetooth FCC ID: IHDT56JB1 Serial Numbers: LCL0280037, LCL0280046, LCL0280038, LCL0280090 Testing Complete Date: December 10, 2007 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 2 X Part 15 Subpart B – Unintentional Radiators X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: ANSI 63.4 2003, ANSI/TIA-603-C-2004 APPLICANT: MOTOROLA INC FCC ID: IHDT56JB1 Test Report Number: 21368-1 EXHIBIT 6 4 of 31 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass 8 Field Strength of Spurious Emissions Pass from Unintentional Radiators 9 AC Line Conducted Emissions Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 3 Occupied Bandwidth See Plots 4 Spurious Emissions at Antenna Terminal See results 5 Field Strength of Spurious Emissions See results 6 Frequency Stability See results 7 Field Strength of Spurious Emissions Below noise floor from Unintentional Radiators 8 AC Line Conducted Emissions See Plots The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment with an average temperature of 22º C and relative humidity of 50%. APPLICANT: MOTOROLA INC FCC ID: IHDT56JB1 Test Report Number: 21368-1 EXHIBIT 6 5 of 31 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Manufacturer Equipment Type Model No. Serial Number Calibration Due Date Rohde Schwarz Receiver ESI26 838786/010 3/19/2008 Rohde Schwarz Receiver ESI26 100001 5/02/2008 Hewlett Packard EMC Analyzer E7405 US39440191 1/24/2008 Hewlett Packard Signal Generator 83712A 3429A00286 3/18/2008 ETS Horn Antenna 3115 6222 3/21/2008 A.H. Systems DRG Horn Antenna SAS 200/571 365 5/24/2008 ETS Log-Periodic Antenna 3148 1188 6/18/2008 ETS Biconical Antenna 3110B 3370 3/15/2008 Attenuator Weinschel AS-6 6675 1/31/2008 Attenuator Weinschel AS-6 6677 6/21/2008 Thermotron Environmental Chamber S-4 31580 1/29/2008 Agilent Power Meter E4416A GB41293263 12/27/2008 Agilent Power Sensor E4412B MY44420342 12/28/2007 ETS LISN 3810/2NM 62907 5/02/2008 ETS LISN 3810/2NM 62912 5/02/2008 Note that the Agilent power meter on a two-year calibration cycle. All other equipment is on a one-year calibration cycle. APPLICANT: MOTOROLA INC FCC ID: IHDT56JB1 Test Report Number: 21368-1 EXHIBIT 6 6 of 31 Measurement Procedures and Data RF POWER OUTPUT Measurement Procedure The RF output port of the equipment under test is directly coupled to the input of an Agil…

Text truncated - open the document above for the full version.
