IHDT56LT1GSM 1900 TRANSCEIVER W/GPRS, BLUETOOTH

APPLICANT MOTOROLA INC. FCC ID: IHDT56LT1 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 Removal or change of IMEI (International Mobile Equipment Identity) installed in the mobile phone manufactured and supplied by Motorola, or and attempt to reproduce and enter another ESN in the mobile phone is strictly prohibited and subject to maximum 10-year of imprisonment or a fine up to 20 million won. In addition, such an illegal act may damage the software installed in the phone. Therefore, customers should care so that you do not damage your phone due to such an illegal act. The product which is illegally modified is excluded from any free or paid service warranted by Motorola. Thank you for purchasing Motorola mobile phone with world leading mobile communication technology. Motorola’s mobile communication equipment are designed and produced in compliance with its strict in-house standards and the international standards. They are subject to the strict quality tests including temperature, humidity, shock, dust, vibration and drop tests. We are confident that you will be highly satisfied with the Motorola products that have been manufactured after such processes. Thank you again for choosing Motorola, and we hope that you would succeed in your business with your V14w. Some of the contents and the functions in this manual subject to change without prior notice according to situation. We suggest that you set your phone on vibration at a public place. Grade B device(Residential communication device) notice This device is residential (Grade B) device with electromagnetic suitability registration which can be used in all areas but mainly in the residential area. Safety Information Read this ‘Safety information’ carefully for your own safety and to prevent possible property damage. CAUTION „ This product should not be added with any separate equipment that may cause an alteration to its original performance as described on type registration. • Do not lend your phone to other person. • Follow appropriate cell phone etiquette in public places. • If any problem occurs with your phone, contact designated service center. • If your phone is lost or stolen, report your mobile service provider immediately. • Do not use unauthorized devices with your phone. - Unauthorized battery charger, stereo earphone, USB data cable, batteries or any other unauthorized devices may decrease your product’s performance and may result in product malfunction. • Do not use your earphone for extended hours. - If you are exposed to loud sound for extended period of time, it may damage your hearing. • Make sure to save important data separately. - Saved phone numbers or other data can get lost due to user’s carelessness or other unexpected problems. • Make sure to keep your phone in dry places (with relatively low humidity) at all time. - If either mobile phone or battery is immersed in ‘liquid’, the color of immersion-checking label attached on your mobile phone or battery will be changed. In this case, you will loose the privilege of receiving free service by Motorola. • For normal operation of the touchscreen, do not attach any protection film. Also, be careful with the moisture and use the touchscreen with clean and dry hands. Please keep the following directions to avoid of heating, fire and explosion. • Contact the manufacturer or retail store immediately when you find swollen battery which can be dangerous. • Use authentic charger only. • Do not place the battery near heating apparatus. (Do not put the battery in microwave.) • In summer, do not place the battery in the car. • Do not place or use the battery in a place with high temperature and humidity such as spa. • Do not let metal products such as necklace, coin, key and watch contact the battery terminal. • Use lithium battery guaranteed by mobile device manufacture company. • Do not disjoint, compress or penetrate the battery. • Do not give strong impact such as dropping the battery. • Do not expose the battery in a temperature over 60°C. • Make sure the battery does not get wet. • If the battery is placed in a low temperature for long time, duration of the battery may get shorter. CAUTION FOR USING BATTERY • Do not charge the battery in the way which is not instructed in the user’s manual. - Fire or explosion may occur. RECOMMENDED GUIDELINE FOR CHARGING METHOD Safety Information Safety Information To use the mobile phone safely for a long time Use authentic products only. Using an unauthorized battery or charger may shorten a life cycle of the cell phone or deteriorate its performance, so the safety of the product cannot be guaranteed Be careful not to damage a mobile phone display. Some parts of your mobile device may be made of glass. This glass could break if the product is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by a qualified service center. Do not dry your mobile phone with a heating apparatus. If you dry a wet mobile phone or battery with a heating apparatus, it may cause explosion or damage to your phone. In this case, do not turn on power, separate a battery from the phone and contact a service center designated by Motorola. Be cautious when you use a USB data cable. If you connect the phone with PC via a USB data cable, there is a risk of electric shock depending on the grounding status of the PC’s power. Do not place your phone near items containing magnetic components. Placing the phone near magnetic components may cause product malfunction or battery discharge which can lead to performance decrease. Do not use the mobile phone while charging. If you use the mobile phone while charging it with a charger or USB data cable, there is a risk of electric shock or fire. Make sure that you use the mobile phone after disconnecting it from a USB data cable or charger. Do not give a strong impact…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56LT1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type FCC ID: IHDT56LT1 has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at: Motorola Personal Communications Sector Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 NAME: Oh Leo.Janghwan TITLE: Engineering Manager Mobile Device Date: July 10, 2010 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56LT1 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (FCC ID: IHDT56LT1) is in compliance with all applicable parts of the FCC Rules. NAME: Kim Jangyeol TITLE: Lead Engineer Mobile Device Date: July 29, 2010 EXHIBIT 2 APPLICANT MOTOROLA INC. FCC ID: IHDT56LT1 EXHIBIT 2 ATT ES TATI O N S TAT EM E NT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Oh Leo.Janghwan TITLE: Engineering Manager Mobile Device Date: July 10, 2010

APPLICANT: MOTOROLA FCC ID: IHDT56LT1 Exhibit 13 January 24, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiv er, FCC ID: IHDT56L T1. Motorola is also the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 900,1800 and 1900 MHz PCS band. It also contains GPRS Class 12 and a 2.4 GHz Bluetooth function (Part 15.247). The unit may also be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56L T1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

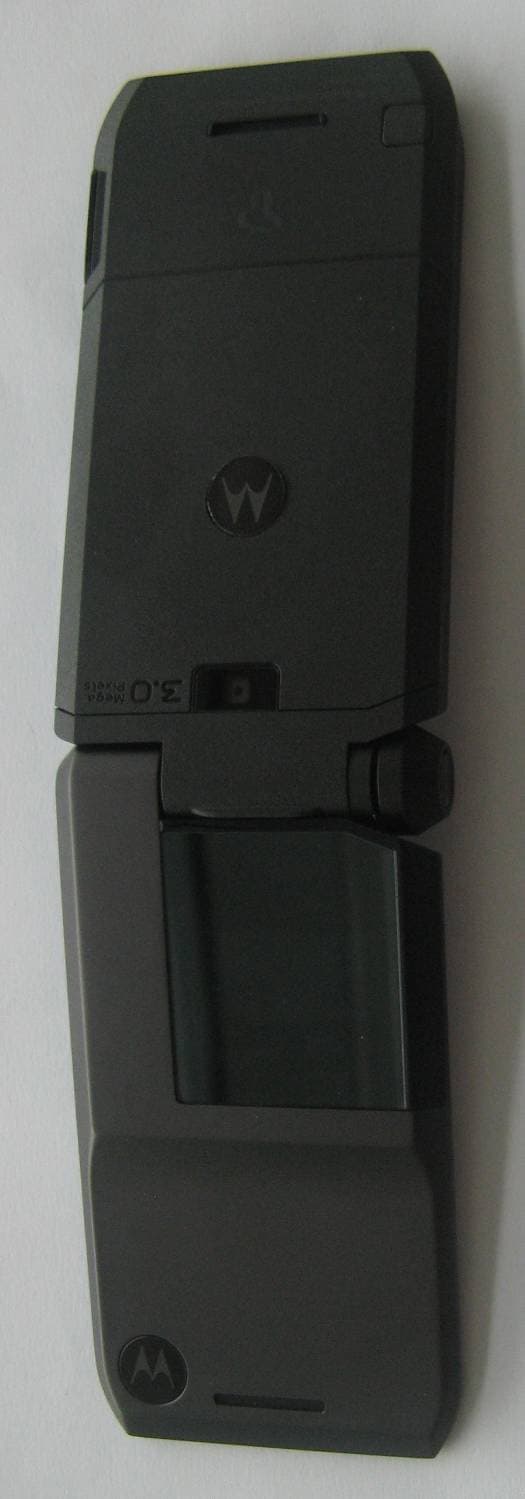

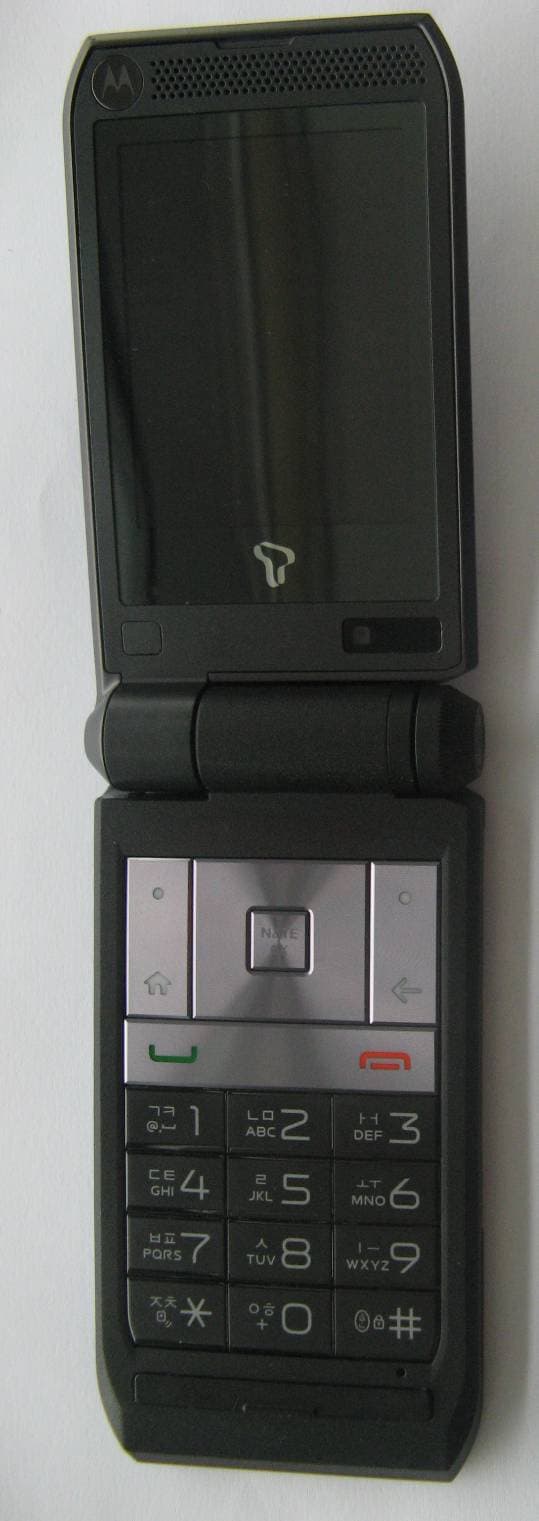

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 EXHIBIT 3 1 of 3 FRONT OF PHONE FLIP OPEN BACK OF PHONE FLIP OPEN APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 EQUIPMENT ID LABEL LOCATION BACK OF PHONE WITH BATTERY COVER REMOVED BACK OF PHONE EXHIBIT 3 2 of 2 FRONT OF PHONE APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 EXHIBIT 3 2 of 2 SIDE OF PHONE

APPLICANT: MOTOROLA INC. FCC ID: IHDT56LT1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDT56LT1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 Main Board Top With Shields Main Board Top Without Shields EXHIBIT 9 1 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 Main Board Bottom Main Board Bottom With Shields Without Shields EXHIBIT 9 2 of 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 EXHIBIT 9 3 of 3 INSIDE FRONT HOUSING INSIDE BACK HOUSING

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 Exhibit 11 Page 1 August 10, 2010 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56LT1) Prepared by: Katerina Bruggemann Motorola Mobile Devices Product Safety Laboratory Libertyville, Illinois APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LT1 Exhibit 11 Page 2 Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56LT1). The requested information is addressed below in the same numbering sequence received. a. GPRS Data mode – it is indicated on page 10/41 that both back and front of the phone were tested. However, on page 11/41, there is only one set of SAR data for 2.5cm separation. Please explain. Also, please clarify whether the 2.5cm data was for the back or front configuration. Response: Both back and front of the phone are tested at 15mm away from phantom (table 7 and table 8) in GSM call. Then, the highest configuration is determined (either front of the phone or back of the phone towards the phantom). In this case, back of the phone is highest for 15mm testing. This configuration was used for the 25mm tests in table 9.

MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23787-2F E E x x h h i i b b i i t t 1 1 1 1 Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobile Devices 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 23787-2F Date of Report: June 9, 2010 Date of Test: May 18, 2010 – May 29, 2010 FCC ID #: IHDT56LT1 Generic Name: WUT6-34411A11 Test Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Katerina Bruggemann Engineer Accreditation: TESTING CERT #2518-02 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2010 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23787-2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 o o f f 2 2 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.2 Device description 3 3. Test Equipment Used 4 3.1 Dosimetric System 4 3.2 Additional Equipment 4 4. Electrical parameters of the tissue simulating liquid 5 5. System Accuracy Verification 6 6. Test Results 7 6.1 Head Adjacent Test Results 7 6.2 Body Worn Test Results 9 References 12 Appendix 1: SAR distribution comparison for the system accuracy verification Appendix 2: SAR distribution plots for Phantom Head Adjacent Use Appendix 3: SAR distribution plots for Body Worn Configuration Appendix 4: Probe Calibration Certificate Appendix 5: Measurement Uncertainty Budget Appendix 6: Dipole Characterization Certificate MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23787-2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 o o f f 3 3 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom of the Transceiver Length 46 mm Dimensions Width 7 mm Configuration FJA 2.2 Device description Serial Number 5562 Mode(s) of Operation GSM 900 GSM 1800 GSM 1900 WCDMA 2100 Bluetooth Modulation Mode(s) GSMK GSMK GSMK QPSK GFSK Maximum Output Power Setting 33.50 31.00 31.00 25.00 9.00 Duty Cycle 1:8 1:8 1:8 1:1 1:1 Transmitting Frequency Range(s) 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz 1922.4 - 1977.6 MHz 2400 - 2484 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled Mode(s) of Operation GPRS 900 GPRS 1800 GPRS 1900 Modulation GMSK GMSK GMSK Maximum Output Power Setting 33.5 31.0 29.0 28.0 31.0 28.0 26.0 25.0 31.0 28.0 26.0 25.0 Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 Transmitting Frequency Range(s) 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz Note: Bolded entries indicate data mode configurations of highest time-average power output per band and data mode type. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 23787-2 E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 o o f f 4 4 3. Test Equipment Used 3.1 Dosimetric System The Motorola Mobile Devices Business Product Safety & Compliance Laboratory utilizes a Dosimetric Assessment System (Dasy4™ v4.7) manufactured by Schmid & Partner Engineering AG (SPEAG™), of Zurich Switzerland. All the SAR measurements are taken within a shielded enclosure. The overall 10g RSS uncertainty of the measurement system is ±10.8% (K=1) with an expanded uncertainty of ±21.6% (K=2). The overall 1g RSS uncertainty of the measurement system is ±11.1% (K=1) with an expanded uncertainty of ±22.2% (K=2). The measurement uncertainty budget is given in Appendix 5. Per IEEE 1528, this uncertainty budget is applicable to the SAR range of 0.4W/kg to 10W/kg. The list of calibrated equipment used for the measurements is shown in the following table. Description Serial Number Cal Due Date DASY4™ DAE V1 SN 703 9/17/2010 E-Field Probe ES3DV3 SN 3037 9/18/2010 S.A.M.…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC FCC ID: IHDT56LT1 Test Report Number 23788-1 EXHIBIT 6 1 of 17 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number – 23788-1 Report Date – 2010-05-13 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Signature: Name: Lei Yang Title: EMC Project Manager Test: 2010-05-06 to 2010-05-13 As the responsible test lab manager, I hereby declare that the model tested as specified in this report conforms to the requirements indicated . Signature: Name: Yilin Zhao Title: Test Lab Manager Date: 2010-08-11 This report must not be reproduced, except in full, without written approval from this laboratory. FCC Registration Number: 177885 IC Registration Number: 109AW-1 ADR Testing Service location ADR BJ ISO/IEC-17025:2005 accredited by UKAS 2404 APPLICANT: MOTOROLA INC FCC ID: IHDT56LT1 Test Report Number 23788-1 EXHIBIT 6 2 of 17 Table of Contents Test Report Details ................................................................................................................... 3 Summary of Testing ................................................................................................................. 4 General and Special Conditions .............................................................................................. 4 Equipment and Cable Configurations ................................................................................... 5 Measurement Procedures and Data ....................................................................................... 7 RF POWER OUTPUT ............................................................................................................. 7 RADIATED POWER (EIRP AND ERP) ......................................................................... ....8 OCCUPIED BANDWIDTH .................................................................................................... 9 SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................................................. 16 FIELD STRENGTH OF SPURIOUS EMISSIONS ........................................................... 19 FREQUENCY STABILITY .................................................................................................. 22 APPLICANT: MOTOROLA INC FCC ID: IHDT56LT1 Test Report Number 23788-1 EXHIBIT 6 3 of 17 Test Report Details Tests Performed By: Motorola (Beijing) Mobility Technologies Ltd. Asia Global Compliance Labs No.1 Wang Jing East Road Chao Yang District Beijing, 100102, P. R. China Phone: +86 10 8473 2610 FCC Registration Number: 177885 IC Registration Number: 109AW-1 Tests Requested By: Motorola (Beijing) Mobility Technologies Ltd. No.1 Wangjing East Road Chao Yang District Beijing, 100102, P. R. China Product Type: Cellular Phone Signaling Capability: GSM 1900, Bluetooth IMEI: 351569040008418, 351569040006859 FCC ID: IHDT56LT1 Project number: 23788-1 Testing Complete Date: 05-13-2010 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 2 X Part 24 Subpart E – Personal Communications Services Applicable Standards: ANSI C63.4-2003, ANSI/TIA-603-C-2004, RSS-Gen Issue 2, RSS- 132 Issue 2. APPLICANT: MOTOROLA INC FCC ID: IHDT56LT1 Test Report Number 23788-1 EXHIBIT 6 4 of 17 Summary of Testing Test Test Name # Pass/Fail 1 RF Power Output NA 2 ERP (Effective Radiated Power) Pass 3 EIRP (Effective Isotropic Radiated Power) Pass 4 Occupied Bandwidth Pass 5 Spurious Emissions at Antenna Terminal Pass 6 Field Strength of Spurious Emissions Pass 7 Frequency Stability Pass Test Test Name Margin with respect # to the Limit_________ 1 RF Power Output NA 2 ERP (Effective Radiated Power) See results 3 EIRP (Effective Isotropic Radiated Power) See results 4 Occupied Bandwidth See Plots 5 Spurious Emissions at Antenna Terminal See results 6 Field Strength of Spurious Emissions See results 7 Frequency Stability See results The margin with respect to the limit is the minimum margin for all modes and bands. General and Special Conditions The EUT was tested using a fully charged battery when applicable. Where a battery could not be used due to the need for a controlled variation of input voltage, an external power supply was utilized. All testing was done in an indoor controlled environment. The temperature and the relative humidity were maintained within the ANSI C63.4-2003 Standard requirements during the entire duration of testing. APPLICANT: MOTOROLA INC FCC ID: IHDT56LT1 Test Report Number 23788-1 EXHIBIT 6 5 of 17 Equipment and Cable Configurations The EUT was tested in a stand-alone configuration that is representative of typical use. Equipment Model/type Serial number Operational range Date of calibration EMI analyzers ESU 40 100036 20 Hz – 40 GHz 05.15.2009 PA-02-0001: 2007343 (10 kHz – 3 GHz) 06.26.2009 PA-02-218 2007344 3 GHz – 18 GHz 06.26.2009 Pre Amplifiers PA-02-5 2007345 18 GHz – 40 GHz 06.26.2009 Radio com. Tester CMU 200 112790 GSM 850/900/1800/1900 UMTS, CDMA, Bluetooth N/A WRCD N/A GSM 850/900/1800/1900 UMTS, CDMA N/A Band Reject Filter 4N45-24241/3/6 N/A WLAN N/A EMI analyzers R&S ESCI 100650 9 kHz – 3 GHz 03.07.2010 LISN ENV216 100057 9 kHz – 30 MHz 12.19.2008 Environment Chamber Votsch VT4004 3546270300000 20 -50 0 C -150 0 C 12.23.2009 DC Power Supply Agilent E3632A My40021519 15V/7A 03.07.2010 Power meter Agilent E4416A MY451000906NA 03.03.2009 Power sensor Agilent E9323A MY44420783 50MHz-6GHz 03.03.2009 The antennas used in the various tests are listed in the below table. Antenna Type Serial number Operational range Date of calibration Hybrid-log periodic TDK HLP 3003C 130361 30 MHz – 3 GHz 11.07.08 Double ridged Horn TDK HRN0118130303 1 …

Text truncated - open the document above for the full version.

EMC TEST SETUP PHOTOS Radiated Emissions Radiated Emissions – Computer Peripheral APPLICANT: MOTOROLA, INC.FCC ID: IHDT56LT1 EXHIBIT 7 AC Line Conducted Emissions AC Line Conducted Emissions – Computer Peripheral APPLICANT: MOTOROLA, INC.FCC ID: IHDT56LT1 EXHIBIT 7

Applicant: Motorola, Inc. FCC ID: IHDT56LT1 E E x x h h i i b b i i t t 7 7 D D P P a a g g e e 0 0 Portable Cellular Phone SAR Test Report Photographs of the device under test Applicant: Motorola, Inc. FCC ID: IHDT56LT1 E E x x h h i i b b i i t t 7 7 D D P P a a g g e e 1 1 Figure 1: Phone Front, Flip Closed Figure 2: Phone Back, Flip Closed Applicant: Motorola, Inc. FCC ID: IHDT56LT1 E E x x h h i i b b i i t t 7 7 D D P P a a g g e e 2 2 Figure 3: Phone Open Figure 4: Cheek Position Applicant: Motorola, Inc. FCC ID: IHDT56LT1 E E x x h h i i b b i i t t 7 7 D D P P a a g g e e 3 3 Figure 5: Tilt Position Figure 6: Body Position Applicant: Motorola, Inc. FCC ID: IHDT56LT1 E E x x h h i i b b i i t t 7 7 D D P P a a g g e e 4 4 Figure 7: Antenna Separation Distances
