APPLICANT MOTOROLA INC. FCC ID: IHDT56LV1 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 MOTOROLA HSPA LGA Module User Guide HSPA LGA module (HTM1100-L) User Guide DOCUMENT CONTROL NUMBER: Version No.: 1.0 Date: March 2010 Motorola Confidential Proprietary – Disclosed Under NDA Page 1 of 43 Copyright 2010 Motorola Inc. All rights reserved. This document and the information contained in it is CONFIDENTIAL INFORMATION of Motorola, and shall not be used, published, disclosed, or disseminated outside of Motorola in whole or in part without Motorola’s consent. This document contains trade secrets of Motorola. Copyright notice does not imply publication of this document. MOTOROLA HSPA LGA Module User Guide HSPA LGA MODULE (HTM1100-L)........................................................................................................ 1 USER GUIDE............................................................................................................................................... 1 1. INTRODUCTION...............................................................................................................................4 1.1 REVISION HISTORY...................................................................................................................... 4 1.2 PURPOSE...................................................................................................................................... 4 1.3 SCOPE.......................................................................................................................................... 4 1.4 TARGET AUDIENCE...................................................................................................................... 4 1.5 ABBREVIATIONS........................................................................................................................... 5 2. REFERENCES.................................................................................................................................... 6 3. PRODUCT OVERVIEW................................................................................................................... 7 4. HARDWARE ARCHITECTURE..................................................................................................... 8 5. SOFTWARE ARCHITECTURE...................................................................................................... 9 5.1.1 Inter-Processor Communication........................................................................................... 10 5.1.2 Modem Software Architecture Overview.............................................................................. 10 5.1.3 ARM9 Software Architecture Overview................................................................................ 11 6. HTM1100-L MODULE FEATURE SUMMARY.......................................................................... 12 6.1 HARDWARE REVISION:............................................................................................................... 12 6.2 2G.............................................................................................................................................. 12 6.3 3G.............................................................................................................................................. 12 6.4 ADVANCED SERVICES................................................................................................................ 12 6.5 AUDIO........................................................................................................................................ 12 6.6 INTERNAL MEMORY................................................................................................................... 13 6.7 SYSTEM REQUIREMENTS............................................................................................................ 13 6.8 SECURITY................................................................................................................................... 13 6.9 CONNECTIVITY........................................................................................................................... 13 6.10 POWER UP SEQUENCE................................................................................................................ 13 7. SPECIFICATIONS........................................................................................................................... 15 7.1.1 Electrical Specification......................................................................................................... 15 7.1.2 Mechanical Specification...................................................................................................... 15 8. LGA MODULE INTERFACES...................................................................................................... 17 8.1.1 LGA Interface Signals.......................................................................................................... 17 8.1.2 SIM Interface........................................................................................................................ 20 8.1.3 WWAN_LED......................................................................................................................... 20 8.1.4 Audio Interface..................................................................................................................... 20 9. COMMUNICATION WITH HOST............................................................................................... 21 9.1.1 Overview...............................................................................................................................21 9.1.2 Link Details.......................................................................................................................... 22 9.1.3 Host Modem Wakeup Mechanism...............................................................................…

Text truncated - open the document above for the full version.

APPLICANT MOTOROLA INC. FCC ID: IHDT56LV1 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 MOTOROLA HSPA LGA Module User Guide HSPA LGA module (HTM1100-L) User Guide DOCUMENT CONTROL NUMBER: Version No.: 1.0 Date: March 2010 Motorola Confidential Proprietary – Disclosed Under NDA Page 1 of 43 Copyright 2010 Motorola Inc. All rights reserved. This document and the information contained in it is CONFIDENTIAL INFORMATION of Motorola, and shall not be used, published, disclosed, or disseminated outside of Motorola in whole or in part without Motorola’s consent. This document contains trade secrets of Motorola. Copyright notice does not imply publication of this document. MOTOROLA HSPA LGA Module User Guide HSPA LGA MODULE (HTM1100-L)........................................................................................................ 1 USER GUIDE............................................................................................................................................... 1 1. INTRODUCTION...............................................................................................................................4 1.1 REVISION HISTORY...................................................................................................................... 4 1.2 PURPOSE...................................................................................................................................... 4 1.3 SCOPE.......................................................................................................................................... 4 1.4 TARGET AUDIENCE...................................................................................................................... 4 1.5 ABBREVIATIONS........................................................................................................................... 5 2. REFERENCES.................................................................................................................................... 6 3. PRODUCT OVERVIEW................................................................................................................... 7 4. HARDWARE ARCHITECTURE..................................................................................................... 8 5. SOFTWARE ARCHITECTURE...................................................................................................... 9 5.1.1 Inter-Processor Communication........................................................................................... 10 5.1.2 Modem Software Architecture Overview.............................................................................. 10 5.1.3 ARM9 Software Architecture Overview................................................................................ 11 6. HTM1100-L MODULE FEATURE SUMMARY.......................................................................... 12 6.1 HARDWARE REVISION:............................................................................................................... 12 6.2 2G.............................................................................................................................................. 12 6.3 3G.............................................................................................................................................. 12 6.4 ADVANCED SERVICES................................................................................................................ 12 6.5 AUDIO........................................................................................................................................ 12 6.6 INTERNAL MEMORY................................................................................................................... 13 6.7 SYSTEM REQUIREMENTS............................................................................................................ 13 6.8 SECURITY................................................................................................................................... 13 6.9 CONNECTIVITY........................................................................................................................... 13 6.10 POWER UP SEQUENCE................................................................................................................ 13 7. SPECIFICATIONS........................................................................................................................... 15 7.1.1 Electrical Specification......................................................................................................... 15 7.1.2 Mechanical Specification...................................................................................................... 15 8. LGA MODULE INTERFACES...................................................................................................... 17 8.1.1 LGA Interface Signals.......................................................................................................... 17 8.1.2 SIM Interface........................................................................................................................ 20 8.1.3 WWAN_LED......................................................................................................................... 20 8.1.4 Audio Interface..................................................................................................................... 20 9. COMMUNICATION WITH HOST............................................................................................... 21 9.1.1 Overview...............................................................................................................................21 9.1.2 Link Details.......................................................................................................................... 22 9.1.3 Host Modem Wakeup Mechanism...............................................................................…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA INC. FCC ID: IHDT56LV1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56LV1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Gregory E. Skillman TITLE: Engineering Manager Motorola Mobile Devices Business Date: March 16, 2010 Page 1 of 2 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56LV1 Page 2 of 2 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56LV1) is in compliance with all applicable parts of the FCC Rules. NAME: Gregory E. Skillman TITLE: Engineering Manager Motorola Mobile Devices Business Date: March 16, 201

APPLICANT: MOTOROLA INC. FCC ID: IHDT56LV1 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56LV1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Gregory E. Skillman TITLE: Engineering Manager Motorola Mobile Devices Business Date: March 16, 2010 Page 1 of 2 EXHIBIT 2 APPLICANT: MOTOROLA INC. FCC ID: IHDT56LV1 Page 2 of 2 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56LV1) is in compliance with all applicable parts of the FCC Rules. NAME: Gregory E. Skillman TITLE: Engineering Manager Motorola Mobile Devices Business Date: March 16, 201

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LV1 January 29, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Mobile Transceiver Certification Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of mobile Cellular/PCS Transceiver, FCC ID: IHD T56LV1. Motorola is the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4: Block Diagrams • Exhibit 5: Schematics • Exhibit 10: Parts List / Tune-up Information • Exhibit 12: Operational Description Description: This equipment is a 2G/3G HSPA PCIe card to support GSM850/1900 and WCDMA 850/1900 that supports HSPA data rates up to 10.1 Mbps downlink and 5.76 Mbps uplink . The unit also contains a USB computer connection ( Part 15, Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations . Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LV1 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHD T56LV1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: April 6, 2010 Subject: Request for additional information regarding FCC ID: IHDT56LV1 Reference: Correspondence Reference Number: IHD100325 Confirmation Number: Y1003230325-6 Date of Original Email: March 25, 2010 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. Will the EUT be marketed to the general public (i.e., the end user) or only to OEM installers? RESPONSE: The EUT will be marketed only to OEM installers. 2. The HSPA data rates listed in the application appear to be lower than for standard HSPA operation- please confirm that they are correct. RESPONSE: Yes confirmed, t his CP1000 supports HSPA data rates up to 10.1 Mbps downlink and 5.76 Mbps uplink. 3. The block diagram is insufficient. Please submit a block diagram that shows some detail of the RF section of the transmitter, as well as listing the values of all clocks/oscillators. RESPONSE: Please refer to the revised block diagram. 4. The installation manual must inform the installer of all of the regulatory language that they must provide to the end user by providing an example (i.e., Sections 15.19, 15.21, 15.105, external label stating “This device contains TX FCC ID: IHDT56LV1”, etc.). Please revise the installation manual to include this information and resubmit it. RESPONSE: Please refer to the revised manual (exhibit 8). 5. The installation manual must include the required RFx warning statement the installer re installing such that a minimum 20 cm separation distance is 1 maintained between the antennas and all users during normal operation. Please revise and resubmit the installation manual. RESPONSE: Please refer to the revised manual (exhibit 8). 6. No reference to antenna choice and installation is made in the installation manual. Please revise, informing the installer of the maximum permitted gains per band (from the MPE report) and resubmit it. RESPONSE: Please refer to the revised manual (exhibit 8). 7. The frequency stability data lists “battery endpoint”, but the EUT is not battery powered. Pursuant to Section 2.1055(d)(1), please provide frequency stability data with the primary supply voltage varied from 85% to 115%. RESPONSE: Please refer to the updated test report (exhibit 6). 8. The MPE report uses maximum source based time-averaged transmit power levels in the calculations. Please submit test data to support the power levels used. RESPONSE: Please refer to the following conducted power level table: 2 3 Table 1. Conducted Power Levels = Highest peak power, to be used for ERP/EIRP calculations = Highest average power, to be used for MPE calculations GSM Class 8 Class 10 Class 11 Class 12 Units 33.27 31.27 29.27 27.27 dBm 2123.24 1339.68 845.28 533.33 mW 850 265.41 334.92 316.98 266.67 mW (time avg) 30 28 26 24 dBm 1000.00 630.96 398.11 251.19 mW 1900 125.00 157.74 149.29 125.59 mW (time avg) 8PSK Class 8 Class 10 Class 11 Class 12 Units 28 26 24 22 dBm 630.96 398.11 251.19 158.49 mW 850 78.87 99.53 94.20 79.24 mW (time avg) 27 25 23 21 dBm 501.19 316.23 199.53 125.89 mW 1900 62.65 79.06 74.82 62.95 mW (time avg) WCDMA dBm mW 850 24.09 256.45 1900 24.27 267.30 9. FYI: pursuant to Section 2.1033(c), the target output power ranges for the EUT must be submitted with the application (typically in the tune- up procedure). In the future, please be sure that they are submitted. RESPONSE: FYI is noted.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LV1 January 29, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Mobile Transceiver Certification Application: Motorola, Inc., Mobile Devices, 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits: Application for Equipment Authorization for Certification of mobile Cellular/PCS Transceiver, FCC ID: IHD T56LV1. Motorola is the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4: Block Diagrams • Exhibit 5: Schematics • Exhibit 10: Parts List / Tune-up Information • Exhibit 12: Operational Description Description: This equipment is a 2G/3G HSPA PCIe card to support GSM850/1900 and WCDMA 850/1900 that supports HSPA data rates up to 10.1 Mbps downlink and 5.76 Mbps uplink . The unit also contains a USB computer connection ( Part 15, Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations . Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048 Exhibit 13

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LV1 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHD T56LV1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: April 6, 2010 Subject: Request for additional information regarding FCC ID: IHDT56LV1 Reference: Correspondence Reference Number: IHD100325 Confirmation Number: Y1003230325-6 Date of Original Email: March 25, 2010 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. Will the EUT be marketed to the general public (i.e., the end user) or only to OEM installers? RESPONSE: The EUT will be marketed only to OEM installers. 2. The HSPA data rates listed in the application appear to be lower than for standard HSPA operation- please confirm that they are correct. RESPONSE: Yes confirmed, t his CP1000 supports HSPA data rates up to 10.1 Mbps downlink and 5.76 Mbps uplink. 3. The block diagram is insufficient. Please submit a block diagram that shows some detail of the RF section of the transmitter, as well as listing the values of all clocks/oscillators. RESPONSE: Please refer to the revised block diagram. 4. The installation manual must inform the installer of all of the regulatory language that they must provide to the end user by providing an example (i.e., Sections 15.19, 15.21, 15.105, external label stating “This device contains TX FCC ID: IHDT56LV1”, etc.). Please revise the installation manual to include this information and resubmit it. RESPONSE: Please refer to the revised manual (exhibit 8). 5. The installation manual must include the required RFx warning statement the installer re installing such that a minimum 20 cm separation distance is 1 maintained between the antennas and all users during normal operation. Please revise and resubmit the installation manual. RESPONSE: Please refer to the revised manual (exhibit 8). 6. No reference to antenna choice and installation is made in the installation manual. Please revise, informing the installer of the maximum permitted gains per band (from the MPE report) and resubmit it. RESPONSE: Please refer to the revised manual (exhibit 8). 7. The frequency stability data lists “battery endpoint”, but the EUT is not battery powered. Pursuant to Section 2.1055(d)(1), please provide frequency stability data with the primary supply voltage varied from 85% to 115%. RESPONSE: Please refer to the updated test report (exhibit 6). 8. The MPE report uses maximum source based time-averaged transmit power levels in the calculations. Please submit test data to support the power levels used. RESPONSE: Please refer to the following conducted power level table: 2 3 Table 1. Conducted Power Levels = Highest peak power, to be used for ERP/EIRP calculations = Highest average power, to be used for MPE calculations GSM Class 8 Class 10 Class 11 Class 12 Units 33.27 31.27 29.27 27.27 dBm 2123.24 1339.68 845.28 533.33 mW 850 265.41 334.92 316.98 266.67 mW (time avg) 30 28 26 24 dBm 1000.00 630.96 398.11 251.19 mW 1900 125.00 157.74 149.29 125.59 mW (time avg) 8PSK Class 8 Class 10 Class 11 Class 12 Units 28 26 24 22 dBm 630.96 398.11 251.19 158.49 mW 850 78.87 99.53 94.20 79.24 mW (time avg) 27 25 23 21 dBm 501.19 316.23 199.53 125.89 mW 1900 62.65 79.06 74.82 62.95 mW (time avg) WCDMA dBm mW 850 24.09 256.45 1900 24.27 267.30 9. FYI: pursuant to Section 2.1033(c), the target output power ranges for the EUT must be submitted with the application (typically in the tune- up procedure). In the future, please be sure that they are submitted. RESPONSE: FYI is noted.

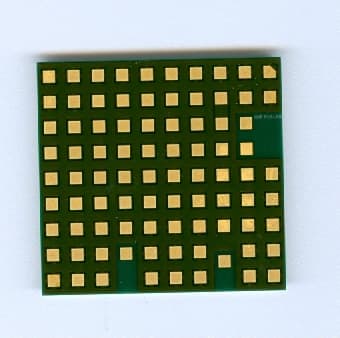

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LV1 Top View of HTM1100-L Bottom View of HTM100-L EXHIBIT 3 2 of 2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LV1 Top View of HTM1100-L Bottom View of HTM100-L EXHIBIT 3 2 of 2

APPLICANT: MOTOROLA INC. FCC ID: IHDT56LV1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDT56LV1

APPLICANT: MOTOROLA INC. FCC ID: IHDT56LV1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the tim…
