IHDT56LW1Portable Cellular/ PCS GSM/ EDGE Cellular/ AWS WCDMA Transceiver with WLAN and Bluetooth

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56LW1 INSTRUCTION MANUALA preliminary draft of the User’s Manual follows this page. EXHIBIT 8 MOTOROLA [Begonia] ™ with MOTOBLUR ™ 1 Welcome WelcomeMOTOROLA [Begonia] with MOTOBLURMOTOBLUR can sync all your friends, emails, messages, Facebook®, MySpace, and Twitter, with continuous updates.• Use customizable widgets, so you're in control of the messages and updates you receive. • Download thousands of cool apps from Android Market™, to play and surf to your heart’s content. • Locate and wipe your phone if it’s ever lost or stolen. Caution: Before assembling, charging, or using your phone for the first time, please read the important legal and safety information packaged with your product. More•Answers: To u ch > My Device . You can also flick your home screen left or right to show the Getting Started and Tips & Tricks widgets. •Updates: Phone updates, PC software, online help and more at www.motorola.com/support . •MOTOBLUR: After you create a MOTOBLUR account, open it at www.motorola.com/mymotoblur . • Accessories: Find accessories fo r your phone at www.motorola.com/products . 2 Your phone Your phonethe important keys & connectors 11:35 3G 11:35 AM Soooo ready to just chill ALL summer! Kristine KelleyNot even ready to go back to school 10 minutes ago KrKKKrKr iiiiiiisisis i ii titititititi nenenene KKKKKKK K llll l elelelel lllllllelelele Not even rea d g o b ac k to sc h No meetings this week eee yyy d y to h oo l NNNNNoNoNoNoNo mmmmm m eeeeeeeeeeee ii titititititititi ngngngngngng ssss t his week THU 08 JUL Browser Messaging Power Press to put the display to sleep, or hold to turn off. 3.5mm Headset SearchBack Microphone Home Micro USB Connector Charge or connect to PC. Notification LightOn=ChargedFlashing= Message VolumeCamera Menu Note: Your phone might look a little different. 11:35 AM Soooo ready to just chill ALL summer! Browser Messaging Kristine KelleyNot even ready to go back to school 10 minutes ago No meetings this week THU 08 JUL Shift Space Alternate Scroll SearchPress for text, hold for voice. 3 Contents ContentsLet’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Touchscreen & keys . . . . . . . . . . . . . . . . . . . . . . . . . 6Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9Apps & updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Social networking . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Photos & videos . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Memory card & file transfer . . . . . . . . . . . . . . . . . . 39Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 45Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . 46 Let’s golet’s get you up and runningAssemble & charge Caution: Please read “Battery Use & Safety” on page 46.Tip: To save battery life, see “Battery tips” on page 26. 1 cover off 2 SIM in 3 battery in 4 microSD in (already done) 5 cover on 6 charge up 3H 4 Contents Set up & goCreate or log into a MOTOBLUR account to get your contacts, email, messages, and status information, for all your accounts, all in one place. Registration is secure, and should only take a few minutes:Note: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. For details, contact your service provider. 1 Tu r n o n . 2 Select a language. 3 Register or log in.If you have not created a MOTOBLUR account, you’ll need to register: Enter your name, your current email address (where MOTOBLUR can send account information), and a new MOTOBLUR password.Tip: Open your phone to type. 4 Add your accounts to MOTOBLUR.To add an account, touch it. Then, enter the user name or email and password that you set up on that account.Tip: For more, or to add accounts anytime, go to “Add accounts” on page 12. 5 After you sign in, your phone imports your contacts from your SIM card. To open your contacts, touch Contacts . Tip: To manually import contacts from the SIM card, touch > Manage SIM card > Import SIM card . Your MOTOBLUR accountOnly MOTOBLUR syncs contacts, posts, feeds, messages, emails, photos and much more—from sources like Facebook®, Twitter, MySpace, your work email, Picasa™, and Photobucket®—and serves them up just the way you want them. No opening and closing apps and menus, it’s all front and center on your home screen and throughout the entire phone, so you can communicate anyway you like.To add or edit the email, social networking, and other accounts in your MOTOBLUR, touch > Accounts . To set up email accounts, see “Set up messaging” on page 20You can log into MOTOBLUR from a computer to upload contacts, reset your password, get help, or even locate your phone: www.motorola.com/mymotoblur 5 Contents Turn it on & offTo turn on your phone, press and hold Power on top of your phone.To turn off your phone, press and hold Power , then touch Power off in the menu that opens. Wi-Fi® connectIf you want to use a Wi-Fi network for even faster Internet acce…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56LW1 Page 1 of 4 EXHIBIT 2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56LW1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola Mobility, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Gustavo Suarez TITLE: Engineering Manager Motorola Mobility Date: September 15, 2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56LW1 Page 2 of 4 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56LW1) is in compliance with all applicable parts of the FCC Rules. NAME: Gustavo Suarez TITLE: Engineering Manager Motorola Mobility Date: September 15, 2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56LW1 Page 3 of 4 EXHIBIT 2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) • the hopping sequence must be pseudorandom • all Channels are used equally on average • the receiver input bandwidth is approximately equal to the transmit bandwidth • the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Gustavo Suarez TITLE: Engineering Manager Motorola Mobility Date: September 15, 2010 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56LW1 Page 4 of 4 EXHIBIT 2 ATTESTATION STATEMENT Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance for FCC ID: IHDT56LW1. NAME: Gustavo Suarez TITLE: Engineering Manager Motorola Mobility Date: September 15, 2010

APPLICANT: MOTOROLA MOBILITYFCC ID: IHDT56LW1 Exhibit 13 September 8, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Gentlemen: Application: Motorola Mobility, Inc., 600 N. U.S. Highway 45, Libertyville, Illinois 60048-1286 herein submits: Application for Equipment Authorization for Certification of a Cellular Transceiv er, FCC ID: IHDT56L W1. Motorola is also the manufacturer of this equipment. Confidentiality : Pursuant to Section 0.459 of the Commission's rules (CFR 47), Motorola requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a GSM portable transceiver, which operates in the 85 0, 900,1800 and 1900 MHz PCS band. It also operates in WCDMA 850, 1700, and 2100 MHz, and contains EDGE Class 12, a 2.4 GHz Bluetooth function (Part 15.247) , and IEEE 802.11 b/g/n. The unit may also be connected to a computer via a USB connection (Part 15 Class B Computing Device Peripheral). Note: This device also contains functions that are not operational in U.S. territories. This filing is only applicable for US operations. Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343

APPLICANT: MOTOROLA MOBILITYFCC ID: IHDT56LW1 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56 LW1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

Date: September 24, 2010 Subject: Request for additional information regarding FCC ID: IHDP56LW1 Reference: Correspondence Reference Number: IHD101116 Confirmation Number: Y1009081116-9 Date of Original Email: September 15, 2010 Prepared by: Andrew Bachler, Principal Staff Engineer Motorola Mobile Device Business Libertyville, Illinois 60048 Questions and responses follow: 1. The DSS/DTS (BT/WiFi) Block Diagram, on p. 4 of 6 of the BLD document, does not show the clock/oscillator values. Please revise and resubmit. Response: Please refer to the revised block diagram, exhibit 4. 2. The test set- up photos show an apparently incorrect test set- up for the JBP 15B Radiated Emission testing, pursuant to ANSI C63.4- it appears that the peripherals are not flush with the rear of the table, although it is difficult to be sure, since the photo is from so far away. The AC line conducted test set up photo shows a configuration that is not in compliance with the requirements of C63.4. If, indeed, these test set-ups were not incompliance with the requirements of ANSI C63.4, please re-test with compliant configurations and submit new data. If the set-ups were in compliance, please provide photos clearly showing this. Response: Please refer to the revised test setup photos, exhibit 7. 3. Please provide RF conducted plots of the AWS WCDMA emissions at points removed from the bandedges by 1 MHz, using RBW = 1 MHz, as required by Section 27.53(h)(1). Please note that, per Section 27.53(h)(3), since a peak detector was used to measure EIRP, a peak detector must also be used for these near- bandedge measurements. Response: Please refer to the revised EMC test report, exhibit 6. 1 4. The plot at the top of P. 22 of 49 of the PCE EMC report is mis-labeled as “WCDMA 1900” – please revise. Response: Please refer to the revised EMC test report, exhibit 6. 5. It appears that both receivers in the DTS EMC report equipment list on p. 5 of 60 were past their cal due dates at the time of testing. Please address. Response: Please refer to the revised EMC test report, exhibit 6. 6. Page 19 of 60 of the DTS EMC report lists “PEAK OUTPUT POWER”, but only average data (both tabular and plots) is provided. Please reconcile. Please note that, in order to have the average power level listed on the grant, the EUT must comply with the 30 dBc oob limit- see question 7, below. Response: Please refer to the revised EMC test report, exhibit 6A5. 7. The DTS spurious RF conducted emissions, including bandedges (pp. 28-56) have all been measured with an average detector. This is not permitted for 15.247 devices. Please re-measure with a peak detector, as required, and submit new data. Response: Please refer to the revised EMC test report, exhibit 6A5. 8. Output power data in the SAR report shows that the levels are flat across all subtests in HSUPA (Rel 6) mode- this does not appear to be standard implementation of MPR. Please provide an explanation. Response: Please refer to the revised EMC test report, exhibit 6. 9. Page 16 of 81 of the SAR report should include a statement justifying front body SAR data inclusion, as has been included in other recent Motorola SAR reports (i.e., to account for the possibility of an accessory positioning the device with its front toward the user). Response: Please refer to the revised SAR report, exhibit 11. 10. The statement on p. 16 of 81 of the SAR report references a 15 mm separation distance used for testing, but the data is all at 25mm. Please reconcile. Response: Please refer to the revised SAR report, exhibit 11. 2

From: ANDREW BACHLER Sent: Monday, October 04, 2010 6:55 PM To: PCTEST TCB/CB Subject: Re: Follow-Up Questions Regarding FCC ID: IHDT56LW1 Hi Greg, Q1. Please refer to the attached revised WLAN test report Q2. The software control of output power is configured to meet our customer requests for this device. Regards, Andy Andrew Bachler FCC & IC Liaison Motorola Mobility, Inc. On Wed, Sep 29, 2010 at 12:25 PM, PCTEST TCB/CB <[email protected] > wrote: Hello Andy, Thank you for your email. 1. Regarding your response to question #7, the revise d DTS EMC report still contains RF conducted and bandedge data taken with an average detector. The FCC requires that, for 15.247 devices, a peak detector be used for RF conducted emission measurements (including bandedge). Please provide this data. Please note that, in order to have the average power level listed on the grant, the EUT must comply with the 30 dBc (peak) oob limit. 2. Please provide additional explanation regarding the lack of MPR implementation (in the past, Motorola devices have implemented MPR). The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager

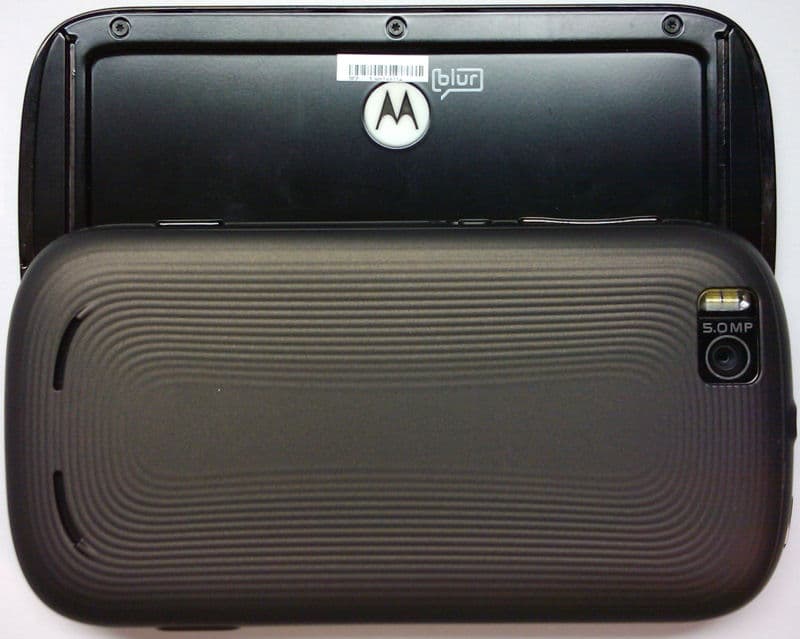

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56LW1 EXHIBIT 3 1 of 3 FRONT OF PHONE-SLIDEOPEN BACKOF PHONE-SLIDEOPEN APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 EXHIBIT 3 2 of 3 BACK OF PHONE BACK OF PHONE WITH BATTERY COVER REMOVED FRONT OF PHONE APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 EXHIBIT 3 3 of 3 TOP & BOTTOM SIDES OF PHONE LEFT & RIGHT SIDES OF PHONE

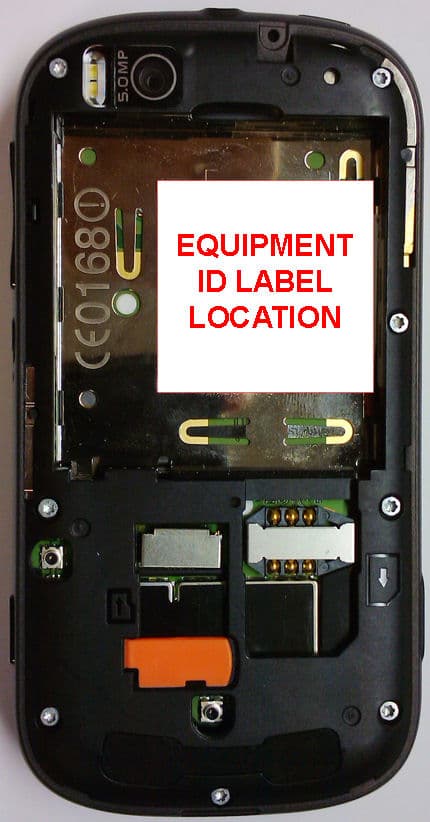

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56LW1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION FCC ID: IHDT56LW1 The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. EXHIBIT 1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 EXHIBIT 9 1 of 5 Main Board Top Without Shields Main Board Top With Shields APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 EXHIBIT 9 2 of 5 Main Board Bottom Without Shields Main Board Bottom With Shields APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 EXHIBIT 9 3 of 5 Front Subassembly with PCB removed Front Subassembly APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 EXHIBIT 9 4 of 5 Rear Subassembly APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 EXHIBIT 9 5 of 5 Slide Assembly Slide Assembly with Display and Flexes (Slide-Plate removed) Slide-Plate Internal

MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24003-1F E E x x h h i i b b i i t t 1 1 1 1 Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobile Devices 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 24003-1F Date of Report: Sept 3, 2010 Date of Test: Aug 22 – Sept 3, 2010 FCC ID #: IHDT56LW1 Generic Name: MKSQ7-3334411A11 Test Laboratory: Motorola Mobile Devices Business Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Katerina Bruggemann Engineer Accreditation: TESTING CERT #2518-02 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola, Inc. 2010 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24003-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 o o f f 2 2 2 2 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.2 Device description 3 3. Test Equipment Used 5 3.1 Dosimetric System 5 3.2 Additional Equipment 5 4. Electrical parameters of the tissue simulating liquid 6 5. System Accuracy Verification 7 6. Test Results 8 6.1 Head Adjacent Test Results 10 6.2 Body Worn Test Results 16 References 22 Appendix 1: SAR distribution comparison for the system accuracy verification Appendix 2: SAR distribution plots for Phantom Head Adjacent Use Appendix 3: SAR distribution plots for Body Worn Configuration Appendix 4: Probe Calibration Certificate Appendix 5: Measurement Uncertainty Budget Appendix 6: Dipole Characterization Certificate MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24003-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 o o f f 2 2 2 2 1. Introduction The Motorola Mobile Devices Business Product Safety Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final SAR reading for this phone is 0.63 W/kg for head adjacent use and 1.15 W/kg for body worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Bottom of the Phone Length 55 mm Dimensions Width 12 mm 2.2 Device description Serial Number(s) TA19103KRE Mode(s) of Operation* GSM 850 GSM 900 GSM 1800 GSM 1900 WCDMA 850 WCDMA 1700 WCDMA 2100 Wi-Fi 802.11 b/g/n Blue Tooth Modulation Mode(s) GMSK GMSK GMSK GMSK QPSK QPSK QPSK BPSK GFSK Maximum Output Power Setting 33.0 dBm 33.0 dBm 30.5 dBm 30.5 dBm 24.0 dBm 24.0 dBm 24.0 dBm 16.0 dBm 10.07 dBm Duty Cycle 1:8 1:8 1:8 1:8 1:1 1:1 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.20 - 1909.80 MHz 826.4 - 846.6 MHz 1712.4 - 1752.6 MHz 1922.4 - 1977.6 MHz 1710.2 - 1784.8 MHz 2400 - 2483.5 MHz Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24003-1F E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 o o f f 2 2 2 2 Mode(s) of Operation GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation GMSK GMSK GMSK GMSK Maximum Output Power Setting 33.0 31.0 29.0 27.1 33.0 31.0 29.0 27.1 30.5 28.6 26.7 24.9 30.5 28.6 26.7 24.9 Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz Mode(s) of Operation EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Modulation 8PSK 8PSK 8PSK 8PSK Maximum Output Power Setting 27.5 25.6 23.7 21.8 27.5 25.6 23.7 21.8 26.5 24.73 22.96 21.19 26.5 24.73 22.96 21.19 Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24003-1F E E x x h h i i b…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 Exhibit 11 Page 1 Sept 23, 2010 Supplement to SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56LW1). Prepared by: Katerina Bruggemann Motorola Mobile Devices Product Safety Laboratory Libertyville, Illinois APPLICANT: MOTOROLA, INC. FCC ID: IHDT56LW1 Exhibit 11 Page 2 Summary of FCC request for additional information There was a request for additional information regarding Motorola’s SAR Test Report for Motorola portable cellular phone (FCC ID IHDT56LW1). The requested information is addressed below in the same numbering sequence received. a. Output power data in the SAR report shows that the levels are flat across all subtests in HSUPA (Rel 6) mode- this does not appear to be standard implementation of MPR. Please provide an explanation. Response: This device does not have MPR. A number of subtests had higher conducted power, and these were evaluated for SAR testing in Table 10 and Table 11. b. Page 16 of 81 of the SAR report should include a statement justifying front body SAR data inclusion, as has been included in other recent Motorola SAR reports (i.e., to account for the possibility of an accessory positioning the device with its front toward the user). Response: The statement has been added to the report. c. The statement on p. 16 of 81 of the SAR report references a 15 mm separation distance used for testing, but the data is all at 25mm. Please reconcile. Response: The report has been corrected.

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56LW1 Test Report Number: 23998-1 WLAN Page 1 of 34 EXHIBIT 6A3 PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number – 23998-1 WLAN Report Date –2010-09-03 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Signature: Name: Lei Yang Title: EMC Project Manager Test: 2010-08-01 to 2010-09-03 As the responsible test lab manager, I hereby declare that the model tested as specified in this report conforms to the requirements indicated . Signature: Name: Yilin Zhao Title: Test Lab Manager Date: 2010-09-03 This report must not be reproduced, except in full, without written approval from this laboratory. FCC Registration Number: 177885 IC Registration Number: 109AW-1 ADR Testing Service location ADR BJ ISO/IEC-17025:2005 accredited by UKAS 2404 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56LW1 Test Report Number: 23998-1 WLAN Page 2 of 34 EXHIBIT 6A3 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 4 Summary of Testing............................................................................................................ 5 General and Special Conditions.......................................................................................... 5 Equipment and Cable Configurations ................................................................................. 6 Measuring Equipment and Calibration Information ........................................................... 6 Measurement Procedures and Data..................................................................................... 8 FIELD STRENGTH OF SPURIOUS EMISSIONS....................................................... 8 Measurement Procedure.............................................................................................. 8 Measurement Results .................................................................................................. 9 WLAN Band (b) ......................................................................................................... 9 WLAN Band (g) ....................................................................................................... 14 BAND-EDGE COMPLIANCE OF RF RADIATED EMISSIONS............................. 18 Measurement Procedure............................................................................................ 18 Measurement Results ................................................................................................ 18 WLAN Band (b) ....................................................................................................... 19 WLAN Band (g) ....................................................................................................... 23 WLAN Band (n) @ 6.5 Mbps................................................................................... 27 WLAN Band (n) @ 7.22 Mbps................................................................................. 31 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56LW1 Test Report Number: 23998-1 WLAN Page 3 of 34 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola (Beijing) Mobility Technologies Co., Ltd. Asia Global Compliance Labs No.1 Wang Jing East Road Chao Yang District Beijing, 100102, P. R. China Phone: +86 10 8473 2610 FCC Registration Number: 177885 IC Registration Number: 109AW-1 Tests Requested By: Motorola Mobility, Inc 600 North US Hwy 45 Libertyville, IL 60048 United States Pro…

Text truncated - open the document above for the full version.
