IHDT56LX1GSM 850/1900 dual band mobile phone

personalize let’s go radio tips & tricks messages text entrytools calls contacts main menu home screen basics Getting Started Guide www.motorola.com accessories & more MOTOWX181 TM congratulations your phone congratulations! Congratulations on your purchase of the stylish Motorola WX181 phone. Whether you’re a talker, a texter, or just love listening to the radio on the move, the WX181 does it all. We’ve crammed all the main features of your phone into this handy guide—you can even take the guide with you. If you’d like even more information about how to use your new WX181, visit www.motorola.com/support. So, let’s go. Note: Your phone may not appear exactly as the images in this manual. However, all key locations, sequences, and functions are the same. your phone ì 12:30 Power/ end Key Press & hold to turn phone on/off. Press to end calls. Center Key Select a highlighted option. Soft keys Performs function shown above the key. To rch (on back of phone). Lanyard Navigation S Key Scroll through lists & menus. Charge or connect a headset. Mini USB Connector Call Key Make & answer calls. s MenuRadio 0 calls make & answer calls Enter a number and press . When your phone rings or vibrates, press. end calls Press. emergency calls To call an emergency number, enter the emergency number and press . Your service provider programs emergency phone numbers, (such as 112 or 911), that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your phone’s pre-programmed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues. messages send messages 1Press s > Messages > Create SMS. 2Enter your message. Tip: Press Options > Input mode to switch text entry modes. Press * to switch capitalization modes. Press # to enter a space. Press 0 to change language. 3Press s. 4Enter a number and press s, or press Search and scroll to a contact. Press s to select a contact. 5Press s to send. read messages When you receive a message you will see 1 New message! on your screen. Press s > Read to open the message. You can reply to the message by pressing Options > Reply. shortcuts ring style To quickly switch your ring style, press and hold # from the home screen. keypad lock To quickly lock your keypad, press and hold *, then Ok from the home screen. Press and hold *, then Ok to unlock. torch on To quickly turn on your torch, press 5 from the home screen. Press Off to turn it off. voicemail Press and hold 1, then pres Yes. If your voicemail number is pre-set, you will connect. recent calls To see your dialled and received calls, press from the home screen. FM radio listen to the radio 1Plug a mini-USB headset into your phone. Note: The FM radio works only when the headset is plugged in. 2Press s > FM Radio from the home screen. To tune in a station, press S left or right. To adjust volume, press S up or down. To turn off the radio, press Options > Turn off. store favorite stations When listening to a station, press Options >Save channel > Ok. Select a channel number and press s to store it. Press Options > Channel list to see your stored stations. Press keys 1 through 30 to select a stored station. Games FM Radio Tools •Torch •Organizer • Stopwatch •Alarm • Calculator • Converter • My shortcuts Profiles • General • Meeting • Outdoor • Indoor • Headset • Silent This is a standard main menu layout. Your phone’s menu may be a little different. * Network Dependent Messages •Create SMS •Inbox •Sent •Drafts •Templates • Settings •Voicemail • CB SMS Directory Call register •Call memory •My numbers • Billing • Call settings • Call control Services * Settings •Display •Clock •Keys • Dictionary • More settings let’s go 4H 1 2 3 4 5 6 cover offcover off SIM inbattery in cover oncharge up basics turn it on & off Press and hold for a few seconds to turn the phone on/off. menu navigation Press the center key s to open the Main Menu. Press the navigation key S up, down, right or left to highlight a menu option. Press the center key s to select the highlighted option. Press Options to display the options menu. save contacts 1Enter the number on the home screen and press Save. 2Press <Empty> and enter the contact details. 3Press s > Done when you’re finished. 4Press Yes to save. call contacts 1Press s > Directory. 2Scroll through the list to highlight the contact’s number. 3Press . customise set your wallpaper Change the wallpaper to one that makes you smile. Find it: s> Settings> Display> Wallpaper set time & date Set the time & date shown on your home screen. Find it: s> Settings> Clock> Time & date set ringtone and volume Play it loud or keep it quiet, you choose. Find it: s>Profiles Choose from the pre-programed profiles, including, General, Meeting (vibrate), Outdoor, Indoor, Headset, and Silent. Press Options to edit a profile. create shortcuts Choose the features you want to access with a single key press from the home screen—really useful stuff: Find it: s>Tools>My shortcuts > Add > Functions > Keys phone lock Lock your phone to prevent others from using it. Find it: s> Settings> More settings> Security >Activate phone code > enter code You will need to enter the code when you turn the phone on. handsfree During a call, press Handsf. to use the speakerphone. To change modes when you are entering text, press Options > Input mode: entry modes SÂSmart (predictive text) predicts the word you want, with just one keypress per letter. For example, to enter Good, press 4663. If the prediction is not correct, press S up or down to show other options. ÂMultitap lets you press a key one or more times to cycle through the letters and numbers of that key. ÃAdd numbers mode enters numbers only. To enter symbols select Insert symbols. status indicators The home screen displays when you turn on the phone. Status indicators can appear across the top of the home screen: Note: Your phone’s home screen m…

Text truncated - open the document above for the full version.

February 9, 2010 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Grantee Code IHD Authorization: I, Andrew Bachler, the FCC contact for Grantee Code “IHD”; hereby authorize the following company (agent) to act on behalf of Motorola Inc. Mobile Devices for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures • Technical Contact • Non-Technical Contact • Test Firm Contact Information The grant should still be mailed to the applicant of record for Grantee Code “IHD”. Authorized Agent: TMC (Telecommunication Metrology Center of MIIT) NO. 52, Huayuan Bei Road, Haidian District, Beijing, China, 100083 Specific Applications: • FCC ID: IHDT56LX1 • FCC ID: IHDT56LY1 • FCC ID: IHDT56LZ1 Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

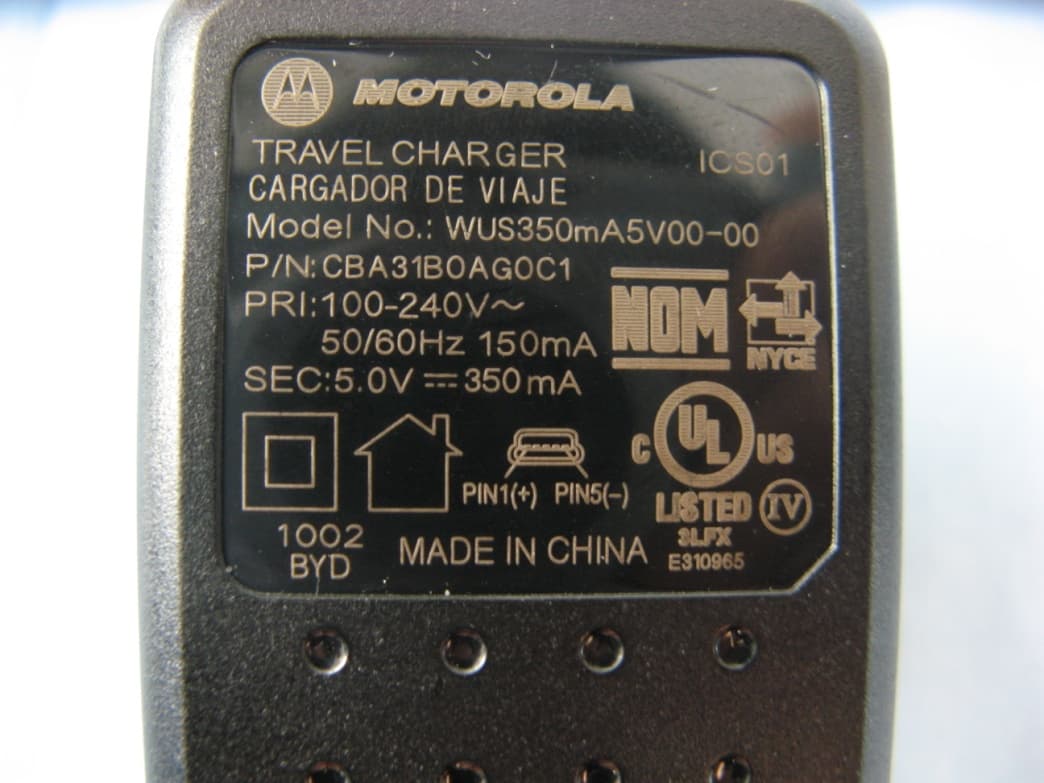

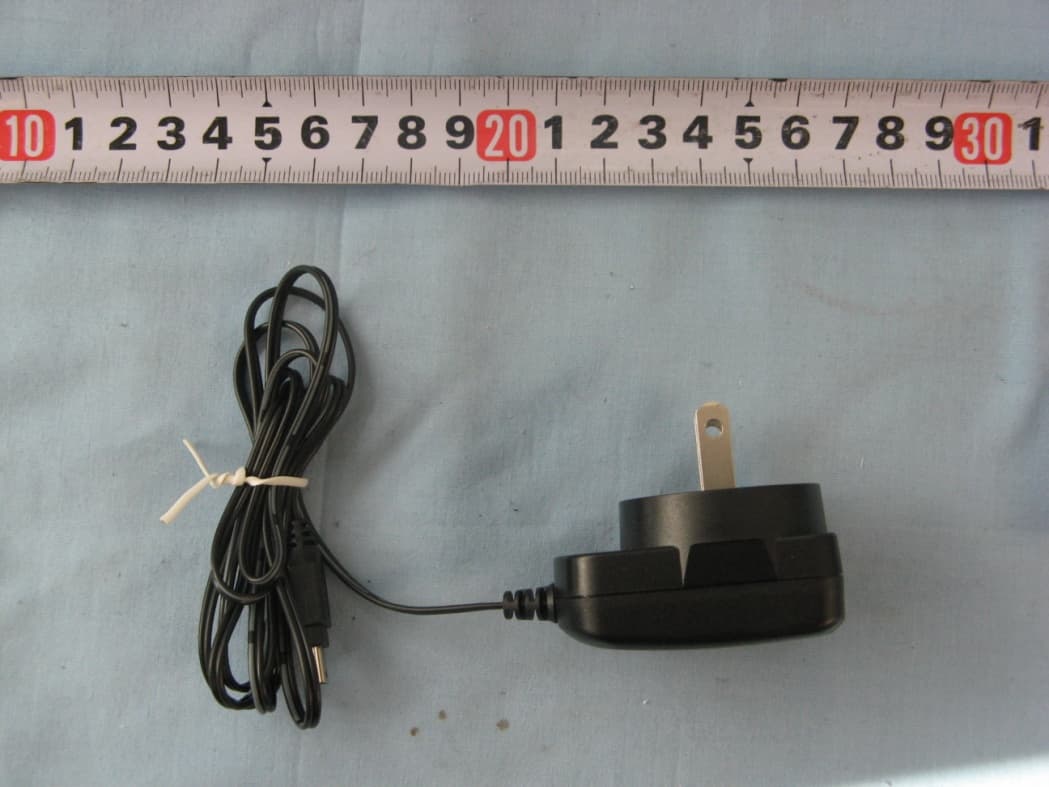

WX181 External photo Battery AE1 Battery AE1 Battery AE2 Battery AE2 Charger AE3 Label of Charger AE3 Headset AE4 Headset AE5 USB Cable AE6

WX181 EUT Label Location

WX181 Internal photo

No.2010SAR00011 Page 1 of 101 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00011 For Motorola, Inc. (Mobile Devices Business) GSM 850/1900 mobile phone WX181 With Hardware Version: Proto Software Version: V523 FCCID: IHDT56LX1 Issued Date: 2010-03-09 No. DAT-P-114/01-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00011 Page 2 of 101 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................12 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 12 8.2 SYSTEM VALIDATION.................................................................................................................................... 12 8.3 EVALUATION OF MULTI-BATTERIES.............................................................................................................. 13 8.4 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 14 8.5 CONCLUSION................................................................................................................................................ 16 9 MEASUREMENT UNCERTAINTY ............................................................................................16 10 MAIN TEST INSTRUMENTS ..................................................................................................18 ANNEX A MEASUREMENT PROCESS....................................................................................19 ANNEX B TEST LAYOUT ...............................................................................…

Text truncated - open the document above for the full version.

No.2010SAR00011 Page 81 of 101 No.2010SAR00011 Page 82 of 101 No.2010SAR00011 Page 83 of 101 No.2010SAR00011 Page 84 of 101 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2010SAR00011 Page 85 of 101 No.2010SAR00011 Page 86 of 101 No.2010SAR00011 Page 87 of 101 No.2010SAR00011 Page 88 of 101 No.2010SAR00011 Page 89 of 101 No.2010SAR00011 Page 90 of 101 No.2010SAR00011 Page 91 of 101 No.2010SAR00011 Page 92 of 101 No.2010SAR00011 Page 93 of 101 1900 MHz Dipole Calibration Certificate No.2010SAR00011 Page 94 of 101 No.2010SAR00011 Page 95 of 101 No.2010SAR00011 Page 96 of 101 No.2010SAR00011 Page 97 of 101 No.2010SAR00011 Page 98 of 101 No.2010SAR00011 Page 99 of 101 No.2010SAR00011 Page 100 of 101 No.2010SAR00011 Page 101 of 101

No.2010TAR057 Page1 of 52 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR057 for Motorola, Inc. (Mobile Devices Business) GSM 850/1900 mobile phone Marketing Name: WX181 FCC ID: IHDT56LX1 with Hardware Version: Proto Software Version: V523 Issued Date: Mar 17 th , 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62303288-2105, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010TAR057 Page2 of 52 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION .................................................................................................. 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 9 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 10 A.1 OUTPUT POWER ............................................................................................................. 10 A.2 EMISSION LIMT ............................................................................................................... 14 A.3 CONDUCTED EMISSION ................................................................................................. 28 A.4 FREQUENCY STABILITY ................................................................................................. 30 A.5 OCCUPIED BANDWIDTH ................................................................................................ 32 A.6 EMISSION BANDWIDTH .................................................................................................. 36 A.7 BAND EDGE COMPLIANCE ............................................................................................ 40 A.8 CONDUCTED SPURIOUS EMISSION ............................................................................. 42 No.2010TAR057 Page3 of 52 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100083 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Feb 23 th , 2010 Testing End Date: Mar 16 th , 2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR057 Page4 of 52 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: Motorola, Inc. (Mobile Devices Business) Address /Post: 600 N. US Highway 45 Libertyville, IL 60048-1286 U.S.A. City: Libertyville Postal Code: 60048-1286 Country: U.S.A. Telephone: +44 (0)1926 411371 Fax: +44 (0)1926 411371 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4F, South Building, No.2966, JinKe Road, Zhangjiang High-Tech Park City: Shanghai Postal Code: 201203 Country: P.R.China Telephone: 0086 2161460890 Fax: 0086 2161460602 No.2010TAR057 Page5 of 52 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM 850/1900 mobile phone Marketing Name WX181 FCC ID IHDT56LX1 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 28.43 dBm maximum ERP measured for GSM850 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.7VDC) Extreme temp. Tolerance -30°C to +50°…

Text truncated - open the document above for the full version.

WX181 FCC test setup photos 1． Radiated Spurious Emission 2． Conducted Emission
