IHDT56LY1GSM 850/1900 Dual Band Mobile Phone

personalize let’s go music playertips & tricks messages radiophotos calls contacts main menu home screen basics Getting Started Guide www.motorola.com accessories & more MOTOWX290 TM congratulations your phone congratulations! Congratulations on your purchase of the stylish Motorola WX290 phone. Whether you’re a talker, a texter, or just love listening to the music on the move, your new phone does it all. We’ve crammed all the main features of your phone into this handy guide—you can even take the guide with you. If you’d like even more information about how to use your new phone, visit www.motorola.com/support. So, let’s go. Note: Your phone may not appear exactly as the images in this manual. your phone ì 10:13 16/02/2010 Service Provider Power/End Key Center Key Lanyard Camera Navigation Key S Performs function shown above the key. Soft keys Call Key Mini USB Connector Charge or connect a headset. Camera Key To rch s MenuRadio S calls make & answer calls Enter a number and press . When your phone rings or vibrates, press. end a call Press. emergency calls To call an emergency number, enter the emergency number and press . Your service provider programs emergency phone numbers, (such as 112 or 911), that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your phone’s pre-programmed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues. messages send messages 1Press s > Messages > Messages >Create text message. 2Enter your message. Tip: Press Options > Input method to switch text entry modes. Press * to switch capitalization modes. Press # to enter a space. Press Options > Languages to change language. 3Press s. 4Select Add number, enter a number and press s, or select Add from directory and scroll to a contact. Press s to select a contact. 5Press s to send. read messages When you receive a message you will see 1 on your screen. Press s > s to open the message. You can reply to the message by pressing Options > Reply. shortcuts ring style To quickly switch your ring style, press and hold # from the home screen. keypad lock To quickly lock your keypad, press and hold * from the home screen. Press and hold *, then Ok to unlock. torch on To quickly turn on your torch, press and hold 5 from the home screen. voicemail Press and hold 1. If your voicemail number is pre-set, you will connect. recent calls To see your dialled, received and missed calls, press from the home screen. FM radio To use the music player, insert a micro SD memory card, which is an optional accessory. The music player supports music files formats, such as MP3, MIDI, and AMR. play music From the home screen, press s>Games & Apps > Music player > All songs. music player controls Note: To transfer songs to/from your memory card, use an optional microSD memory card reader on your computer to drag & drop files to the “Audios > Music” folder. function play/pausePress s. fast forwardPress & hold S right. skip to next/ previous song Press S right or left. rewindPress & hold S left. volumePress S up or down. Games & Apps • Music Player •Games Call Register •Call memory * • My numbers • Billing * • Call settings Directory Messages * • Messages •Voice message •Voicemail • Settings WA P * • Homepage • Bookmarks • Recent pages • Offline pages •Go to URL •Profiles This is a standard main menu layout. Your phone’s menu may be a little different. Profiles • General •Vibration • Loud • Silent • Antenna off mode FM Radio Camera Bluetooth My settings • Color •Display •Clock •Keys • More settings Services * To o l s •Organizer •Alarm • Calculator • Fake call • Converter • File manager •Voice memo • Memory status • My shortcuts * Network Dependent let’s go 1 2 3 4 5 6 cover offSIM in microSD inbattery in cover oncharge up 4H basics turn it on & off Press and hold for a few seconds to turn the phone on/off. menu navigation Press the center key s to open the Main Menu. Press the navigation key S up, down, right or left to highlight a menu option. Press s to select the highlighted option. Press Options to display the menu options. save contacts 1Enter the number on the home screen and press Save. 2Enter the contact details and press Save. Tip: Press s > Directory > Options > Default storage to choose where to save your contacts (To SIM or To phone). call contacts 1Press s > Directory. 2Press S up or down, to scroll through the list to highlight the contact’s number. Tip: Press S right or left to change category (General, Most called, SIM directory, Phone directory or Group). 3Press . customise set your wallpaper Change the wallpaper to make you happy. Find it: s> My settings> Display> Wallpaper set time & date Find it: s> My settings> Clock> Set time/date set ringtone and volume Find it: s>Profiles Choose from the pre-programed profiles: General, Vibration, Loud, Silent, and Antenna off mode. Press Options to edit a profile. create shortcuts Go to features with a single key press from the home screen: Find it: s>Tools>My shortcuts > Add >Functions > Key USB Drag & Drop 1Press s > Camera > Camera. Tip: To quickly turn on your camera, press e on the side of your phone. 2Press s to take your photo, then to: • Set as your wallpaper press S up. • Send by Bluetooth press S down. • Send by MMS press S left. • Assign as contact press S right, • Delete press Delete. • Return to the viewfinder press Back. Tip: To set where your photos are stored press Options > Storage > Phone or Memory card. To transfer photos to/from your memory card, use an optional microSD memory card reader on your computer to drag & drop files to the “Images” folder. FM radio listen to the radio 1Plug a mini-USB headset into your phone. Note: The FM radio works only when the headset is plugged in. 2Press s>FM Radio from the home screen. To tune in a station, press S left or right. To adjust volume, press S up or down. To turn off …

Text truncated - open the document above for the full version.

February 9, 2010 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Grantee Code IHD Authorization: I, Andrew Bachler, the FCC contact for Grantee Code “IHD”; hereby authorize the following company (agent) to act on behalf of Motorola Inc. Mobile Devices for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures • Technical Contact • Non-Technical Contact • Test Firm Contact Information The grant should still be mailed to the applicant of record for Grantee Code “IHD”. Authorized Agent: TMC (Telecommunication Metrology Center of MIIT) NO. 52, Huayuan Bei Road, Haidian District, Beijing, China, 100083 Specific Applications: • FCC ID: IHDT56LX1 • FCC ID: IHDT56LY1 • FCC ID: IHDT56LZ1 Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

2010-04-09 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: IHDT56LY1 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Yours Sincerely, Song Chongwen Manager of FTA Test Group Floor 3, Shouxiang Science Building, No 51, Xueyuan Road, Haidian District,Beijing, P.R.China

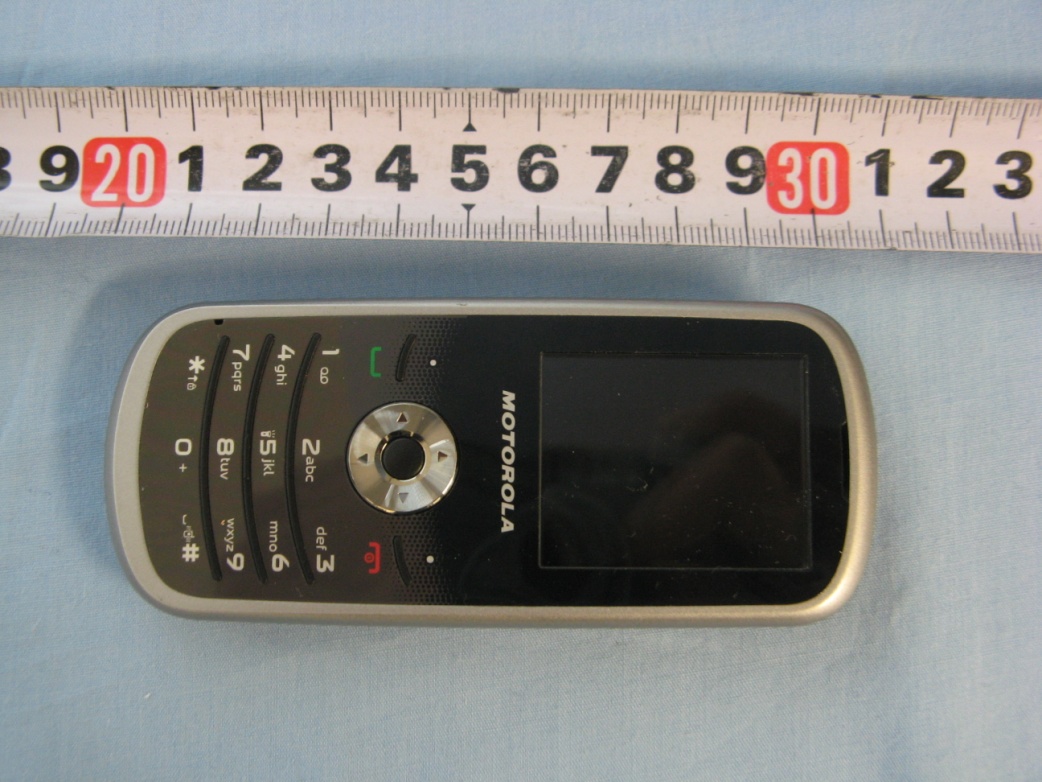

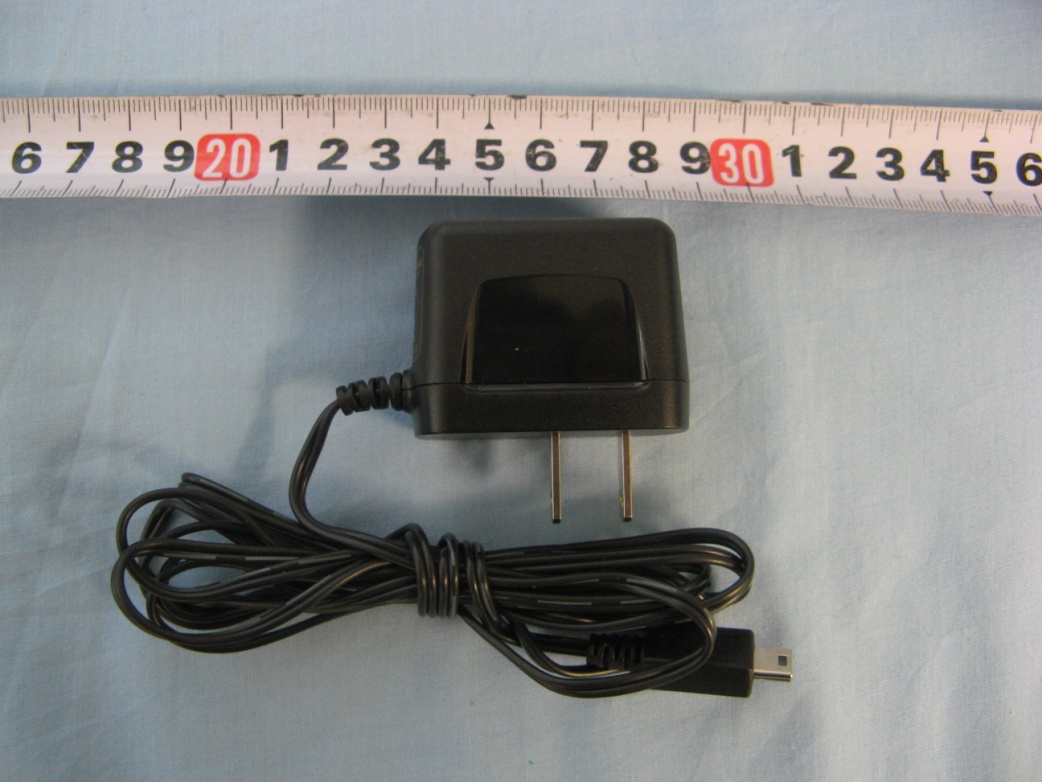

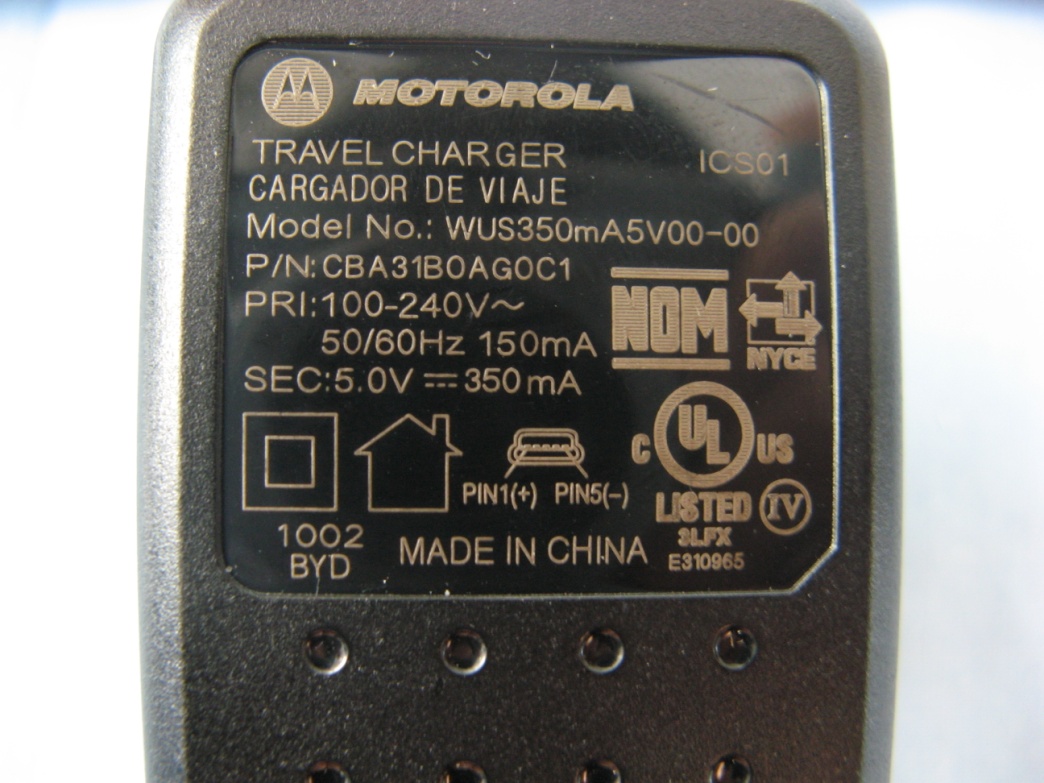

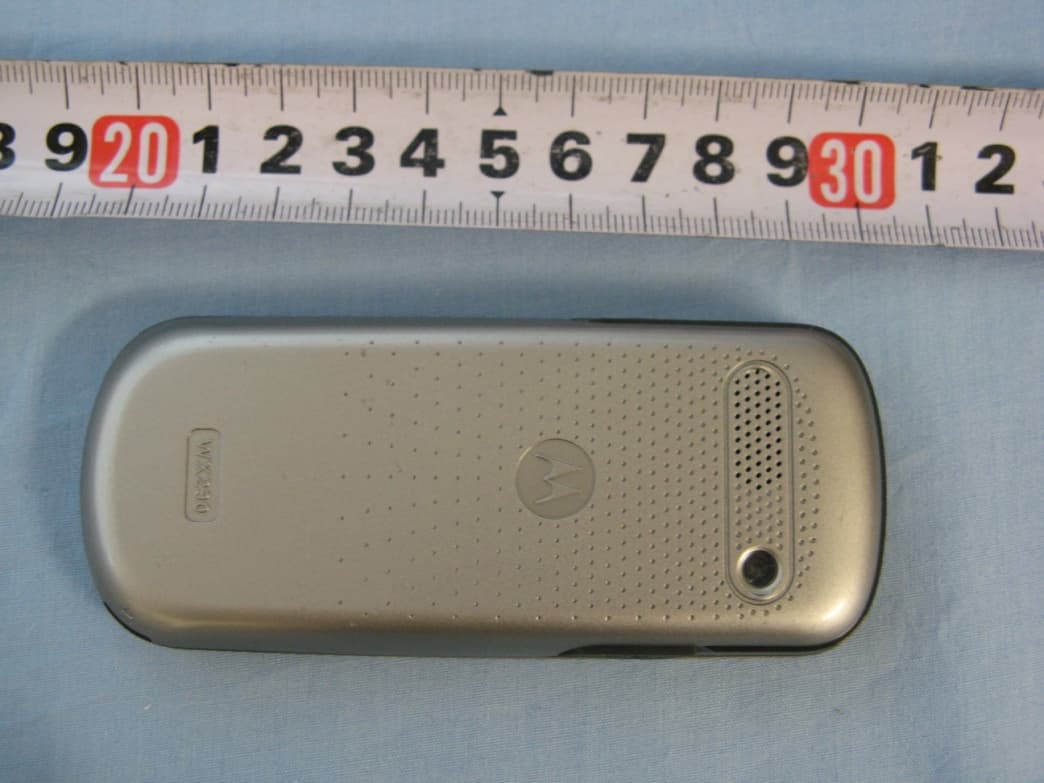

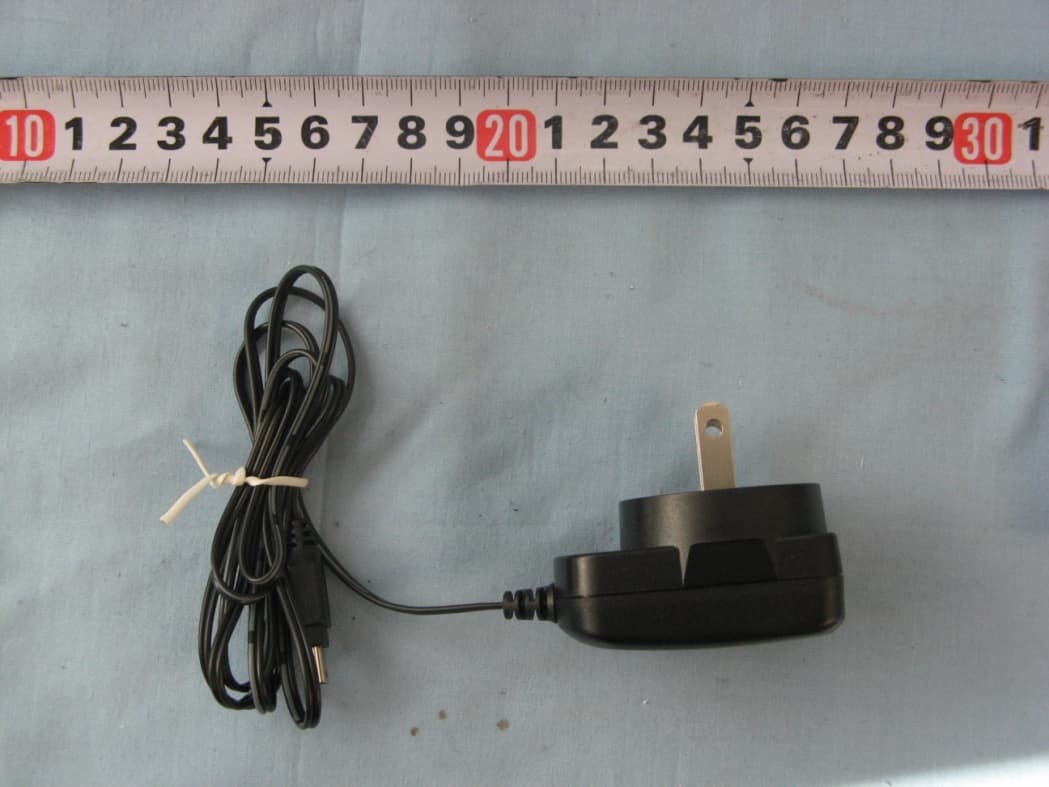

WX290 External photo Battery AE1 Battery AE1 Battery AE2 Battery AE2 Charger AE3 Label of Charger AE3 Charger AE4 Label of Charger AE4 Headset AE5 Headset AE6 USB Cable AE7

WX290 EUT Label Location

WX290 Internal photo

No.2010SAR00023 Page 1 of 102 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00023 For Motorola, Inc. (Mobile Devices Business) GSM/GPRS 850/1900 dual-band mobile phone WX290 With Hardware Version: PIO Software Version: V632 FCCID: IHDT56LY1 Issued Date: 2010-04-02 No. DAT-P-114/01-01 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00023 Page 2 of 102 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................12 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 12 8.2 SYSTEM VALIDATION.................................................................................................................................... 12 8.3 EVALUATION OF MULTI-BATTERIES.............................................................................................................. 13 8.4 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 14 8.5 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH FUNCTION) ............................................................... 16 8.6 CONCLUSION................................................................................................................................................ 17 9 MEASUREMENT UNCERTAINTY ............................................................................................17 10 MAIN TEST INSTRUMENTS ..................................................................................................19 ANNEX A MEASUREMENT PROCESS..................................................…

Text truncated - open the document above for the full version.

No.2010SAR00023 Page 81 of 102 No.2010SAR00023 Page 82 of 102 No.2010SAR00023 Page 83 of 102 No.2010SAR00023 Page 84 of 102 No.2010SAR00023 Page 85 of 102 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2010SAR00023 Page 86 of 102 No.2010SAR00023 Page 87 of 102 No.2010SAR00023 Page 88 of 102 No.2010SAR00023 Page 89 of 102 No.2010SAR00023 Page 90 of 102 No.2010SAR00023 Page 91 of 102 No.2010SAR00023 Page 92 of 102 No.2010SAR00023 Page 93 of 102 No.2010SAR00023 Page 94 of 102 1900 MHz Dipole Calibration Certificate No.2010SAR00023 Page 95 of 102 No.2010SAR00023 Page 96 of 102 No.2010SAR00023 Page 97 of 102 No.2010SAR00023 Page 98 of 102 No.2010SAR00023 Page 99 of 102 No.2010SAR00023 Page 100 of 102 No.2010SAR00023 Page 101 of 102 No.2010SAR00023 Page 102 of 102

No.2010TAR099 Page1 of 63 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR099 for Motorola, Inc. (Mobile Devices Business) GSM/GPRS 850/1900 dual-band mobile phone Marketing Name: WX290 FCC ID: IHDT56LY1 with Hardware Version: PIO Software Version: V632 Issued Date: Apr 9 th , 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DAT-P-114/01-01 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2678, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010TAR099 Page2 of 63 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY .............................................................................................................. 3 1.1. TESTING LOCATION .......................................................................................................... 3 1.2. TESTING ENVIRONMENT .................................................................................................. 3 1.3. PROJECT DATA .................................................................................................................. 3 1.4. SIGNATURE ........................................................................................................................ 3 2. CLIENT INFORMATION .......................................................................................................... 4 2.1. APPLICANT INFORMATION............................................................................................... 4 2.2. MANUFACTURER INFORMATION ..................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT ........................................................................................................................ 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ...................................... 5 3.4. GENERAL DESCRIPTION .................................................................................................. 6 4. REFERENCE DOCUMENTS .................................................................................................. 7 4.1. REFERENCE DOCUMENTS FOR TESTING ...................................................................... 7 5. LABORATORY ENVIRONMENT ............................................................................................ 8 6. SUMMARY OF TEST RESULTS ............................................................................................. 9 7. TEST EQUIPMENTS UTILIZED .............................................................................................. 9 ANNEX A: MEASUREMENT RESULTS ...................................................................................... 10 A.1 OUTPUT POWER ............................................................................................................. 10 A.2 EMISSION LIMT ............................................................................................................... 14 A.3 CONDUCTED EMISSION ................................................................................................. 28 A.4 FREQUENCY STABILITY ................................................................................................. 31 A.5 OCCUPIED BANDWIDTH ................................................................................................ 33 A.6 EMISSION BANDWIDTH .................................................................................................. 41 A.7 BAND EDGE COMPLIANCE ............................................................................................ 49 A.8 CONDUCTED SPURIOUS EMISSION ............................................................................. 53 No.2010TAR099 Page3 of 63 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062303288 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Feb 24 th , 2010 Testing End Date: Apr 5 th , 2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR099 Page4 of 63 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: Motorola, Inc. (Mobile Devices Business) Address /Post: 600 N. US Highway 45 Libertyville, IL 60048-1286 U.S.A. City: Libertyville Postal Code: 60048-1286 Country: U.S.A. Telephone: +44 (0)1926 411371 Fax: +44 (0)1926 411371 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4F, South Building, No.2966, JinKe Road, Zhangjiang High-Tech Park City: Shanghai Postal Code: 201203 Country: P.R.China Telephone: 0086 2161460890 Fax: 0086 2161460602 No.2010TAR099 Page5 of 63 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM/GPRS 850/1900 dual-band mobile phone Marketing Name WX290 FCC ID IHDT56LY1 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 28.41 dBm maximum ERP measured for GSM850 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Extreme tem…

Text truncated - open the document above for the full version.

WX290 FCC test setup photos 1． Radiated Spurious Emission 2． Conducted Emission 3． Part 15C
