IHDT56LY2GSM/GPRS 850/1900 dual-band mobile phone

personalize let’s go music player tips & tricks messages radio photos calls contacts main menu home screen basics Gett i n g St a rted Gu i de www.motorola.com acc essor i es & more MOTO WX290 TM congratulations your phone congratulations!Congratulations on your purchase of the stylish Motorola WX290 phone.Whether you’re a talker, a texter, or just love listening to the music on the move, your new phone does it all.We’ve crammed all the main features of your phone into this handy guide—you can even take the guide with you. If you’d like even more information about how to use your new phone, visit www.motorola.com/support . So, let’s go.Note: Your phone may not appear exactly as the images in this manual. Important: A headset has been provided for use with your mobile phone. This headset is the only model headset that Motorola warrants to operate with your phone. It is compliant with the acoustic safety requirements specified in France. your phone ì 10:13 16/02/2010 Service Provider Power/End Key Center Key L a ny a rd C a mer a N a v iga t i on Key S Perfor m s function shown above the key. Soft keys C a ll Key M i n i USB Conne c tor Charge or connect a headset. C a mer a Key To r c h s Menu Radio S callsmake & answer calls Enter a number and press . When your phone rings or vibrates, press . end a call Press . emergency callsTo call an emergency number, enter the emergency number and press . Your service provider programs emergency phone numbers, (such as 112 or 911), that you can call under any circumstances, even when your phone is locked.Emergency numbers vary by country. Your phone’s pre-programmed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues. messagessend messages 1 Press s > Messages > Messages > Create text message . 2 Enter your message. Tip: Press Options > Input method to switch text entry modes. Press * to switch capitalization modes. Press # to enter a space. Press Options > Languages to change language. 3 Press s . 4 Select Add number , enter a number and press s , or select Add from directory and scroll to a contact. Press s to select a contact. 5 Press s to send. read messagesWhen you receive a message you will see 1 on your screen. Press s > s to open the message. You can reply to the message by pressing Options > Reply . shortcutsring styleTo quickly switch your ring style, press and hold # from the home screen. keypad lock To quickly lock your keypad, press and hold * from the home screen. Press and hold * , then Ok to unlock. torch onTo quickly turn on your torch, press and hold 5 from the home screen. voicemailPress and hold 1 . If your voicemail number is pre-set, you will connect. recent callsTo see your dialled, received and missed calls, press from the home screen. FM radioTo use the music player, insert a micro SD memory card, which is an optional accessory. The music player supports music files formats, such as MP3, MIDI, and AMR. play musicFrom the home screen, press s > Games & Apps > Music player > All songs . music player controlsNote: To transfer songs to/from your memory card, use an optional microSD memory card reader on your computer to drag & drop files to the “Audios > Music” folder. functionplay/pause Press s . fast forward Press & hold S right . skip to next/previous song Press S right or left . rewind Press & hold S left . volume Press S up or down . G ames & Apps • Music Player•Games Call Register •Call memory *• My numbers• Billing *• Call settings DirectoryMessages * • Messages•Voice message •Voicemail• Settings WA P * • Homepage• Bookmarks• Recent pages• Offline pages•Go to URL•Profiles This is a standard main menu layout. Your phone’s menu may be a little different. Profiles • General•Vibration• Loud• Silent• Antenna off mode FM RadioCameraBluetoothMy settings • Color•Display•Clock•Keys• More settings Services *To o l s •Organizer•Alarm• Calculator•Fake call• Converter• File manager•Voice memo• Memory status•My shortcuts * Network Dependent let’s go 1 2 3 4 5 6 cover off SIM in m icroSD in battery in cover on charge up 4H basicsturn it on & off Press and hold for a few seconds to turn the phone on/off. menu navigation Press the center key s to open the Main Menu.Press the navigation key S up, down, right or left to highlight a menu option. Press s to select the highlighted option. Press Options to display the menu options. save contacts 1 Enter the number on the home screen and press Save . 2 Enter the contact details and press Save . Tip: Press s > Directory > Options > Default storage to choose where to save your contacts ( To SIM or To phone ). call contacts 1 Press s > Directory . 2 Press S up or down , to scroll through the list to highlight the contact’s number. Tip: Press S right or left to change category ( General , Most called , SIM directory , Phone directory or Group ). 3 Press . customiseset your wallpaperChange the wallpaper to make you happy.Find it: s > My settings > Display > Wallpaper set time & dateFind it: s > My settings > Clock > Set time/date set ringtone and volumeFind it: s > Profiles Choose from the pre-programed profiles: General , Vibration , Loud , Silent , and Antenna off mode . Press Options to edit a profile. create shortcutsGo to features with a single key press from the home screen:Find it: s > Tools > My shortcuts > Add > Functions > Key USB Drag & Drop 1 Press s > Camera > Camera . Tip: To quickly turn on your camera, press e on the side of your phone. 2 Press s to take your photo, then to: • Set as your wallpaper press S up. • Send by Bluetooth press S down. • Send by MMS press S left. • Assign as contact press S right, • Delete press Delete . • Return to the viewfinder press Back . Tip: To set where your photos are stored press Options > Storage > Phone or Memory card . To transfer photos to/from your memory card, use an optional microSD memory card reader on your computer to drag & drop files to t…

Text truncated - open the document above for the full version.

September 14, 2010 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Grantee Code IHD Authorization: I, Andrew Bachler, the FCC contact for Grantee Code “IHD”; hereby authorize the following company (agent) to act on behalf of Motorola Inc. Mobile Devices for the applications specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures • Technical Contact • Non-Technical Contact • Test Firm Contact Information The grants should still be mailed to the applicant of record for Grantee Code “IHD”. Authorized Agent: TCT Mobile Limited 4/F South Building, No 2966, Jinke Road, Zhangjiang High Tech Park, Pudong#Shanghai. P R China Specific Applications: • FCC ID: IHDT56LY2 • FCC ID: IHDT56LZ2 Contact Information: Please contact me by telephone at (847) 523-6167, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization. Regards, Andrew J. Bachler FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13

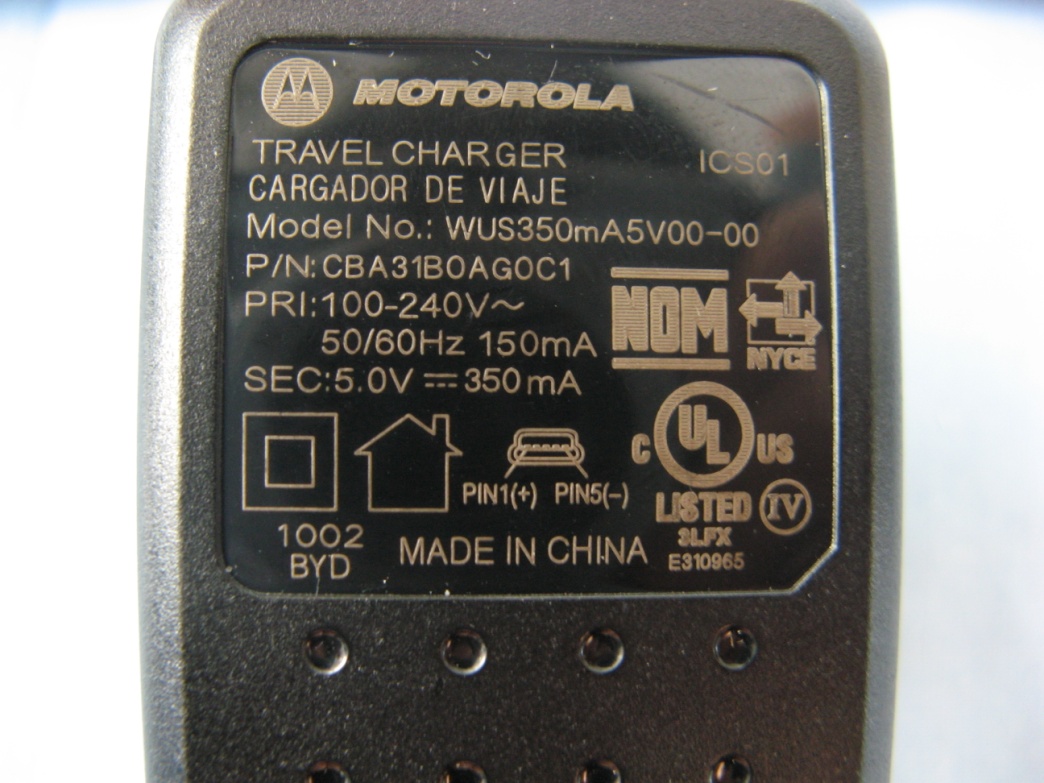

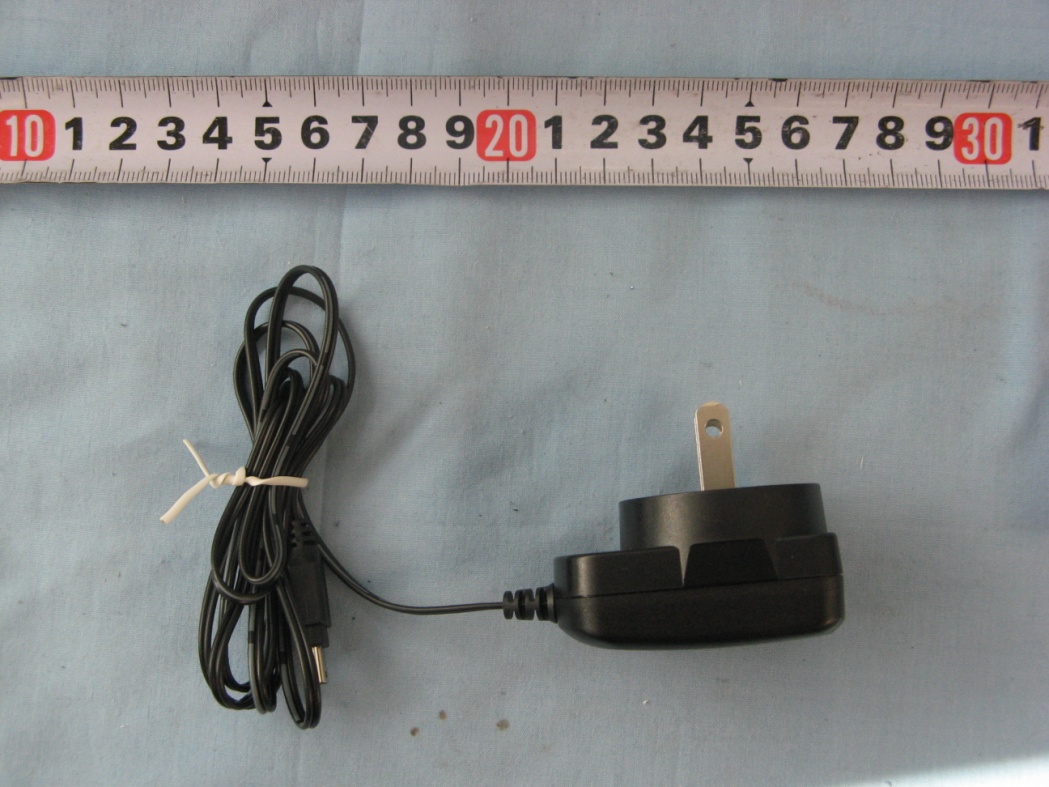

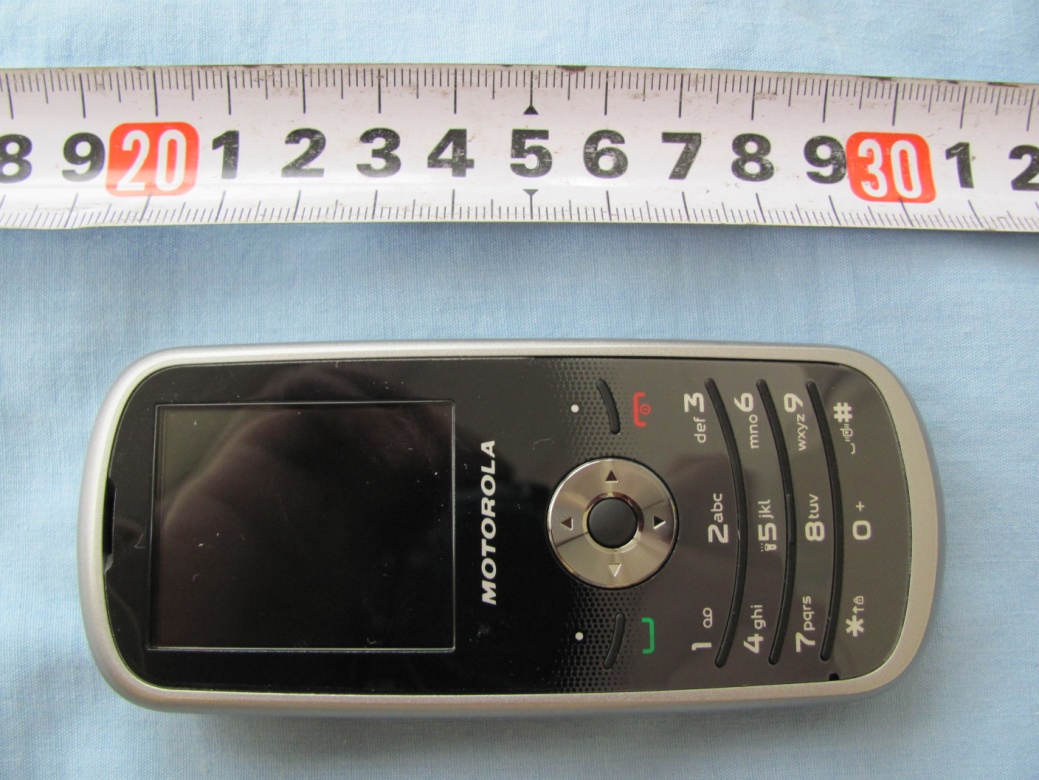

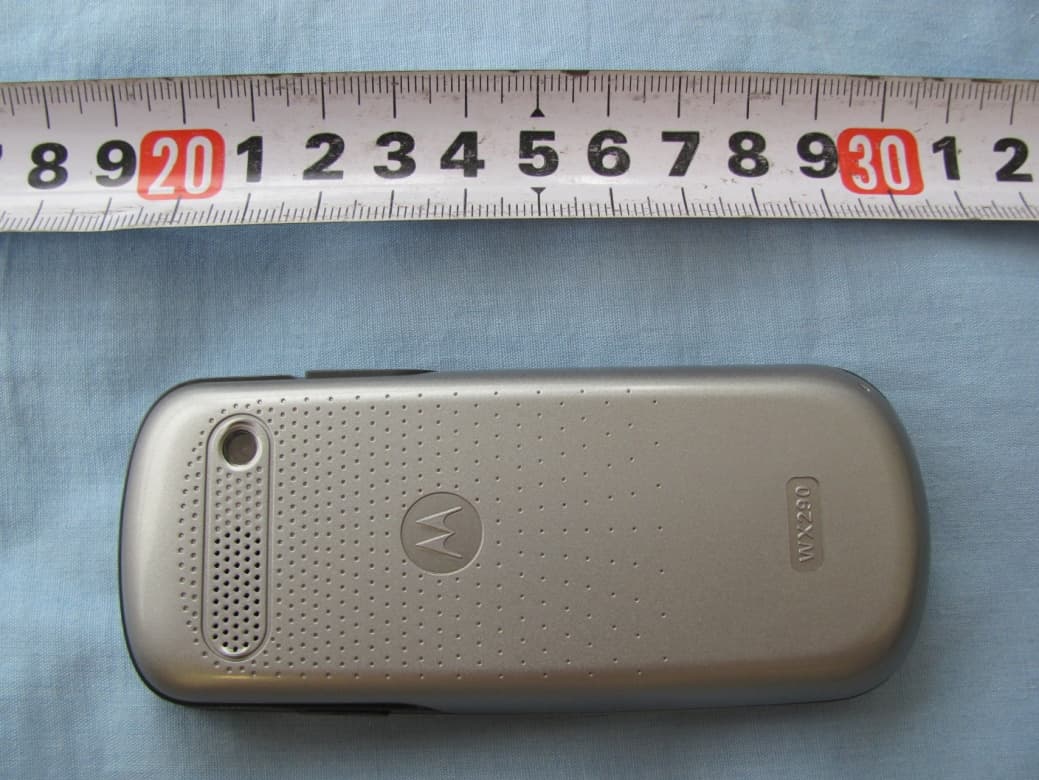

WX290 External photo Battery AE1 Battery AE1 Battery AE2 Battery AE2 Charger AE3 Label of Charger AE3 Headset AE４ Headset AE５

WX290 EUT Label Location

WX290 Internal photo

No.2010SAR00073 Page 1 of 102 ©Copyright. All rights reserved by TMC Beijing. SAR TEST REPORT No. 2010SAR00073 For Motorola, Inc. (Mobile Devices Business) GSM/GPRS 850/1900 dual-band mobile phone WX290 With Hardware Version: Lot1 Software Version: V668 FCCID: IHDT56LY2 Issued Date: 2010-08-23 No. DGA-PL-114/01-02 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: TMC Beijing, Telecommunication Metrology Center of MIIT No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2079, Fax:+86(0)10-62304793 Email:[email protected]. www.emcite.com No.2010SAR00073 Page 2 of 102 TABLE OF CONTENT 1 TEST LABORATORY..................................................................................................................3 1.1 TESTING LOCATION........................................................................................................................................ 3 1.2 TESTING ENVIRONMENT................................................................................................................................. 3 1.3 PROJECT DATA............................................................................................................................................... 3 1.4 SIGNATURE..................................................................................................................................................... 3 2 CLIENT INFORMATION..............................................................................................................4 2.1 APPLICANT INFORMATION.............................................................................................................................. 4 2.2 MANUFACTURER INFORMATION..................................................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................5 3.1 ABOUT EUT ................................................................................................................................................... 5 3.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST.......................................................................... 5 3.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST............................................................................. 5 4 CHARACTERISTICS OF THE TEST ..........................................................................................5 4.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 5 4.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 5 5 OPERATIONAL CONDITIONS DURING TEST ..........................................................................6 5.1 SCHEMATIC TEST CONFIGURATION................................................................................................................. 6 5.2 SAR MEASUREMENT SET-UP.......................................................................................................................... 6 5.3 DASY4 E-FIELD PROBE SYSTEM..................................................................................................................... 7 5.4 E-FIELD PROBE CALIBRATION........................................................................................................................ 8 5.5 OTHER TEST EQUIPMENT...............................................................................................................................9 5.6 EQUIVALENT TISSUES................................................................................................................................... 10 5.7 SYSTEM SPECIFICATIONS.............................................................................................................................. 10 6 LABORATORY ENVIRONMENT .............................................................................................. 11 7 CONDUCTED OUTPUT POWER MEASUREMENT................................................................. 11 7.1 SUMMARY.................................................................................................................................................... 11 7.2 CONDUCTED POWER.................................................................................................................................... 11 8 TEST RESULTS ........................................................................................................................12 8.1 DIELECTRIC PERFORMANCE......................................................................................................................... 12 8.2 SYSTEM VALIDATION.................................................................................................................................... 13 8.3 EVALUATION OF MULTI-BATTERIES.............................................................................................................. 14 8.4 SUMMARY OF MEASUREMENT RESULTS....................................................................................................... 14 8.5 SUMMARY OF MEASUREMENT RESULTS (BLUETOOTH FUNCTION) ............................................................... 17 8.6 CONCLUSION................................................................................................................................................ 17 9 MEASUREMENT UNCERTAINTY ............................................................................................17 10 MAIN TEST INSTRUMENTS ..................................................................................................19 ANNEX A MEASUREMENT PROCESS................................................…

Text truncated - open the document above for the full version.

No.2010SAR00073 Page 71 of 102 850 Body Towards Ground High with GPRS with battery SNN5882A Date/Time: 2010-8-16 15:48:44 Electronics: DAE4 Sn771 Medium: 850 Body Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.96 mho/m; εr = 54.1; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: GSM 850 GPRS Frequency: 848.8 MHz Duty Cycle: 1:4 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) Toward Ground High/Area Scan (51x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.938 mW/g Toward Ground High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.3 V/m; Power Drift = -0.135 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.866 mW/g; SAR(10 g) = 0.604 mW/g Maximum value of SAR (measured) = 0.922 mW/g Fig. 42 850 MHz CH251 No.2010SAR00073 Page 72 of 102 ANNEX D SYSTEM VALIDATION RESULTS 835MHz Date/Time: 2010-8-16 7:26:11 Electronics: DAE4 Sn771 Medium: Head 850 Medium parameters used: f = 835 MHz; σ = 0.86 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.56, 6.56, 6.56) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.51 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.4 V/m; Power Drift = 0.059 dB Peak SAR (extrapolated) = 3.35 W/kg SAR(1 g) = 2.30 mW/g; SAR(10 g) = 1.47 mW/g Maximum value of SAR (measured) = 2.44 mW/g 0 dB = 2.44mW/g Fig.43 validation 835MHz 250mW No.2010SAR00073 Page 73 of 102 835MHz Date/Time: 2010-8-16 13:14:28 Electronics: DAE4 Sn771 Medium: 850 Body Medium parameters used: f = 835 MHz; σ = 0.94 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 835 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(6.22, 6.22, 6.22) System Validation /Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 2.52 mW/g System Validation /Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.2 V/m; Power Drift = -0.081 dB Peak SAR (extrapolated) = 3.35 W/kg SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.51 mW/g Maximum value of SAR (measured) = 2.42 mW/g 0 dB = 2.42mW/g Fig.44 validation 835MHz 250mW No.2010SAR00073 Page 74 of 102 1900MHz Date/Time: 2010-8-17 7:29:15 Electronics: DAE4 Sn771 Medium: Head 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.39 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(5.03, 5.03, 5.03) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.4 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 89.2 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 14.9 W/kg SAR(1 g) = 9.70 mW/g; SAR(10 g) = 4.89 mW/g Maximum value of SAR (measured) = 10.4 mW/g 0 dB = 10.4mW/g Fig.45 validation 1900MHz 250mW No.2010SAR00073 Page 75 of 102 1900MHz Date/Time: 2010-8-17 13:17:34 Electronics: DAE4 Sn771 Medium: Body 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Ambient Temperature:23.0 o C Liquid Temperature: 22.5 o C Communication System: CW Frequency: 1900 MHz Duty Cycle: 1:1 Probe: ES3DV3 - SN3149 ConvF(4.68, 4.68, 4.68) System Validation/Area Scan (101x101x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.1 mW/g System Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.7 V/m; Power Drift = -0.060 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.12 mW/g Maximum value of SAR (measured) = 10.6 mW/g 0 dB = 10.6mW/g Fig.46 validation 1900MHz 250mW No.2010SAR00073 Page 76 of 102 ANNEX E PROBE CALIBRATION CERTIFICATE No.2010SAR00073 Page 77 of 102 No.2010SAR00073 Page 78 of 102 No.2010SAR00073 Page 79 of 102 No.2010SAR00073 Page 80 of 102 No.2010SAR00073 Page 81 of 102 No.2010SAR00073 Page 82 of 102 No.2010SAR00073 Page 83 of 102 No.2010SAR00073 Page 84 of 102 No.2010SAR00073 Page 85 of 102 ANNEX F DIPOLE CALIBRATION CERTIFICATE 835 MHz Dipole Calibration Certificate No.2010SAR00073 Page 86 of 102 No.2010SAR00073 Page 87 of 102 No.2010SAR00073 Page 88 of 102 No.2010SAR00073 Page 89 of 102 No.2010SAR00073 Page 90 of 102 No.2010SAR00073 Page 91 of 102 No.2010SAR00073 Page 92 of 102 No.2010SAR00073 Page 93 of 102 No.2010SAR00073 Page 94 of 102 1900 MHz Dipole Calibration Certificate No.2010SAR00073 Page 95 of 102 No.2010SAR00073 Page 96 of 102 No.2010SAR00073 Page 97 of 102 No.2010SAR00073 Page 98 of 102 No.2010SAR00073 Page 99 of 102 No.2010SAR00073 Page 100 of 102 No.2010SAR00073 Page 101 of 102 No.2010SAR00073 Page 102 of 102

Appendix A: SPEAG’s new calibration certifications Appendix B: SPEAG’s Evaluation report

No.2010TAR340 Page1 of 66 TEST REPORT No. 2010TAR340 for Motorola, Inc. (Mobile Devices Business) GSM/GPRS 850/1900 dual-band mobile phone Marketing Name: WX290 FCC ID: IHDT56LY2 with Hardware Version: Lot1 Software Version: V668 Issued Date: Aug 23, 2010 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China,100191. Tel:+86(0)10-62304633-2604, Fax:+86(0)10-62304793, Email:[email protected], web: www.emcite.com No.2010TAR340 Page2 of 66 CONTENTS 1. TEST LABORATORY ......................................................................................................................... 3 1.1. TESTING LOCATION .................................................................................................................... 3 1.2. TESTING ENVIRONMENT ........................................................................................................... 3 1.3. PROJECT DATA .............................................................................................................................. 3 1.4. SIGNATURE ..................................................................................................................................... 3 2. CLIENT INFORMATION ................................................................................................................... 4 2.1. APPLICANT INFORMATION ....................................................................................................... 4 2.2. MANUFACTURER INFORMATION ............................................................................................ 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 5 3.1. ABOUT EUT ..................................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .................................... 5 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ....................................... 5 3.4. GENERAL DESCRIPTION ............................................................................................................ 6 4. REFERENCE DOCUMENTS ............................................................................................................. 6 4.1. REFERENCE DOCUMENTS FOR TESTING ............................................................................. 6 5. LABORATORY ENVIRONMENT ..................................................................................................... 7 6. SUMMARY OF TEST RESULTS ....................................................................................................... 8 7. TEST EQUIPMENTS UTILIZED ...................................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ................................................................................................ 1 0 A.1 OUTPUT POWER (§22.913(A)/§24.232(B)) ............................................................................... 10 A.2 EMISSION LIMT (§2.1051/§24.238) .......................................................................................... 15 A.3 CONDUCTED EMISSION (§15.107§15.207) ............................................................................. 29 A.4 FREQUENCY STABILITY (§2.1055/§24.235) ........................................................................... 33 A.5 OCCUPIED BANDWIDTH (§2.1049(H)(I)) ................................................................................. 35 A.6 EMISSION BANDWIDTH (§22.917(B)/§24.238(B)) .................................................................. 43 A.7 BAND EDGE COMPLIANCE (§22.917(B)/§24.238(B)) ................................................................ 51 A.8 CONDUCTED SPURIOUS EMISSION (§2.1057/§22.917/§24.238) ........................................... 56 No.2010TAR340 Page3 of 66 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: 3/F Shou Xiang Technology Building, No.51 Xueyuan Road, Hai Dian District, Beijing, P. R. China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Aug 2, 2010 Testing End Date: Aug 23, 2010 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR340 Page4 of 66 2. Client Information 2.1. Applicant Information Company Name: Motorola, Inc. (Mobile Devices Business) Address /Post: 600 N. US Highway 45 Libertyville, IL 60048-1286 U.S.A. City: Libertyville Postal Code: 60048-1286 Country: U.S.A. Telephone: +44 (0)1926 411371 Fax: +44 (0)1926 411371 2.2. Manufacturer Information Company Name: TCT Mobile Limited Address /Post: 4F, South Building, No.2966, JinKe Road, Zhangjiang High-Tech Park City: Shanghai Postal Code: 201203 Country: P.R.China Telephone: 0086 2161460890 Fax: 0086 2161460602 No.2010TAR340 Page5 of 66 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description GSM/GPRS 850/1900 dual-band mobile phone Marketing Name WX290 FCC ID IHDT56LY2 Frequency GSM 850MHz; PCS 1900MHz Antenna Internal Power supply Battery or Charger (AC Adaptor) Output power 28.68 dBm maximum ERP measured for GSM850 Extreme vol. Limits 3.5VDC to 4.2VDC (nominal: 3.8VDC) Extreme temp. Tolerance -30°C to +50°C Note: Components li…

Text truncated - open the document above for the full version.

WX290 FCC test setup photos 1． Radiated Spurious Emission 2． Conducted Emission 3． Part 15C
