IHDT56MD2GSM/ EGPRS Mobile Phone

MOTOROLA EX116 EN January 12, 2012 January 12, 2012 1 Congratulations Your Motorola EX116 is loaded with premium features, like messaging, browsing, and more—with an easy to use QWERTY keypad. •Messages: Edit and exchange messages, easily. •Web: Use Wi-Fi to search and browse. Everything you want to do, made simpler. •Tools: Calendar, email, and contacts blend work and life. We’ve crammed all the main features of your phone into this handy guide, and in a matter of minutes we’ll show you just how easy your phone is to use. You may be surprised at what you discover. Note: Certain apps and features may not be available in all countries. Caution: Before assembling, charging, or using your phone for the first time, please read the important legal and safety information at the back of this guide. January 12, 2012 2Congratulations This product meets the applicable SAR limits of 1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. Note: When using the product while worn on your body, either use an approved accessory such as a holster or maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. Note that the product may be transmitting even if you are not making a phone call. More •Support: Go to www.motorola.com/support. •Accessories: Find accessories for your phone at www.motorola.com/products . January 12, 2012 3 Your phone the important keys & connectors Note: Your phone might look a little different. ALT SYM = 3.5mm Headset Micro USB Connector Charge or connect to PC. Camera (on back) Microphone Left Soft Key Right Soft Key Power/ End Key Call Key Select Key Navigation Key 01.10.2012 Carrier Name 12:30 PM MenuMessaging What’s on your mind? Facebook Key January 12, 2012 4Contents Contents Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Facebook™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Manage your life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Memory card & file transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Let’s go let’s get you up and running January 12, 2012 5Let’s go Assemble & charge Caution: Please read“Battery Use & Safety” on page 45“. 1Cover off.2SIM card in. 3microSD in.4Battery in. 5Cover on.6Charge up. SIM microSIM microSIM + Adapter 3H January 12, 2012 6Let’s go Turn it on & off To turn your phone on or off, press and hold Power/End. Make & answer calls To make a call from the home screen, enter a number, then press Call. To answer a call, press Call. To turn off the incoming call alert, press Reject. To end a call, press Power/End. Cool content & more Surf the web for cool content and more (see “Web” on page 29). An optional microSD memory card can be inserted in your phone—you can load it up with music, photos, and videos from your computer (see “Memory card & file transfer” on page 39). = January 12, 2012 7Keys Keys a few essentials Menu navigation 7From the home screen, press the right soft key Menu to open the app menu. 8Press the Navigation key up, down, left, or right to scroll and highlight a menu option. 9Press to select the highlighted option. = = = January 12, 2012 8Keys Shortcut keys From the home screen, press left or right to quickly open shortcuts. To change your shortcut keys, press Menu >Settings > Phone settings >Dedicated key. Adjust volume Press left or right to change the earpiece volume during a call. When playing music or video files, press up or down to adjust playback volume. January 12, 2012 9Home screen Home screen quick access to the things you need most Quick start: Home screen The home screen gives you all your latest information in one place. It’s what you see when you turn on the phone or press Power/End from a menu. It’s basically like this: Note: Your home screen might look a little different. 01.10.2012 Carrier Name 12:30 PM…

Text truncated - open the document above for the full version.

30Personalize Personalize add your personal touch Profiles Customize ringtones, alerts, and volumes for each profile. Find it: Menu > User profiles You can select these profiles: To change a profile’s settings, press Options > Customize. You can adjust these settings: Profiles GeneralStandard profile default setting. SilentRingtone is off, vibrate is off. OutdoorRingtone and key tone volume are set to maximum. IndoorRingtone is on, vibrate is off. VibrationVibrate is on. HeadsetAdjust profile settings for when a wired headset is plugged into your phone. BluetoothAdjust profile settings for when a Bluetooth™ headset is connected to your phone. January 12, 2012 31Personalize Settings Tone settingsSet ringtones for incoming calls, messages, key tones, and other events. VolumeSet the volume for ringtones and key tones. Alert typeSet to Ring only, Vib. only, Vib. and ring, Vib. then ring, or Silent. Ring typeSet to Single, Repeat, or Ascending. Extra tonePlay an extra tone for Warning, Error, Camp on, and Connect. Answer optionsSet to answer calls by pressing any key. January 12, 2012 32Personalize Display settings To set display options such as wallpaper and home screen appearance, press Menu >Settings > Phone settings >Display. Date & time Set date, time, time zone, and formats: Find it: Menu >Settings >Phone settings > Time and date Language Set menu language: Find it: Menu >Settings >Phone settings > Language January 12, 2012 33Manage your life Manage your life stay on top of things Calendar Find it: Menu >Tools >Calendar To view your calendar in different ways, press Options > Jump to date or Go to weekly view. Add calendar events From any calendar view, press Options >Add event > Reminder, Meeting or Course. Enter event details and press Options >Done >Yes. Edit calendar events To edit an event, press Options >View >Options > Edit. Edit event details, then when you’re done, press Done >Yes. Tasks Find it: Menu >Tools >Tasks To add a task, press Add >Date, Call, or Anniversary. January 12, 2012 34Manage your life Alarm Find it: Menu >Tools >Alarm To turn on an alarm, highlight it and press, scroll to On and press. When an alarm sounds, press Stop to turn it off or Snooze to delay. To set a snooze period, highlight the alarm, then press Edit >Snooze (min). To set FM radio as your alarm, highlight the alarm, then press Edit >Alarm tone >FM radio. Calculator & currency convertor Find it: Menu >Tools >Calculator or Currency convertor File manager Find it: Menu >File manager Select Phone or Memory card, then selectOpen to view your folders. Press Options to Open, create New folder, Rename, Delete, and more. January 12, 2012 35Manage your life Airplane mode Use airplane mode to turn off all your wireless connections—useful when flying. Find it: Menu >Settings >Phone settings > Flight mode Note: When you select airplane mode, all wireless services are disabled. You can then turn Wi-Fi and/or Bluetooth back on, if permitted by your airline. Other wireless voice and data services (such as calls and text messages) remain off in airplane mode. Emergency calls to your region's emergency number can still be made. January 12, 2012 36Wi-Fi Wi-Fi get on your home network Turn Wi-Fi on or off Find it: Menu >Settings >Connectivity >WiFi Highlight the network you want and press Connect. Note: If prompted to turn on WLAN, select Yes. To disconnect, highlight the network and press Options > Disconnect. Note: An open network does not require you to enter a password or other settings when you connect to it. An secure network requires you to enter password and other settings you get from the Wi-Fi service provider. Some locations provide an open network but charge a fee to use it. You may need to register with the Wi-Fi service provider in advance. If you can’t connect, contact your Wi-Fi service provider. January 12, 2012 37Bluetooth™ wireless Bluetooth™ wireless lose the wires and go wireless Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely. Turn Bluetooth power on or off Find it: Menu >Settings >Connectivity >Bluetooth > Power When Bluetooth power is on, the Bluetooth indicator appears in the status bar at the top of the home screen. Note: To extend battery life, turn off Bluetooth power when not in use. Connect new devices To connect with a new device, you need to pair with it. You only need to do this once for each device—to connect again, see “Reconnect devices” on page 38. 1Make sure the device you are pairing with is in discoverable mode (see device instructions). 2Press > Settings >Connectivity >Bluetooth > My device >Search new device. Note: If Bluetooth power is not turned on, your phone will ask if you want to Power on Bluetooth first? Press Yes. January 12, 2012 38Bluetooth™ wireless 3Your phone lists the devices it finds within range. Highlight a device and press to connect. 4If necessary, enter the device passkey (like 0000) to connect to the device. Tip: For specific information about a device, check the instructions that came with it. For more Bluetooth support, go to www.motorola.com/Bluetoothsupport . For maximum Bluetooth security, always connect Bluetooth devices in a safe, private environment. Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely. Reconnect devices To automatically reconnect your phone with a paired device, simply turn on the device. To manually reconnect your phone with a paired device, select the device name in the My device list. Disconnect devices To automatically disconnect your phone from a paired device, simply turn off the device. To manually disconnect your phone from a paired device, select the device name in the My device list. January 12, 2012 39Memory card & file transfer Memory card & file transfer load music, photos, and more on your phone microSD memory card To format your memory card, pressMe…

Text truncated - open the document above for the full version.

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: December 29, 2011 Statement We, Sporton International Inc., states that our device, FCC ID: IHDT56MD2, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Jones Tsai

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: December 29, 2011 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: IHDT56MD2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: EX116_Schem.pdf) Block Diagram (file: EX116_BlkDia.pdf) Parts List (file: EX116_PartsLst.pdf) Operation Description (file: EX116_OpDes.pdf) Tune up Procedure (file: EX116_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jones Tsai

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: December 29, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDT56MD2 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: EX116_ExtPho.pdf)  Internal Photos (file: EX116_IntPho.pdf)  Test Setup Photos (file: EX116_Tsup.pdf)  User Manual (file: EX116_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

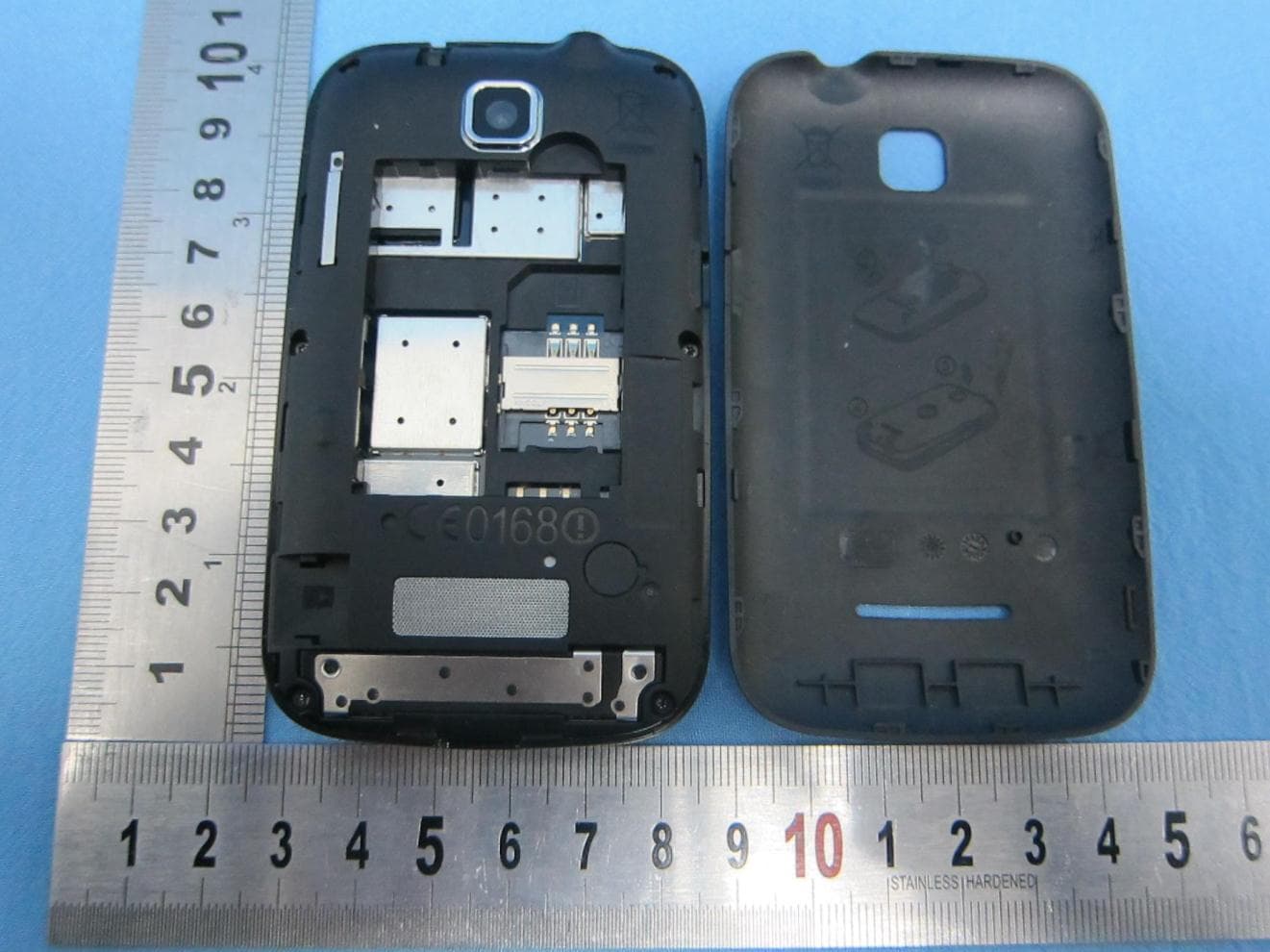

Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 1 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 2 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 3 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 4 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 5 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 6 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 7 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 List of Accessory: Specification of Accessory AC Adapter Brand Name Motorola Model Name SPN5334A Battery Brand Name Motorola Model Name OM4A Earphone Brand Name Motorola Model Name SJYN0760A USB Cable Brand Name N/A Model Name N/A Signal Line Type 1.0 meter shielded cable with ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 8 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 720510 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 9 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 10 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 11 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2

Photographs of EUT Report No.: 1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Antenna Length Width WWAN Antenna <Tx / Rx> 5.4 cm 2.3 cm WLAN Antenna <Tx / Rx> 2.6 cm 0.7 cm Bluetooth Antenna < Tx / Rx > 3.2 cm 0.4 cm WLAN Antenna <Tx / Rx> 4.0CM 6.1CM 5.2CM WWAN Antenna <Tx / Rx> Bluetooth Antenna <Tx / Rx>

FCC ID: IHDT56MD2 Mobile Phone (Back) Battery Compartment Label Location

2011/12/27 Handset label Ada Yang Ada Yang Morray hou 201 1/1 2/2 7 MOTO 75#合成mylar 8256 7L-825600-0002 1:1 4:1 3 . 5 0 m m 4.50 mm 33.77 IMEI:358976040000011 Made in China CHWF1923XX M0CE9 MSN:M64U070001 V1NNP22223 EX116 86279LZESA FCC ID IHDT56MD2 SL 3.7VCC IMEI:358976040000011 Made in China CHWF1923XX M0CE9 MSN:M64U070001 V1NNP22223 EX116 86279LZESA FCC ID IHDT56MD2 SL 3.7VCC

Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 12 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 3. Internal Photograph of EUT Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 13 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 14 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 15 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 16 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 17 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 18 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 19 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 20 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 Photographs of EUT Report No.: EP1D0145 Brand Name: MOTOROLA / Model Name / Marketing Name: EX116 SPORTON INTERNATIONAL INC. Page Number : 21 of 24 TEL : 886-3-327-3456 Report Issued Date : Dec. 26, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 720510

SPORTON INTERNATIONAL INC. Page Number : 1 of 36 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 FCC SAR Test Report Report No. : FA1D0145 FCC SAR Test Report APPLICANT : Motorola Mobility, Inc. EQUIPMENT : GSM / EGPRS Mobile Phone BRAND NAME : MOTOROLA MODEL NAME / MARKETING NAME : EX116 TYPE NAME : M0CE9 GPPD NUMBER : 3305 FCC ID : IHDT56MD2 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 06, 2011 and completely tested on Dec. 09, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 36 TEL : 886-3-327-3456 Report Issued Date : Dec. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MD2 FCC SAR Test Report Report No. : FA1D0145 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Applied Standards .................................................................................................................................................. 7 3.3 Device Category and SAR Limits ........................................................................................................................... 7 3.4 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................20 8. SAR Measurement Evaluation ....................................................................................................................................22 8.1 Purpose of System Performance check ................................................................................................................22 8.2 System Set…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/6 System Check_Head_835MHz_111206 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_111206 Medium parameters used: f = 835 MHz; σ = 0.895 mho/m; ε r = 41.661; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.475 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.514 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.289 W/kg SAR(1 g) = 2.3 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.493 mW/g 0 dB = 2.490mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/7 System Check_Head_835MHz_111207 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_111207 Medium parameters used: f = 835 MHz; σ = 0.909 mho/m; ε r = 43.261; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.35, 6.35, 6.35); Calibrated: 2011/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.575 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.936 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.422 W/kg SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.591 mW/g 0 dB = 2.590mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/12/6 System Check_Body_835MHz_111206 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty C…

Text truncated - open the document above for the full version.
