IHDT56MF2WCDMA/GSM TRANSCEIVER WITH BT & WLAN

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 TouchWelcomePersonalizeHomeLet’s goYour phone MOTOROLA XT860 MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Google Latitude, Google Maps Navigation, Google Search, Gmail, YouTube, Android and Android Market are trademarks of Google, Inc. All other product or service names are the property of their respective owners. © 2011 Motorola Mobility, Inc. All rights reserved. Caution: Motorola does not take responsibility for changes/modification to the transceiver. Note: The images in this guide are examples only. Product ID: Motorola MDM6200 Manual Number: 68014832001-A Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details. All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. MOTOROLA and the Stylized M Logo, are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps, Gmail, YouTube, Picasa, Android and Android Market are trademarks of Google, Inc. All other product or service names are the property of their respective owners. © 2011 Motorola Mobilty, Inc. All rights reserved. Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user’s authority to operate the equipment. MOTOROLA XT860 Manual Number: 68016069001-A Social skills MOTOROLAXT860 gives you a high quality imaging, video, and multimedia sharing experience. Capture life’s moments in HD video. Stream and share multimedia to your home entertainment system via HDMI cable (included in-box) or wirelessly on any DLNA™ certified devices. Browser 11:35 Market MaMa rkrk etet 64569108 Your phone Most of what you need is in the touchscreen and four simple keys on the front: •Menu: Open menu options. •Home: Go to the home screen and apps menu. •Back: Go back one screen. •Search: Press for text search, or hold for voice search. 1:53 PM 72º CHICAGO 72º 72º72º CHICAGO CHICAGOCHICAGO 11:35 Browser Microphone Power/ Lock Key HDMI Connector Menu Home Micro USB Connector 3.5mm Headset Jack Volume/ Zoom Keys Back Search To uchscreen If you want a full keypad (good for messaging, searching, or editing documents), just turn the phone—the screen spins to stay right-side up. To open the touchscreen keypad, touch a text field, or touch and hold Menu. To close the keypad, touch Back. 1234567890 ? Scroll & Select Enter Space @ Key Alternate Shift Delete Search Tab Vo ice Recognition Start here The first time you turn on your phone, a setup wizard guides you through signing in to your Gmail™ account. If you don’t have one, don’t worry, the wizard will help you create one. Caution: Before assembling, charging, or using your phone for the first time, please read the important legal and safety information packaged with your product. 1 Cover off 3 SIM in 5 Cover on 6 Charge Battery inB 4 3H HD VIDEO 1080p|8MP HD VIDEO 1080p|8MP HD VIDEO 1080p|8MP HD VIDEO 1080p|8MP After you log in to Gmail, you can set up your social network accounts to view real-time social feeds and sync your social network contacts to your phone, or you can set up your accounts later. Note: This phone supports data-intensive apps and services. It is strongly recommended that you purchase a data plan that meets your needs. Contact your service provider for details. Touch tips It’s all in the touch: •Touch: Choose an icon or option. •Touch & Hold: Open options. •Drag: Scroll or move slowly. •Flick: Scroll or move quickly. •Pinch-to-zoom: Get a closer look at Google Maps™, web pages, or photos. Market E Ohio St N Park St N New St E Grand Ave E Randolph St r D s u bmulo C N Randolph St Metra E S WaterSt pphh rra anndo SSStt MMeett anddo k E MM EEEERRRaanndddooolllhh pphSSttt phhh Messaging St Wacker Dr M n St W Lake St E Wacker Pl State/Lake Lake Randolph/ Wabash M M E Randolph St Browser Touch & hold to show options. Drag or flick to scroll. To z o om in or out, slide two fingers apart or together. Touch to open. Home screen The home screen gives you all your latest information in one place. It’s what you see when you turn on the phone or touch Home. Use the widgets, shortcuts and panels to see what’s important to you—whether it’s home, work or play. To make the home screen yours, see “Personalize”. Flick left or right to see more panels of shortcuts & widgets. Shortcuts Touch to open. Status Indicators Notifications Flick this bar down to see details. Open the app menu. Touch Back to close. Personalize Go ahead, add your personal touch. Change your widgets, wallpaper, ringtone, and more—make it yours. •Home screen: To add something or change your wallpaper, touch and hold an empty spot until you see the Add to Home screen menu. •Ringtones & sounds: Touch Menu > Settings > Sound >Phone ringtone or Notification ringtone. Sound settings General Incoming calls Notifications Silence all sounds except media & alarms Silent mode Only in Silent mode Vibrate Volume Phone ringtone Notification ringtone Touch and hold an empty spot to open the home screen menu. Touch Menu , then touch Settings to open the Settings menu. WirelessMoreTipsWeb & Google Maps™pHOTOS, VIDEOS, & MUSICMessagesMEDIA sharingContactsCallsApps Apps All your apps, all together: •Menu: To open the app menu, touch in the home screen. To close the app menu, touch Home. •Search: In the app menu, touch Search to open a keypad, then type the app name. •More: Touch > Market. A…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 1 Exhibit 2 Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56MF2) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Tom Neckopulos DATE: 23 June 2011 TITLE: Engineering Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56MF2) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE 23 June 2011 TITLE: Engineering Manager, Product Safety and Compliance APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains an embedded Bluetooth device, Wi-Fi device, and MOTOtalk capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Tom Neckopulos DATE 23 June 2011 TITLE: Engineering Manager 2.4. Attestation Statement (2.907(a), 2.907(b), 2.908, 2.931, 2.932, 2.1033(c) – REUSE OF TEST SAMPLES) Motorola hereby attests that the device bearing FCC ID IHDT56MF2 is electrically identical to devices bearing FCC ID IHDT56MF1, and thus the re-use of test samples is justifiable. The difference between these two transceivers is limited to the firmware, which enables different operating modes within the United States. NAME: Tom Neckopulos DATE 23 June 2011 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.5. Declaration of Available Operating Bands and Modes We, Motorola Mobility, Inc. declare that WCDMA and GSM are the main networks used in the US territory for this product. The CDMA network functions have been disabled by the firmware and are SIM locked by all US operators on this product. NAME: Tom Neckopulos DATE 23 June 2011 TITLE: Engineering Manager 2.6. Attestation (Equipment Class PCE) Motorola Mobility hereby declares that the DUT utilized for SAR testing was found to be operating in a manner consistent with its design characteristics, and the drift values reported for the licensed services (between -0.49 and +0.52 dB in the 850 MHz band) have been confirmed as inherent to the operation of the device. NAME: Tom Neckopulos DATE 23 June 2011 TITLE: Engineering Manager

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 March 9, 2011 CONFIDENTI ALITY REQU EST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Dear Sir/Madame: Pursuant to sections 0. 457 & 0.49 of the commission’s rules, Motorola Mobility, Inc., 600 N. U.S. Highway 45, Libertyville, Illinois 6004 8 herein submits Application for Equipment Authorization for Certification of a Cellular/PCS Transceiver, FCC ID: IHDT56MF2. Motorola Mobility is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission’s rules (CFR 47), Motorola Mobility requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola’s trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment is a WCDMA/GSM portable transceiver, which operates in the 850/1900 MHz bands. It employs HSPA/GPRS/EDGE data transissions in the networks and contains 2.4 GHz Bluetooth and WiFi functions (part 15.247). It is connected to a computer via a USB connection. (Part 15B). Note: This device also contains functions that are not operational in the U.S. territories. This filing is only applicable for US operations. Contact Information: If there are any further questions or additional information needed concerning this filing, please contact me, John Lewczak, by telephone at (954) 723-6272 or via E-mail at: [email protected] . Regards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 E-mail: [email protected] Exhibit 13 1

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56MF2 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Pursuant to sections 0. 457 & 0.49 of the commission’s rules, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, John Lewczak FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

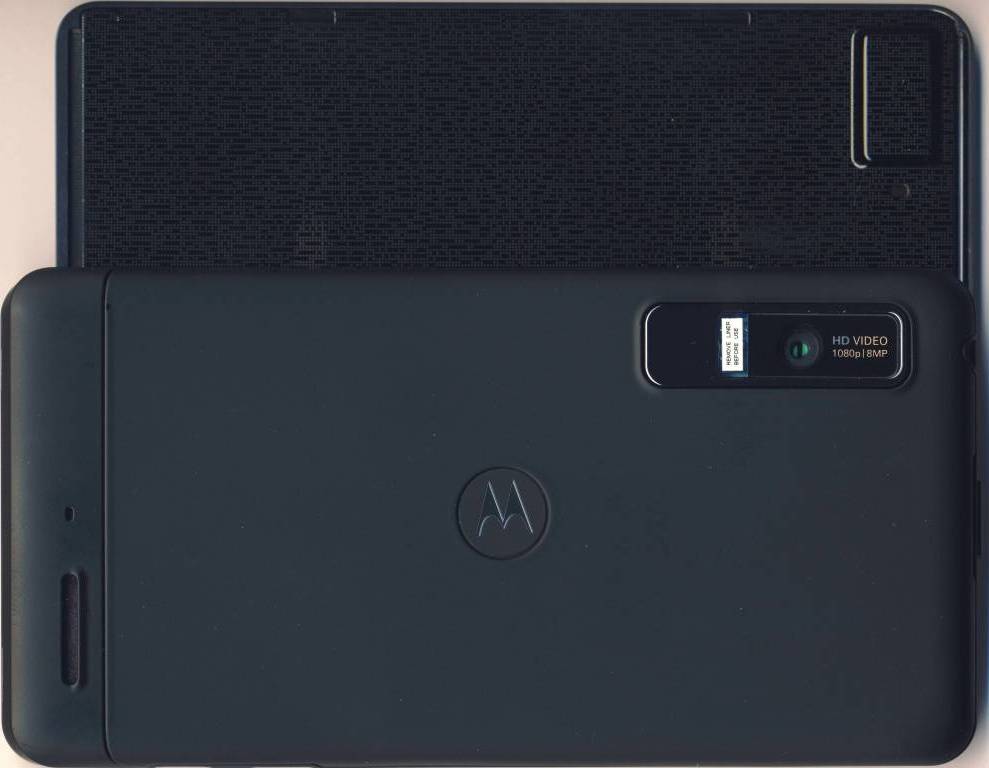

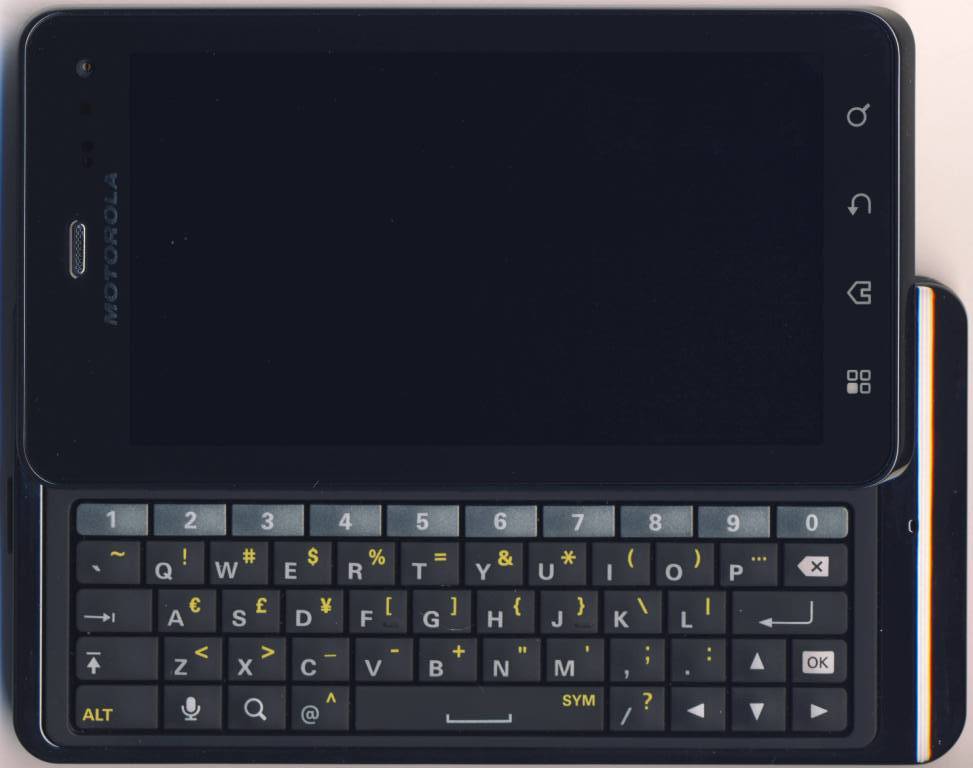

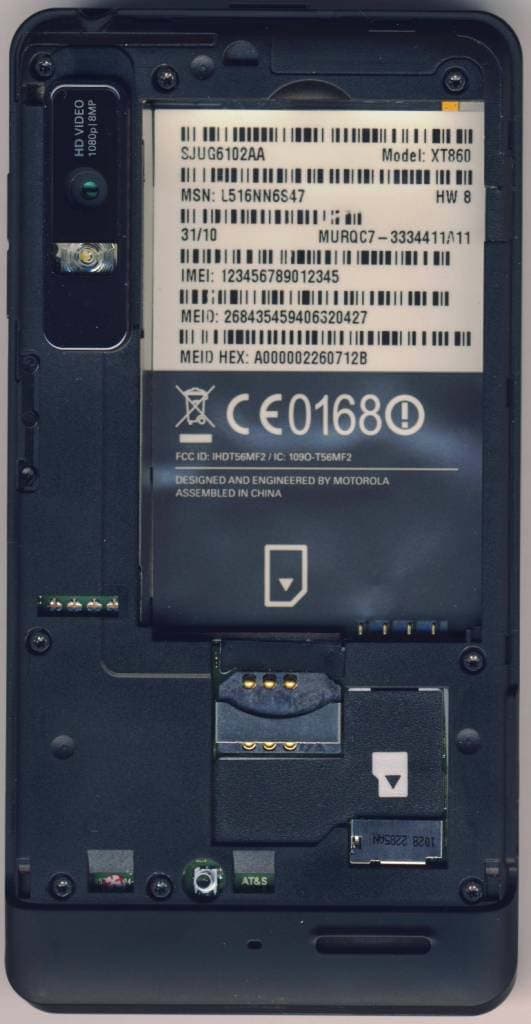

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 Front of Phone – Open Back of Phone – Open EXHIBIT 3 1 of 3 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 Front of Phone – Closed Back of Phone – Closed EXHIBIT 3 2 of 3 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 EXHIBIT 3 3 of 3 Back of Phone – Battery Cover Removed Side of Phone Side of Phone Top of Phone

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MF2 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDT56MF2

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MF2 Main Board Top Assembly Main Board Top without Shields EXHIBIT 9 1 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MF2 Main Board Bottom Assembly Main Board Bottom without Shield EXHIBIT 9 2 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MF2 Rear Housing and Main Board Removed Inside Rear Housing Base Assembly – Keypad Removed EXHIBIT 9 3 of 4 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MF2 EXHIBIT 9 4 of 4 Display Slide Assembly Front Rear Housing and Main Board Removed

MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Rev. B Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobile Devices 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 24534-1F REV B Date of Report: July 06, 2011 Date of Test: March 25,2011 – April 12,2011, April 26, 2011, May 13, 2011, June 14-15, 2011 FCC ID #: IHDT56MF2 Generic Name: MURQC7-3334411A11 Test Laboratory: Motorola Mobile Devices Business ADR Test Services Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Katerina Bruggemann Engineer Accreditation: Testing Laboratory No. 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (none) ©Motorola Mobility, Inc. 2011 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Rev. B E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 2 2 o o f f 3 3 1 1 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.1 Antenna description 3 2.2 Device description 4 2.3 Device Conducted Power Measurements 6 2.3.2 WCDMA modes 6 2.3.1 GSM modes 7 2.3.2 Wi-Fi 802.11 modes 7 2.4 Evaluation of Simultaneous Transmitters (GSM/WCDMA and Bluetooth) 8 3. Test Equipment Used 9 3.1 Dosimetric System 9 3.2 Additional Equipment 9 4. Electrical parameters of the tissue simulating liquid 10 5. System Accuracy Verification 12 6. Test Results 14 6.1 Head Adjacent Test Results 15 6.2 Body Worn Test Results 20 6.3 Mobile Hotspot Test Results 24 References 31 Appendix 1: SAR distribution comparison for the system accuracy verification Appendix 2: SAR distribution plots for Phantom Head Adjacent Use Appendix 3: SAR distribution plots for Body Worn Configuration Appendix 4: SAR distribution plots for Mobile Hotspot Configuration Appendix 5: Probe Calibration Certificate Appendix 6: Measurement Uncertainty Budget Appendix 7: Dipole Characterization Certificate MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Rev. B E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 3 3 o o f f 3 3 1 1 1. Introduction The Motorola Mobile Devices Business ADR Test Services Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1g average set in [3] and 2.0W/kg in a 10g average set in [2]. For ANSI / IEEE C95.1 (1g), the final stand-alone SAR reading for this phone is 0.76 W/kg for head adjacent use, 0.92 W/kg for body worn use, and 1.38 W/kg in mobile hotspot mode. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. Transmit Band Head SAR (1 g W / kg ) Body SAR (1 g W / kg ) Mobile Hotspot SAR (1 g W / kg ) GSM 850 0.43 0.24 1.17 WCDMA 850 0.49 0.25 1.04 GSM 1900 0.42 0.92 1.38 WCDMA 1900 0.76 0.60 1.33 Wi-Fi 2.45 GHz 0.18 0.04 0.28 2. Description of the Device Under Test 2.1 Antenna description Main Antenna (WCDMA/GSM) Type Internal Location Back Surface, Bottom of the Phone Length 56 mm Dimensions Width 10 mm WiFi / Bluetooth Antenna Type Internal Location Back Surface, Right Edge of the Phone Length 1 mm Dimensions Width 18.4 mm MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Rev. B E E x x h h i i b b i i t t 1 1 1 1 P P a a g g e e 4 4 o o f f 3 3 1 1 2.2 Device description Serial Number(s) LSLV270002 (WCDMA/GSM conducted power measurements, WCDMA/GSM 850/1900 SAR testing, GSM/WCDMA 850 Mobile Hotspot SAR testing), LSLV270029 (GSM/WCDMA 1900 Mobile Hotspot SAR testing LSLV2G0048 (Wi-Fi SAR testing) 355477040010408 (Wi-Fi / Bluetooth conducted power measurements) Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable (Mobile Station Class B) Mode(s) of Operation GSM 850 GSM 1900 WCDMA 850 WCDMA 1900 Wi-Fi 802.11b/g/n Bluetooth Modulation Mode(s) GMSK GMSK QPSK QPSK BPSK GFSK Maximum Output Power Setting 33.5 dBm 30.5 dBm 24.0 dBm 24.0 dBm 19.37 dBm 9.5 dBm Duty Cycle 1:8 1:8 1:1 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 1850.2 - 1909.8 MHz 826.4 - 846.6 MHz 1852.4 - 1907.6 MHz …

Text truncated - open the document above for the full version.

MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Supplemental Rev A FCC ID: IHDT56MF2 Exhibit 11 Supplemental Portable Cellular Phone SAR Test Report Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 24534-1F Rev A Date of Report: June 20, 2011 Date of Test: May 13, 2011 and June 14, 2011 FCC ID #: IHDT56MF2 Generic Name: MURQC7-3334411A11 Test Laboratory: Motorola Mobility, Inc. - Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Steven Hauswirth Distinguished Member of the Technical Staff Accreditation: 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable cellular telephone model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: Motorola’s ISO 17025 accreditation scope does not currently include SAR testing in the 5 GHz band. Therefore, SAR testing performed in this band was performed outside of our ISO 17025 accreditation. The general procedures and guidelines provided within; FCC KDB 248227 D01, FCC KDB 648474 D01, FCC KDB 865664 D01 and IEC 62209-2 were utilized for testing. ©Motorola, Inc. 2011 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Supplemental Rev A FCC ID: IHDT56MF2 Exhibit 11 Page 2 of 7 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 3. Test Equipment Used 5 3.1 Dosimetric System 5 3.2 Additional Equipment 5 4. Mobile Hotspot Test Results 6 References 7 Appendix 1: SAR distribution plots for Mobile Hotspot Configuration Appendix 2: Measurement Uncertainty Budget Appendix 3: Probe Calibration Certificate MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Supplemental Rev A FCC ID: IHDT56MF2 Exhibit 11 Page 3 of 7 1. Introduction The Motorola Mobility Product Safety & Compliance Laboratory has performed measurements of the maximum potential exposure to the user of the portable cellular phone covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable cellular phone was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable cellular phone are below the maximum recommended levels of 1.6 W/kg in a 1 g average set in [3] and 2.0 W/kg in a 10 g average set in [2]. Per direction of the FCC, the following SAR test data is being provided to demonstrate the device's effective utilization of power reduction conditions specified in Exhibit 12 - Operational Description. The values in the table in Section 6.0 are provided solely for purposes of confirming compliant power reduction operation and do not represent maximum SAR values of the product. For maximum reported SAR compliance values, refer to the Exhibit 11 SAR test report. 2. Description of the Device Under Test 2.1 Device description Serial Number(s) LSLV270002 (WCDMA/GSM conducted power measurements, WCDMA/GSM 800/1900 SAR testing, GSM/WCDMA 800 Mobile Hotspot SAR testing), LSLV270029 (GSM/WCDMA 1900 Mobile Hotspot SAR testing LSLV2G0048 (Wi-Fi SAR testing) 355477040010408 (Wi-Fi / Bluetooth conducted power measurements) Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable Mode(s) of Operation GSM 850 GSM 900 GSM 1800 GSM 1900 WCDMA 850 WCDMA 1900 WCDMA 2100 Wi-Fi 802.11b/g/n Bluetooth Modulation Mode(s) GMSK GMSK GMSK GMSK QPSK QPSK QPSK BPSK GFSK Maximum Output Power Setting 33.5 dBm 33.5 dBm 30.5 dBm 30.5 dBm 24.0 dBm 24.0 dBm 24.0 dBm 19.37 dBm 9.5 dBm Duty Cycle 1:8 1:8 1:8 1:8 1:1 1:1 1:1 1:1 1:1 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz 826.4 - 846.6 MHz 1852.4 - 1907.6 MHz 1922.4 - 1977.6 MHz 2412.0 - 2462.5 MHz 2402.0 - 2483.5 MHz MOTOROLA, INC. Portable Cellular Phone SAR Test Report Number: 24534-1F Supplemental Rev A FCC ID: IHDT56MF2 Exhibit 11 Page 4 of 7 Mode(s) of Operation GPRS 850 GPRS 900 GPRS 1800 GPRS 1900 Modulation GMSK GMSK GMSK GMSK Maximum Output Power Setting (dBm) 33.5 31.5 29.5 27.5 33.5 31.5 29.5 27.5 30.5 30.0 28.5 26.5 30.5 30.0 28.5 26.5 Duty Cycle 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 1:8 2:8 3:8 4:8 Transmitting Frequency Range(s) 824.2 - 848.8 MHz 880.2 - 914.8 MHz 1710.2 - 1784.8 MHz 1850.2 - 1909.8 MHz Mode(s) of Operation EDGE 850 EDGE 900 EDGE 1800 EDGE 1900 Modulation 8PSK 8PSK 8PSK 8PSK Maximum Output Power Setting (dBm) 27.5 26.0 24.0 22.0 27.5 26.0 24.0 22.0 26.5 26.0 24.0 22.0 26.5 26.0 24.0 22.0 Duty Cycle 1:8 2:8 3:8 4:8 1:8 …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MF2 Test Report Number: 24537-1 EXHIBIT 6 1 of 49 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 24537-1 Report Date – June 1, 2011 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Albert J. Patapack Title: EMC Engineer Date: June 1, 2011 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY A2LA OR ANY AGENCY OF THE U.S. GOVERNMENT. UKAS Certificate Number: 2404 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MF2 Test Report Number: 24537-1 EXHIBIT 6 2 of 49 Table of Contents Description Page Test Report Details 3 Applicable Standards 3 Summary of Testing 4 General and Special Conditions 4 Equipment and Cable Configuration 5 Measurement Procedures and Data 6 RF Power Output 6 Measurement results 6 Radiated Power 8 Measurement results 8 Occupied Bandwidth 10 Measurement results 11 Spurious Emissions at Antenna Terminals 23 Measurement results 24 Field Strength of Spurious Emissions 32 Measurement results 33 Frequency Stability 42 Measurement results 43 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MF2 Test Report Number: 24537-1 EXHIBIT 6 3 of 49 Test Report Details Tests Performed By: ADR Testing Service Location Code: ADR LV Motorola Mobility Inc Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 FCC Registration Number: 316588 Industry Canada Number: 109O-1 Tests Requested By: Motorola Mobility Inc. 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Cellular Phone Signaling Capability: WCDMA 850/1900, GSM 850/1900, HSDPA, HSUPA, EDGE, GPRS, Bluetooth, 802.11b/802.11g/802.11n FCC ID: IHDT56MF2 Serial Numbers: 355477040010390, 355477040010663, LSLV270002 Testing Complete Date: April 7, 2011 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 2 X Part 22 Subpart H - Public Mobile Services X Part 24 Subpart E – Personal Communications Services Applicable Standards: ANSI 63.4 2003, ANSI/TIA-603-C-2004, RSS-Gen Issue 2, RSS-129 Issue 2, RSS-132 Issue 2, RSS-133 Issue 5 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MF2 Test Report Number: 24537-1 EXHIBIT 6 4 of 49 Summary of Testing Test Test Name # Pass/Fail 1 RF Powe…
