IHDT56MK4MOBILE PHONE

IC Regulations: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This Category II radiocommunication device complies with Industry Canada Standard RSS-310. Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d’Industrie Canada. IMPORTANT NOTE: IC Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528. This equipment should be installed and operated with minimum distance 1.0cm between the radiator & your body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. The County Code Selection feature is disabled for products marketed in the US/Canada.

Dummy Page - To be discarded before printing ITC Notes: Use this template with A7MotoQSG StructApps. EX225 3G GSG 7/13/11 1 congratulations The MOTO Brea is a phone with several premium features including personalization, music, message, browsing, and more...all in a streamlined QWERTY design. •Personaliztion: Unify your work and personal life with calendar, email and contacts. •Message: Use the QWERTY keypad to quickly edit and exchange messages anywhere. •Dual SIM slot: Enable you to use two SIM cards at the same time without changing them. We’ve crammed all the main features of your phone into this handy guide, and in a matter of minutes we’ll show you just how easy your phone is to use. You may be surprised at what you discover. If you’d like to get more information about how to use your new phone, please visit www.motorola.com. Caution: Before using your phone for the first time, please read the important legal and safety information at the back of the Getting Started Guide. 2 contents my phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 let’s go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 customize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 e-mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 media player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 personal organizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Legal, Safety & Regulatory . . . . . . . . . . . . . . . . . . . . . . . . 35 my phone 3 my phone Note: All the illustrations, simulated screen and related images used in this manual are for reference only. There may be slight defference between the phone and keys and content of display used in this manual and those of your phone. Please refer to your phone for actuality. home screen 4 home screen keep you updated at all times... The home screen appears when you turn on the phone. It gives you all your latest information in one place. Status indicators can appear on the top of the home screen. Note: Your home screen may look different. status indicators Single StrengthGeneral Profile 3GMeeting Profile Active Voice CallOutdoor Profile Phone LockHeadset Alarm LockBluetooth Roaming Service Battery New Messages menu maplet’s go 5 menu maplet’s go Communication •Settings •Dial pad •Phonebook •Call log •Message •Email •Favorite Contacts Multimedia •Camera •Video player •Sound recorder •Image viewer •Photo editor •Audio player •FM radio •Picture Share Data Switch •Wifi •3G •Hotspot •Back light •Bluetooth •USB tethering * Slide across screen to change page of menu. * Long press icon to change shortcut of menu. menu maplet’s go 6 SNS •Facebook •Myspace •Twitter •Orkut •Yahoo •Gmail •Google Search •YouTube •Java Setup menu •Profile •Connection •Phone setting •Layout setting •Dual SIM •Theme Tool •Alarm •World clock •File manager •Calender •Tasks •Notes •Calculator •Currency converter •Unit converter •Stop watch •Ebook •Browser •RSS •Weather This is the standard main menu layout. Your phone’s menu may be different . Press top edge of screen and then slide down to open setup menu. menu maplet’s go 7 Note: Your battery is intentionally tight fitting. basics 8 basics here’s a few essentials: about this guide Press the Menu icon to open the Main Menu. Use your finger to slide to change page of menu, then press the icon to select the item. Press the Right Soft Key on screen to select Back and move up to the previous level. This guide shows how to locate a menu as follows: Find it: On Communication Panel > More > Call log > (received calls) 1Press the Menu icon to open the Main Menu. 2Press the icon of Call log. 3Press the Navigation Key to scroll or press received calls on screen to select the received calls. turn it on & off Press and hold the Power Key for a few seconds to turn the phone on and off. If prompted, enter your unlock code to turn it on. basics 9 activate SIM cards Your phone supports the Dual SIM cards mode, one 2G SIM card and one 3G SIM card, enabling you to use two SIM cards at the same time without changing them. When two SIM cards are both installed, you can activate one of two or both SIM cards as well as the flight mode. Find it: On MainMenu> Top edge of screen then slide down to open Setup menu> Dual SIM Note: If only one SIM card is installed, this SIM card would be activated as default. access the main menu 1From the home screen, press the Menu icon to open the Main Menu. 2You can slide across screen to change page of main menu. You also can long press the icon on menu to change shortcut of menu. 3You can press the Right Soft Key on screen to move up the previous level. You also can press the Home Key to return to the home screen at anytime. basics 10 access setup menu At main menu, you can press top edge of screen and then slide down to open setup menu of your …

Text truncated - open the document above for the full version.

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: September 21, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: IHDT56MK4 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: EX225_Schem.pdf) Block Diagram (file: EX225_BlkDia.pdf) Parts List (file: EX225_PartsLst.pdf) Operation Description (file: EX225_OpDes.pdf) Tune up Procedure (file: EX225_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ Jones Tsai

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: September 21, 2011 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDT56MK4 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: EX225_ExtPho.pdf)  Internal Photos (file: EX225_IntPho.pdf)  Test Setup Photos (file: EX225_Tsup.pdf)  User Manual (file: EX225_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Jones Tsai

201 1/06/17 handset Label 2011/06/17 alinali alinalimorrayhou 8254 MOTOROLA 7L-825400-0002 合成麥拉 V1NNP22223 MSN:M80U080002 IMEI:358957040000011 EX225 FCC ID IHDT56MK4 CHWF1883AA Made in China BTAddr:0024EFFABF8A M0C3B

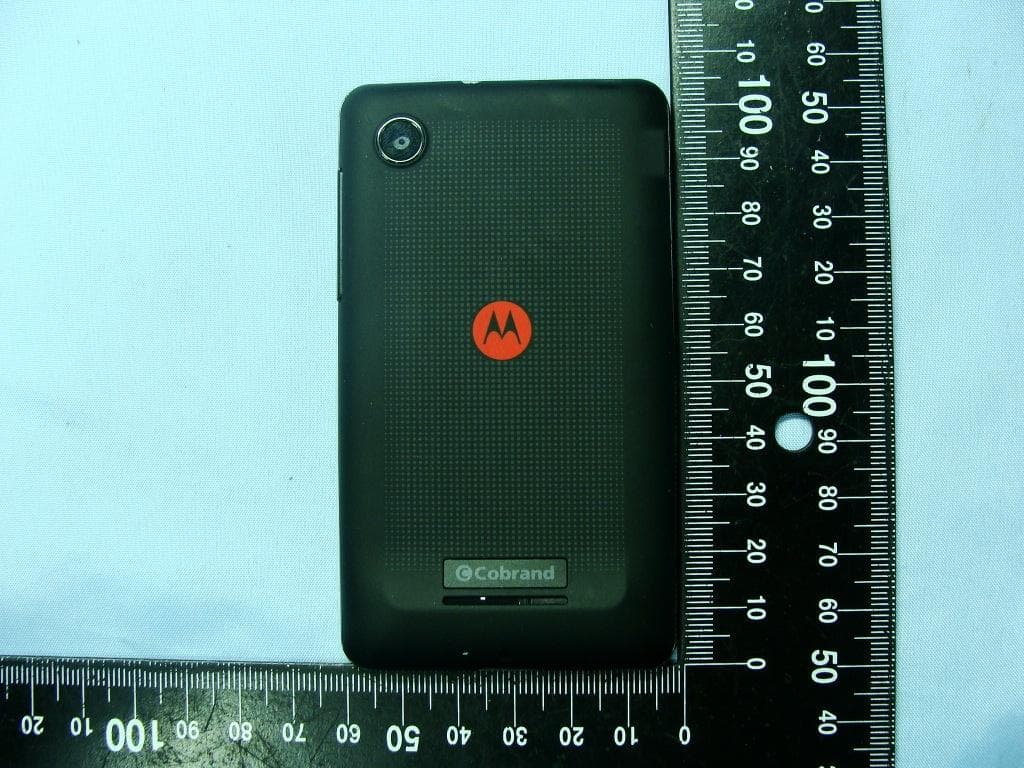

Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 8 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 3. Internal Photograph of EUT Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 9 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 10 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 11 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 12 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 13 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 14 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 15 of 15 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 IC : 109O-T56MK4 720510 Bluetooth Antenna <Tx / Rx>

Photographs of EUT Report No.: EP181924-03 Brand Name: MOTOROLA / Model Name: EX225 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Sep. 20, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 Antenna location Length Width WWAN Antenna <Tx / Rx> 4.9cm 1.6cm WLAN Antenna <Tx / Rx> 1.7cm 0.4cm Bluetooth Antenna <Tx / Rx> 1.9cm 0.2cm WLAN Antenna <Tx / Rx> WWAN Antenna <Tx / Rx> 3.9cm 0.5cm 2.6cm 2.5cm 0.2cm 0.3cm 0.7cm 4cm 4.2cm 0.8cm Bluetooth Antenna <Tx / Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 42 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 FCC SAR Test Report Report No. : FA181924-03 FCC SAR Test Report APPLICANT : Motorola Mobility,Inc. EQUIPMENT : Mobile Phone BRAND NAME : MOTOROLA MODEL NAME : EX225 (FDD II,V) GPPD NUMBER : 3131 FCC ID : IHDT56MK4 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Aug. 28, 2011 and completely tested on Sep. 03, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 42 TEL : 886-3-327-3456 Report Issued Date : Sep. 21, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56MK4 FCC SAR Test Report Report No. : FA181924-03 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2 Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3 General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Applied Standards ............................................................................................................................................ 7 3.3 Device Category and SAR Limits ..................................................................................................................... 7 3.4 Test Conditions ................................................................................................................................................. 7 3.4.1 Ambient Condition ................................................................................................................................... 7 3.4.2 Test Configuration ................................................................................................................................... 7 4 Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5 SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage ..........................................................................................................................................17 5.7.2 Data Evaluation ......…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/28 System Check_Head_835MHz_110828 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_110828 Medium parameters used: f = 835 MHz; σ = 0.885 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.69 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.2 V/m; Power Drift = -0.106 dB Peak SAR (extrapolated) = 3.81 W/kg SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 2.71 mW/g 0 dB = 2.71mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/29 System Check_Body_835MHz_110829 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110829 Medium parameters used: f = 835 MHz; σ = 0.994 mho/m; ε r = 56.003; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(8.45, 8.45, 8.45); Calibrated: 2011/6/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.629 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.460 V/m; Power Drift = -0.048 dB Peak SAR (extrapolated) = 3.575 W/kg SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.616 mW/g 0 dB = 2.620mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/31 System Check_Body_835MHz_100831 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_110831 Medium parameters used: f = 835 MHz; σ = 0.955 mho/m; ε r = 52.69; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(8.45, 8.45, 8.45); Calibrated: 2011/6/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.525 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.460 V/m; Power Drift = -0.00048 dB Peak SAR (extrapolated) = 3.433 W/kg SAR(1 g) = 2.33 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 2.512 mW/g 0 dB = 2.510mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/28 System Check_Head_1900MHz_110828 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110828 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.76, 7.76, 7.76); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 10.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.5 V/m; Power Drift = 0.082 dB Peak SAR (extrapolated) = 18.0 W/kg SAR(1 g) = 9.82 mW/g; SAR(10 g) = 5.41 mW/g Maximum value of SAR (measured) = 10.8 mW/g 0 dB = 10.8mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/30 System Check_Head_1900MHz_110830 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110830 Medium parameters used: f = 1900 MHz; σ = 1.424 mho/m; ε r = 39.269; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(7.26, 7.26, 7.26); Calibrated: 2011/6/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.6 (2); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.068 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 87.946 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 18.921 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.39 mW/g Maximum value of SAR (measured) = 11.367 mW/g 0 dB = 11.370mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/29 System Check_Body_1900MHz_110829 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110829 Medium parameters used: f = 1900 MHz; σ = 1.505 mho/m; ε r = 53.691; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3578; ConvF(6.68, 6.68, 6.68); Calibrated: 2011/6/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/1/13 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: D…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/28 #01 GSM850_Right Cheek_Ch189 DUT: 181924-03 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110828 Medium parameters used : f = 836.4 MHz; σ = 0.886 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.678 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.85 V/m; Power Drift = -0.077 dB Peak SAR (extrapolated) = 0.765 W/kg SAR(1 g) = 0.599 mW/g; SAR(10 g) = 0.442 mW/g Maximum value of SAR (measured) = 0.623 mW/g 0 dB = 0.623mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/28 #02 GSM850_Right Tilted_Ch189 DUT: 181924-03 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110828 Medium parameters used : f = 836.4 MHz; σ = 0.886 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.389 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 0.456 W/kg SAR(1 g) = 0.367 mW/g; SAR(10 g) = 0.276 mW/g Maximum value of SAR (measured) = 0.388 mW/g 0 dB = 0.388mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/28 #03 GSM850_Left Cheek_Ch189 DUT: 181924-03 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110828 Medium parameters used : f = 836.4 MHz; σ = 0.886 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.669 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.88 V/m; Power Drift = -0.054 dB Peak SAR (extrapolated) = 0.886 W/kg SAR(1 g) = 0.604 mW/g; SAR(10 g) = 0.416 mW/g Maximum value of SAR (measured) = 0.649 mW/g 0 dB = 0.649mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/28 #03 GSM850_Left Cheek_Ch189_2D DUT: 181924-03 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110828 Medium parameters used : f = 836.4 MHz; σ = 0.886 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.669 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.88 V/m; Power Drift = -0.054 dB Peak SAR (extrapolated) = 0.886 W/kg SAR(1 g) = 0.604 mW/g; SAR(10 g) = 0.416 mW/g Maximum value of SAR (measured) = 0.649 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011/8/28 #04 GSM850_Left Tilted_Ch189 DUT: 181924-03 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_110828 Medium parameters used : f = 836.4 MHz; σ = 0.886 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3792; ConvF(8.93, 8.93, 8.93); Calibrated: 2011/6/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Po…

Text truncated - open the document above for the full version.
