IHDT56MN1i440 Portable iDEN Handset with Bluetooth

MOTOROLA i440 1Congratulations Congratulations MOTOROLA i440 Get the convenience of push-to-talk calls together with a sleek design in an affordable package. •Private Calls: Stay in touch with your family, friends, and colleagues with the simple touch of a button. •FM Radio: Listen to your favorite stations wherever you go. • My Phone, My Way: It’s your phone—make it that way. Customize your home screen with personal pictures, and change wallpapers and ringtones. More information On your computer—Go to www.motorola.com/support/ . Caution: Before assembling, charging or using your phone for the first time, please read the important legal and safety information packaged with your product. 2Your phone Your phone the important keys & connectors 10:05pm 01/24 Ready ContcsMesg Send Key ` ? Camera Key @ End/Power Key Soft Key - - Soft Key Menu Key / r OK Key Navigation Key 3Your phone Note: Your phone might look a little different. Volume Key Speaker Key ) Camera ( Smart Key PTT Button 2.5 mm Headphone Jack Micro USB Connector 4Contents Contents Menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Basics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Push-to-Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 SDG calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Media center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 FM radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Bluetooth™ wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 5Menu map Menu map main menu Call Alert Bluetooth • Hands Free • Link to Devices • Device History • Setup •Find Me Settings •(see settings menu) Ring Tones • Vibrate All: On/Off • Ringtones •Vibrate • Silent Java Apps • Java System •FM Radio GPS • Position • Privacy • Interface Media Center Camera Net My Info •My name • Line 1 • Line 2 • Private ID • Group ID • Carrier IP •IP1 Address •IP2 Address Datebook VoiceRecord • [New VoiceRec] Memo Recent Calls Shortcuts • [Help] • 1)Shortcuts • 2)Cntcs[New Contact] • 3)Recent Calls • 4)Contacts • 5)Datebook • 6)Messages • 7)VoiceRecord •8)Net • 9)Call Forward 6Menu map main menu (con’t.) Contacts • [New Contact] • [New SDG List] • [New Msg Group] Note: Your service provider may not offer the Message Group feature. Call Forward Quick PTT Profiles • [New Profile] • Standard •Car • Meeting •Office • Outdoors • Headset •PRVT Only • CNTCS Only • Surveillance Call Timers • Last Call • Phone Reset • Phone Lifetime • Prvt/Grp Reset •Prvt/Grp Life • Kbytes Reset PT Manager •Quick PTT • Send Message • Send Picture • Send Event • Send My Info • Send Contact • Configure Messages • [Create Message] •Voice Mail •Inbox •Drafts •Outbox •Fax Mail • Net alert • Sent Items FM Radio Note: Your service provider may not offer the FM Radio feature. This is the standard main menu layout. Your phone’s menu may be different. 7Menu map settings menu Display/Info • Wallpaper •Text Size •Theme • Home Icons • Backlight •Clock • Menu View • Large Dialing • Language Phone Calls • Set Line • Any Key Ans • Auto Redial • Call Waiting •Auto Ans •Flip Activation • Minute Beep • Call Duration •TTY •Hearing Aid • Notifications • DTMF Dialing • Prepend 2-Way Radio •Tkgrp Silent •Tkgrp Area • One Touch PTT •Alert Type • PTT Quick Notes • On/Off PTT • Store Rcvd Info Personalize • Menu Options •Up Key • Down Key •Left Key •Right Key • Center Key •Left Softkey •Right Softkey •Power Up Volu m e • Line 1 • Line 2 • Messages • Earpiece • Speaker •Keypad • Java Earpiece • Java Spkr • Data 8Menu map settings menu (con’t.) Security • Phone Lock • Keypad Lock • SIM PIN •GPS PIN • Change Passwds Advanced •Alert Timeout • Headset/Spkr • Connectivity • Reset Defaults • Return to Home • Transmitters • Phone Only •Baud Rate 10Let’s go Caution: Please read “Battery Use & Safety” on page 39. Turn it on & off To turn on your phone, press and hold End/Power@ for a few seconds or until the display turns on. If prompted, enter your four-digit unlock code. Note: If you press End/Power@ for more than four seconds, the phone will turn on in Transmitters Off mode. To turn off your phone, press and hold End/Power@. Enable security You will need to enable security the first time you turn on your phone or within 10 days of using your phone. 1Press Ok. 2You are prompted to enable security. Press Yes and follow the on-screen instructions. 3Press End/Power@ to return to the home screen. 11Basics Basics About this guide This guide shows how to locate a menu feature as follows: Find it: Menu/ > Settings > Phone Calls This means that, from the home screen: 1Press the Menu key/ …

Text truncated - open the document above for the full version.

17Push-to-Talk Push-to-Talk one or more, talk to them all Private calls Private calls are push-to-talk calls between two people. Make and answer private calls To make a private call: •Enter the recipient’s PTT number. •Press Menu/ > Contacts, and select a contact that has a PTT number. To talk, press and hold the PTT Button. To listen, release the PTT Button. To answer a private call, press the PTT Button after the caller has stopped talking. To end a private call, press End/Power@ or do nothing. The call will end after a few seconds. Set push-to-talk speaker You can listen to push-to-talk calls through your phone’s speaker or earpiece. Press Speaker) to turn the speaker on or off. PTT Button 18Push-to-Talk Call alerts Use call alerts to tell someone you want to speak to them. To send a call alert: •Enter a Private ID, and press Alert. When prompted, press the PTT Button. •Press Contacts, and highlight a contact containing a Private ID. Press Alert, and press the PTT Button when prompted. When you receive a call alert, you can: •Answer: Press the PTT Button to begin a private call with the sender. • Queue: Press Queue to store the call alert to the call alert queue. •Clear: Press Clear to dismiss and delete the call alert. Note: Call alerts will automatically be moved to the queue after a few minutes of inactivity. You won’t be able to make phone calls or private calls until the call alert is moved, or you’ve chosen one of the options above. Turn off a call alert You can press the volume keys to turn off a call alert before answering the call. 19SDG calls SDG calls Need to talk to more than one person at a time? With SDG (Selective Dynamic Group) calls you can talk to up to 20 people at a time. Note: To store groups on your phone you need a group-call-capable SIM card. Contact your service provider for more information. Create SDG lists in contacts Find it: Menu/ > Contacts 1Select [New SDG List]. 2If you want to assign a name to the SDG list, enter the name. Note: If you do not assign a name, the SDG list is named “SDG” followed by the number of members in the SDG list. For example, “SDG (8)” for an SDG list with eight members. 3Add Private IDs. 4Press Save. Make SDG calls 1From Contacts or the recent calls list, scroll to or select the SDG list you want. 2Press the PTT button. 20Web Web Find it: Menu/ > Net Note: Your service provider may charge you to surf the Web or download data. Go to a Web site 1From the home page, select Go to URL. 2Press Edit. 3Enter the Web address and press Done. 4Press Ok to go to the Web site. Create a bookmark 1While on a Web page, press and hold Menu/ > Mark page. 2Name the bookmark and select Save. Access a bookmark From a web page: 1 Press and hold Menu/ > Favorites. 2Highlight a bookmark and press r, or press its number on the keypad. 21Text entry Text entry Your phone provides convenient ways to enter words, letters, punctuation, and numbers whenever you are prompted to enter text (for example, when adding a contact or when sending a message). Change character input mode 1When you see a screen where you can enter text, press Menu/ to change the character input mode. 2Select one of the following options: Options AlphaPress a key one or more times to cycle through the letters and numbers of that key. When you see the character you want, just press another key or wait a second or two to move on. 22Text entry Tip: When entering text, press and hold # to change letter capitalization (Abc > ABC > abc). WordPredictive text – predicts the word you want, with just one keypress per letter. If the prediction is correct, press the Navigation Key right to accept the word. If the prediction is not correct, press and hold the Navigation Key down to see other options. Highlight the correct word and press r to select. SymbolsEnter symbols. NumericEnter numbers. Text SettingsSelect the desired entry language and Word Prediction features. InsertSelect an item to be inserted, such a picture, an audio clip or a voice recording. Note: Only available when using MMS messaging. Options 23Contacts Contacts Store a phone number or Private ID Find it: Menu/ > Contacts > [New Contact] 1Enter a name for the new contact. Each contact’s name can contain up to 20 characters. 2Select a ringtone. 3Select a type for the contact ( Mobile, Private, Work1, Work2, Home, Email, Fax, Pager, Talkgroup, SDG, Msg Group, IP, or Other). Choose Private to store a Private ID. 4Enter the number for the contact and press Save. Call a stored phone number or Private ID Find it: Menu/ > Contacts 1Scroll to the contacts. 2If the contacts contains more than one number, scroll left or right until the type of number you want to call is displayed (such as Mobile, Private, Work1, Work2, Home). 3If you chose a phone number, press Talk` to begin a call. If you chose a Private ID, Talkgroup ID, or SDG list, press and hold the PTT Button to start a call. 24Messaging Messaging Find it: Menu/ > Messages Your phone can use both SMS and Multimedia Messaging Service (MMS) messaging. The type of messaging your phone uses is determined by your service provider. Create & send messages Find it: Menu/ > Messages > [Create Message] 1Enter the phone number of the person you want to send the message to and press r, or press Search to select a contact or recent call. 2Enter your message in the Mesg field. 3Optionally, insert (embed) or attach a picture, sound, or quick note. •Quick notes are short, pre-written phrases. Press QNotes to enter a quick note. •To insert pictures, sounds, (audio files), or voice recordings into the body of your message, press Menu/ > Insert > Add QNotes, Add Picture , Insert Audio, Capture Picture, or Record Voice. Note: You can only insert one item at a time. To remove an item from a message, highlight it and press Delete. 25Messaging •To attach a file to the end of your message, select ....MORE.... > Attach > [New] > Browse Pictures , Capture Picture, or Browse Audio, or Record Voice. Note: You can …

Text truncated - open the document above for the full version.

42 Caution About High Volume Usage Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing: •Limit the amount of time you use headsets or headphones at high volume. •Avoid turning up the volume to block out noisy surroundings. •Turn the volume down if you can’t hear people speaking near you. If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked. For more information about hearing, see our Web site at direct.motorola.com/hellomoto/nss/AcousticSafety.asp (in English only). Repetitive Motion When you repetitively perform actions such as pressing keys or entering finger-written characters, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. If you continue to have discomfort during or after such use, stop use and see a physician. [Nov0109] Small Children Keep your mobile device and its accessories away from small children. These products are not toys and may be hazardous to small children. For example: •A choking hazard may exist for small, detachable parts. •Improper use could result in loud sounds, possibly causing hearing injury. •Improperly handled batteries could overheat and cause a burn. Glass Parts Some parts of your mobile device may be made of glass. This glass could break if the product is dropped on a hard surface or receives a substantial impact. If glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by a qualified service center. 43 Operational Warnings Obey all posted signs when using mobile devices in public areas. Potentially Explosive Atmospheres Areas with potentially explosive atmospheres are often, but not always, posted and can include fueling areas, such as below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. When you are in such an area, turn off your mobile device, and do not remove, install, or charge batteries unless it is a radio product type especially qualified for use in such areas as “Intrinsically Safe” (for example, Factory Mutual, CSA, or UL approved). In such areas, sparks can occur and cause an explosion or fire. Symbol Key Your battery, charger, or mobile device may contain symbols, defined as follows: SymbolDefinition Important safety information follows. Do not dispose of your battery or mobile device in a fire. Your battery or mobile device may require recycling in accordance with local laws. Contact your local regulatory authorities for more information. Do not dispose of your battery or mobile device with your household waste. See “Recycling” for more information. For indoor use only. 032374o 032376o 032375o 44 Radio Frequency (RF) Energy Exposure to RF Energy Your mobile device contains a transmitter and receiver. When it is ON, it receives and transmits RF energy. When you communicate with your mobile device, the system handling your call controls the power level at which your mobile device transmits. Your mobile device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. RF Energy Operational Precautions For optimal mobile device performance, and to be sure that human exposure to RF energy does not exceed the guidelines set forth in the relevant standards, always follow these instructions and precautions: •When placing or receiving a phone call, hold your mobile device just like you would a landline phone. •If you wear the mobile device on your body, always place the mobile device in a Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do not use a body-worn accessory supplied or approved by Motorola and are not using the mobile device in the intended use positions along side the head in the phone mode or in front of the face in the two-way radio mode, keep the device at least 2.5 centimeters (1 inch) from your body when transmitting. •Using accessories not supplied or approved by Motorola may cause your mobile device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved accessories, visit our Web site at: www.motorola.com. Two-Way Radio Operation Your radio product has been designed and tested to comply with national and international standards and guidelines regarding human exposure to RF electromagnetic energy, when operated in the two-way mode (at the face, or at the abdomen when using an audio accessory) at usage factors of up to 50% talk/50% listen. Listening at full volume to music or voice through a headset may damage your hearing. SymbolDefinition 45 Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the PTT button. To receive calls, release the PTT button. Transmitting 50% of the time or less, is important because this radio generates measurable RF energy only when transmitting (in terms of measuring for standards compliance). When using your radio product as a traditional two-way radio, hold the radio product in a vertical position with the microphone 2.5 to 5 centimeters (1 to 2 inches) away from the lips . RF Energy Interference/Compatibility Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances, your mobile device may cause interference with other devices. Follow Instructions to Avoid Interference Problems Turn off your mobile device in any location where posted notices instruct you to do so. In an aircraft, turn off your mobile device whenever in…

Text truncated - open the document above for the full version.

FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Amit Verma SIGNATURE: /s/ Amit Verma DATE: 28-Mar-11 TITLE: Principle Staff Engineer 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT67JC1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 28-Mar-11 TITLE: Engineering Manager, Product Safety and Compliance Page 2 - 1 FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Bluetooth) This device contains an embedded Bluetooth device, and MOTOtalk capabilities, that Motorola confirms are compliant with the applicable Part 15 regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: Amit Verma SIGNATURE: /s/ Amit Verma DATE: 28-Mar-11 TITLE: Principle Staff Engineer 2.4. Attestation Statement (Hearing Aid Compatibility) Motorola hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. NAME: Amit Verma SIGNATURE: /s/ Amit Verma DATE: 28-Mar-11 TITLE: Principle Staff Engineer FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com 2.5. Part 15B Declaration of Conformity Attestation We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the Class B computer peripheral portion of this composite filing. NAME: John Lewczak SIGNATURE: DATE: 28-Mar-11 TITLE: Engineering Manager, Product Safety and Compliance Page 2 - 3

FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com 15 March 2011 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56MN1, i440-Series Handsets, with Bluetooth. Gentlemen; Motorola Mobility, Inc.; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56MN1. This is a variable output power (0.22 to 640 milliwatts) transmitter that is part of a handheld transceiver used in SMR and EA SMR trunking systems operating within the United States 806-821/851-866 MHz and 896-901/935-940 MHz frequency bands. Operation is also extended for use in a Narrowband PCS system operating in the United States in the spectrum between 901-902/940-941 MHz, on channels which the licensee has aggregated together to form twenty-one 25 kHz operating channels. To facilitate global roaming it is kindly requested that the grant for Part 90 800 MHz SMR operation reflects an extended frequency range (806 – 825 MHz) beyond that permitted under that part. Pursuant the guidance provide in KDB 634817 D01 (Freq Range Listing for Grants, v02r01), this application qualifies under the requirements of paragraph (d)(iii): use in other countries. This product will be distributed to operators in ITU Region 1 (Middle East), Region 2 (South America), and Region 3 (Asia) in countries that accept a United States FCC Grant for Equipment Authorization. This product is of the ‘receive first’ type of equipment, which can only transmit on frequencies assigned to it by a compatible Authorized Base Station. Therefore, no unauthorized transmission can occur within the United States or its territories, thus the product will not jeopardize United States public safety or other services licensed to operate in the 821-825 MHz frequency band, as no compatible base station may be authorized for those frequencies in the United States. This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.4 - 2.4835 GHz (1 MHz channel bandwidth). It is a Class 1 type device, with power rated +4 to +10 dBm (typically +8 dBm). The physical location of the Bluetooth antenna is shown in Exhibit 7b. The BT device complies with the requirements of FCC Rule Parts 15.247 (c), 15.205 and 15.209 (b). All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). Page 13a - 1 FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com This radio product features integrated GPS and FM broadcast receivers, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). For these reasons a Declaration of Conformity has been prepared and provided as part of the User Guide (Exhibit 8), as shown on the exhibit cover page. Enclosed is a complete Certification Application. Contact me at (847) 523-6167 if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected] Page 13a - 2

FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 18 March 2011 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56MN1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. T56MN1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. T56MN1_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. T56MN1_Ex_10 (Active Components).pdf Transmitter Characteristics. T56MN1_Ex_12 (TX Characteristics).pdf Motorola Mobility, Inc. requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility, Inc. understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com SHORT TERM ONFIDENTIALITY REQUEST – 60 DAYS (to 05/27/2011) Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility, Inc. is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility, Inc. temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. T56MN1_Ex_03 (External_Photos).pdf Test set-up photographs. T56MN1_Ex_07b (SAR Test Set- up_Details).pdf T56MN1_Ex_07c (Part 15 Test Set- up_Details).pdf T56MN1_Ex_07d (HAC Test Set- up_Details).pdf User’s Manual. T56MN1_Ex_08 (User Guide).pdf Internal product photographs. T56MN1_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 E-mail: [email protected] Page 13b - 2

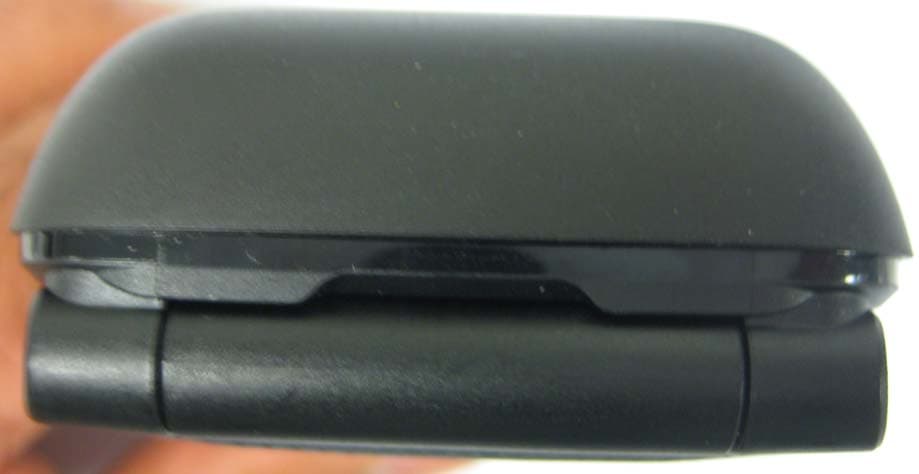

FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product shapes, colors and housings/bezels may vary. Figure 3-1. Front of radio Figure 3-2. Back of radio Page 3 - 1 FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-3. Front of radio (Closed) Figure 3-4. Back of radio (Closed) Page 3 - 2 FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-3. Button Side of radio Figure 3-4. Opposite Side of radio Page 3 - 3 FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-5. Top of radio Figure 3-6. Bottom of radio Page 3 - 4 FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-7. Interior Compartment of radio FCC Label Location. See Exhibit 1 for details. Page 3 - 5

FCC Filing Package for Motorola i440 Series Transceivers FCC ID: IHDT56MN1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, beneath the battery (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minimum peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation …
