IHDT56MP1Cellular/ PCS/ CDMA Transceiver with WLAN and Bluetooth

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 8 - 1 Exhibit 8: Draft User’s Manual -- 47 CFR 2.1033(b)(3) The attached User’s Manual is the final production-intended version of the generic Motorola International English User Manual. This guide will be adapted to carrier-specific versions, but the key information herein will be retained. Translations into other languages will also be done to support the needs of other markets. Minor revisions may be made to these manuals, prior to and subsequent to, placing this product onto the market. Selected portions of the User Guide can be found as indicated below: 8.1 Safety and Regulatory Section: Page 80 8.2 Specific Absorption Rate (SAR) Data: Page 85 8.3 Guidance for use with Hearing Aids (Pursuant to 47 CFR 20.19(f)(1): Page 83 ©2011 Sprint. SPRINT and the logo are trademarks of Sprint. Other marks are the property of their respective owners.7/13/11 www.sprint.com User Guide MOTOROLA ADMIRAL Sprint UG_11a_092110 Consejo: Para encontrar esta guía para usuarios en español, por favor visita a www.sprint.com y haz clic en Support > Devices . To find this user guide in Spanish, please visit www.sprint.com and click Support > Devices . Important Privacy Message – Sprint’s policies often do not apply to third-party applications. Third-party applications may access your personal information or require Sprint to disclose your customer information to the third-party application provider. To find out how a third-party application will collect, access, use, or disclose your personal information, check the application provider’s policies, which can usually be found on their website. If you aren’t comfortable with the third-party application’s policies, don’t use the application. Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iSection 1: Getting Started . . . . . . . . . . . . . . . . . 11A. Setting Up Service . . . . . . . . . . . . . . . . . . . 2 Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . 2Activating Your Phone . . . . . . . . . . . . . . . . . . . . . . . 3Setting Up Your Voicemail . . . . . . . . . . . . . . . . . . . 4Setting Up Messaging & Social Networking Accounts 4Sprint Account Passwords . . . . . . . . . . . . . . . . . . . 4Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Section 2: Your Phone . . . . . . . . . . . . . . . . . . . . 72A. Phone Basics . . . . . . . . . . . . . . . . . . . . . . . . 8 Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8Viewing Notifications . . . . . . . . . . . . . . . . . . . . . . . 10Turning Your Phone On and Off . . . . . . . . . . . . . 11Battery and Charger . . . . . . . . . . . . . . . . . . . . . . . 11Viewing Your Phone Number . . . . . . . . . . . . . . . 12 Touch Tips & Navigation . . . . . . . . . . . . . . . . . . . 12Phone Setup Options . . . . . . . . . . . . . . . . . . . . . . 14Making and Answering Calls . . . . . . . . . . . . . . . 17Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2B. QChat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Before Making Your First QChat Call . . . . . . . . 23Your QChat Number . . . . . . . . . . . . . . . . . . . . . . 23Making QChat Calls . . . . . . . . . . . . . . . . . . . . . . . 24Answering QChat Calls . . . . . . . . . . . . . . . . . . . . 25Ending a QChat Call . . . . . . . . . . . . . . . . . . . . . . 26Using Call Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . 26Using Group Connect . . . . . . . . . . . . . . . . . . . . . 27 2C. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Location Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 30Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31TTY Use With Sprint Service . . . . . . . . . . . . . . . . 31Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 32 2D. History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Tip: Looking for something? If you don’t see it in the headings listed here, try the Index on page 87. Frequent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 2E. Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Viewing Contacts . . . . . . . . . . . . . . . . . . . . . . . . . 35Creating Contacts . . . . . . . . . . . . . . . . . . . . . . . . . 36Transferring Contacts . . . . . . . . . . . . . . . . . . . . . . 36Calling Or Emailing Contacts . . . . . . . . . . . . . . . . 37Viewing and Using Contacts . . . . . . . . . . . . . . . . 37Editing Or Deleting Contacts . . . . . . . . . . . . . . . 38Synchronizing Contacts . . . . . . . . . . . . . . . . . . . 38Making Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 2F. Calendar & Tools . . . . . . . . . . . . . . . . . . . . 39 Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39File Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Alarm Clock and Timer . . . . . . . . . . . . . . . . . . . . 40Help Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41Updating Your Phone Software . . . . . . . . . . . . . . 41 2G. Voice Services . . . . . . . . . . . . . . . . . . . . . . 42 Voice Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Voice Commands . . . . . . . . . . . . . . . . . . . . . . . . . 42 2H. microSD Card . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 2. Statements of Certification -- Pursuant to 47 CFR 2.907 2.1. Specification Compliance Transceiver type described herein (IHDT56MP1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards, and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported, or marketed will conform to the samples tested herein, within the statistical variations that can be expected due to high volume production and test measurement error. NAME: Samar Ayoub SIGNATURE: /s/ Samar Ayoub DATE: 13 July 2011 TITLE: Senior Resource Manager 2.2. Statement of Certification I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56MP1) is in compliance with all applicable parts of the FCC Rules. NAME: John Lewczak SIGNATURE: DATE: 13 July 2011 TITLE: Engineering Manager, Product Safety and Compliance Page 2 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 2 2.3. Attestation Statement (Equipment Class DTS and DSS - Bluetooth/Wi-Fi) This device contains embedded Bluetooth and Wi-Fi devices and capabilities that Motorola Mobility confirms are compliant with the applicable Part 15C regulations. 15.247(a)(1) • The hopping sequence must be pseudorandom. • All Channels are used equally on average. • The receiver input bandwidth is approximately equal to the transmit bandwidth. • The receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. NAME: William Rice SIGNATURE: /s/ William Rice DATE: 13 July 2011 TITLE: Engineering Manager APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 2 - 3 2.4. Attestation Statement (Equipment Class PCE – CDMA 800/1900 MHz Hearing Aid Compatibility) Motorola Mobility hereby declares that typical production units were evaluated for Hearing Aid Compatibility (HAC) compliance. Features List: Model – Motorola Admiral CDMA CDMA 1X EV-DO Rev. A Wi-Fi (b/g) Bluetooth (Stereo) Location-Based Services Voice Commands Talking Phone Photo Camera Video Camera Video Player Hands Free Speaker Phone Music Player HTML Browser Text Messaging NAME: William Rice SIGNATURE: /s/ William Rice DATE: 13 July 2011 TITLE: Engineering Manager

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com 8 June 2011 Authorization & Evaluation Division Federal Communications Commission Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Subject: Application for Certification of transmitter with FCC ID: IHDT56MP1, PCS Handsets, with Wi-Fi and Bluetooth. Gentlemen; Motorola Mobility, Inc.; 8000 W. Sunrise Blvd.; Plantation, FL 33322 herein submits its application for certification of the multi-mode handset with FCC ID: IHDT56MP1. The primary transceiver in this composite device operates in the 800 MHz Enhanced Specialized Mobile Radio Service (ESMR), for which Sprint/Nextel has obtained waivers from the FCC to deploy broadband services, and the 1900 MHz Personal Communications Service (PCS). It supports CDMA signaling, and employs CDMA 1X and EV-DO Rev. A operating capabilities. This radio product is also equipped with a Wi-Fi (802.11b/g/n) transceiver. The Wi-Fi Band of operation is 2.412 - 2.462 GHz, with channels up to 17 MHz in bandwidth for 802.11g operation. The Wi-Fi device complies 15.247 (c), 15.205, and 15.209 (b). This radio product is equipped with a Bluetooth (BT) transceiver. BT supports both voice and data for short range wireless communications. The Bluetooth Band of Operation is 2.4 - 2.4835 GHz (1 MHz channel bandwidth). The BT device also complies with the requirements of FCC Rule Parts 15.247 (c), 15.205 and 15.209 (b). All transmitters contained in this radio product have been subjected to routine environmental evaluation (as applicable) according to 47 CFR Part 2.1093 (c) for RF exposure and found to be compliant with the limits specified in 47 CFR 2.1093(d)(2). This radio product features an integrated GPS receiver, and is designed to function as a computer peripheral device when functioning as an RF modem, while connected to a computer via a data cable, as described in 47 CFR Part 15.3(r). A Part 15B test report is included for certification. Enclosed is a complete Certification Application. Contact me at (954) 723-6272 if you require any additional information. Page 13a - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd.; Suite A Mail Stop 52-5JJ Plantation, FL 33322 E-mail: [email protected] Page 13a - 2

FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 13b - 1 CONFIDENTIALITY REQUEST 8 June 2011 Federal Communications Commission Laboratory Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request Regarding Application for Certification of FCC ID: IHDT56MP1. Dear Sir or Madam: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagrams. IHDT56MP1_Ex_04 (Block Diagrams).pdf Schematic Diagrams. IHDT56MP1_Ex_05 (Schematic Diagrams).pdf Parts List and Tune Up Procedures. IHDT56MP1_Ex_10 (Parts List and Tune Up).pdf Transmitter Characteristics. IHDT56MP1_Ex_12 (TX Characteristics).pdf Motorola Mobility, Inc. requests that these exhibits be held as Permanently Confidential, and not be made routinely available for public inspection. Motorola considers that the information in these exhibits should be classified as trade secrets, pursuant to 47 CFR Section 0.457(d) and Section 552(b)(4) of the Freedom of Information Act. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Motorola Mobility, Inc. understands that, pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com SHORT TERM ONFIDENTIALITY REQUEST – 90 DAYS (to 09/23/2011) Pursuant to the Commission’s public notice DA 04-1705 (June 15, 2004), Motorola Mobility, Inc. is also requesting Temporary Confidentiality treatment of information accompanying this application as outlined below. This provision will give Motorola Mobility, Inc. temporary confidentiality prior to product launch. Exhibit Type File Name External product photographs. IHDT56MP1_Ex_03 (External_Photos).pdf Test set-up photographs. IHDT56MP1_Ex_07b (SAR Test Set- up_Details).pdf IHDT56MP1_Ex_07c (Part 15 Test Set- up_Details).pdf IHDT56MP1_Ex_07d (HAC Test Set- up_Details).pdf User’s Manual. IHDT56MP1_Ex_08 (User Guide).pdf Internal product photographs. IHDT56MP1_Ex_09 (Internal Photos).pdf Please contact me if you require any additional information. Regards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 E-mail: [email protected] Page 13b - 2

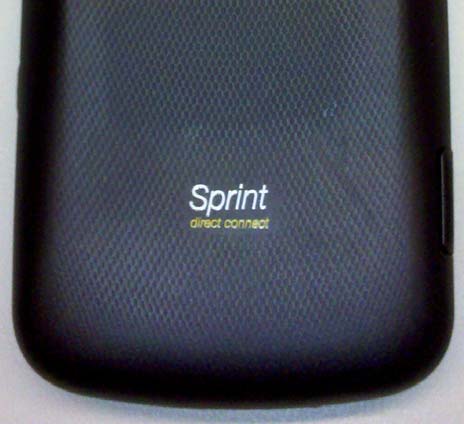

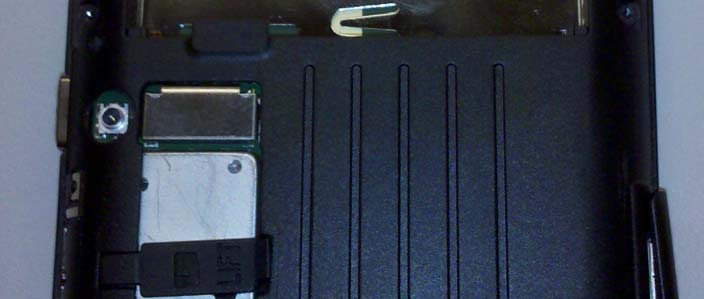

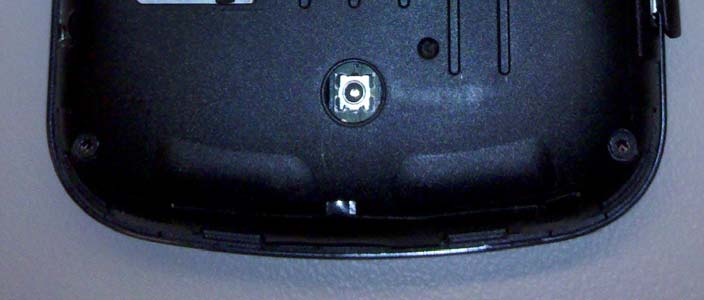

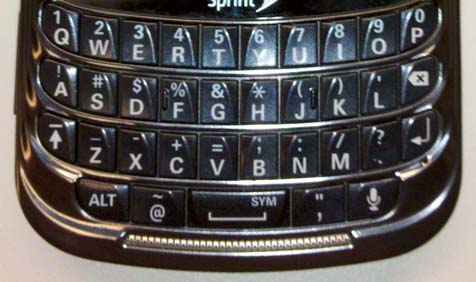

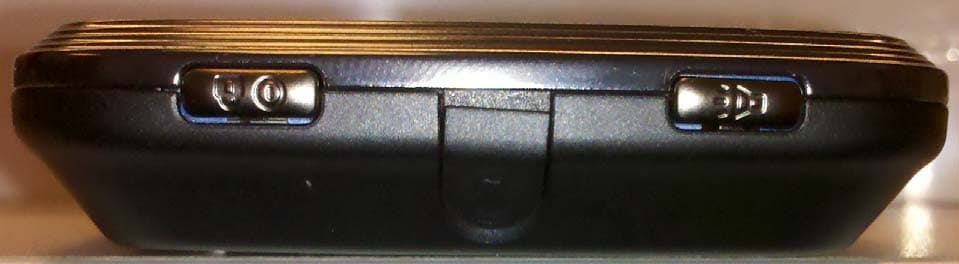

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 3. External Photographs -- Pursuant to 47 CFR 2.1033(c)(12) The radio product shapes, colors and housings/bezels may vary. Figure 3-1. Front of device Figure 3-2. Back of device Page 3 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-3. Button Side of device Figure 3-4. Opposite Side of device Page 3 - 2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-5. Top of radio Figure 3-6. Bottom of radio Page 3 - 3 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 3-7. Interior Compartment of radio FCC Label Location. See Exhibit 1 for details. Page 3 - 4

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 1: Identification Label -- Pursuant to 47 CFR 2.925 and 2.1033(c)(11) 1.1 Location On the rear (back) side of the radio product chassis, beneath the battery (see also Exhibit 3). 1.2 Type The label is of a white polyester film laminate with a pressure sensitive adhesive backing. The adhesive is a permanent type acrylic with minim um peel strength of 5 lbs/in. 1.3 Markings (Text) The FCC label shown is representative of the label that will appear on the radio when in production. Figure 1.3.1. Representation of FCC Label information. This label will be placed on the equipment (within the Battery Compartment) as shown below. Other information may also be included on this label, and other labels may also be present. FCC ID: IHDT56MP1 Page 1 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Figure 1.3.2. Location of FCC Label (position, orientation, and other information shown may vary). Interior Battery Compartment FCC Label Back of Device Please note that th is label and its placement complies with the requirement of FCC Rule 47 CF R 2.925(d) that the label be permnently affixed to the product, and be readily visible to the purchaser at the time of purchase. Further, at the time of purchase, batteries are shipped in a separate section or compartment of the radio packaging, and are not attached to the radio. In some instances they may be shipped in separate boxes. So, the end user needs to physically install the battery by removing the battery cover, if any, or attach the battery before using the radio. Further, the placement of the label in the battery compartment is done because space is limited on the exterior of the device. The battery compartment also helps to protect the label from getting obliterated or made unreadable through regular handling and use. The product’s Market or Trade Name is indelibly printed on the face of the product, as shown in Exhibit 3. Exhibit 1A: General Information 1A.1 Production Plans Quantity production is planned. 1A.2 Data Submittal Procedure Performance data located in Exhibit 6 are supplied in accordance with the Commission’s rules: 47 CFR Part 2, Subpart J. The intended use of this transceiver includes applications covered in the Code of Federal Regulations Title 47, Part 15, Subparts A, B, and C; Part 22 Subpart H, Part 24 Subparts C and E; and Part 90, Subparts I and S. Page 1 - 2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Page 1 - 3 1A.3 Additional Considerations In addition to th e radio receivers associated with the services authorized within this application, this device integrates a receiver designed to process signals from Global Positioning System satellites. Compliance with FCC requirem ents was done via the Verification process (47 CFR 2.902). This device m ay be considered to bea digital device, per 47 CFR 15.3(k), and can function as a com puter peripheral devicewhen functioning as an RF modem, as described in 47 CFR 15.3(r). For this reason, a Part 15B test report is included with this application.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Exhibit 9: Internal Photographs -- Pursuant to 47 CFR 2.1033(c)(12) Photograph 9-1: Top side view of the device’s PC Board, Shields in place. Page 9 - 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-2: Back side view of the device’s PC Board, Shields in place. Page 9 - 2 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-3: Front side view of the device’s PC Board, Shields Removed. Page 9 - 3 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-4: Back side view of the device’s PC Board, Shields Removed. Page 9 - 4 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MP1 Temporary Confidentiality Requested Motorola Mobility, Inc.; 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33322, USA www.motorola.com Photograph 9-5: Interior Housing View. Page 9 - 5

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: IHDT56MP1; Type: Cellular/PCS CDMA/EVDO Phone with Bluetooth and WLAN; Serial: Unit X Communication System: Cellular CDMA; Frequency: 820.1 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used (interpolated): f = 820.1 MHz; σ = 0.881 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 06-21-2011; Ambient Temp: 23.2 °C; Tissue Temp: 22.1 °C Probe: EX3DV4 - SN3561; ConvF(7.96, 7.96, 7.96); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA - FCC Rule Part 90S, Right Head, Touch, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 33.5 V/m Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.927 mW/g; SAR(10 g) = 0.703 mW/g 0 dB = 0.965mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: IHDT56MP1; Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN ; Serial: Unit X Communication System: Cellular CDMA; Frequency: 820.1 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used (interpolated): f = 820.1 MHz; σ = 0.88 mho/m; ε r = 42.86; ρ = 1000 kg/m 3 Phantom s ection: Right Section Test Date: 08-22-2011; Ambient Temp: 23.3 ° C ; Tissue Temp: 22.0 ° C Probe: ES3DV3 - SN3258; ConvF(6.18, 6.18, 6.18); Calibrated: 4/8/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular EVDO Rev. A - FCC Rule Part 90S, Right Head, Touch, Mid.ch, Standard Battery Area Sc an (7x14x1): Measurement grid: dx=15mm, dy=15mm Z Zo om Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.5 V/m Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.838 mW/g; SAR(10 g) = 0.637 mW/g 0 dB = 0.874mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: IHDT56MP1; Type: Cellular/PCS CDMA/EVDO Phone with Bluetooth and WLAN; Serial: Unit X Communication System: Cellular CDMA; Frequency: 820.1 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used (interpolated): f = 820.1 MHz; σ = 0.881 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom s ection: Right Section Test Date: 06-21-2011; Ambient Temp: 23.2 °C; Tissue Temp: 22.1 °C Probe: EX3DV4 - SN3561; ConvF(7.96, 7.96, 7.96); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA - FCC Rule Part 90S, Right Head Tilt, Mi d.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Referenc e Value = 28.3 V/m Peak SAR (extrapolated) = 0.822 W/kg SAR(1 g) = 0.642 mW/g; SAR(10 g) = 0.489 mW/g 0 dB = 0.675mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: IHDT56MP1; Type: Cellular/PCS CDMA/EVDO Phone with Bluetooth and WLAN; Serial: Unit X Communication System: Cellular CDMA; Frequency: 820.1 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used (interpolated): f = 820.1 MHz; σ = 0.881 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 06-21-2011; Ambient Temp: 23.2 °C; Tissue Temp: 22.1 °C Probe: EX3DV4 - SN3561; ConvF(7.96, 7.96, 7.96); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA - FCC Rule Part 90S, Left Head, Touch, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.4 V/m Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.888 mW/g; SAR(10 g) = 0.678 mW/g 0 dB = 0.927mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: IHDT56MP1; Type: Cellular/PCS CDMA/EVDO Phone with Bluetooth and WLAN; Serial: Unit X Communication System: Cellular CDMA; Frequency: 820.1 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used (interpolated): f = 820.1 MHz; σ = 0.881 mho/m; ε r = 42.5; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 06-21-2011; Ambient Temp: 23.2 °C; Tissue Temp: 22.1 °C Probe: EX3DV4 - SN3561; ConvF(7.96, 7.96, 7.96); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular CDMA - FCC Rule Part 90S, Left Head, Tilt, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.4 V/m Peak SAR (extrapolated) = 0.642 W/kg SAR(1 g) = 0.522 mW/g; SAR(10 g) = 0.402 mW/g 0 dB = 0.548mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: IHDT56MP1; Type: Cellular/PCS CDMA/EVDO Phone with Bluetooth and WLAN; Serial: Unit X Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Head Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.924 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 06-21-2011; Ambient Temp: 23.2 °C; Tissue Temp: 22.1 °C Probe: EX3DV4 - SN3561; ConvF(7.96, 7.96, 7.96); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1403 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular C…

Text truncated - open the document above for the full version.

FCC ID: IHDT56MP1 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 45 0Y1105170871-R6.IHD 05/26/11 - 06/22/11, 08/22/11 Cellular/PCS CDMA/EVDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 9.1M 06/02/2011 Applicant Name: Date of Testing: Motorola Mobility, Inc. 05/26/11 - 06/22/11, 08/22/11 8000 West Sunrise Blvd. Test Site/Location: Plantation, FL 33322 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1105170871-R6.IHD FCC ID: IHDT56MP1 APPLICANT: MOTOROLA MOBILITY, INC. EUT Type: Cellular/PCS CDMA/EVDO Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] Tx Frequency: 817.90 - 823.10 MHz - Cellular CDMA- FCC Rule Part 90S 824.70 - 848.31 MHz - Cellular CDMA-FCC Rule Part 22H 1851.25 - 1908.75 MHz - PCS CDMA-FCC Rule Part 24E 2412 - 2462 MHz WLAN - FCC Rule Part 15C Conducted Power: 25.02 dBm Cell. CDMA - FCC Rule Part 90S 25.25 dBm Cell. CDMA - FCC Rule Part 22H 24.45 dBm PCS CDMA - FCC Rule Part 24E 18.58 dBm 2.4 GHz WLAN - FCC Rule Part 15C Max. SAR Measurement: 0.93 W/kg Cell. CDMA - FCC Rule Part 90S Head SAR 0.67 W/kg Cell. CDMA - FCC Rule Part 90S Body-Worn SAR 1.25 W/kg Cell. CDMA - FCC Rule Part 90S Hotspot Body 1.02 W/kg Cell. CDMA - FCC Rule Part 22H Head SAR 0.73 W/kg Cell. CDMA - FCC Rule Part 22H Body-Worn SAR 1.37 W/kg Cell. CDMA - FCC Rule Part 22H Hotspot Body SAR 1.06 W/kg PCS CDMA - FCC Rule Part 24E Head SAR 0.44 W/kg PCS CDMA - FCC Rule Part 24E Body-Worn SAR 0.73 W/kg PCS CDMA - FCC Rule Part 24E Hotspot Body SAR 0.32 W/kg 2.4 GHz WLAN - FCC Rule Part 15C Head SAR 0.01 W/kg 2.4 GHz WLAN - FCC Rule Part 15C Body-Worn SAR 0.06 W/kg 2.4 GHz WLAN - FCC Rule Part 15C Hotspot Body SAR Test Device Serial No.: Pre-Production [S/N: Unit A, Unit C, Unit E, Unit X, Unit Y] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1105170871-R6.IHD) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: IHDT56MP1 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 45 0Y1105170871-R6.IHD …
