IHDT56MT1PORTABLE HAND-HELD DEVICE WITH BT & WLAN

APPLICANT MOTOROLA INC. FCC ID: IHDT56MT1 INSTRUCTION MANUAL A representative version of the user's manual follows: Exhibit 8 + LIFE.POWERED. Yo ur ta ble t MOTOROLA XOOM™ leads a revolution in mobile computing. XOOM features the latest tablet-optimized Google™ mobile innovations, including Google Maps™ with 3D interaction, access to over three million Google eBooks™, and Google Talk™ with video and voice chat. Combine these with a stunning HD touchscreen and super fast connectivity, and you get the tablet for the next generation—and the one after that. This guide will get you up and running and give you a quick overview of some of the main features of your new MOTOROLA XOOM. But it doesn't stop there—see “Want more?” for help, accessories, and more. Note: The microSD card slot is not active. A future software upgrade will enable this device to support microSD cards up to 32GB. Side Volume Keys Micro USB, Charger, and HDMI Connectors Front Camera Charging Indicator Headphone Jack 10.1-in. HD Touchscreen Rear Power/ Lock Key Rear Camera microSD Slot & SIM Tray Always right-side-up, just turn your tablet. Press - sleep/wake. Hold - on/off. Touch tips Simple navigation buttons: •Home : Return to the home screen. •Back : Return to the previous screen. •Recent apps : See recent apps. Touch a thumbnail to open the app. And a versatile, multi-touch touchscreen: •To uch: Choose an icon or option. •To uch & Hold: Open options or move an item on the home screen. •Drag/Flick: Scroll or move slowly (drag) or quickly (flick). •Multi-touch: Why use one finger when you can use two? Pinch to zoom—slide them apart or together (web, photos). Rotate—turn them (maps). Tilt—pull them up/down (maps). Tip: If your screen goes to sleep, press Power/Lock to wake it up. Recent Apps Home Back Flick or drag to scroll. Touch to open. Touch & hold to move. Start Let’s get you up and running. Charge your tablet, turn on and follow the on-screen instructions to connect and register. Tip: In the unlikely event that your device becomes unresponsive, try a forced reboot—press and hold both Power/Lock and the up volume key for three seconds. Caution: Before assembling, charging or using your product for the first time, please read the important Safety, Regulatory & Legal information provided with your product. Caution: Only use the charger that came with your tablet. Do NOT attempt to connect a charger to the Micro USB connector—this is for data transfer only. Note: The battery should only be replaced by a Motorola-approved service facility. Any attempt to remove or replace your battery may damage the product. 2 Charge. 3H Select a language.S 3 Connect via 3G or Wi-Fi. C o 4 Register or log in.R 5 Turn on.T 1 Home screen Definitely not an idle screen. Use the home screen to see what’s most important to you—you’ll see it when you turn on your tablet or touch Home from another screen. •Widgets: The latest information and updates. Some widgets, like email, let you scroll or flick through items, so you don't even need to leave the home screen. •Shortcuts: Your favorite apps, bookmarks, music, and more. •Panels: Not just one home, but five. Flick left or right to see more panels, and organize them the way you want. Tip: Make it your home. To choose your widgets, shortcuts, and wallpaper, touch. ON ON ON Friday, December 10. 2010 100% Airplane mode Lock screen orientation Notifications Settings AUTO MUTE WiFi Friday, December 10. 2010 100% Text Search Customize Voice Search Open the apps menu. Notifications & Quick Settings Touch the notification bar to see details and touch to see quick settings. WidgetsShortcutsPanels Flick left/right or touch the screen edges to see more. Want more? More help, more accessories, more free stuff. We’re here to help. •Answers: Check out the help center on your tablet—touch> Help Center. •Support: Tablet software updates, PC software, user guides, online help and more at www.motorola.com/myxoom. •Accessories: Find more for your tablet at www.motorola.com/products. •Join us: Get the latest news, apps, tips & tricks, videos and so much more—join us on: YouTube www.youtube.com/motorola Facebook www.facebook.com/motorola Twitter www.twitter.com/motomobile Copyright, Trademarks & SAR This product meets the applicable SAR limit of 1.6 W/kg (IEEE/FCC) and 2.0 W/kg (ICNIRP). The highest SAR values measured for this device are listed in the legal and safety information packaged with your product. Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details. All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. Note: The images in this guide are examples only. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Gmail, YouTube, Android and Android Market are trademarks of Google, Inc. All other product or service names are the property of their respective owners. © 2011 Motorola Mobility, Inc. All rights reserved. Product ID: Motorola XOOM (MZ600) Manual Number: 68XXXXX473-A Apps & more You can find all of your apps in one place. From the home screen, just touchto open the app menu. Want more than you see? No problem. Take your pick from thousands of apps, games and widgets from Android Market™. Not only that, you’ll also have a choice from thousands of eBooks and music too. And, yes there’s an “and”, many are free. Touch> Market. Tip: Apps and games will appear in your app menu. Widgets can be added to your home screen. To read your books, touch> Books. To listen to your music, touch > Music.…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MT1 Page 1 of 3 EXHIBIT 2 SPECIFICATION COMPLIANCE STATEMENT Transceiver type (IHDT56MT1) has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola, 600 N. U.S. Highway 45, Libertyville, IL 60048. NAME: Matthew Biggerstaff TITLE: Engineering Manager Motorola Mobile Devices Business Date: 1/20/2011 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MT1 Page 2 of 3 EXHIBIT 2 STATEMENT OF CERTIFICATION I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. The technical data supplied with this application was taken under my supervision and is hereby duly certified. I also certify that this transmit equipment (IHDT56MT1) is in compliance with all applicable parts of the FCC Rules. NAME: Matthew Biggerstaff TITLE: Engineering Manager Motorola Mobile Devices Business Date: 1/20/2011 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MT1 Page 3 of 3 EXHIBIT 2 ATTESTATION STATEMENT This device contains an embedded Bluetooth device that Motorola confirms compliance with the following Part 15 regulations. 15.247(a)(1) the hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters NAME: Matthew Biggerstaff TITLE: Engineering Manager Motorola Mobile Devices Business Date: 1/20/2011

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MT1 November 29, 2010 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular/PCS Transceiver Certification Dear Sir/Madame: Motorola Mobility, Inc., 600 N. U.S. Highway 45, Libertyville, Illinois 60048 herein submits Application for Equipment Authorization for Certification of a Cellular/PCS Transceiver, FCC ID: IHD T56MT1. Motorola Mobility is also the manufa cturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission’s rules (CFR 47), Motorola Mobility requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola’s trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List • Exhibit 12 Operational Description Description: This equipment operates in the 2.4 GHz band functioning as Bluetooth and WiFi (part 15.247) as well as in the 5GHz UNII sub-bands I & IV non-DFS WiFi (part 15.407). The unit may also be connected to a computer via a USB connection. (Part 15B Computing Device Peripheral). Note: This device also contains functions that are not operational in the U.S. territories. This filing is only applicable for US operations. Contact Information: If there are any further questions or additional information needed concerning this filing, please contact me, John Lewczak, by telephone at (954) 723-6272 or via E-mail at: [email protected] . Reg ards, FCC Liaison Motorola Mobility, Inc. 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13 1 APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDP56LS1 Exhibit 13 2 E-mail: [email protected]

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MT1 SHORT TERM CONFIDENTIALITY REQUEST 180 DAYS Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Cellular/PCS Transceiver FCC ID IHDT56M T1 Gentlemen: Introduction: Pursuant to Section 0.459 of the Commission's rules (CFR 47) and Section 552(b)(4) of the Freedom of Information Act, Motorola requests confidentiality for portions of the material contained in this application; and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Motorola's trade secrets and confidential information that Motorola does not customarily release to the public and which is otherwise not generally available to the public. Standard Confidentiality Request: Confidentiality is requested for the following exhibits: • Exhibit 4 Block Diagrams • Exhibit 5 Schematics • Exhibit 10 Parts List / Tune up Information • Exhibit 12 Operational Description Short Term Confidentiality Request: Furthermore, due to sensitive business information, Motorola requests the following exhibits be withheld from public viewing for 180 days: • Exhibit 3 External Photographs • Exhibit 7 and 7A Photographs of the device under test • Exhibit 8 User’s Manual • Exhibit 9 Internal Photographs Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ([email protected]) , if there are questions or additional information needed concerning this filing. Regards, John Lewczak FCC Liaison Mobile Devices 600 N. U.S. Highway 45 Libertyville, IL 60048-5343 Exhibit 13A

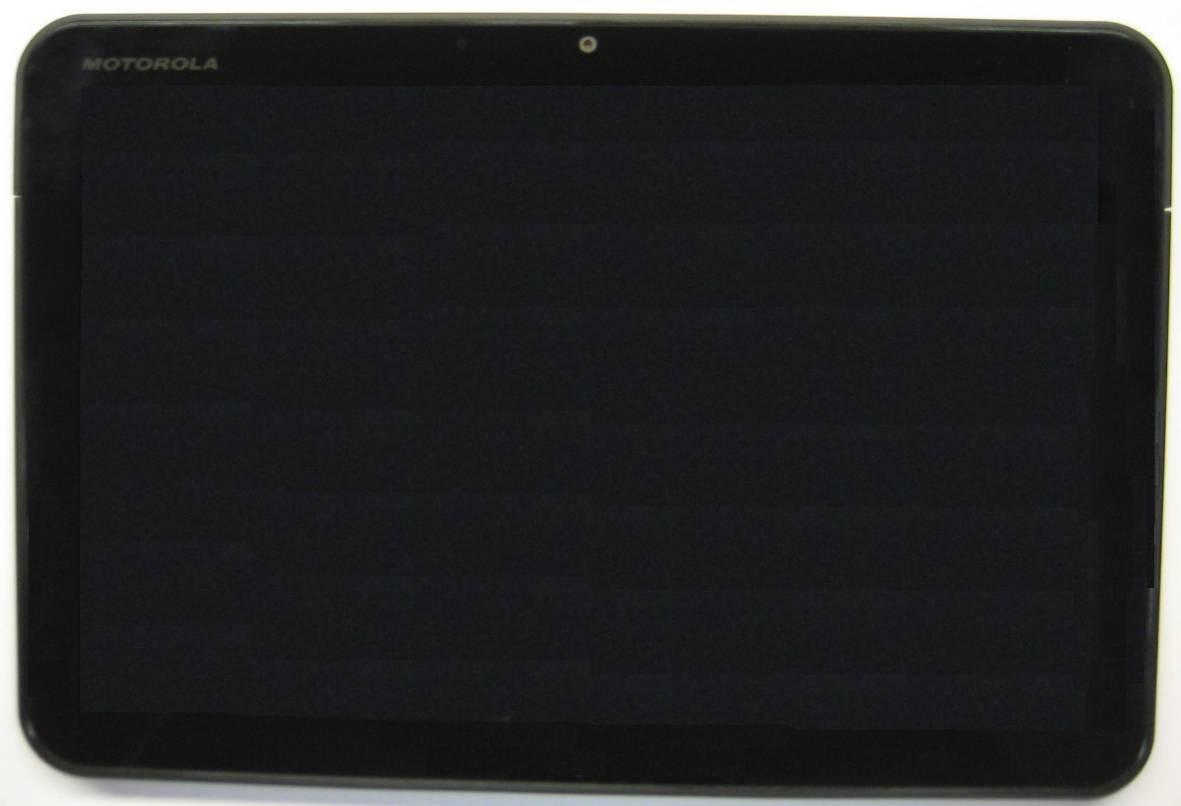

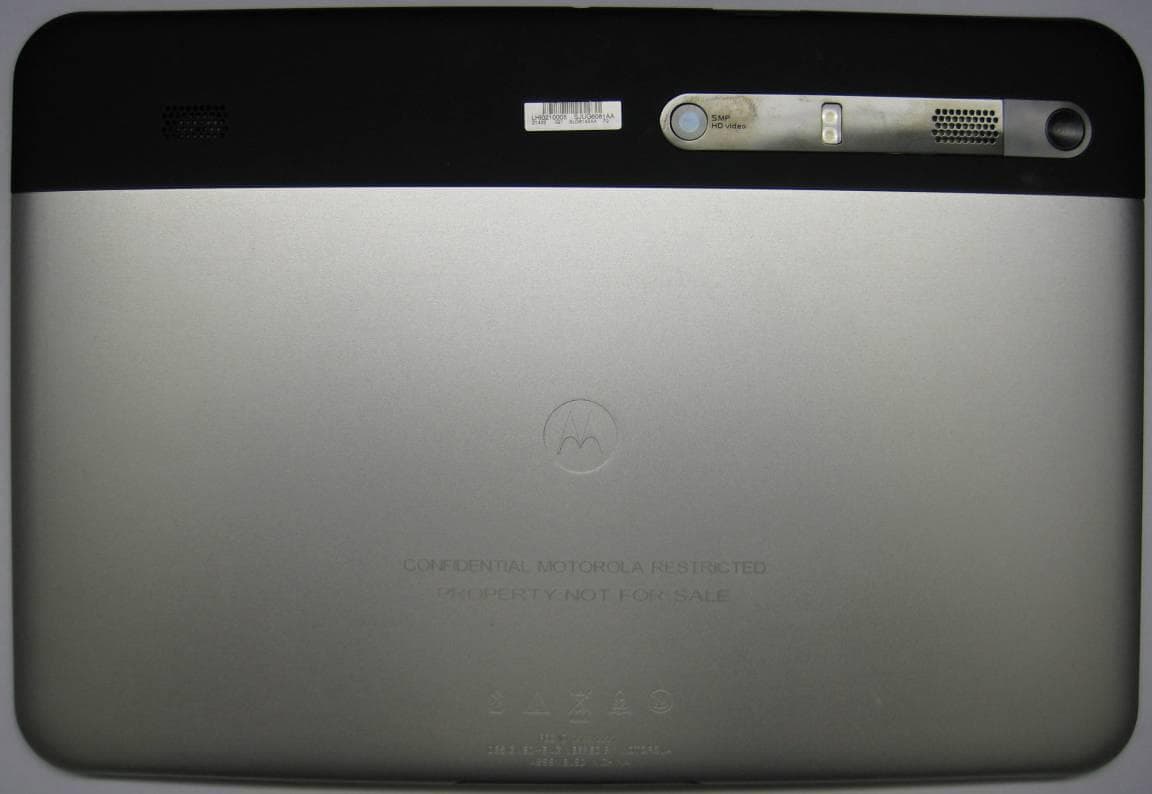

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MT1 EXHIBIT 3 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MT1 EXHIBIT 3 LEFT SIDE RIGHT SIDE TOP SIDE BOTTOM SIDE

APPLICANT: MOTOROLA MOBILITY, INC. FCC ID: IHDT56MT1 EXHIBIT 1 FCC IDENTIFICATION (NAMEPLATE) INFORMATION The FCC label shown is representative of the label that will appear on the radio when in production. It will be placed on the outside of the equipment as shown in Exhibit 3, and is readily visible at the time of purchase. Other information may also be included on this label. FCC ID: IHDT56MT1

APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MT1 EXHIBIT 9 APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MT1 EXHIBIT 9 GPS Antenna APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MT1 EXHIBIT 9 Wifi/BT Antenna APPLICANT: MOTOROLA, INC. FCC ID: IHDT56MT1 EXHIBIT 9

MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24358-1F FCC ID: IHDT56MT1 Exhibit 11 Portable Hand-Held Device SAR Test Report Tests Requested By: Motorola Mobility, Inc. 600 N. US Highway 45 Libertyville, IL 60048 Test Report #: 24358-1F Date of Report: Jan-25-2011 Date of Test: Nov-27-2010 to Dec-16-2010 FCC ID #: IHDT56MT1 Generic Name: N/A Test Laboratory: Motorola Mobility, Inc. - Product Safety & Compliance Laboratory 600 N. US Highway 45 Libertyville, IL 60048 Report Author: Steven Hauswirth Distinguished Member of the Technical Staff Accreditation: 2404 This laboratory is accredited to ISO/IEC 17025-2005 to perform the following tests: Tests : Procedures: Electromagnetic Specific Absorption Rate IEC 62209-1 RSS-102 IEEE 1528 - 2003 FCC OET Bulletin 65 (including Supplement C) Australian Communications Authority Radio Communications (Electromagnetic Radiation – Human Exposure) Standard 2003 CENELEC EN 50360 ARIB Std. T-56 (2002) On the following products or types of products: Wireless Communications Devices (Examples): Two Way Radios; Portable Phones (including Cellular, Licensed Non-Broadcast and PCS); Low Frequency Readers; and Pagers Statement of Compliance: Motorola declares under its sole responsibility that the portable hand-held device model to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines (FCC 47 CFR §2.1093) as well as with CENELEC en50360:2001 and ANSI / IEEE C95.1. It also declares that the product was tested in accordance with IEEE 1528 / CENELEC EN62209-1 (2006), as well as other appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: Motorola’s ISO 17025 accreditation scope does not currently include SAR testing in the 5 GHz band. Therefore, SAR testing performed in this band was performed outside of our ISO 17025 accreditation. The general procedures and guidelines provided within; FCC KDB 248227 D01, FCC KDB 648474 D01, FCC KDB 865664 D01 and IEC 62209-2 were utilized for testing. ©Motorola, Inc. 2011 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Motorola encourages all feedback, both positive and negative, on this test report. MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24358-1F FCC ID: IHDT56MT1 Exhibit 11 Page 2 of 11 Table of Contents 1. Introduction 3 2. Description of the Device Under Test 3 2.1 Antenna description 3 2.2 Device description 3 2.3 Evaluation of Wi-Fi 802.11 modes 4 3. Test Equipment Used 6 3.1 Dosimetric System 6 3.2 Additional Equipment 6 4. Electrical parameters of the tissue simulating liquid 7 5. System Accuracy Verification 8 6. Test Results 8 6.1 Body Worn Test Results 9 References 11 Appendix 1: SAR distribution comparison for the system accuracy verification Appendix 2: SAR distribution plots for Body Worn Configuration Appendix 3: Probe Calibration Certificate Appendix 4: Measurement Uncertainty Budget Appendix 5: Dipole Characterization Certificate MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24358-1F FCC ID: IHDT56MT1 Exhibit 11 Page 3 of 11 1. Introduction The Motorola Mobility Product Safety & Compliance Laboratory has performed measurements of the maximum potential exposure to the user of the portable hand-held device covered by this test report. The Specific Absorption Rate (SAR) of this product was measured. The portable hand-held device was tested in accordance with [1], [4] and [5]. The SAR values measured for the portable hand-held device are below the maximum recommended levels of 1.6 W/kg in a 1 g average set in [3] and 2.0 W/kg in a 10 g average set in [2]. For ANSI / IEEE C95.1 (1 g), the final stand-alone SAR readings for this hand-held device are 1.33 W/kg for body- worn use. These measurements were performed using a Dasy4™ v4.7 system manufactured by Schmid & Partner Engineering AG (SPEAG), of Zurich Switzerland. 2. Description of the Device Under Test 2.1 Antenna description Type Internal Location Top-Center Rear of Device Dimensions Width 3 mm Length 10 mm 2.2 Device description Serial Number(s) (Functional Use) 99000052000875 (Wi-Fi SAR testing) 99000052000852 (Wi-Fi/Bluetooth conducted power measurements) Production Unit or Identical Prototype (47 CFR §2..908) Identical Prototype Device Category Portable RF Exposure Limits General Population / Uncontrolled Mode(s) of Operation Wi-Fi 802.11b/g/n Wi-Fi 802.11a/n Bluetooth Modulation Mode(s) BPSK BPSK GFSK Maximum Output Power Setting 20.0 dBm 9.0 dBm 10 dBm Duty Cycle 1:1 1:1 1:1 Transmitting Frequency Range(s) 2412.0 - 2462.5 MHz 5180 - 5240, 5745 - 5805, MHz 2402.0 - 2483.5 MHz MOTOROLA, INC. Portable Hand-held device SAR Test Report Number: 24358-1F FCC ID: IHDT56MT1 Exhibit 11 Page 4 of 11 2.3 Evaluation of Wi-Fi 802.11 modes Per “SAR Measurement Procedures for 802.11 a/b/g Transmitters” (FCC KDB 248227), power measurements were performed for 802.11 operational modes. The conducted power measurements for each mode are shown in the table below. SAR testing for 802.11 modes was performed with the transmitter mode and data rate set to the configurations highlighted in bold below. Band Channel Conducted Power (dBm) for 802.11b Mode Data Rates 1 Mbps 2 Mbps 5.5 Mbps 11 Mbps Wi-Fi 2450 MHz 1 16.8317.3817.6017.67 6 17.6918.1918.3918.43 11 17.4518.1218.1918.38 Band Channel Conducted Power (dBm) for 802.11g Mode Data Rates 6 Mbps 9 Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48 Mbps 54 Mbps Wi-Fi 2450 MHz 1 11.20 11.1710.5410.2210.2810.1710.12 9.31 6 17.26 17.2517.2116.9514.6014.7614.59 14.65 11 11.36 11.6311.5711.2611.2911.1911.12 11.14 Band Channel Conducted …

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report Number: 24365-1 WLAN Page 1 of 26 EXHIBIT 6A3 PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT - Addendum Test Report Number – 24365-1 WLAN Report Date –2011-01-25 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Signature: Name: Lei Yang Title: EMC Project Manager Test: 2010-12-01 to 2010-12-07 As the responsible test lab manager, I hereby declare that the model tested as specified in this report conforms to the requirements indicated . Signature: Name: Yilin Zhao Title: Test Lab Manager Date: 2011-01-27 This report must not be reproduced, except in full, without written approval from this laboratory. FCC Registration Number: 177885 IC Registration Number: 109AW-1 ADR Testing Service location ADR BJ ISO/IEC-17025:2005 accredited by UKAS 2404 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report Number: 24365-1 WLAN Page 2 of 26 EXHIBIT 6A3 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 4 Summary of Testing............................................................................................................ 5 General and Special Conditions.......................................................................................... 5 Equipment and Cable Configurations ................................................................................. 6 Measuring Equipment and Calibration Information ........................................................... 6 Measurement Procedures and Data..................................................................................... 8 FIELD STRENGTH OF SPURIOUS EMISSIONS....................................................... 8 Measurement Procedure.............................................................................................. 8 Measurement Results .................................................................................................. 9 WLAN Band (b) ......................................................................................................... 9 WLAN Band (g) ....................................................................................................... 10 WLAN Band (a)........................................................................................................ 11 WLAN Band (n) ....................................................................................................... 12 BAND-EDGE COMPLIANCE OF RF RADIATED EMISSIONS............................. 14 Measurement Procedure............................................................................................ 14 Measurement Results ................................................................................................ 14 WLAN Band (b) ....................................................................................................... 15 WLAN Band (g) ....................................................................................................... 17 WLAN Band (n) 2.4G 400ns GI @ 14.4 Mbps ........................................................ 19 WLAN Band (n) 2.4G 800ns GI @ 6.5 Mbps .......................................................... 21 WLAN Band (a) sub band 1 @ 12 Mbps.................................................................. 23 WLAN Band (n) sub band 1 400ns GI @ 7.2 Mbps................................................. 24 WLAN Band (n) sub band 1 800ns GI @ 6.5 Mbps................................................. 25 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report Number: 24365-1 WLAN Page 3 of 26 EXHIBIT 6A3 Test Report Details Tests Performed By: Motorola (Beijing) Mobility Technologies Co., Ltd. Asia Global Compliance Labs No.1 Wang Jing East Road Chao Yang District Beijing, 100102, P. R. China Phone: +86 10 8473 2610 FCC Registration Number: 177885 IC Registration Number: 109AW-1 Tests Requested By: Motorola Mobility, Inc. 600 North US Hwy 45 Libertyville, IL 60048 United States Product Type: Wireless tablet with embedded WLAN Signaling Capability: Bluetooth, 802.11 a & b & g & n MEID: 990000520011200 FCC ID: IHDT56MT1 Project number: 24365-1 Testing Complete Date: 2011-01-25 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report Number: 24365-1 WLAN Page 4 of 26 EXHIBIT 6A3 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart C – Intentional Radiators Part 22 Subpart H - Public Mobile Services Part 24 - Personal Communications Services Part 27 - Wireless Communications Service Part 90 - Private Land Mobile Radio Service Applicable Standards: ANSI C63.4-2003, RSS-Gen Issue 2, RSS-210 Issue 8. The following tests were performed according to the regulations: • The spurious radiated emission requirements of § 15.247, § 15.249 and § 15.407of CFR47 Part 15 2007, specifically” radiated emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the radiated emission limits specified in Section 15.209(a) (see Section 15.205(c)). • Under this project 30 to 1000 MHz, 1 to 26.5 GHz radiated and radiated band-edge measurements were performed for 2.4G band a/b/g/n mode. And 30 to 1000 MHz, 1 to 40 GHz radiated and radiated band-edge measurements were performed for 5G band a/n mode. • For frequencies below 1 GHz a 100 kHz RBW (6 dB) is used and above 1 GHz a 1 MHz RBW (6 dB) is used. APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report Number: 24365-1 WLAN P…

Text truncated - open the document above for the full version.

APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report 24365-1 WLAN @ 5.8 GHz 1 EXHIBIT 6A6 MOBILE DEVICES BUSINESS PRODUCT SAFETY AND COMPLIANCE EMC LABORATORY EMC TEST REPORT Test Report Number – 24365-1 WLAN @ 5.8 GHz Report Date – January 28, 2011 The test results contained herein relate only to the model(s) identified. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. As the responsible EMC Engineer, I hereby declare that the equipment tested as specified in this report conforms to the requirements indicated. Signature: Name: Thanigaiselvan Palaniswami Title: EMC Engineer Date: January 28, 2011 This report must not be reproduced, except in full, without written approval from this laboratory. THIS REPORT MUST NOT BE USED TO CLAIM PRODUCT ENDORSEMENT BY UKAS OR ANY AGENCY OF THE U.S. GOVERNMENT. UKAS Certificate Number: 2404 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report 24365-1 WLAN @ 5.8 GHz 2 EXHIBIT 6A6 Table of Contents Test Report Details .............................................................................................................3 Applicable Standards .......................................................................................................... 3 Summary of Testing............................................................................................................ 4 General and Special Conditions.......................................................................................... 4 Equipment and Cable Configurations ................................................................................. 5 Measuring Equipment and Calibration Information ........................................................... 5 Description of WLAN Transmitter ..................................................................................... 5 Measurement Procedures and Data..................................................................................... 6 Spectrum Bandwidth....................................................................................................... 6 Measurement Procedure.............................................................................................. 6 Measurement Results .................................................................................................. 6 Peak Output Power ....................................................................................................... 16 Measurement Procedure............................................................................................ 16 Measurement Results ................................................................................................ 16 Power Spectral Density................................................................................................. 23 Measurement Procedure............................................................................................ 23 Measurement Results ................................................................................................ 23 Spurious RF Conducted Emissions............................................................................... 24 Measurement Procedure............................................................................................ 24 Measurement Results ................................................................................................ 24 AC Line Conducted Emissions ..................................................................................... 52 Measurement Procedure............................................................................................ 52 Measurement Results ................................................................................................ 52 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report 24365-1 WLAN @ 5.8 GHz 3 EXHIBIT 6A6 Test Report Details Tests Performed By: ADR Testing Service Location Code: ADR LV Motorola Mobility Inc Product Safety and Compliance Group 600 North US Hwy 45 Libertyville, IL 60048 PH (847) 523-6167 Fax (847) 523-4538 FCC Registration Number: 316588 Industry Canada Number: 109O-1 Tests Requested By: Motorola Mobility Inc. 600 North US Hwy 45 Libertyville, IL 60048 Product Type: Hand Held Device Signaling Capability: Bluetooth, WLAN a/b/g/n FCC ID: IHDT56MT1 Serial Numbers: 990000520008520 Testing Complete Date: December 17, 2010 Applicable Standards All tests and measurements indicated in this document were performed in accordance with the Code of Federal Regulations Title 47 Part 2, Sub-part J as well as the following parts: X Part 15 Subpart C – Intentional Radiators Applicable Standards: ANSI 63.4 2003, RSS-210 Issue 7 APPLICANT: MOTOROLA MOBILITY, INC FCC ID: IHDT56MT1 Test Report 24365-1 WLAN @ 5.8 GHz 4 EXHIBIT 6A6 Summary of Testing Test Test Name Pass/Fail ______________________________________________…

Text truncated - open the document above for the full version.
