IHDT56NB1MOBILE PHONE

MOTOROLA DEFY PRO TM EN 2 MAY 2012 2 MAY 2012 1 Congratulations CongratulationsMOTOROLA DEFY™ PROYo u r M O TO R O L A DEFY PRO helps you seamlessly manage your “Office” and “Outdoor” lifestyles.• Lifeproof: Your phone is water-resistant, dustproof, and has a scratch-resistant screen, because accidents happen. • Dashboard: Easy access to all your favorite Outdoor apps, like Camera , Compass , and a pedometer, see“ Dashboard ” on page 12. • Extended battery life: So you can use your phone longer. Note: Certain apps and features may not be available in all countries. Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product. 2 MAY 2012 2 Congratulations This product meets the applicable limit for exposure to radio waves (known as SAR) of 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product.Note: When using the product while worn on your body, either use an approved accessory such as a holster or maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. Note that the product may be transmitting even if you are not making a phone call. Want more?More help, more accessories, more free stuff. • Updates: Phone updates, PC software, user’s guides, online help, and more at www.motorola.com/support . • Accessories: Find more for your phone at www.motorola.com/products . •Social: The latest news, tips & tricks, videos, and so much more—join us on: YouTube™ www.youtube.com/motorola Facebook™ www.facebook.com/motorola Twitter www.twitter.com/motomobile 2 MAY 2012 3 Your phone Your phonethe important keys & connectors @ # * Front C a mer a Not i f ica t i on L ig ht M ic ro p hone Volume Keys M ic ro USB 3.5mm He a dset J ac k Menu Open options. Home Press= ho m e screen Hold= recent apps Se a r c h Press=search B ac k Go back one screen. Power/Lo c k Key Press=sleep Hold=power 2 MAY 2012 4 Your phone Note: To help protect your phone, always make sure that the battery cover and any connector covers are closed and secure. B ac k C a mer a Cover Lo c k 2 MAY 2012 5 Contents ContentsLet’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Home screen & apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Contacts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Text entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34Bluetooth™, Wi-Fi, & cable connections . . . . . . . . . . . . . . . . . 35Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 2 MAY 2012 6 Let’s go Let’s golet’s get you up and runningAssemble & charge Caution: Please read “ Battery Use & Safety ” on page 40. 1 Cover off 2 SIM in 3 microSD in (optional) 4 Battery in 5 Cover on 6 Charge up SIM m icroSIM m icroSIM + Adapter 3 # * 3H 2 MAY 2012 7 Let’s go Set up & goNote: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details.When you turn on your new phone, you can create or enter a Google™ account so that you can download apps, use Gmail™, and much more: 1 Press and hold Power/Lock to turn on your phone. 2 Touch the Android™ image to begin setup. 3 Touch a button to Create a Google account, Sign in with one you have, or Skip . You can log into your account from a computer at accounts.google.com . 4 When your phone confirms the account, it shows account sync options. • To change whether your phone shows the Google account’s contacts, Gmail™, and calendar, touch the Google account name. • To add another account, touch Add account . For details, see “ Email ” on page 23. • To exit setup, press Home . Power/Lo c k Key 2 MAY 2012 8 Let’s go If your phone cannot connect, press Menu > Settings > Wireless & networks > Wi-Fi settings to change mobile network settings. RuggedYo u r M O TO R O L A DEFY PRO stands up to water, dust and life. Now your investment is safe and protected from life’s little challenges, like that sudden rain shower and other everyday mishaps.Of course, your phone isn’t indestructible, so to avoid damage from natural elements, such as water, sand, and dust intrusion, always make sure that the battery door cover and connector covers are closed and secure.If your phone gets wet and/or dirty:• Wipe with a soft cloth and shake to remove excess water from the entire phone, especially the display screen, speaker, and microp…

Text truncated - open the document above for the full version.

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: May 7, 2012 Statement We, Sporton International Inc., states that our device, FCC ID: IHDT56NB1, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Jones Tsai

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: May 7, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: IHDT56NB1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: XT560_3245_Schem.pdf) Block Diagram (file: XT560_3245_BlkDia.pdf) Parts List (file: XT560_3245_PartsLst.pdf) Operation Description (file: XT560_3245_OpDes.pdf) Tune up Procedure (file: XT560_3245_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jones Tsai

FCC ID: IHDT56NB1 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Page 13B - 1 16 December 2011 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD. Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility, Inc. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. The grant should still be mailed to the applicant of record for Grantee Code “IHD,” and any audit requests should also be directed to the applicant of record. Authorized Agent: Jones Tsai Sporton International, Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien; Taiwan, R.O.C Specific Application: FCC ID: IHDT56NB1 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ([email protected]), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: May 7, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDT56NB1 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: XT560_3245_ExtPho.pdf)  Internal Photos (file: XT560_3245_IntPho.pdf)  Test Setup Photos (file: XT560_3245_Tsup.pdf)  User Manual (file: XT560_3245_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

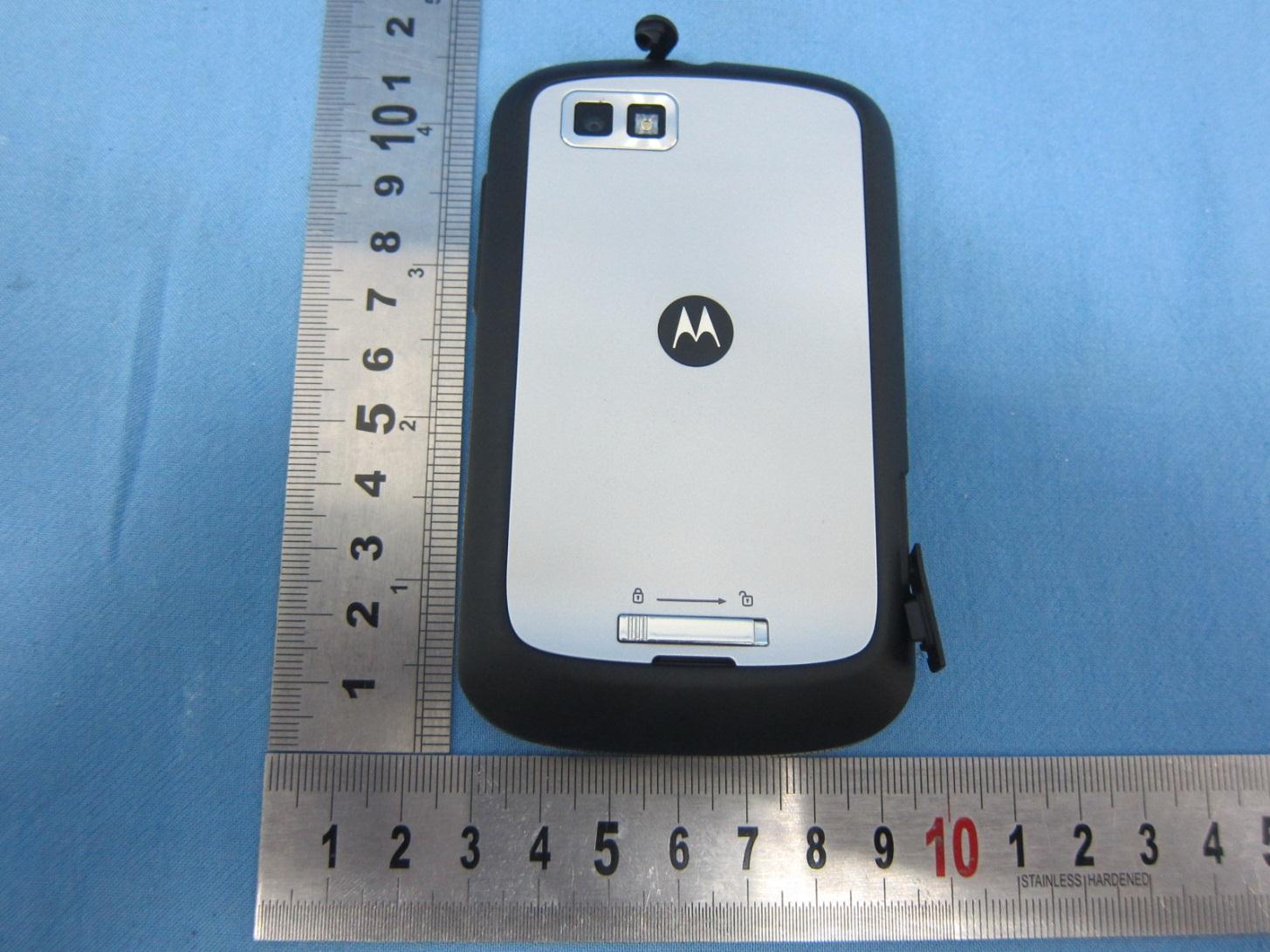

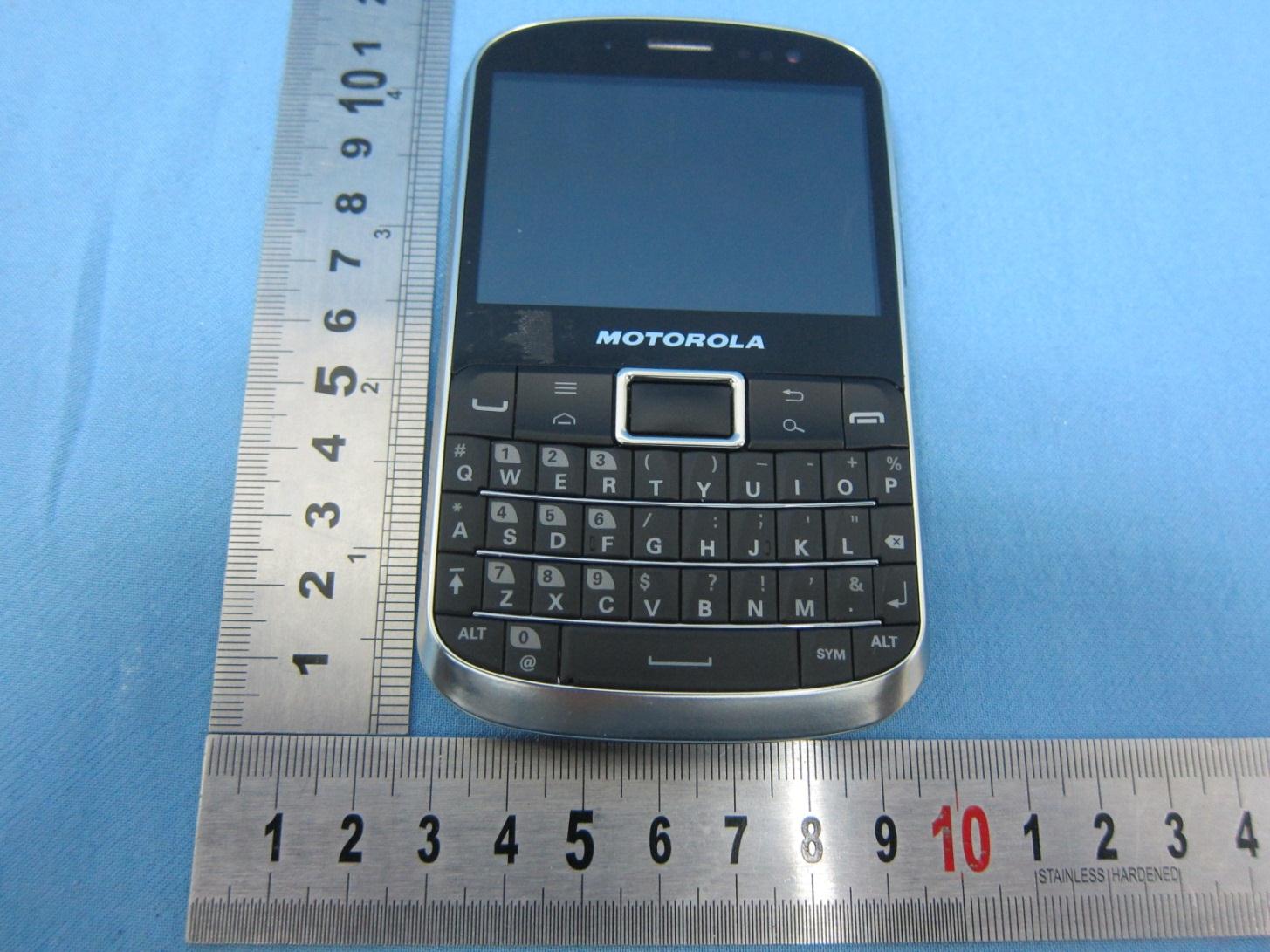

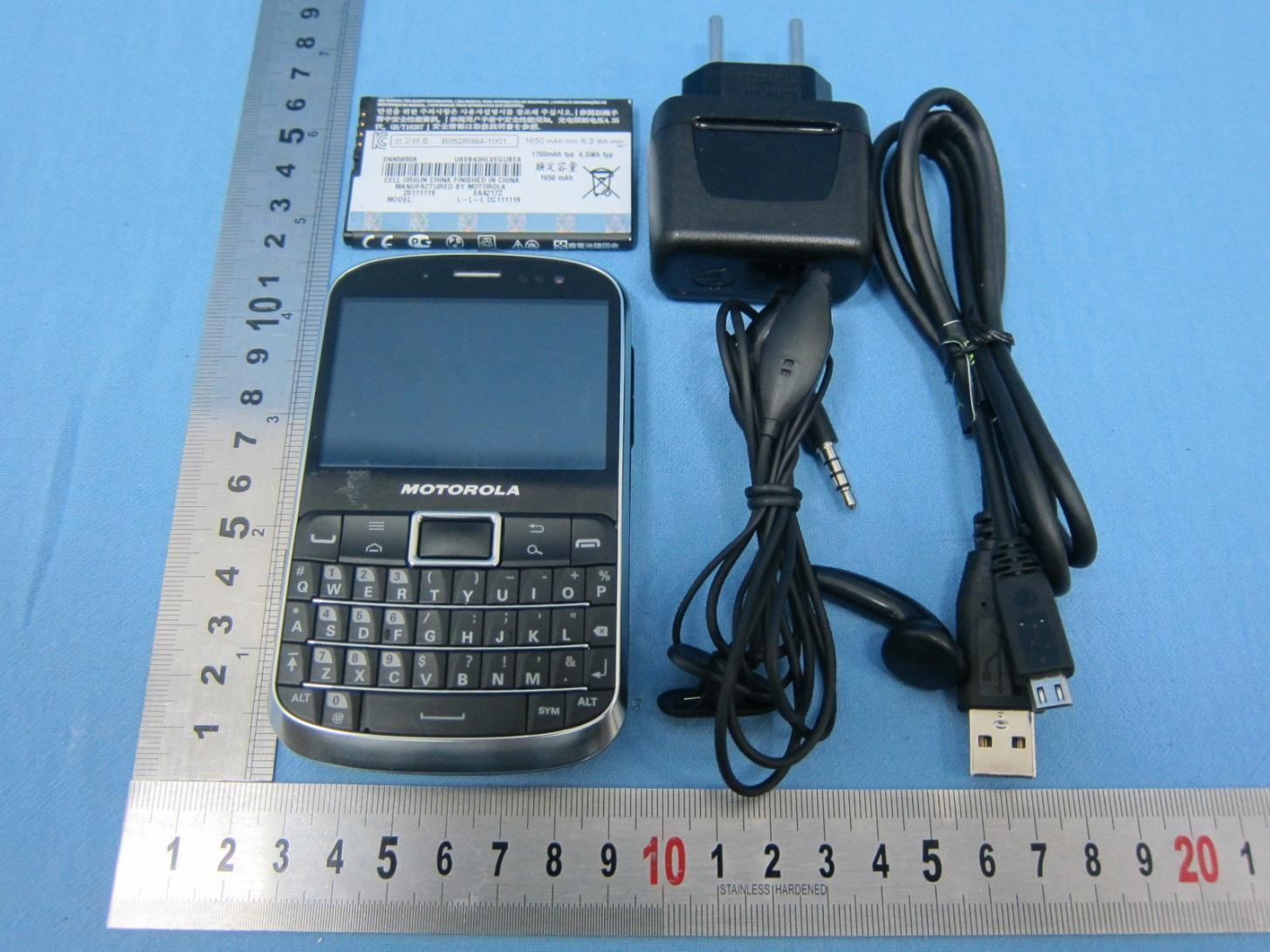

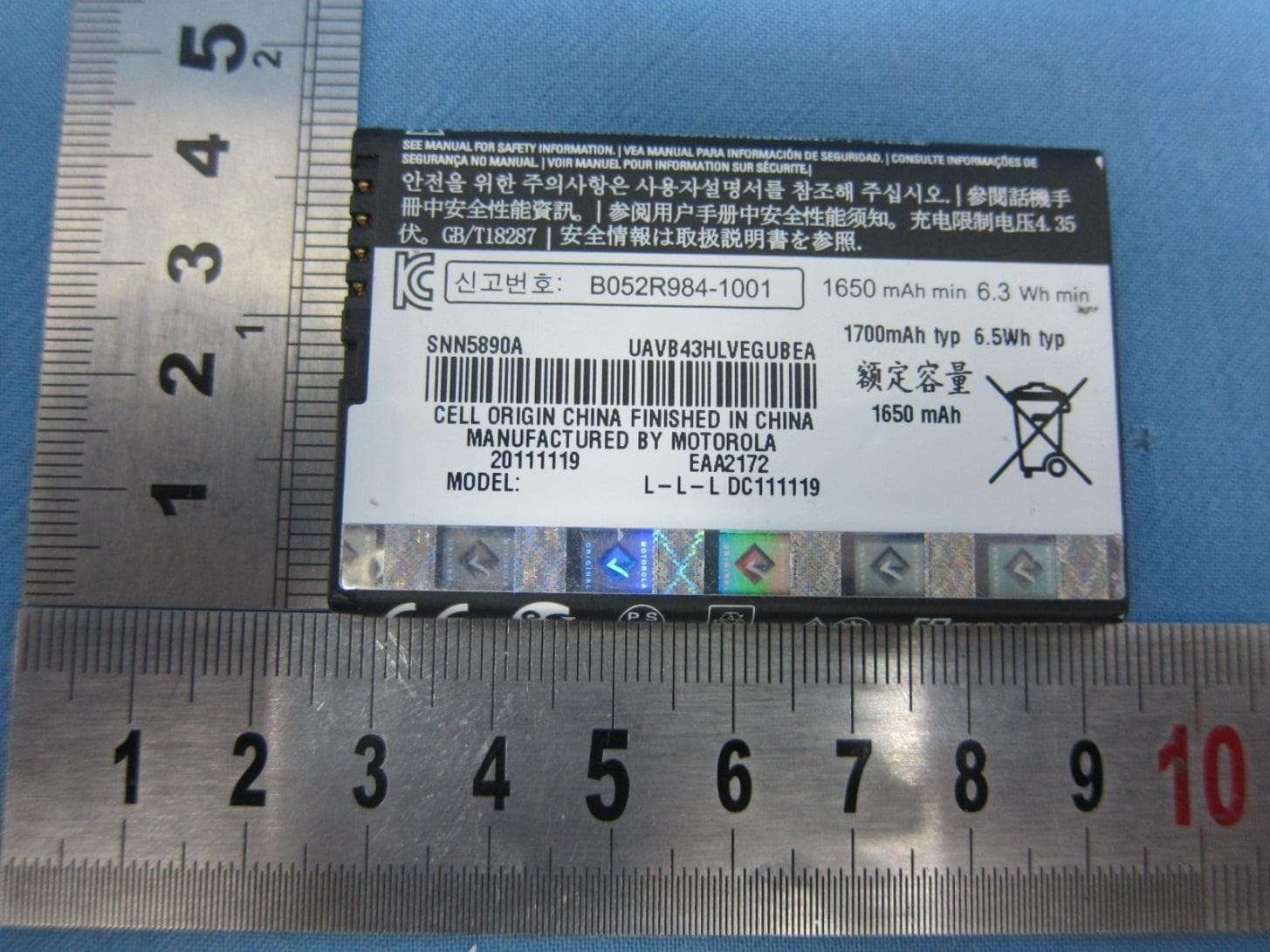

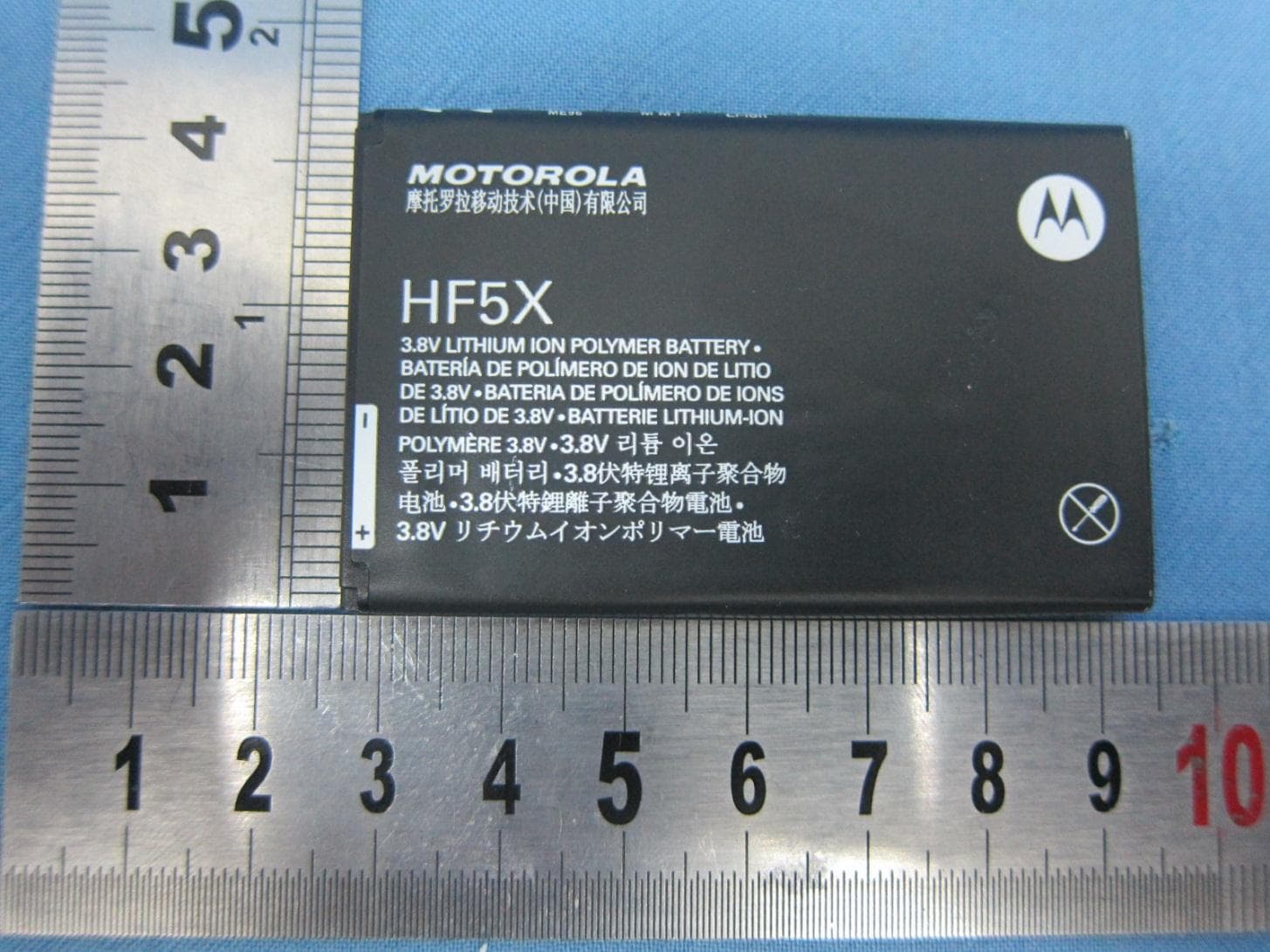

Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 1. External Photograph of EUT Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 6 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 7 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 List of Accessory: Specification of Accessory AC Adapter Brand Name MOTOROLA Model Name SPN5506A Battery Brand Name MOTOROLA Model Name SNN5890A Earphone Brand Name MOTOROLA Model Name SJYN0760A USB Cable Brand Name MOTOROLA Model Name SKN6378A LCD Panel Brand Name Tianma Model Name TM027NDH01-00 Camera 1 Brand Name Truly Model Name CM6313 Camera 2 Brand Name Omnivision Model Name OVM7692 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 8 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 9 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 AC Adapter Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 10 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Battery Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 11 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 720510

Label Location Battery Compartment Back of device TinQ3248_Label Location

Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 12 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 3. Internal Photograph of EUT Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 13 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 WWAN WLAN & Bluetooth & GPS Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 14 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 15 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 16 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 17 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 18 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 19 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 20 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 21 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 22 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 23 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 24 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 25 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 26 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP211214 Brand Name: Motorola ; Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 27 of 27 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 720510 Bluetooth & WLAN Antenna <Tx / Rx> / GPS Antenna <Rx>

Photographs of EUT Report No.: EP211214 Brand Name: Motorola / Model Name: XT560 / Marketing Name: MOTOROLA DEFY PRO SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Report Issued Date : Apr. 13, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 IC: 109O-T56NB1 Antenna location Length Width WWAN Antenna <Tx / Rx> 3.6 cm 1.1 cm Bluetooth & WLAN Antenna <Tx / Rx> / GPS Antenna <Rx> 3.2 cm 2.6 cm Bluetooth & WLAN Antenna <Tx / Rx> / GPS Antenna <Rx> WWAN Antenna <Tx / Rx> 6.2 CM 0.2 CM 1.3 CM 0.2 CM 0.3CM 1.7 CM 3.8 CM

SPORTON INTERNATIONAL INC. Page Number : 1 of 43 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 FCC SAR Test Report Report No. : FA211214 FCC SAR Test Report APPLICANT : Motorola Mobility, Inc. EQUIPMENT : Quad-Band GSM/GPRS/EDGE and Dual-Band WCDMA Mobile Phone with BT/Wifi BRAND NAME : Motorola MODEL NAME : XT560 MARKETING NAME : MOTOROLA DEFY PRO TYPE NAME : M0CAD GPPD NUMBER : 3245 FCC ID : IHDT56NB1 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 21, 2012 and completely tested on Mar. 29, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 43 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NB1 FCC SAR Test Report Report No. : FA211214 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Applied Standards .................................................................................................................................................. 8 3.3 Device Category and SAR Limits ........................................................................................................................... 8 3.4 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................13 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................16 6. Tissue Simulating Liquids ...........................................................................................................................................20 7. Uncertainty Assessment .............................................................................................................................................22 8. SAR Measurement Evaluation ....................................................................................................................................24 8.1 Purpose of System Performance check ................................................................................................................24 8.2 System Setup .............................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-03-21 System Check_Head_835MHz_120321 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120321 Medium parameters used: f = 835 MHz; σ = 0.886 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.05, 9.05, 9.05); Calibrated: 2011-12-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.83 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.1 V/m; Power Drift = -0.077 dB Peak SAR (extrapolated) = 3.81 W/kg SAR(1 g) = 2.61 mW/g; SAR(10 g) = 1.72 mW/g Maximum value of SAR (measured) = 2.83 mW/g 0 dB = 2.83mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-03-22 System Check_Head_835MHz_120322 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120322 Medium parameters used: f = 835 MHz; σ = 0.904 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY4 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.05, 9.05, 9.05); Calibrated: 2011-12-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.67 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.6 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 3.59 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.63 mW/g Maximum value of SAR (measured) = 2.68 mW/g 0 dB = 2.68mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-03-22 System Check_Body_835MHz_120322 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120322 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.24, 9.24, 9.24); Calibrated: 2011-12-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.86 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.6 V/m; Power Drift = -0.019 dB Peak SAR (extrapolated) = 3.88 W/kg SAR(1 g) = 2.65 mW/g; SAR(10 g) = 1.74 mW/g Maximum value of SAR (measured) = 2.87 mW/g 0 dB = 2.87mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-03-22 System Check_Head_1900MHz_120322 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120322 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4°C DASY4 Configuration: - Probe: EX3DV4 - SN3820; ConvF(8.02, 8.02, 8.02); Calibrated: 2011-12-16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011-04-28 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.4 V/m; Power Drift = -0.069 dB Peak SAR (extrapolated) = 18.8 W/kg SAR(1 g) = 9.92 mW/g; SAR(10 g) = 5.13 mW/g Maximum value of SAR (measured) = 11.3 mW/g 0 dB = 11.3mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-03-29 System Check_Head_1900MHz_120329 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120329 Medium parameters used: …

Text truncated - open the document above for the full version.
