IHDT56NE2GSM/WCDMA MOBILE PHONE

68XXXXXXXX-A MOTOGO! This product meets the applicable SAR limits of 1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. Note: When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. EN TM Welcome Your MOTOGO! makes life fun. All social, all the time. •Messaging. Easy texting and no more cramped thumbs with the built-in keypad. •Personalization. Make your phone your own with wallpapers and more. •Photos & Music. Take and send photos to your friends. Listen to music could be: when you want, wherever you are. We’ve crammed all the main features of your phone into this handy guide, and in a matter of minutes we’ll show you just how easy your phone is to use. You may be surprised at what you discover. Note: Your phone may not appear exactly as the images in this guide. Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product. Your phone Carrier NameCarrier Name 11:0011:00 11:11:0000 AM 05.05.201205.05.2012 Carrier Name 05.05.2012 EditMenu 11:00 AM Phone 611 Gtalk ALT SYM = 3.5mm Headset Jack Listen to music or call handsfree. MicroUSB Connector Charge & connect to computer. Microphone Volume Keys Note: for some headsets with hang up buttons, the buttons will not work. important keys Carrier NameCarrier Name 11:0011:00 11:11:0000 AM 05.05.201205.05.2012 Carrier Name 05.05.2012 EditMenu 11:00 AM Phone 611 Gtalk ALT = SYM Alternate/ Meeting Mode Delete Symbols Soft Keys Perform function shown above the key. Send Key Enter a number & press to call. Power/ End Key Turn on/off & end calls. Navigation Key Scroll up, down, left, or right. Center Key Press to select. Google Search messages Send an SMS or MMS 1Press Menu > Messaging >Write message. 2Enter your message using the keypad. Tip: Press Options > Input method to switch text entry modes, such as abc or Numeric. To enter a symbol, press . 3To add pictures, sounds, or videos, press Options. 4Press Options > Send to to enter one or more recipients or to select a contact from your phonebook. Read messages When you receive a message, your phone plays an alert and displays on the screen. Press View to open the message. Tip: You can read all messages in your inbox by pressing Menu > Messaging > Inbox. SYM calls Make calls Enter a number and press . Answer calls When your phone rings or vibrates, press . End a call Press . Redial number 1From the home screen, press to see a list of All calls. 2Scroll to the entry you want and press . = = = Emergency calls To call an emergency number, enter the emergency number and press . Your service provider programs one or more emergency phone numbers that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your pre-programmed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues. Cool down In very limited circumstances, such as where your phone has been exposed to extreme heat, you may see “Cool Down” messages. To avoid possible damage to your battery and phone, you should follow these instructions until the phone is within its recommended temperature range. When your phone is in “Cool Down” mode, only emergency calls can be made. = Tips & tricks Vo i c e m a i l Press and hold 1. If your voicemail number is preset, you will connect. Backlight time To set how long your backlight stays on, press Menu >Settings> Phone settings > Misc. settings > LCD Backlight and select how long your screen is idle until the screen dims. Handsfree speaker During an active call, press to turn the handsfree speaker on. To turn the handsfree speaker off, press again. You can also use a wired headset to go handsfree. Lock your phone Press Menu>Settings > Security Settings > Phone Security > Phone Lock, then enter a password to lock your phone. The code is originally set to 1234. To change your password, in the Security Settings menu, select Phone Security > Change Password. Note: If you are locked out of your phone, contact your service provider for help. Music Play music Press Menu > Multimedia > Media player Controls Tip: You can use other phone features when playing music, but games or radio turns the audio player off. If you receive a call while playing music, the player pauses automatically. Playing music resumes after you end the call. controls play/pausePress . next/previous song Press right or left. fast forward/ rewind Press and hold right or left. volumePress the side volume keys up or down. Menu map Phonebook Fun & Games Call center • Call History • Call Settings Messaging •Push Mail • Write Message • Conversational Mode •Inbox •Drafts •Outbox • Sent Messages • Delete Messages • Broadcast Messages • Templates • Message Settings File Manager This is a standard menu layout. Your menu may be a little different. Multimedia • Image Viewer • Media Player •Camcorder/ Video Recorder • Photo Editor • Sound Recorder •FM Radio • Melody Composer To o l s •Alarm •World Clock • Calendar • Calculator • Tasks •Currency/Unit Converter Settings • Phone Settings •Network Settings • Security Settings • Connection Manager • Restore Factory Settings • Sound Effects User Profiles Browser http://www. let’s go Caution: Please read “Battery Use & Safety” on the back of this guide. 1 2 3 4 5 6 4H SIM microSIM microSIM + Adapter Cover off. Cover on. microSD in (optional). SIM card in. Battery i…

Text truncated - open the document above for the full version.

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: March 28, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDT56NE2 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: EX430_ExtPho.pdf)  Internal Photos (file: EX430_IntPho.pdf)  Test Setup Photos (file: EX430_Tsup.pdf)  User Manual (file: EX430_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: March 28, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: IHDT56NE2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: EX430_Schem.pdf) Block Diagram (file: EX430_BlkDia.pdf) Parts List (file: EX430_PartsLst.pdf) Operation Description (file: EX430_OpDes.pdf) Tune up Procedure (file: EX430_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jones Tsai

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: March 28, 2012 Statement We, Sporton International Inc., states that our device, FCC ID: IHDT56NE2, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Jones Tsai

FCC ID: IHDT56NE2 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13B - 1 11 January 2012 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD . Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility, Inc. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. The grant should still be mailed to the applicant of record for Grantee Code “IHD,” and any audit requests should also be directed to the applicant of record. Authorized Agent: Jones Tsai Sporton International, Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien; Taiwan, R.O.C. Specific Application: FCC ID: IHDT56NE2 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ([email protected] ), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022

FCC ID: IHDT56NE2 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13A - 1 11 January 2012 Power of Attorney RE: Power of Attorney. We, the undersigned Motorola Mobility, Inc. hereby authorize Sporton International Inc. to act on our behalf in all matters relating to any and all processes required in obtaining FCC Part 15 approval for FCC ID: IHDT56NE2, and any communication required with the national authority. Any and all acts carried out by Sporton International on our behalf shall have the same effects as acts of our own, subject to this Power of Attorney. This Power of Attorney will be effective between 11 January 2012 and 15 May 2012, and will expire thereafter. If you have any questions regarding this authorization, please don’t hesitate to contact us. Sincerely yours, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022 Phone: (954) 723-6272 FAX: (954) 337-2377 Mail: [email protected]

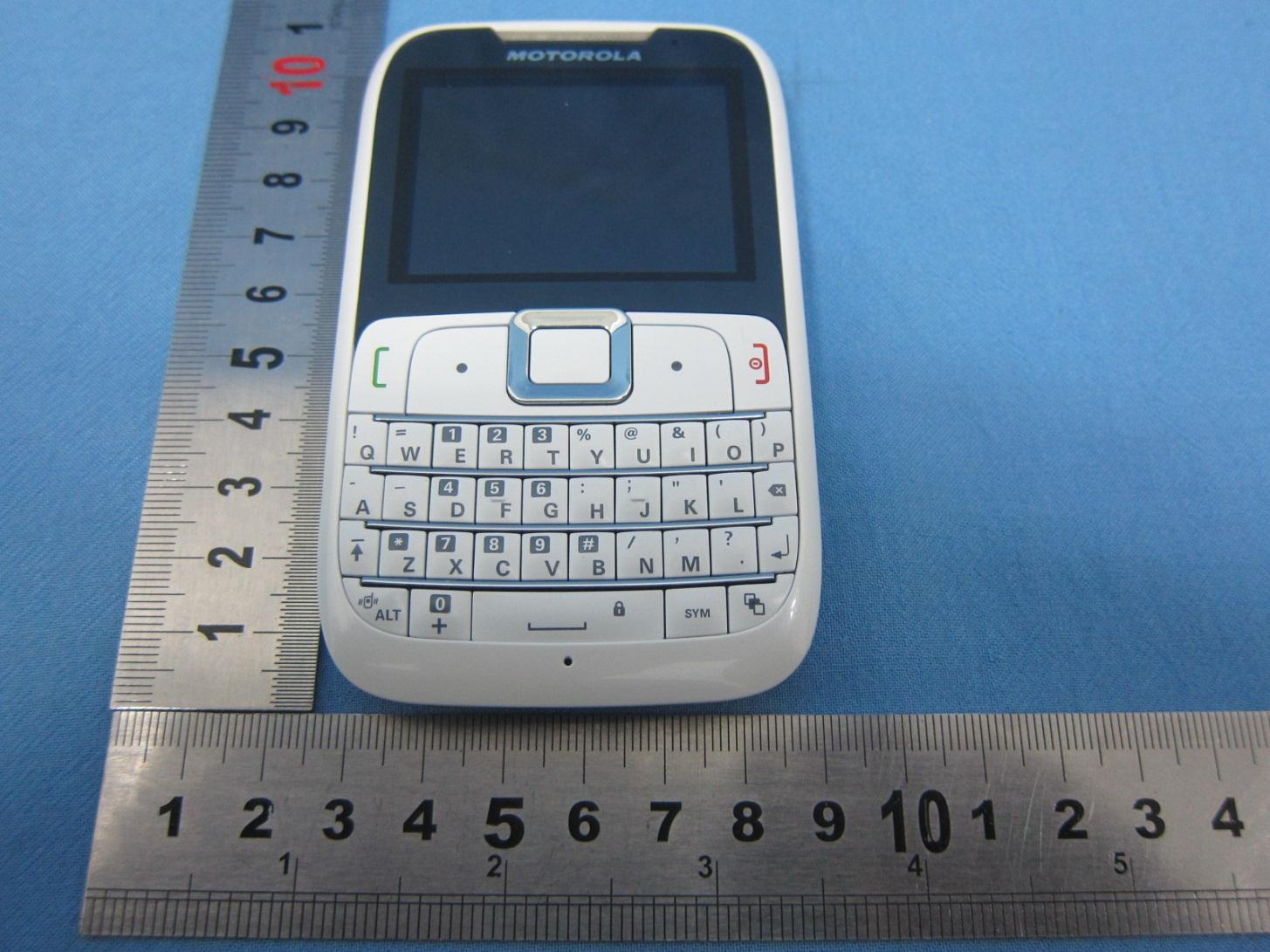

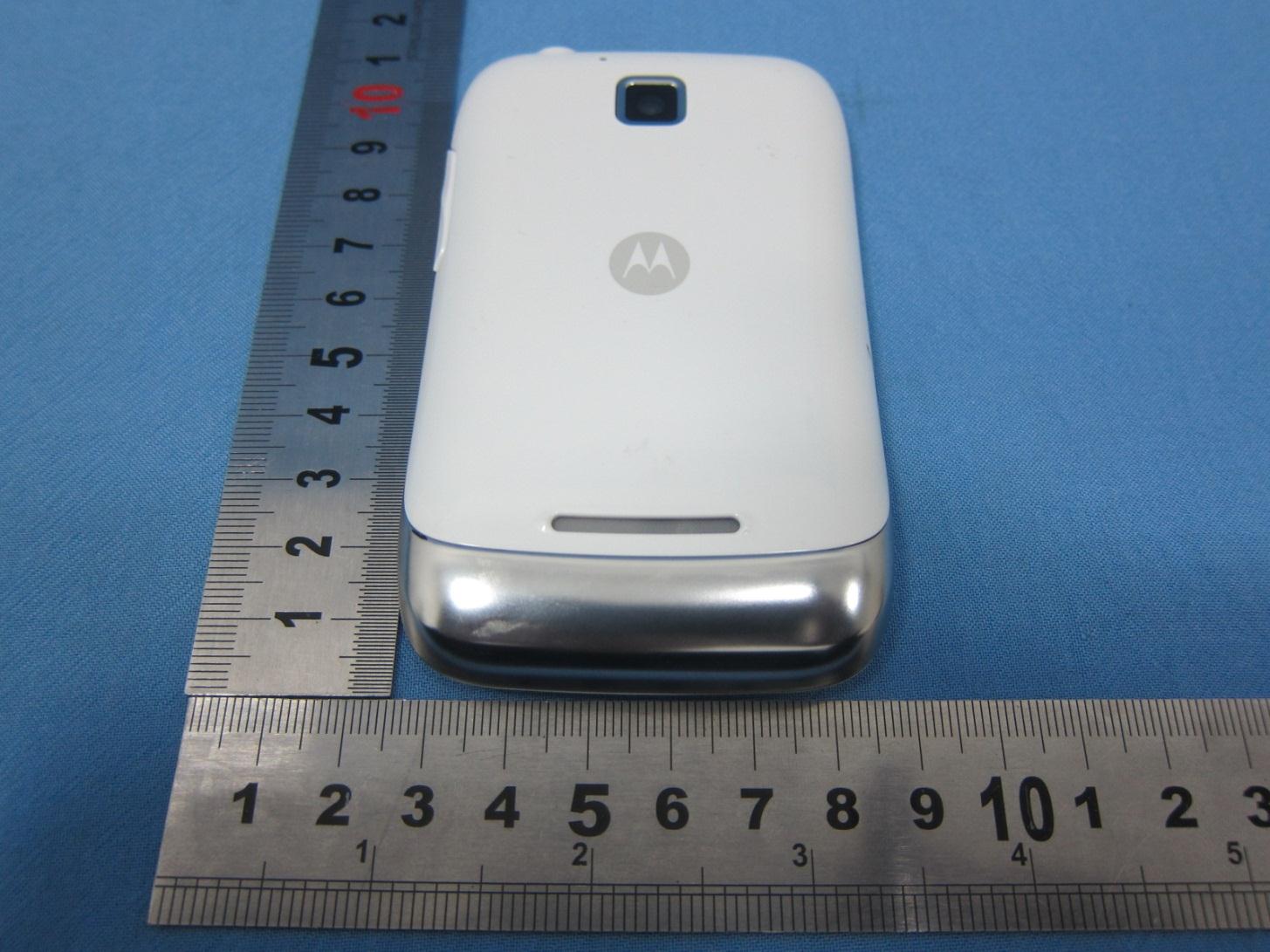

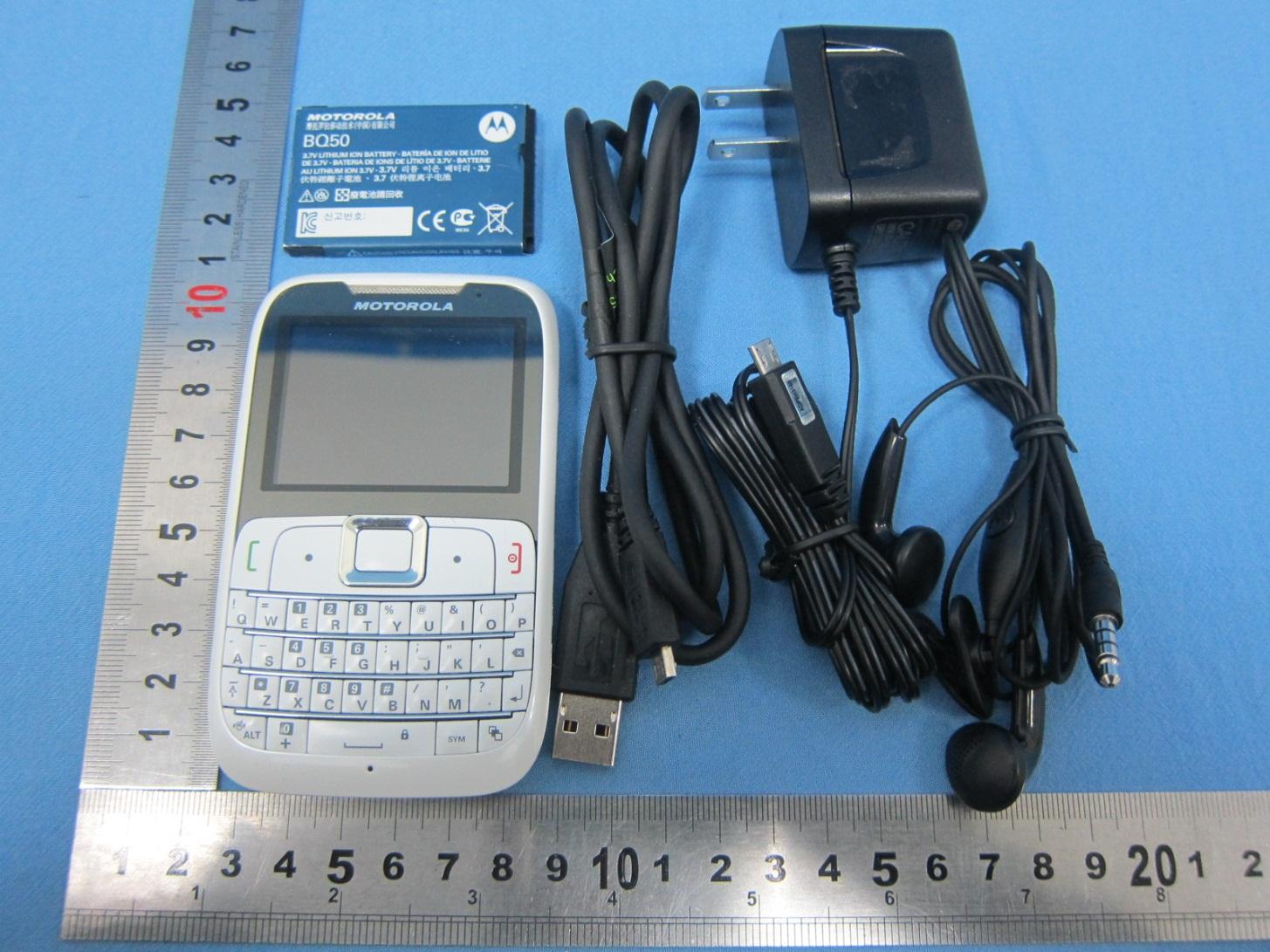

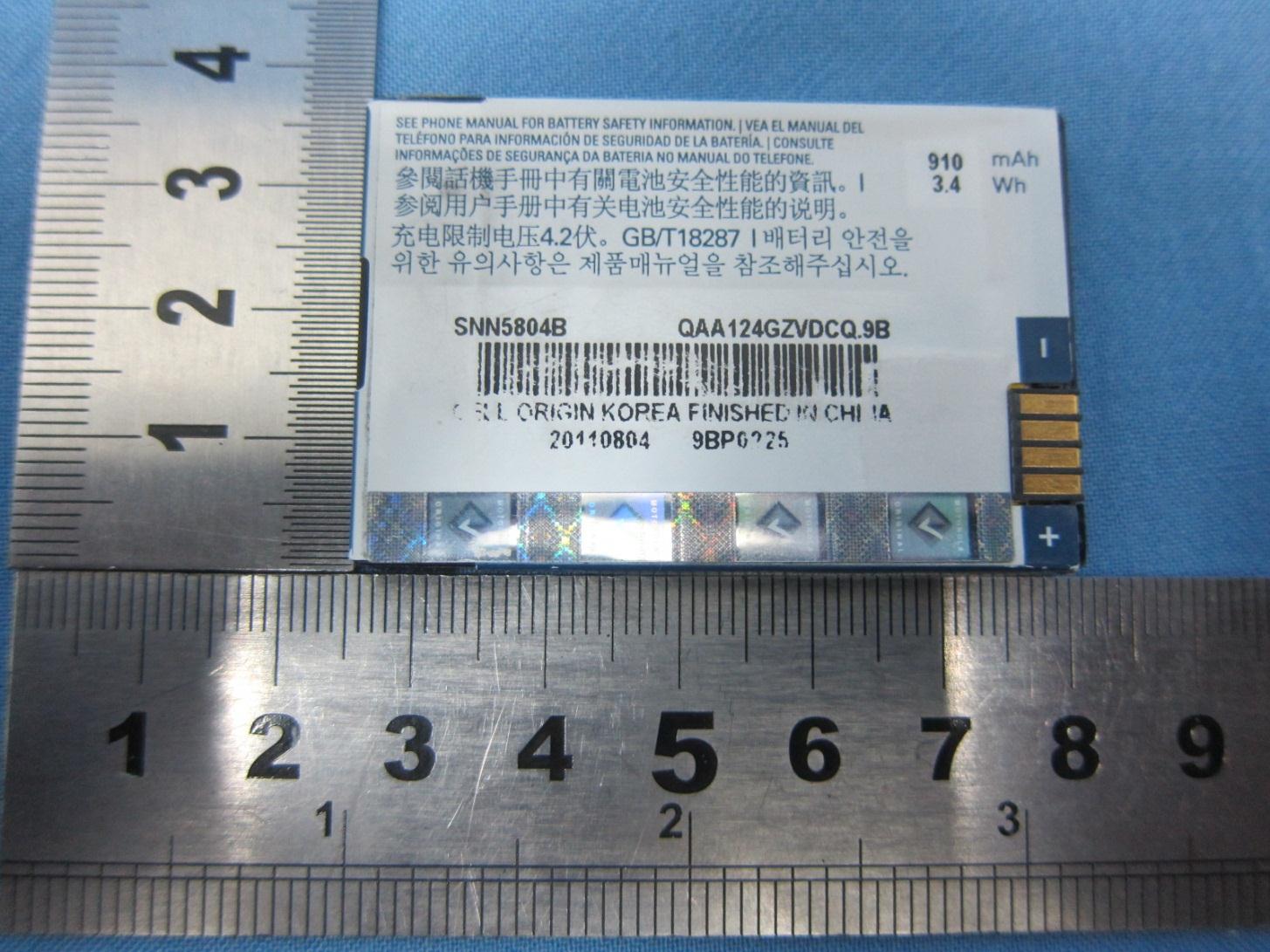

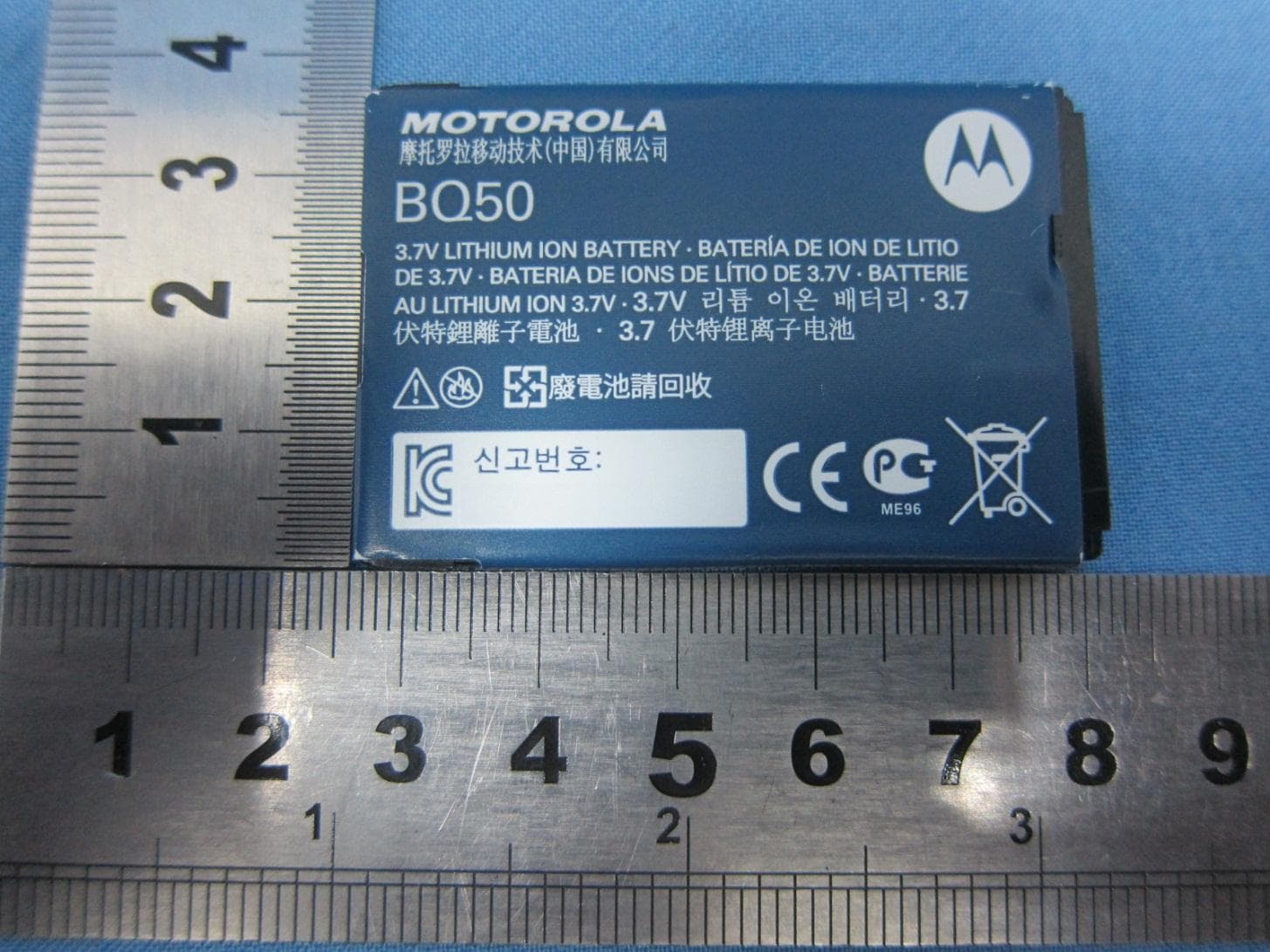

Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 1 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 1. External Photograph of EUT Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 2 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 3 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 4 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 5 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 6 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 720510 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 7 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 List of Accessory: Specification of Accessory AC Adapter Brand Name Motorola Model Name SPN5334A Battery Brand Name Motorola Model Name BQ50 Earphone Brand Name Motorola Model Name SJYN0760A USB Cable Brand Name Motorola Model Name SKN6378A Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 8 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 9 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 10 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 11 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 720510

FCC ID: IHDT56NE2 Mobile Phone (Back) Battery Compartment Label Location

2012/02/01 Handset label Ada Yang Ada Yang Morray hou 201 2/0 2/0 9 Template 3 . 0 75#合成麥拉 MOTO 8258 1:1 1:4 IMEI: 359484040000001 V11100001 MSN:N90U08ZZZZ EX430 FCC ID IHDT56NE1 CHWF2012AA BTAddr：0024EFFABF8A Made in China IMEI: 359484040000001 V11100001 MSN:N90U08ZZZZ MOTOGO!,EX430 FCC ID IHDT56NE2 CHWF2012AA BTAddr：0024EFFABF8A Made in China

Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 12 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 3. Internal Photograph of EUT Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 13 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 14 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 15 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 16 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 17 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 18 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 19 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 20 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 21 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 22 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 23 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 24 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 25 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 26 of 26 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 720510 Bluetooth Antenna <Tx / Rx>

Photographs of EUT Report No.: EP230605 Brand Name: Motorola / Model Name: EX430 / Marketing Name: MOTOGO! , EX430 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 Antenna location Length Width WWAN Antenna <Tx / Rx> 5.1 cm 2.3 cm WLAN Antenna <Tx / Rx> 1.7 cm 0.2 cm Bluetooth Antenna <Tx / Rx> 1.5 cm 0.2 cm 720510 720510 0.2 CM WWAN Antenna <TX / RX> 0.6 CM 2.5 CM 0.6 CM 0.6 CM 4.1 CM 0.6 CM 5 CM 4.7 CM WLAN Antenna <TX / RX> Bluetooth Antenna <TX / RX> 1.4 CM

SPORTON INTERNATIONAL INC. Page Number : 1 of 41 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 FCC SAR Test Report Report No. : FA230605 FCC SAR Test Report APPLICANT : Motorola Mobility, Inc. EQUIPMENT : GSM / WCDMA Mobile Phone BRAND NAME : Motorola MODEL NAME : EX430 MARKETING NAME : MOTOGO! , EX430 GPPD NUMBER : 3325 FCC ID : IHDT56NE2 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 13, 2012 and completely tested on Mar. 18, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 41 TEL : 886-3-327-3456 Report Issued Date : Mar. 21, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE2 FCC SAR Test Report Report No. : FA230605 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Applied Standards .................................................................................................................................................. 7 3.3 Device Category and SAR Limits ........................................................................................................................... 7 3.4 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 6. Tissue Simulating Liquids ...........................................................................................................................................19 7. Uncertainty Assessment .............................................................................................................................................21 8. SAR Measurement Evaluation ....................................................................................................................................23 8.1 Purpose of System Performance check ................................................................................................................23 8.2 System Setup ........................................................................................................................................................23 8.3 Validation Re…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/13 System Check_Head_835MHz_120313 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_120313 Medium parameters used: f = 835 MHz; σ = 0.895 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.39, 6.39, 6.39); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.60 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.7 V/m; Power Drift = -0.058 dB Peak SAR (extrapolated) = 3.70 W/kg SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.65 mW/g 0 dB = 2.65mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/15 System Check_Body_835MHz_120315 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120315 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.498; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.22, 6.22, 6.22); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2011/4/28 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.771 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.556 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 3.8640 SAR(1 g) = 2.55 mW/g; SAR(10 g) = 1.61 mW/g Maximum value of SAR (measured) = 2.789 mW/g 0 dB = 2.790mW/g = 8.91 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/18 System Check_Body_835MHz_120318 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_120318 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.541; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(9.24, 9.24, 9.24); Calibrated: 2011/12/16 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2011/6/17 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.714 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.021 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.6960 SAR(1 g) = 2.52 mW/g; SAR(10 g) = 1.67 mW/g Maximum value of SAR (measured) = 2.721 mW/g 0 dB = 2.720mW/g = 8.69 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/3/13 System Check_Head_1900MHz_120313 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120313 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.2 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 88.8 V/m; Power Drift…

Text truncated - open the document above for the full version.
