IHDT56NE5GSM/EGPRS MOBILE PHONE

68XXXXXXXX-A This product meets the applicable SAR limits of 1.6 W/kg (FCC & IC) and 2.0 W/kg (ICNIRP). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product. Note: When carrying the product or using it while worn on your body, either use an approved accessory such as a holster or otherwise maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with RF exposure requirements. Note that the product may be transmitting even if you are not making a phone call. MOTOGO! TV with DUAL CHIP TM EN Welcome Your MOTOGO!™ TV with DUAL CHIP is stylish and sleek. Music, photos, videos, Wi-Fi, and TV all in one streamlined design. •Mobile TV. Watch your shows whenever you want. •Dual SIM slot. Use two SIM cards without having to swap them out. •Web. Surf your favorite sites with Wi-Fi, right on your phone. We’ve crammed all the main features of your phone into this handy guide, and in a matter of minutes we’ll show you just how easy your phone is to use. You may be surprised at what you discover. Note: Your phone might look a little different from the images in this guide. Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product. Your phone 3.5mm Headset Jack Listen to music or call handsfree. MicroUSB Connector Charge & connect to computer. Microphone Note: for some headsets with hang up buttons, the buttons will not work. Touchscreen Retractable TV Antenna Extend to watch TV. Camera (on back) Open the protective cover to use the MicroUSB connector and phone connector. To help protect your phone, always make sure that the battery cover and any connector covers are closed and secure when you are not using them. Note: important keys Send Key Enter a number & press to call. End Key End calls or exit screens. Home Key Volume Keys Power/ Lock Key messages Send a message Find it: From the home screen, touch > New message. 1Enter your message using the keypad. 2To add pictures, sounds, or videos, touch Insert. 3Enter one or more recipients or touch to select a contact from your phonebook. 4Touch Send to send the message. Note: If you’re using two SIM cards, touch Switch SIM to select which one to use for the message. Read messages When you receive a message, your phone shows a message on . Touch to open the message. Tip: You can read all messages in your inbox by touching . calls Find it: From the home screen, touch . Make calls Enter a number and touch . Note: If you’re using two SIM cards, select which one to use for the call. Answer calls When your phone rings or vibrates, touch . Note: If your keypad is locked, drag up and touch Accept. (You can also drag up if your keypad goes to sleep while you are on a call.) End a call Touch End call. Redial number 1From the home screen, touch to see the Call log. 2Scroll to the entry you want and touch . Emergency calls To call an emergency number, enter the emergency number and touch . Your service provider programs one or more emergency phone numbers that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your pre- programmed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues. Cool down In very limited circumstances, such as where your phone has been exposed to extreme heat, you may see “Cool Down” messages. To avoid possible damage to your battery and phone, you should follow these instructions until the phone is within its recommended temperature range. When your phone is in “Cool Down” mode, only emergency calls can be made. Tips & tricks Vo icemail Touch and hold 1. If your voicemail number is preset, you will connect. Backlight time To set how long your backlight stays on, touch >Settings> Display settings > Screen auto-lock. Select how long your screen is idle until the screen dims. Lock your phone To u ch >Settings > Security settings > Phone and SIM > Phone lock, then enter a password to lock your phone. The code is originally set to 1234. To change your password, in the Security Settings menu, select Phone and SIM > Change password. Note: If you can’t unlock your phone, contact your service provider for help. Music Play music Find it: > Music Tip: You can use other phone features when playing music, but games, radio, and TV turn the audio player off. If you receive a call while playing music, the player pauses automatically. Your music resumes after you end the call. Controls play/pauseTouch or . previous/next song Touch or . fast forward/ rewind Drag the progress bar left or right. volumePress the side volume keys up or down. Menu map Call log Calendar Camcorder Settings Alarm Opera Downloads Gallery Calculator Facebook Gmail File manager App manager Recorder Wi-Fi This is the standard menu layout. Your menu may be a little different. Notes Ta s k s FM radio Sync Email World clock Picture share Converter TV Contacts Dialer Messaging Music let’s go Caution: Please read “Battery Use & Safety” on the back of this guide. 5 Cover on. 4 Battery in. 6Charge up. 4H 1 Cover off. 3 SIM microSIM microSIM + Adapter SIM cards in. 2 microSD in (optional). basics Turn it on & off Press and hold on the side of the phone for a few seconds to turn the phone on/off. Tip: When you first turn on your phone, touch Sign up or Sign in to create or log in a Google account for Gmail and more. Or, touch Next to go to the home screen and log in your account later. To uch tips •Touch: To choose an icon or option. •Drag/Flick: Scroll/move slowly (drag) or quickly (flick). Menu navigation Touch to open the menu. Touch Home to close any menu or app and return to the home screen. Touch to go back. Drag the…

Text truncated - open the document above for the full version.

1/1 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: May 17, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : IHDT56NE5 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: EX440_ExtPho.pdf)  Internal Photos (file: EX440_IntPho.pdf)  Test Setup Photos (file: EX440_Tsup.pdf)  User Manual (file: EX440_UserMan.pdf) The application contains technical information, which Sporton International Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Jones Tsai

Rev. 1/1/03 Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: May 17, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: IHDT56NE5 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: EX440_Schem.pdf) Block Diagram (file: EX440_BlkDia.pdf) Parts List (file: EX440_PartsLst.pdf) Operation Description (file: EX440_OpDes.pdf) Tune up Procedure (file: EX440_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, ________________________ Jones Tsai

FCC ID: IHDT56NE5 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13B - 1 16 May 2012 Authorization of Agent Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Grantee Code IHD. Authorization: I, John Lewczak, the FCC contact for Grantee Code “IHD,” hereby authorize the following company (agent) to act on behalf of Motorola Mobility, Inc. for the application specified below. This includes: • Form 731, Attestation Statement Exhibit, and Confidentiality Request Signatures. • Technical Contact. • Non-Technical Contact. • Test Firm Contact Information. Notifications of grant issuance should be routed to the applicant of record for Grantee Code “IHD,” as should any audit requests concerning this device. Authorized Agent: Jones Tsai, Sporton International, Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien; Taiwan, R.O.C. Specific Application: FCC ID: IHDT56NE5 Contact Information: Please contact me by telephone at (954) 723-6272, or by e-mail ( [email protected]), if there are questions or additional information needed concerning this authorization Regards, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022

FCC ID: IHDT56NE5 Motorola Mobility, Inc., 8000 W. Sunrise Blvd, Suite A; Plantation, FL 33022, USA Pag e 13A - 1 16 May 2012 Power of Attorney RE: Power of Attorney. We, the undersigned Motorola Mobility, Inc. hereby authorize Sporton International, Inc. to act on our behalf in all matters relating to any and all processes required in obtaining FCC approval for FCC ID: IHDT56NE5, and any communication required with the national authority. Any and all acts carried out by Sporton International, Inc. on our behalf shall have the same effects as acts of our own, subject to this Power of Attorney. This Power of Attorney will be effective between 16 May 2012 and 30 June 2012, and will expire thereafter. If you have any questions regarding this authorization, please don’t hesitate to contact us. Sincerely yours, FCC Liaison Motorola Mobility, Inc. 8000 W. Sunrise Blvd, Suite A Plantation, FL 33022 Phone: (954) 723-6272 FAX: (954) 337-2377 Mail: [email protected]

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: May 17, 2012 Statement We, Sporton International Inc., states that our device, FCC ID: IHDT56NE5, has no space to put the label except the battery compartment of this device. The label will be put under the battery inside the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ Jones Tsai

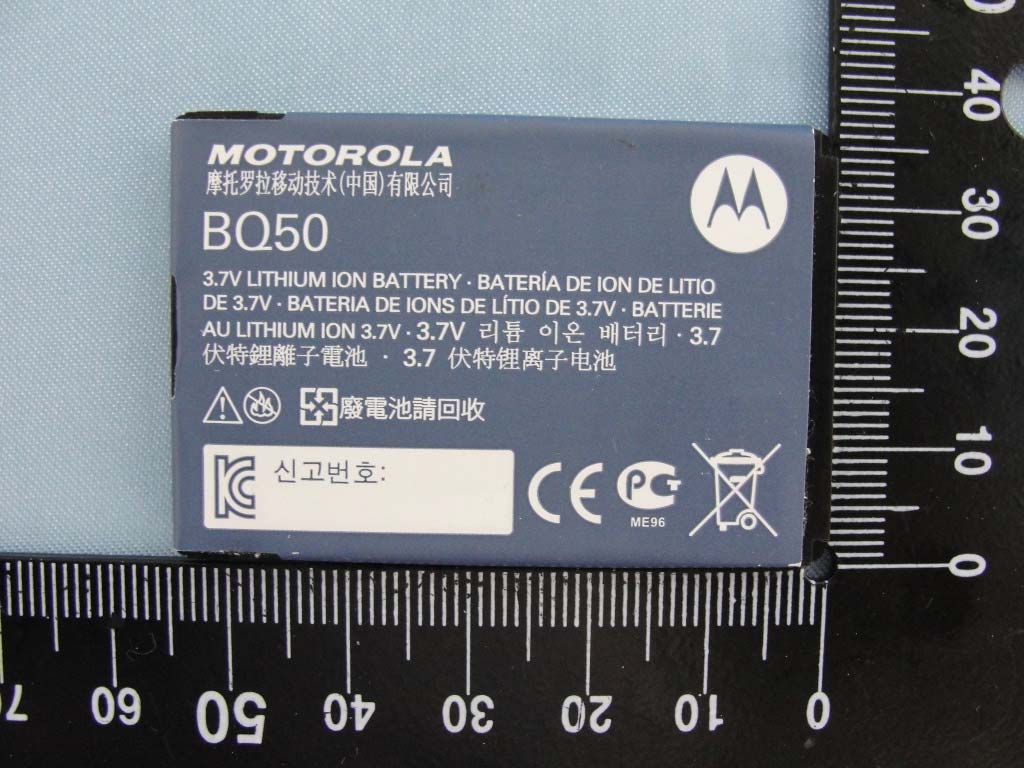

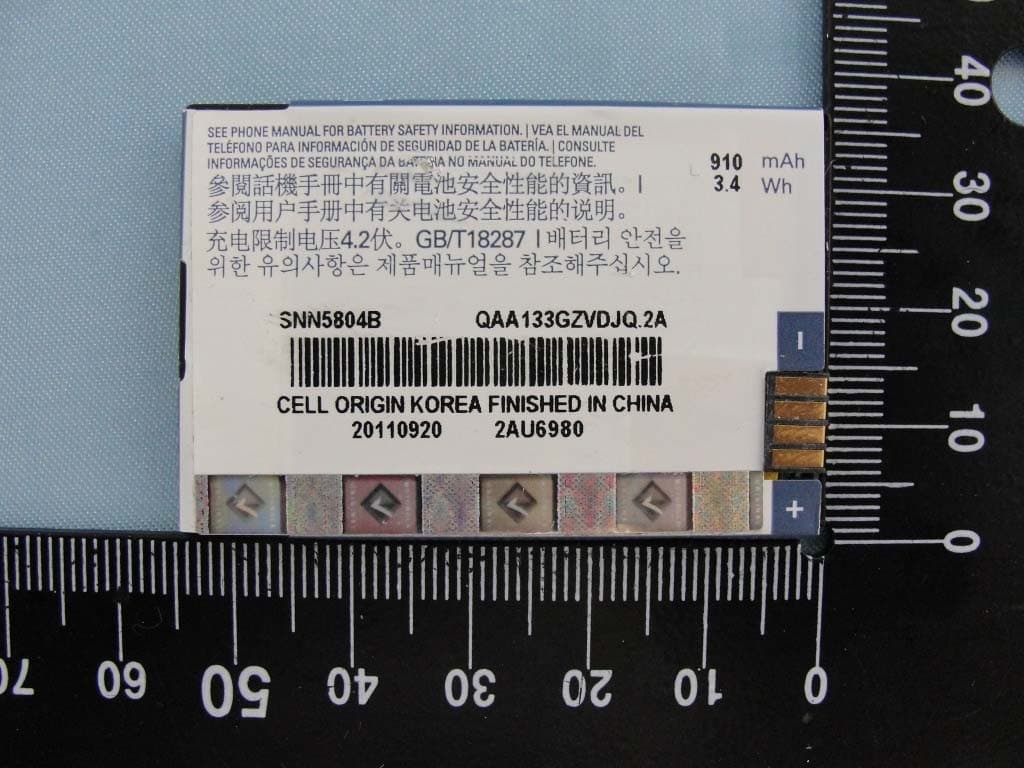

Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 1 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 1. External Photograph of EUT Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 2 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 3 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 List of Accessory: Specification of Accessory AC Adapter Brand Name Motorola Model Name SPN5339A Battery Brand Name Motorola Model Name BQ50 Earphone Brand Name Motorola Model Name SJYN760A USB Cable Brand Name Motorola Model Name SKN6378A Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 4 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 5 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 AC Adapter Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 6 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 Battery Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 7 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5

FCCC ID: IHDT566NE5 EUT (Mob Battery C Label Loc bile Phone) Compartme cation ) Back ent

2012/05/15 Handset label Ada Yang Ada Yang Morray hou 201 2/0 5/1 5 合成麥拉 MOTO 1:1 1:1.5 8262 MSN:P600000001 P-IMEI:351638050000001 S-IMEI:351638050000001 V110000001 FCC ID IHDT56NE5 MOTO GO! TV TM MSN:P600000001 P-IMEI:351638050000001 S-IMEI:351638050000001 V110000001 EX440 EX440 FCC ID IHDT56NE5 MOTO GO! TV TM

Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 8 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 3. Internal Photograph of EUT Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 WWAN & Bluetooth Antenna <Tx / Rx> Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : May. 30, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : IHDT56NE5 TV Antenna <Rx>

Photographs of EUT Report No.: EP241001 Brand Name: Motorola / Model Name: EX440 / Marketing Name: MOTOGO!™ TV SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : May 07, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : IHDT56NE5 Antenna Length Width WWAN & Bluetooth Antenna <Tx / Rx> 5.4 cm 1.8 cm WLAN Antenna <Tx / Rx> 2.6 cm 0.4 cm TV Antenna <Rx> 8.0 cm 0.3 cm 0.3 cm 0.3 cm 0.3 cm 8.7 cm 1.1 cm 0.4 cm 5.0 cm 5.2 cm WLAN Antenna <Tx / Rx> TV Antenna <Rx> WWAN & Bluetooth Antenna <Tx / Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 37 TEL : 86-0512-5790-0158 Report Issued Date : May 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : IHDT56NE5 FCC SAR Test Report Report No. : FA241001 FCC SAR Test Report APPLICANT : Motorola Mobility, Inc. EQUIPMENT : GSM / EGPRS Mobile Phone BRAND NAME : Motorola MODEL NAME : EX440 MARKETING NAME : MOTOGO!™ TV GPPD NUMBER : 3347 FCC ID : IHDT56NE5 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Apr. 10, 2012 and completely tested on Apr. 25, 2012. We, SPORTON INTERNATIONAL (KUNSHAN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 37 TEL : 86-0512-5790-0158 Report Issued Date : May 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : IHDT56NE5 FCC SAR Test Report Report No. : FA241001 Table of Contents Revision History .................................................................................................................................................................3 1. Statement of Compliance ...........................................................................................................................................4 2 Administration Data ....................................................................................................................................................5 2.1 Testing Laboratory .............................................................................................................................................5 2.2 Applicant ............................................................................................................................................................5 2.3 Manufacturer .....................................................................................................................................................5 2.4 Application Details .............................................................................................................................................5 3 General Information ....................................................................................................................................................6 3.1 Description of Device Under Test (DUT) ............................................................................................................6 3.2 Applied Standards .............................................................................................................................................7 3.3 Device Category and SAR Limits ......................................................................................................................7 3.4 Test Conditions ..................................................................................................................................................7 3.4.1 Ambient Condition ....................................................................................................................................7 3.4.2 Test Configuration ....................................................................................................................................7 4 Specific Absorption Rate (SAR) .................................................................................................................................8 4.1 Introduction ........................................................................................................................................................8 4.2 SAR Definition ...................................................................................................................................................8 5 SAR Measurement System .........................................................................................................................................9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration .......................................................................................................................10 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage .....................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : B1 of B1 TEL : 86-0512-5790-0158 Report Issued Date : May 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : IHDT56NE5 FCC SAR Test Report Report No. : FA241001 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 #01 GSM850_Right Cheek_Ch189 DUT: 241001 Communication System: General GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120413 Medium parameters used: f = 836.4 MHz; σ = 0.928 mho/m; ε r = 42.659; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.834 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.141 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.038 W/kg SAR(1 g) = 0.763 mW/g; SAR(10 g) = 0.551 mW/g Maximum value of SAR (measured) = 0.812 mW/g 0 dB = 0.810mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 #02 GSM850_Right Tilted_Ch189 DUT: 241001 Communication System: General GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120413 Medium parameters used: f = 836.4 MHz; σ = 0.928 mho/m; ε r = 42.659; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.374 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.975 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.431 W/kg SAR(1 g) = 0.353 mW/g; SAR(10 g) = 0.274 mW/g Maximum value of SAR (measured) = 0.366 mW/g 0 dB = 0.370mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 #03 GSM850_Left Cheek_Ch189 DUT: 241001 Communication System: General GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120413 Medium parameters used: f = 836.4 MHz; σ = 0.928 mho/m; ε r = 42.659; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.823 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.060 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 1.172 W/kg SAR(1 g) = 0.766 mW/g; SAR(10 g) = 0.515 mW/g Maximum value of SAR (measured) = 0.804 mW/g 0 dB = 0.800mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 #03 GSM850_Left Cheek_Ch189_2D DUT: 241001 Communication System: General GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120413 Medium parameters used: f = 836.4 MHz; σ = 0.928 mho/m; ε r = 42.659; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.823 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.060 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 1.172 W/kg SAR(1 g) = 0.766 mW/g; SAR(10 g) = 0.515 mW/g Maximum value of SAR (measured) = 0.804 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 #04 GSM850_Left Tilted_Ch189 DUT: 241001 Communication System: General GSM; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_835_120413 Medium parameters used: f = 836.4 MHz; σ = 0.928 mho/m; ε r = 42.659; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.402 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.199 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.461 W/kg SAR(1 g) = 0.379 mW/g; SAR(10 g) = 0.289 mW/g Maximum value of SAR (measured) = 0.398 mW/g 0 dB = 0.400mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 #05 GSM1900_Right Cheek_Ch810 DUT: 241001 Communication System: General GSM; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_120413 Medium parameters used: f = 1910 MHz; σ = 1.422 mho/m; ε r = 39.308; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.46, 7.46, 7.46); …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : May 15, 2012 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : IHDT56NE5 FCC SAR Test Report Report No. : FA241001 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 System Check_Head_835MHz_120413 DUT: D835V2 - SN: 4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_120413 Medium parameters used: f = 835 MHz; σ = 0.927 mho/m; ε r = 42.674; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.45, 8.45, 8.45); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM2; Type: SAM; Serial: TP-1477 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.4.5 (3634) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.567 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.487 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.566 W/kg SAR(1 g) = 2.39 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.575 mW/g 0 dB = 2.580mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-4-13 System Check_Body_835MHz_120413 DUT: D835V2 - SN: 4d091 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_120413 Medium parameters used: f = 835 MHz; σ = 0.977 mho/m; ε r = 54.379; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21. °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2011-9-2 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2011-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD…

Text truncated - open the document above for the full version.
